Model Kenmore 253.70066002 ROOM AIR CONDITIONER – Common Parts & Diagrams
01 - COVER

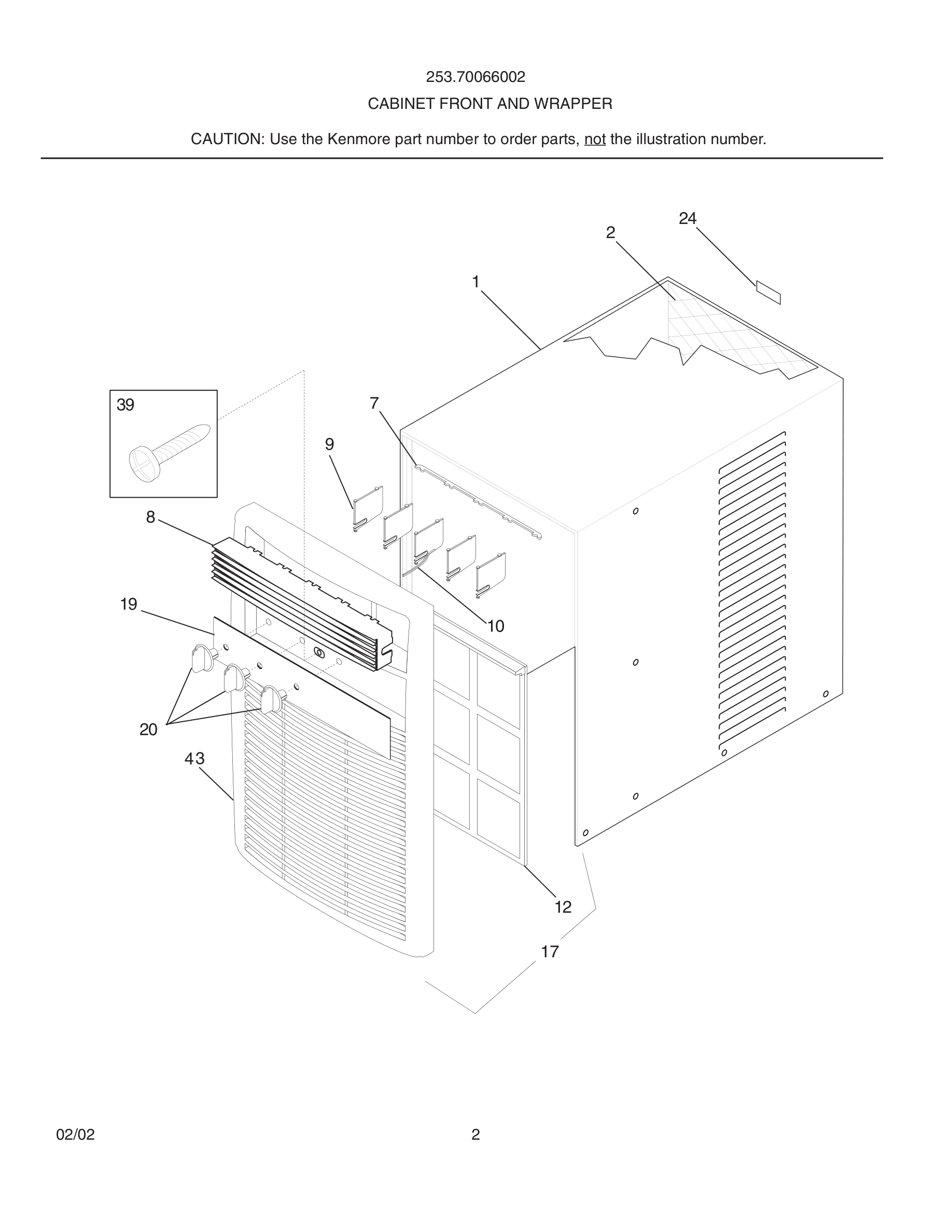

03 - CABINET FRONT AND WRAPPER

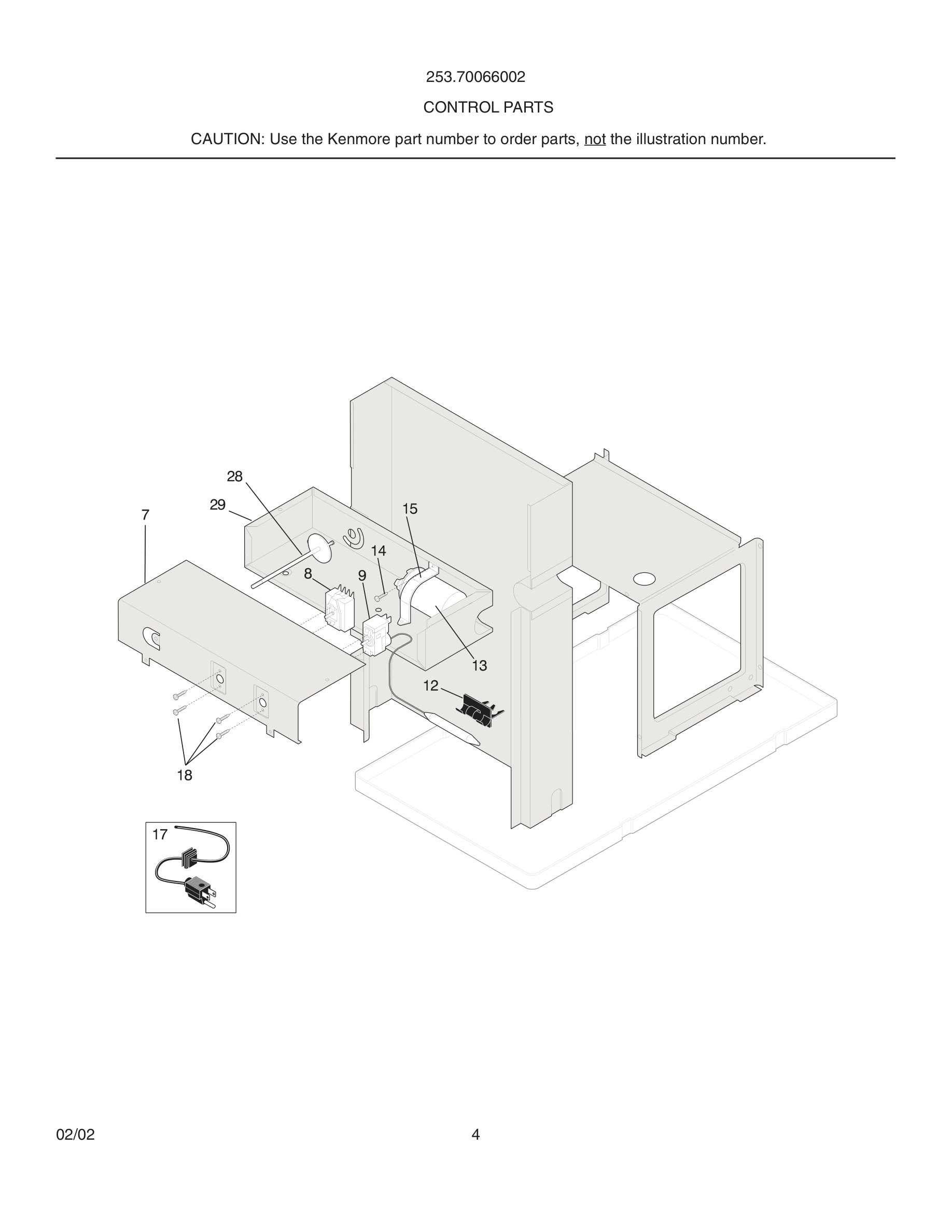

05 - CONTROL PARTS

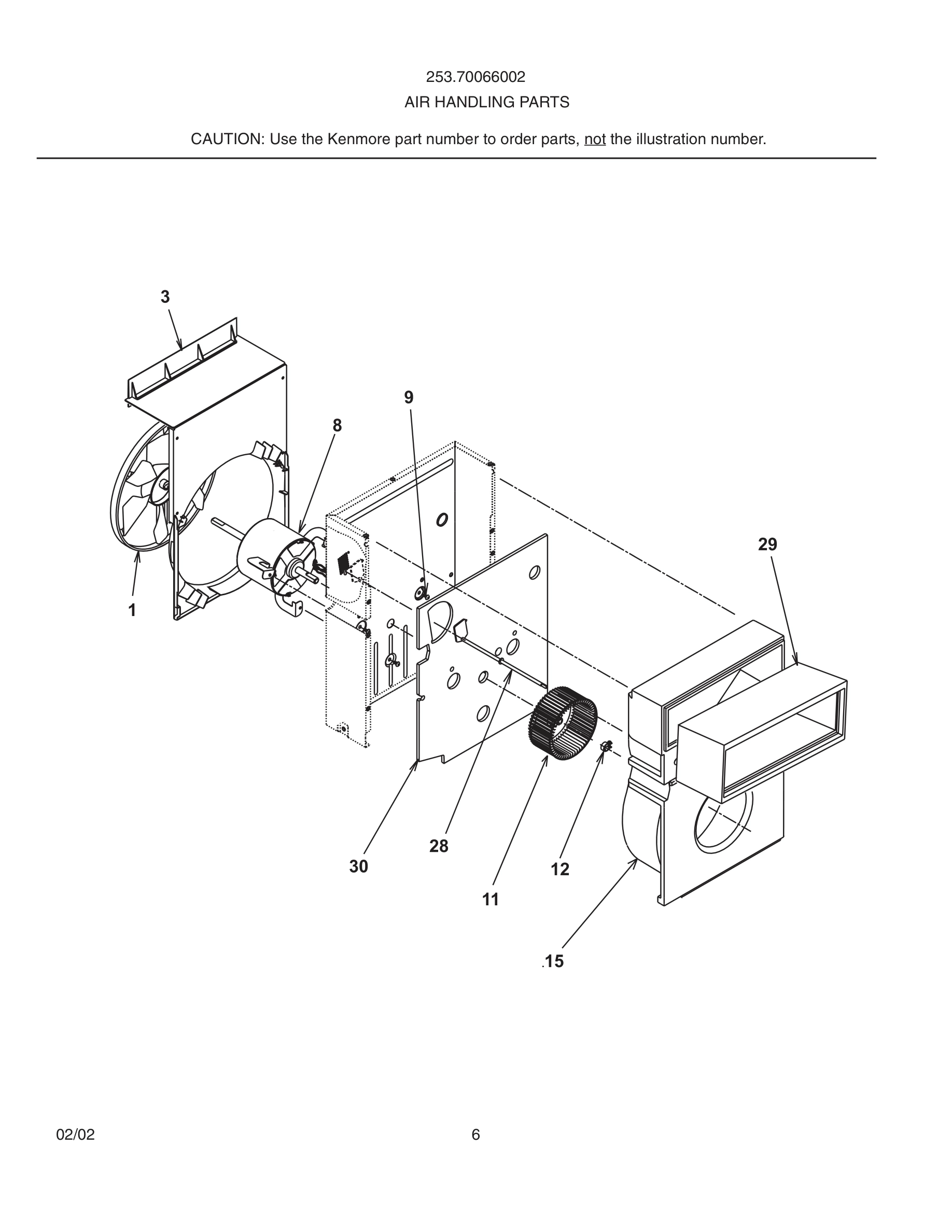

07 - AIR HANDLING PARTS

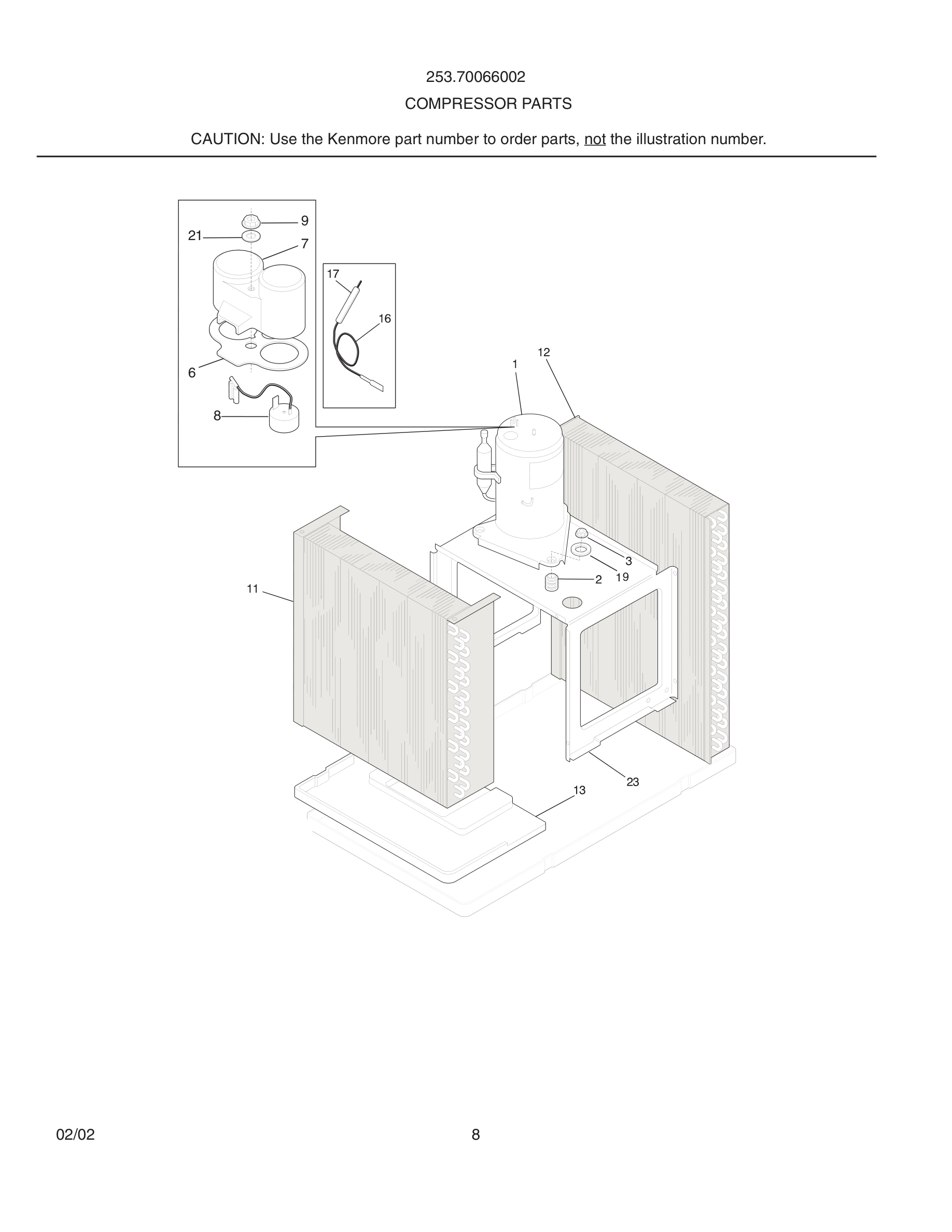

09 - COMPRESSOR PARTS

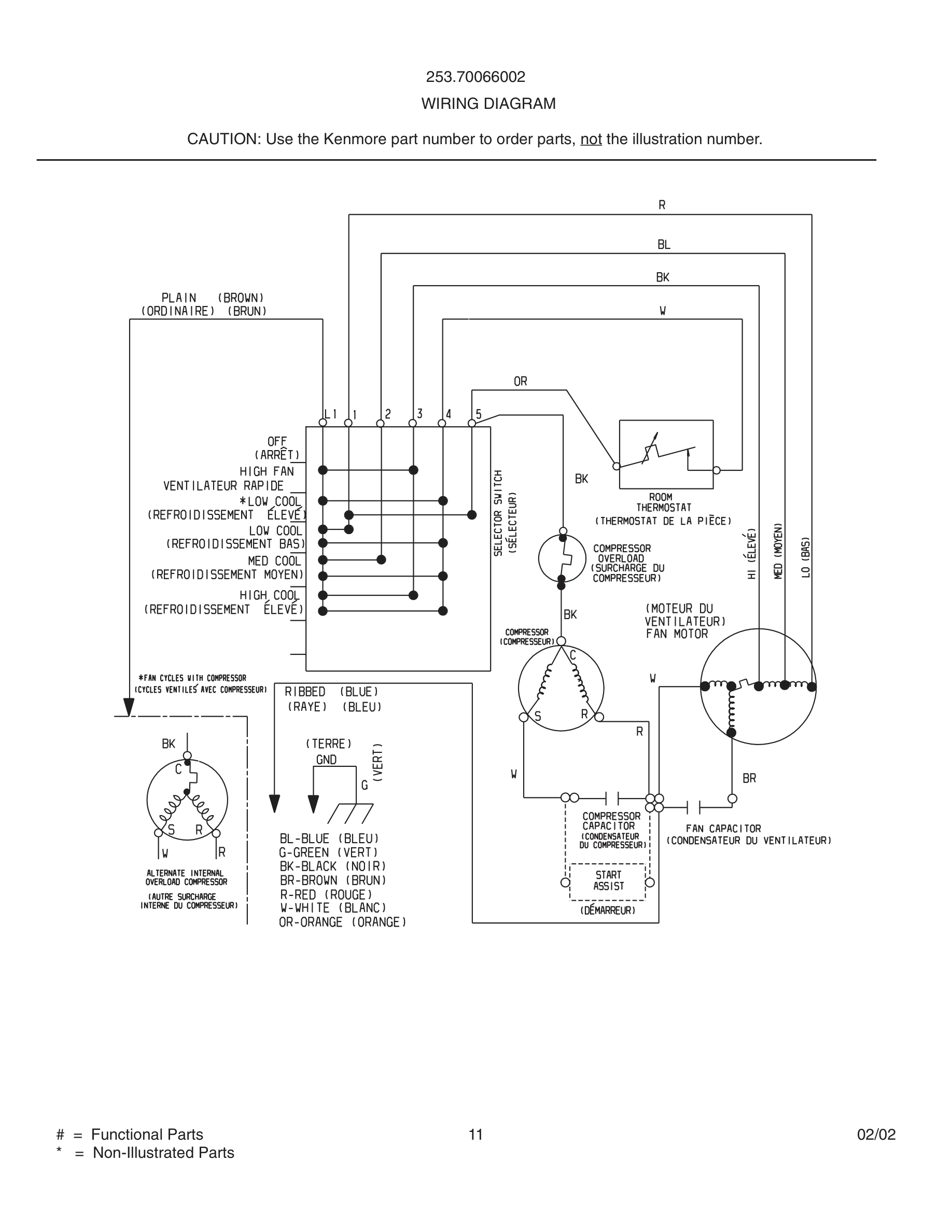

11 - WIRING DIAGRAM
Common parts from model Kenmore 253.70066002 ROOM AIR CONDITIONER
*
Owners Manual WCI 309000817 Contact Us For Availability
*
Repair Parts List,25370066002 WCI 5995366019 Contact Us For Availability
*
Tech Data Sheet,25370066002 WCI 309001284 Contact Us For Availability
*
Energy Guide WCI 309363104 Contact Us For Availability
1
Cabinet,sleeve ,complete assy WCI 309622004 Contact Us For Availability
1#
Fan Blade WCI 309626001 Contact Us For Availability
1#
Compressor WCI 5304410678 Contact Us For Availability
2
Grille,rear WCI 5303317604 Contact Us For Availability
2
Grommet,compressor mtg ,(3) WCI 5303283877 Contact Us For Availability
3
Housing,fan shroud WCI 309642301 Contact Us For Availability
3
Nut,compressor mtg ,(3) WCI 5308006948 Contact Us For Availability
6
Gasket,terminal cover WCI 5303291330 Contact Us For Availability
7
Link,vertical louver WCI 5304414087 Contact Us For Availability
7
Panel-mounting,controls WCI 309606501 Contact Us For Availability
7
Cover,elec terminal ,compressor WCI 5304416126 Contact Us For Availability
8
Louver Assy,Incl-7,8,9,10 WCI 309622504 Contact Us For Availability
8
Louver,horizontal WCI 309622204 Contact Us For Availability
8#
Switch-selector WCI 309322601 Contact Us For Availability
8#
Motor,fan WCI 309646002 Contact Us For Availability
8#
Overload Protector WCI 5303209085 Contact Us For Availability
9
Louver,vertical WCI 309622103 Contact Us For Availability
9
Nut,terminal cover WCI 5303294292 Contact Us For Availability
9#
Control temperature WCI 5304409252 Contact Us For Availability
10
Louver,vertical ,w/handle WCI 309622104 Contact Us For Availability
11#
Blower Wheel,plastic WCI 309625201 Contact Us For Availability
11#
Evaporator WCI 309617003 Contact Us For Availability
12
Filter,air ,front WCI 309622305 Contact Us For Availability
12
Clip,temp sensor mtg ,thermostat WCI 309321201 Contact Us For Availability
12
Clamp,blower wheel WCI 5303012110 Contact Us For Availability
12#
Condenser WCI 309617309 Contact Us For Availability
13
Tray-evaporator WCI 309624101 Contact Us For Availability
13#
Capacitor,370 V ,5+25 mfd WCI 5303302854 Contact Us For Availability
14
Screw,Ph truss hd ,8-18 x 0.38 ,ground WCI 5303285199 Contact Us For Availability
15
Strap,capacitor mtg. WCI 5303303077 Contact Us For Availability
15
Housing,blower scroll WCI 309624801 Contact Us For Availability
16#
Capillary Tube,cut to length WCI 5308017120 Contact Us For Availability
17
Front Assy WCI 309622405 Contact Us For Availability
17#
Cord-electric power,type A ,16 AWG WCI 309343105 Contact Us For Availability
18
Screw,6-32 x 0.188 WCI 5303007754 Contact Us For Availability
19
Dial Plate WCI 309622611 Contact Us For Availability
19
Washer,compressor mtg WCI 5303002664 Contact Us For Availability
19*
Washer,metallic WCI 309112501 Contact Us For Availability
20
Knob,control WCI 309307012 Contact Us For Availability
21
Washer,terminal cover WCI 5303293809 Contact Us For Availability
23
Base,compressor mtg. ,with studs WCI 309614106 Contact Us For Availability
24
Nameplate,Kenmore ,rear grille WCI 5304414348 Contact Us For Availability
28
Door Opener,vent mechanism WCI 309625301 Contact Us For Availability
29
Control Box WCI 309606402 Contact Us For Availability
29
Adapter,scroll/housing ,front WCI 309624901 Contact Us For Availability
30
Plate,scroll/housing ,back WCI 309624601 Contact Us For Availability
43
Frame,cabinet front WCI 309621804 Contact Us For Availability
× ![]()
