Model Electrolux 253.39609991 Refrigerator (Kenmore 25339609991) – Common Parts & Diagrams

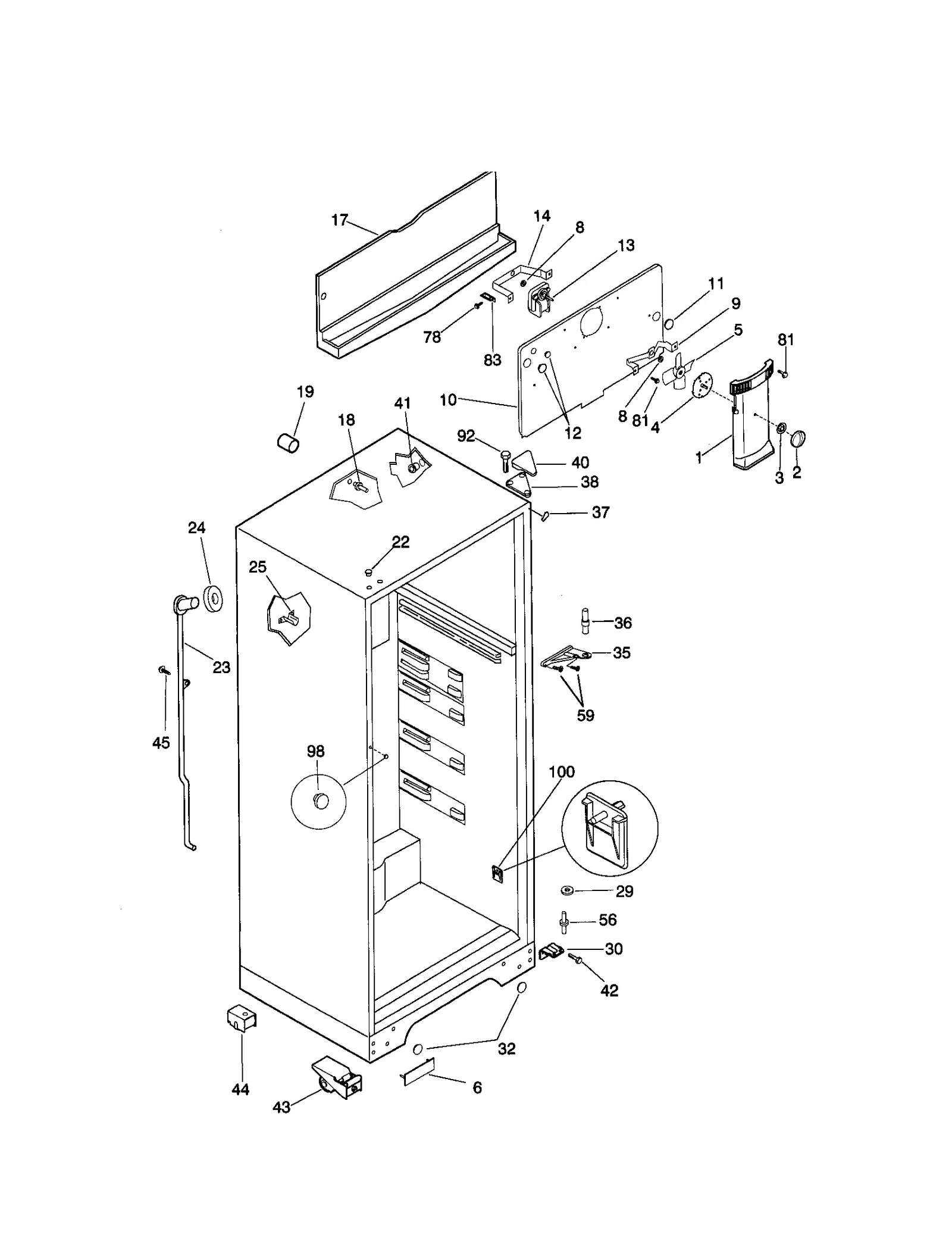

CABINET
All Parts

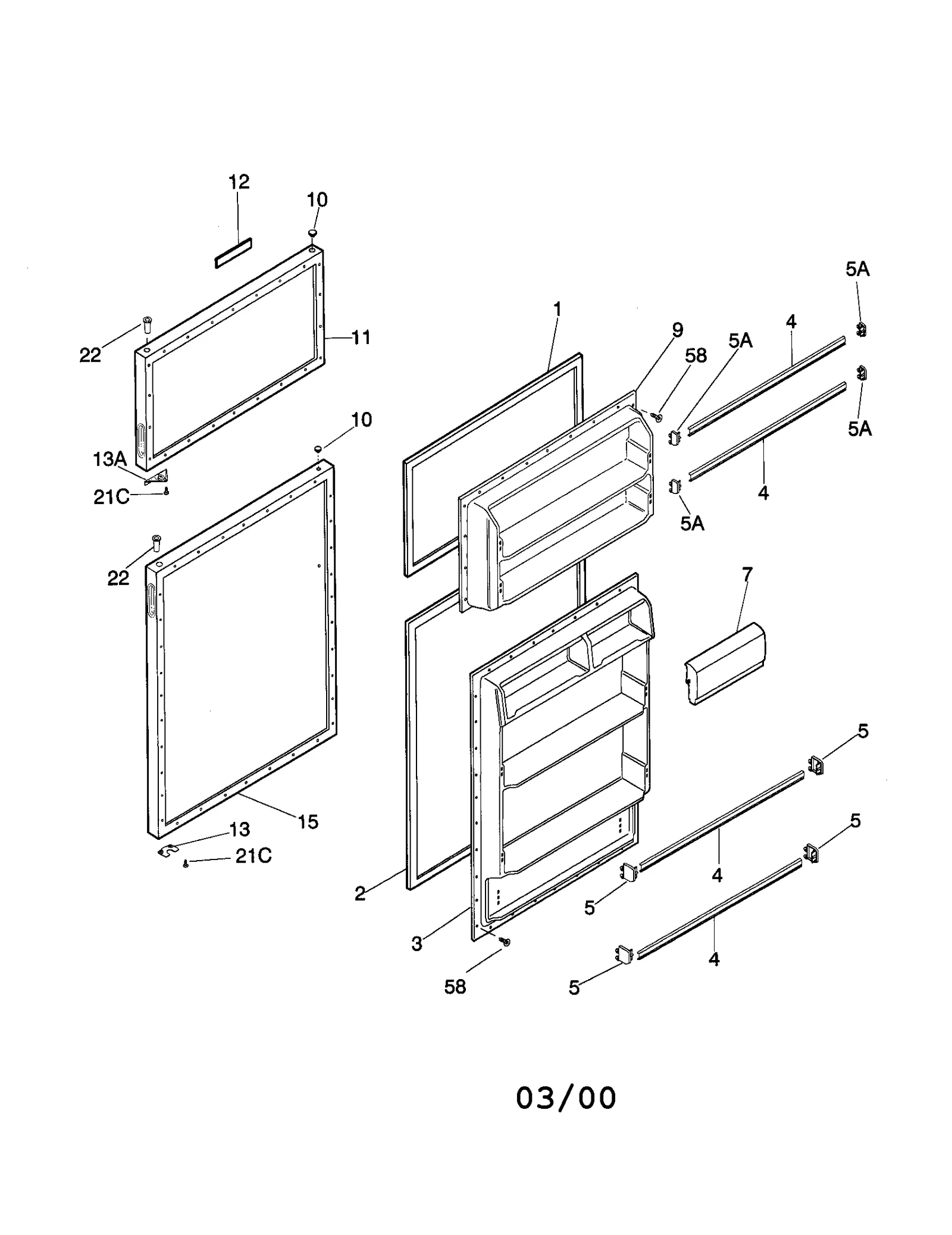

DOOR

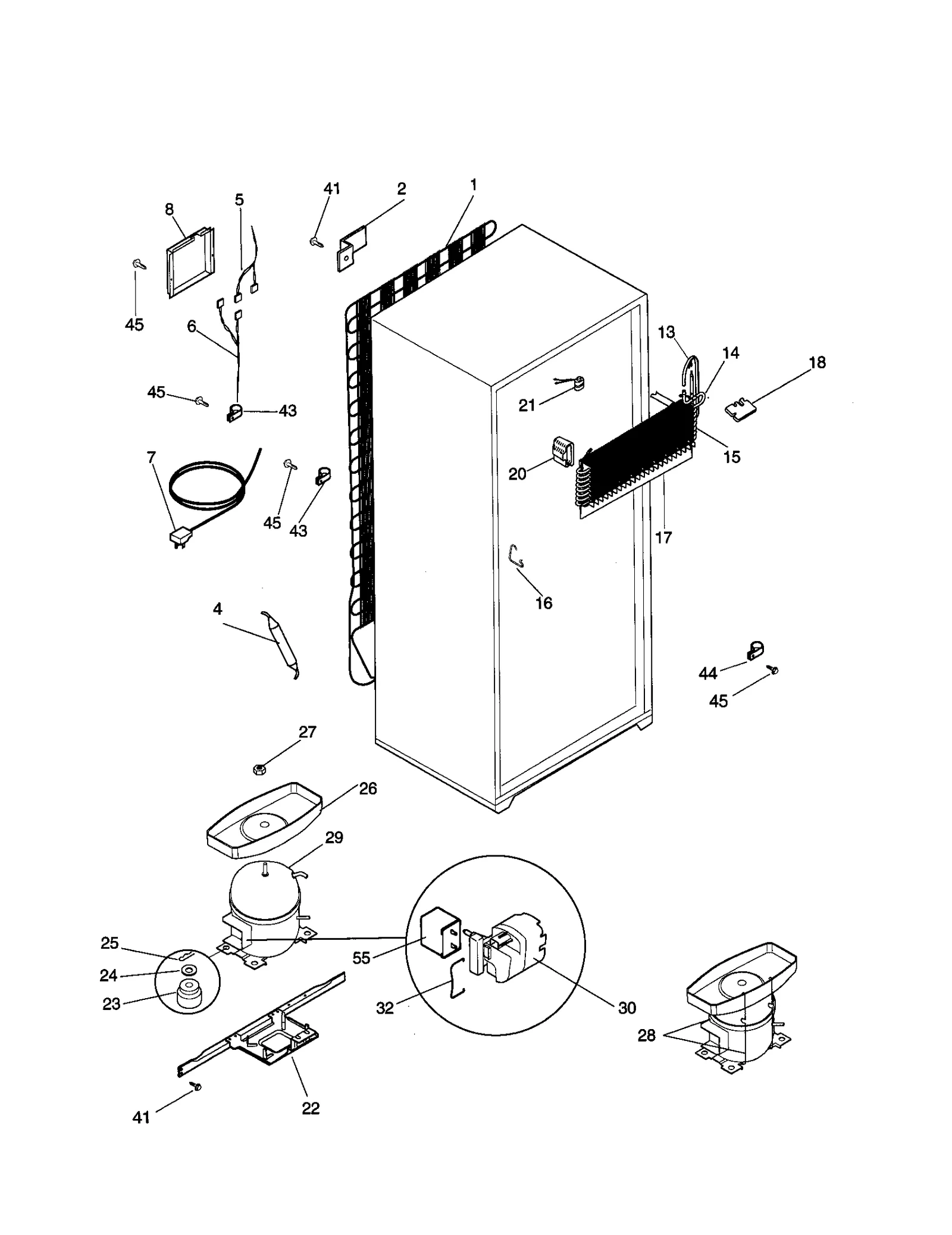

SYSTEM

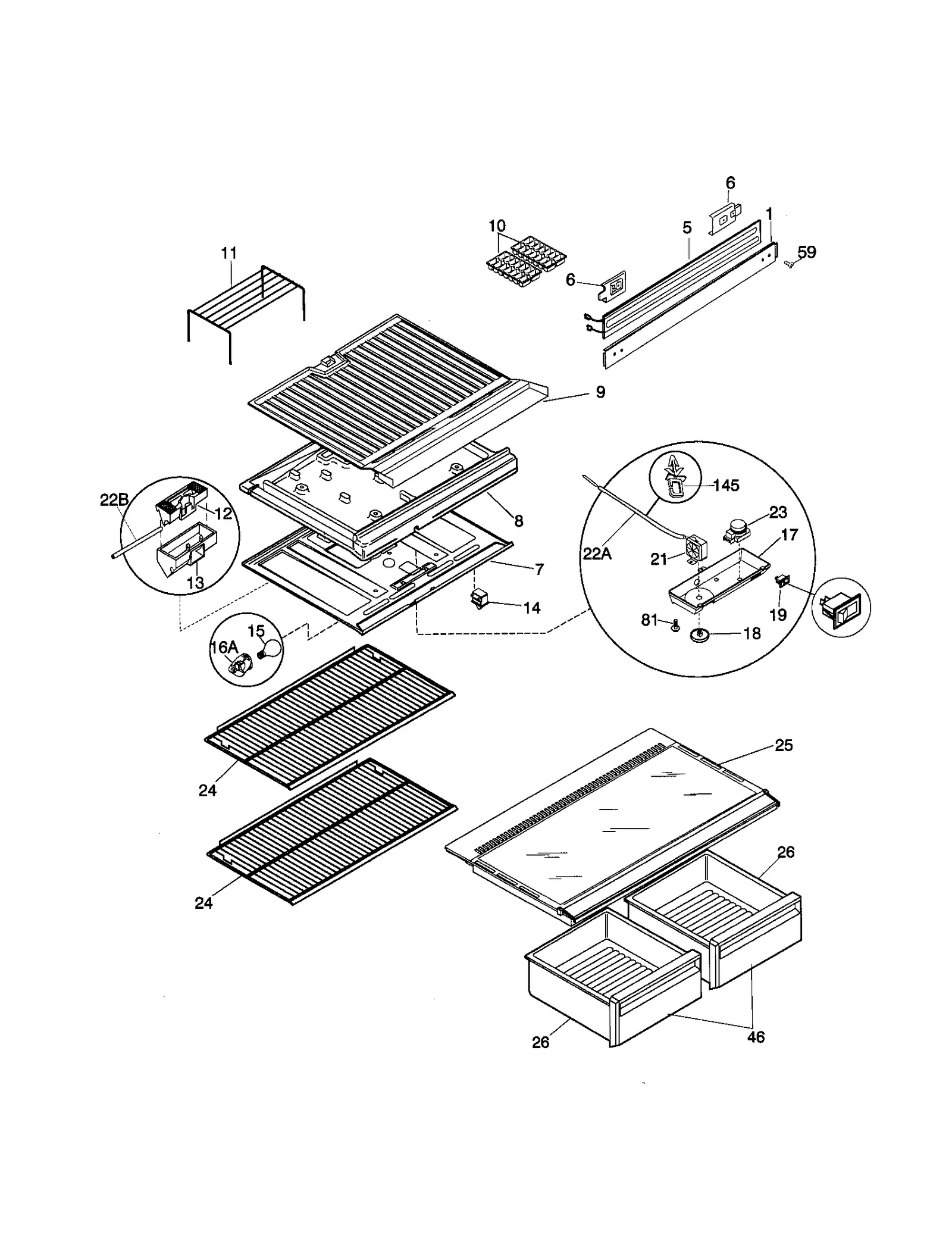

SHELVES
Common parts from model Electrolux 253.39609991 Refrigerator (Kenmore 25339609991)
1
GASKET-FRZR DOOR, WHITE, MAGNETIC WCI 245608911 Contact Us For Availability
1
Refrigerator Condenser WCI 218491000 Contact Us For Availability
1
Refrigerator Mullion WCI 218874411 Contact Us For Availability
1A
Refrigerator Spacer Tube WCI 5303208866 Contact Us For Availability
1A
Refrigerator Mullion WCI 218874401 Contact Us For Availability
2
Refrigerator Bracket WCI 5308000296 Contact Us For Availability
2A
Washer WCI 5308009617 Contact Us For Availability
3
Refrigerator Door Inner Liner WCI 218460801 Contact Us For Availability
5
Heater Mullion WCI 218781001 Contact Us For Availability
5A
SUPPORT-DOOR RACK, RH/LH WCI 215473608 Contact Us For Availability
6
Refrigerator Wire Harness WCI 215257004 Contact Us For Availability
6
Tapping Plate WCI 218845602 Contact Us For Availability
7
Refrigerator Dairy Bin Cover WCI 218287801 Contact Us For Availability
7
Refrigerator Cord WCI 5316254901 Contact Us For Availability
7
PANEL-TOP, REFR CAVITY WCI 218856801 Contact Us For Availability
8
Refrigerator Cover WCI 5303001197 Contact Us For Availability
8
Refrigerator Divider WCI 218872905 Contact Us For Availability
8A
Refrigerator Wire Harness WCI 218878500 Contact Us For Availability
9
PANEL-INNER DOOR, FRZR WCI 21846701 Contact Us For Availability
9
Refrigerator Panel WCI 218865600 Contact Us For Availability
10
Refrigerator Button (Almond) WCI 5303001308 Contact Us For Availability
10A
Refrigerator Door Hinge Hole Cover (White) WCI 5308000134 Contact Us For Availability
11
Refrigerator Outer Panel WCI 218497402 Contact Us For Availability
11
Refrigerator Freezer Shelf WCI 5303283280 Contact Us For Availability
11A
PANEL-FRZR DOOR, WHITE, WITH HANDLES AND FOAM WCI 2184797401 Contact Us For Availability
12
Refrigerator Air Deflector WCI 218730000 Contact Us For Availability
12
Refrigerator Ice Maker Wire Harness Hole Plug WCI 215079000 Contact Us For Availability
12
Insert Nameplate WCI 218835102 Contact Us For Availability
12A
Refrigerator Evaporator Cover Water Supply Tu WCI 215079100 Contact Us For Availability
12A
Insert Nameplate WCI 218835101 Contact Us For Availability
13
Refrigerator Air Damper Cover WCI 218631001 Contact Us For Availability
13
Refrigerator Door Stop WCI 218800300 Contact Us For Availability
13
Refrigerator Heat Exchange WCI 218429305 Contact Us For Availability
13A
Refrigerator Door Stop (Red) WCI 218249002 Contact Us For Availability
13AA
Refrigerator Door Stop (White) WCI 218249001 Contact Us For Availability
14
Refrigerator Defrost Heater WCI 5304403171 Contact Us For Availability
15
Out Ff Panel WCI 218497502 Contact Us For Availability
15
Refrigerator Evaporator WCI 218831101 Contact Us For Availability
15A
Refrigerator Door Panel WCI 218497501 Contact Us For Availability
16
Refrigerator Defrost Clip WCI 218880900 Contact Us For Availability
17
Refrigerator Evaporator Insulation WCI 5316651102 Contact Us For Availability
17
Refrigerator Control Box WCI 5304414816 Contact Us For Availability
17A
Refrigerator Nut Anchor WCI 5308016567 Contact Us For Availability
18
Refrigerator Control Block Evaporator WCI 218871800 Contact Us For Availability
18
Refrigerator Temperature Complete Knob WCI 5303311079 Contact Us For Availability
19
Refrigerator Rocker Switch WCI 5303286905 Contact Us For Availability
20
BLOCK-EVAP COIL, STYROFOAM INSUL, LH WCI 218834100 Contact Us For Availability
21
Refrigerator Temperature Control WCI 5304410440 Contact Us For Availability
21A
Refrigerator Screw WCI 5303001260 Contact Us For Availability
22
Refrigerator Door Hinge Bushing WCI 218519300 Contact Us For Availability
22
Refrigerator Button Plug WCI 215774911 Contact Us For Availability
22
Compressor Plate WCI 218802500 Contact Us For Availability
22B
Refrigerator Air Deflector Tube WCI 218731104 Contact Us For Availability
23
Refrigerator Drain Tube WCI 5303269702 Contact Us For Availability
24
Refrigerator Shelf WCI 218272502 Contact Us For Availability
24
Refrigerator Drain Tube Seal WCI 5303207353 Contact Us For Availability
24
Refrigerator Washer WCI 5308003633 Contact Us For Availability
25
Refrigerator Compressor Mounting Clip WCI 5308003596 Contact Us For Availability
25
Refrigerator Crisper Cover WCI 218227301 Contact Us For Availability
26
Refrigerator Crisper Drawer WCI 3206180 Contact Us For Availability
26
Defrost Drai WCI 215372500 Contact Us For Availability
27
Refrigerator Nut WCI 5303001348 Contact Us For Availability
28
Refrigerator Defrost Drain Pan Retainer Kit WCI 5303916001 Contact Us For Availability
29A
Refrigerator Roller Wheel Washer WCI 5308011326 Contact Us For Availability
30
Refrigerator Door Hinge, Lower WCI 5304409595 Contact Us For Availability
37
Refrigerator Corner Trim (Almond) WCI 5303321082 Contact Us For Availability
37A
Refrigerator Corner Trim WCI 5303321081 Contact Us For Availability
40A
Refrigerator Hinge Cover (White) WCI 3206101 Contact Us For Availability
43C
Refrigerator Washer WCI 5308000186 Contact Us For Availability
46
Refrigerator Crisper Drawer WCI 5303303588 Contact Us For Availability
58
Refrigerator Door Inner Liner Screw WCI 218749600 Contact Us For Availability
81
Refrigerator Screw WCI 5303001380 Contact Us For Availability
83
Refrigerator Bracket WCI 5308000107 Contact Us For Availability
98
Refrigerator Plug Button (Red) WCI 215099711 Contact Us For Availability
98A
Refrigerator Door Hole Plug WCI 215099701 Contact Us For Availability
100
Refrigerator Crisper Drawer Cover Support Stu WCI 5303288973 Contact Us For Availability
145
Refrigerator Clip WCI 218660800 Contact Us For Availability
NI
Refrigerator Door Insulation WCI 5303917276 Contact Us For Availability
NI
Refrigerator Liner Button Hole Plug WCI 5308016571 Contact Us For Availability
× ![]()
