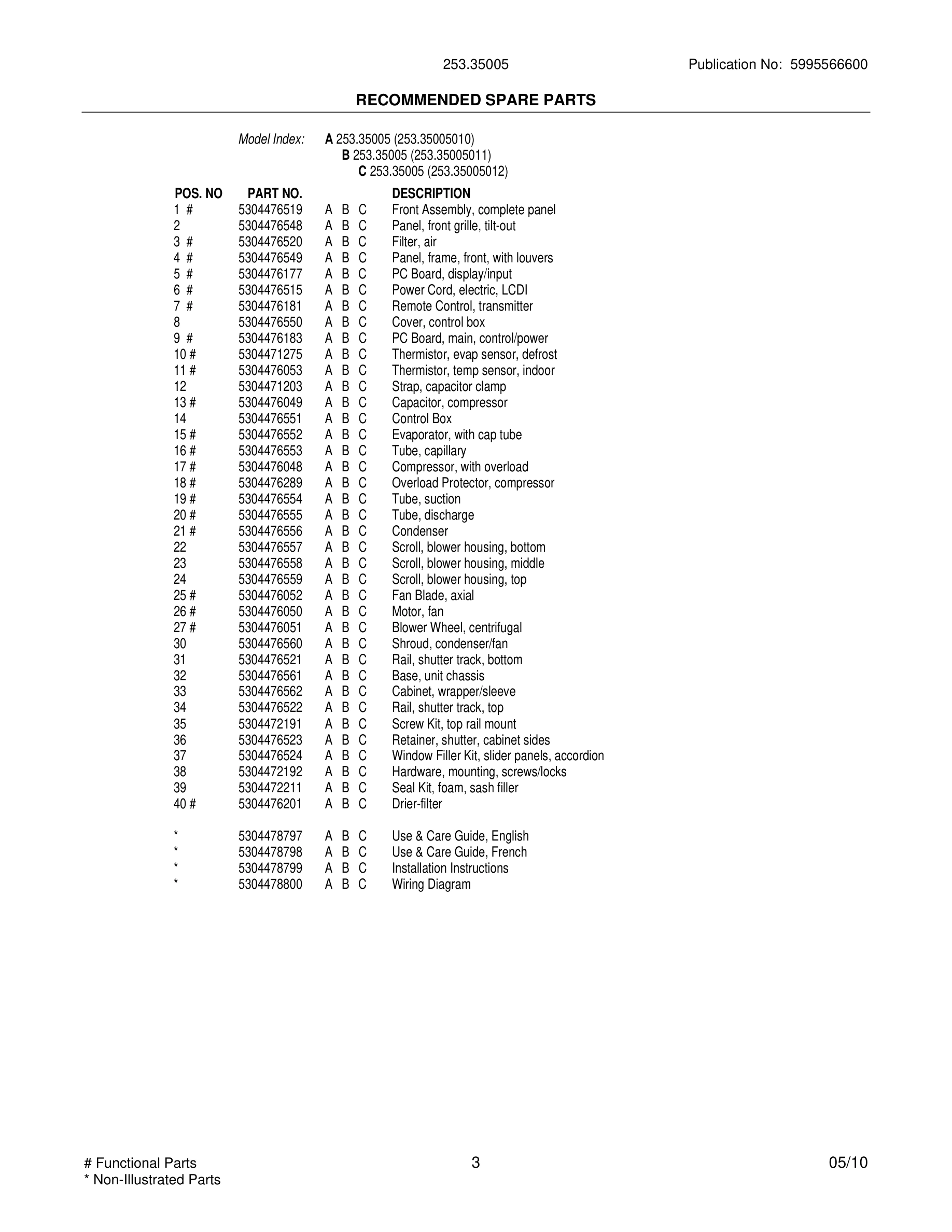

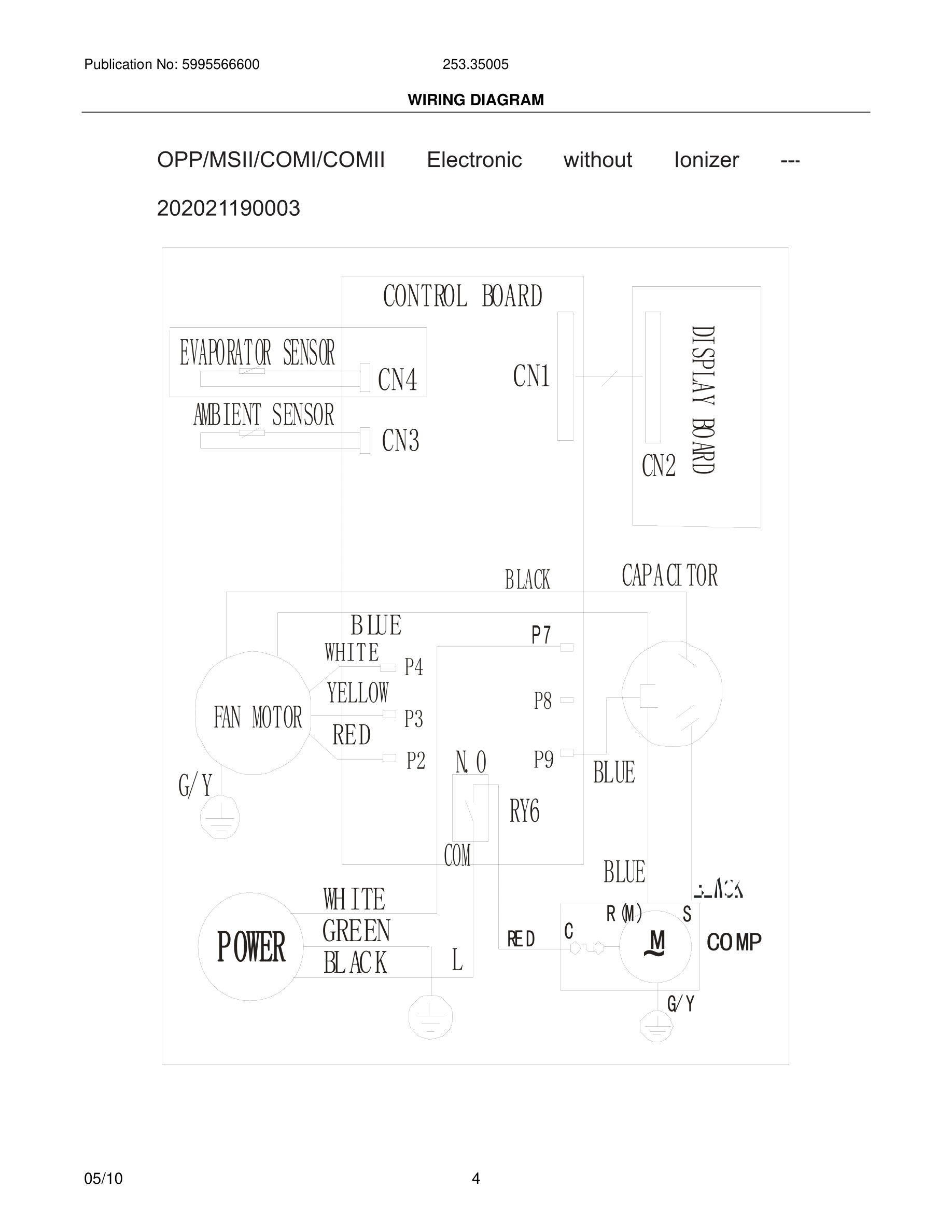

Model Kenmore 253.35005010 ROOM AIR CONDITIONER – Common Parts & Diagrams

3#
Filter, air
Filter, air WCI 5304476520 Contact Us For Availability
View on Model
8
Cover, control box
Cover, control box WCI 5304476550 Contact Us For Availability
View on Model
9#
PC Board, main, control/power
PC Board, main, control/power WCI 5304476183 Contact Us For Availability
View on Model
11#
Thermistor, temp sensor, indoor
Thermistor, temp sensor, indoor WCI 5304476053 Contact Us For Availability
View on Model
12
Strap, capacitor clamp
Strap, capacitor clamp WCI 5304471203 Contact Us For Availability
View on Model
14
Control Box
Control Box WCI 5304476551 Contact Us For Availability
View on Model
15#
Evaporator, with cap tube
Evaporator, with cap tube WCI 5304476552 Contact Us For Availability
View on Model
16#
Tube, capillary
Tube, capillary WCI 5304476553 Contact Us For Availability
View on Model
17#
Compressor, with overload
Compressor, with overload WCI 5304476048 Contact Us For Availability
View on Model
18#
Overload Protector, compressor
Overload Protector, compressor WCI 5304476289 Contact Us For Availability
View on Model
19#
Tube, suction
Tube, suction WCI 5304476554 Contact Us For Availability
View on Model
20#
Tube, discharge
Tube, discharge WCI 5304476555 Contact Us For Availability
View on Model
21#
Condenser
Condenser WCI 5304476556 Contact Us For Availability
View on Model
22
Scroll, blower housing, bottom
Scroll, blower housing, bottom WCI 5304476557 Contact Us For Availability
View on Model
23
Scroll, blower housing, middle
Scroll, blower housing, middle WCI 5304476558 Contact Us For Availability
View on Model
24
Scroll, blower housing, top
Scroll, blower housing, top WCI 5304476559 Contact Us For Availability
View on Model
25#
Fan Blade, axial
Fan Blade, axial WCI 5304476052 Contact Us For Availability
View on Model
26#
Motor, fan
Motor, fan WCI 5304476050 Contact Us For Availability
View on Model
27#
Blower Wheel, centrifugal
Blower Wheel, centrifugal WCI 5304476051 Contact Us For Availability
View on Model
30
Shroud, condenser/fan
Shroud, condenser/fan WCI 5304476560 Contact Us For Availability
View on Model
31
Rail, shutter track, bottom
Rail, shutter track, bottom WCI 5304476521 Contact Us For Availability
View on Model
32
Base, unit chassis
Base, unit chassis WCI 5304476561 Contact Us For Availability
View on Model
33
Cabinet, wrapper/sleeve
Cabinet, wrapper/sleeve WCI 5304476562 Contact Us For Availability
View on Model
34
Rail, shutter track, top
Rail, shutter track, top WCI 5304476522 Contact Us For Availability
View on Model
35
Screw Kit, top rail mount
Screw Kit, top rail mount WCI 5304472191 Contact Us For Availability
View on Model
36
Retainer, shutter, cabinet sides
Retainer, shutter, cabinet sides WCI 5304476523 Contact Us For Availability
View on Model
37
Window Filler Kit, slider panels, accordion
Window Filler Kit, slider panels, accordion WCI 5304476524 Contact Us For Availability
View on Model
38
Hardware, mounting, screws/locks
Hardware, mounting, screws/locks WCI 5304472192 Contact Us For Availability
View on Model
39
Seal Kit, foam, sash filler
Seal Kit, foam, sash filler WCI 5304472211 Contact Us For Availability
View on Model
