Model Electrolux 253.20402002 Freezer (Kenmore 25320402002) – Common Parts & Diagrams

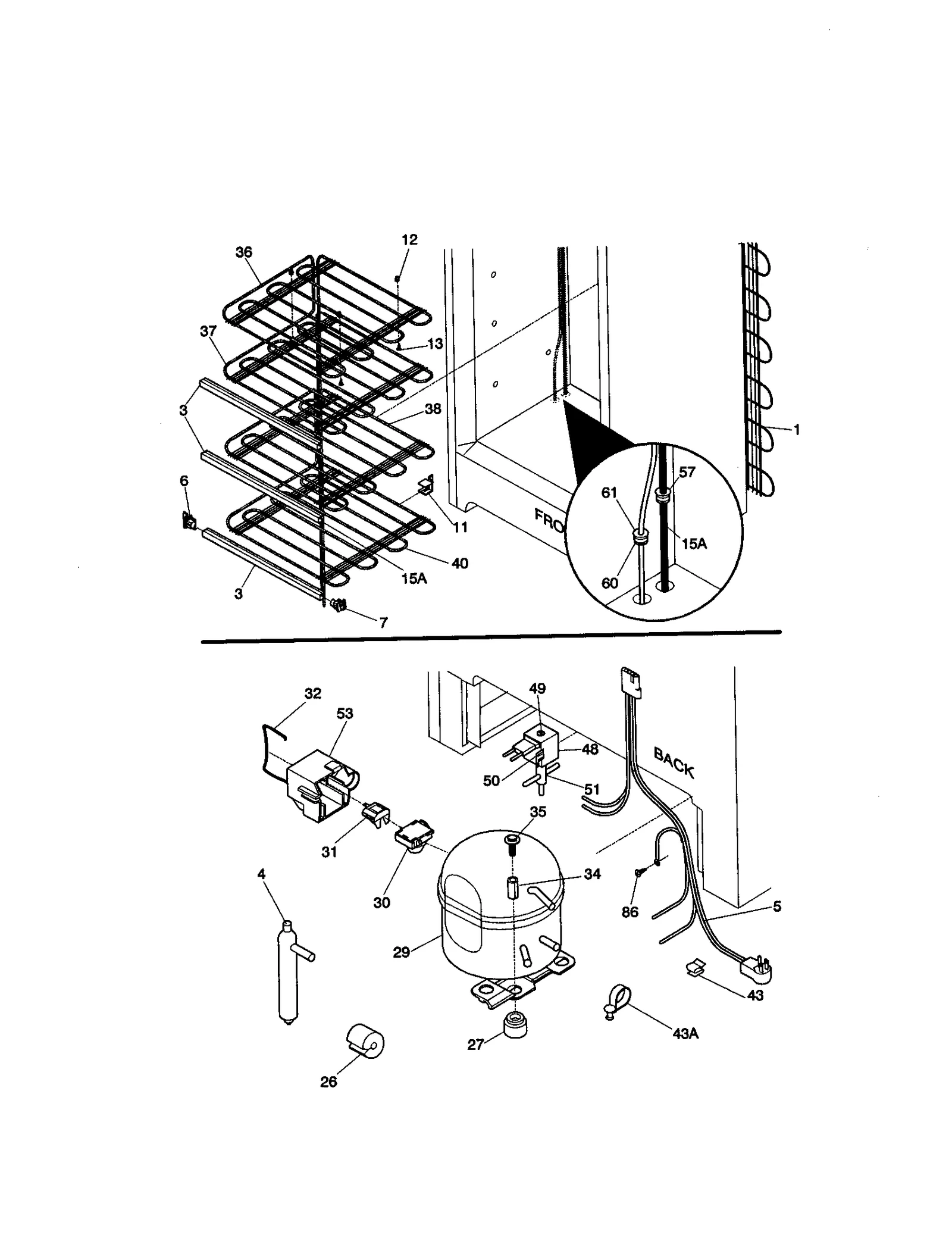

SYSTEM
All Parts
All Parts

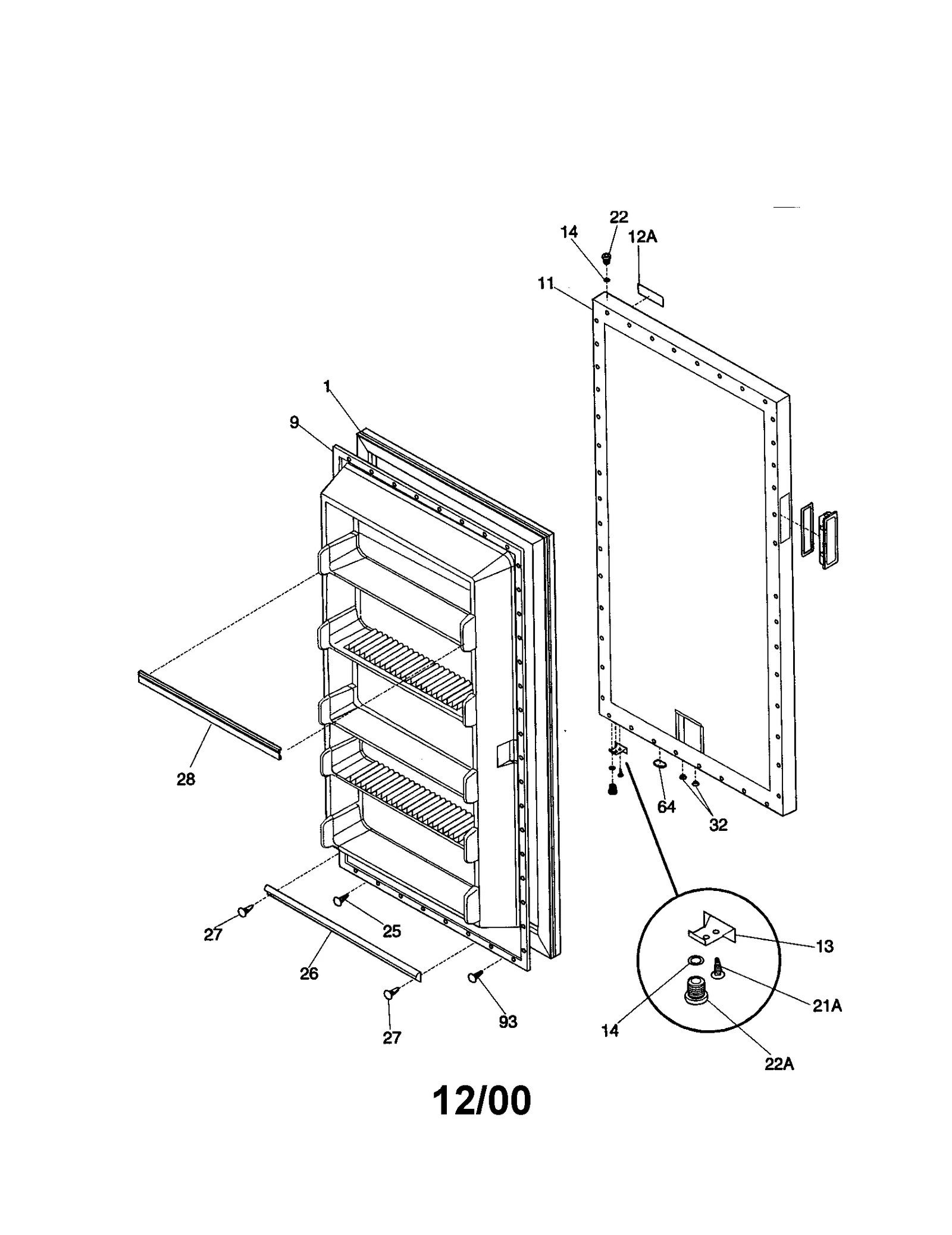

DOOR

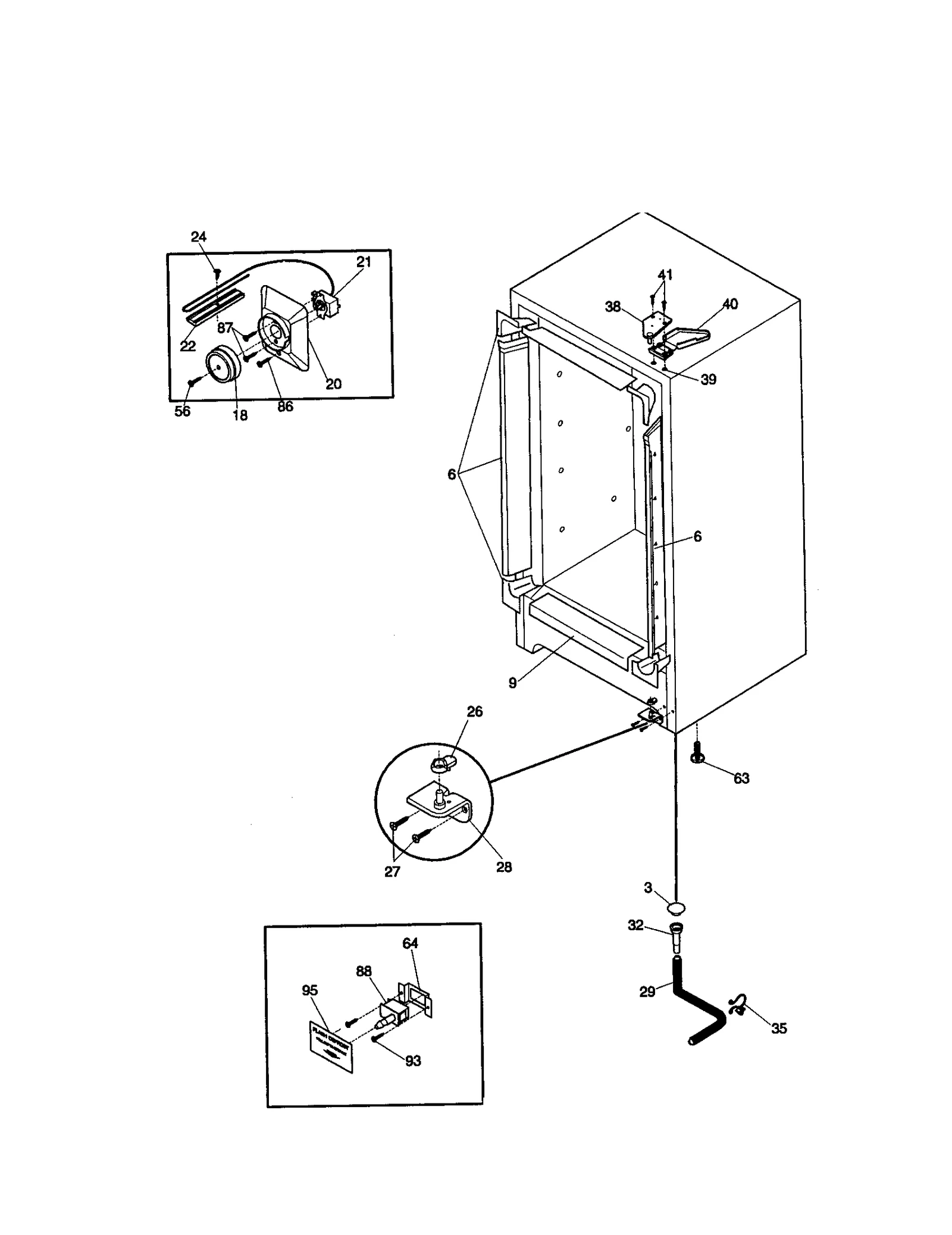

CABINET
Common parts from model Electrolux 253.20402002 Freezer (Kenmore 25320402002)
3
Freezer Drain Plug WCI 216502600 Contact Us For Availability
6
Breaker WCI 216604300 Contact Us For Availability
9
Inner Panel WCI 216527608 Contact Us For Availability
9
Molding WCI 216603400 Contact Us For Availability
11
Freezer Shelf Support WCI 216474600 Contact Us For Availability
11
Outer Panel WCI 216557801 Contact Us For Availability
12
Freezer Door Hinge Bearing WCI 216225700 Contact Us For Availability
12A
Insert Nameplate WCI 216482500 Contact Us For Availability
13
Freezer Door Stop WCI 08016354 Contact Us For Availability
14
Washer WCI 5303313518 Contact Us For Availability
18
Knob WCI 216591802 Contact Us For Availability
20
Housing WCI 5303288184 Contact Us For Availability
21
Freezer Temperature Control Thermostat WCI 216620100 Contact Us For Availability
21A
Screw WCI 08005520 Contact Us For Availability
22
Freezer Door Hinge Bearing WCI 216443600 Contact Us For Availability
22
Clamp WCI 08037931 Contact Us For Availability
24
Screw WCI 5300052943 Contact Us For Availability
25
Freezer Door Inner Liner Screw WCI 216022800 Contact Us For Availability
26
Freezer Door Closer Bearing WCI 216503300 Contact Us For Availability
26
Gasket WCI 216524300 Contact Us For Availability
27
Refrigeration Appliance Screw, 1/4-20 x 1-in WCI 5303205738 Contact Us For Availability
28
Drive Rack WCI 216607402 Contact Us For Availability
28
Hinge WCI 216247400 Contact Us For Availability
32
Freezer Breather Valve WCI 5309950074 Contact Us For Availability
34
Sleeve WCI 5306594529 Contact Us For Availability
35
Freezer Compressor Mounting Screw WCI 5303272328 Contact Us For Availability
38
Hinge WCI 5303925086 Contact Us For Availability
39
Nut Insert WCI 5303294372 Contact Us For Availability
40
Hinge Cover (White) WCI 5303212912 Contact Us For Availability
41
Screw WCI 5303212937 Contact Us For Availability
56
Screw WCI 09950853 Contact Us For Availability
60
Tubing-hot G WCI 216500600 Contact Us For Availability
61
Hot Gas Plug WCI 216694400 Contact Us For Availability
64
Freezer Breather Valve WCI 216403700 Contact Us For Availability
64
Bracket WCI 216009200 Contact Us For Availability
87
Screw WCI 08037849 Contact Us For Availability
88
Freezer Flash Defrost Switch WCI 216380500 Contact Us For Availability
95
Def Swt Lab WCI 216737900 Contact Us For Availability
NI
Freezer Drain Tube Insulation WCI 09948773 Contact Us For Availability
NI
Refrigerator Suction Line Sleeve WCI 216502500 Contact Us For Availability
NI
Service Data WCI 216738300 Contact Us For Availability
NI
Clip WCI 5303208622 Contact Us For Availability
NI
Parts List WCI 5995342770 Contact Us For Availability
× ![]()
