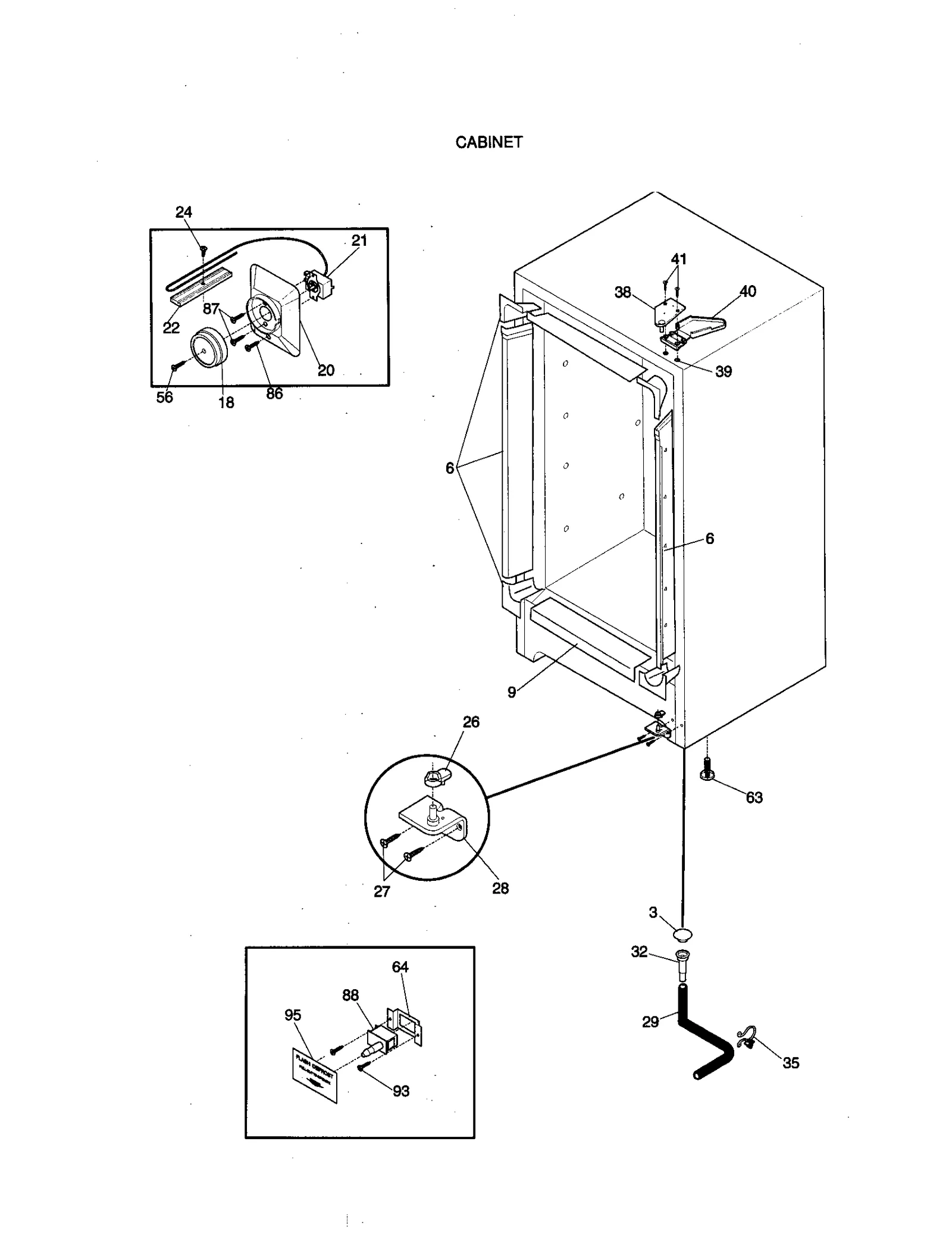

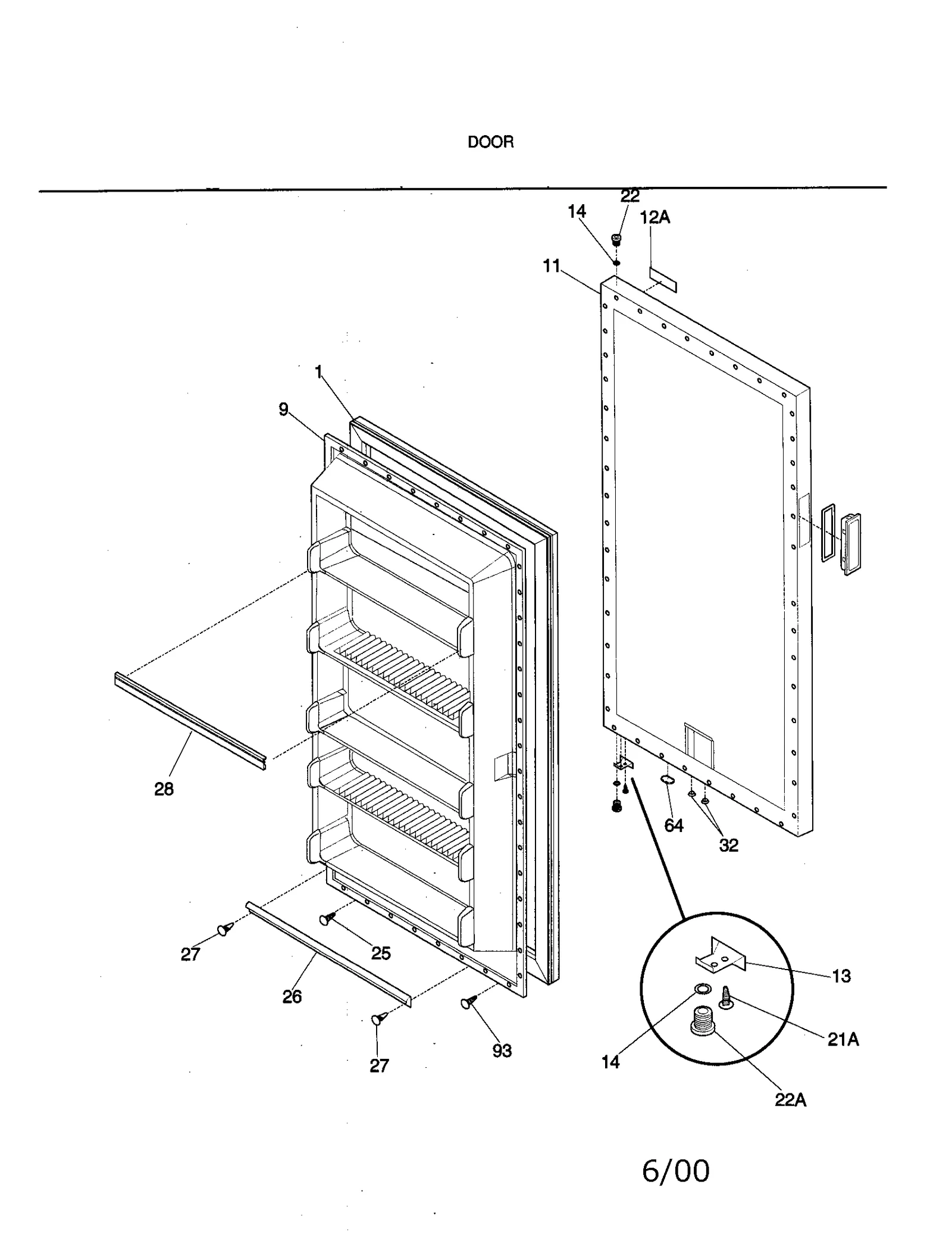

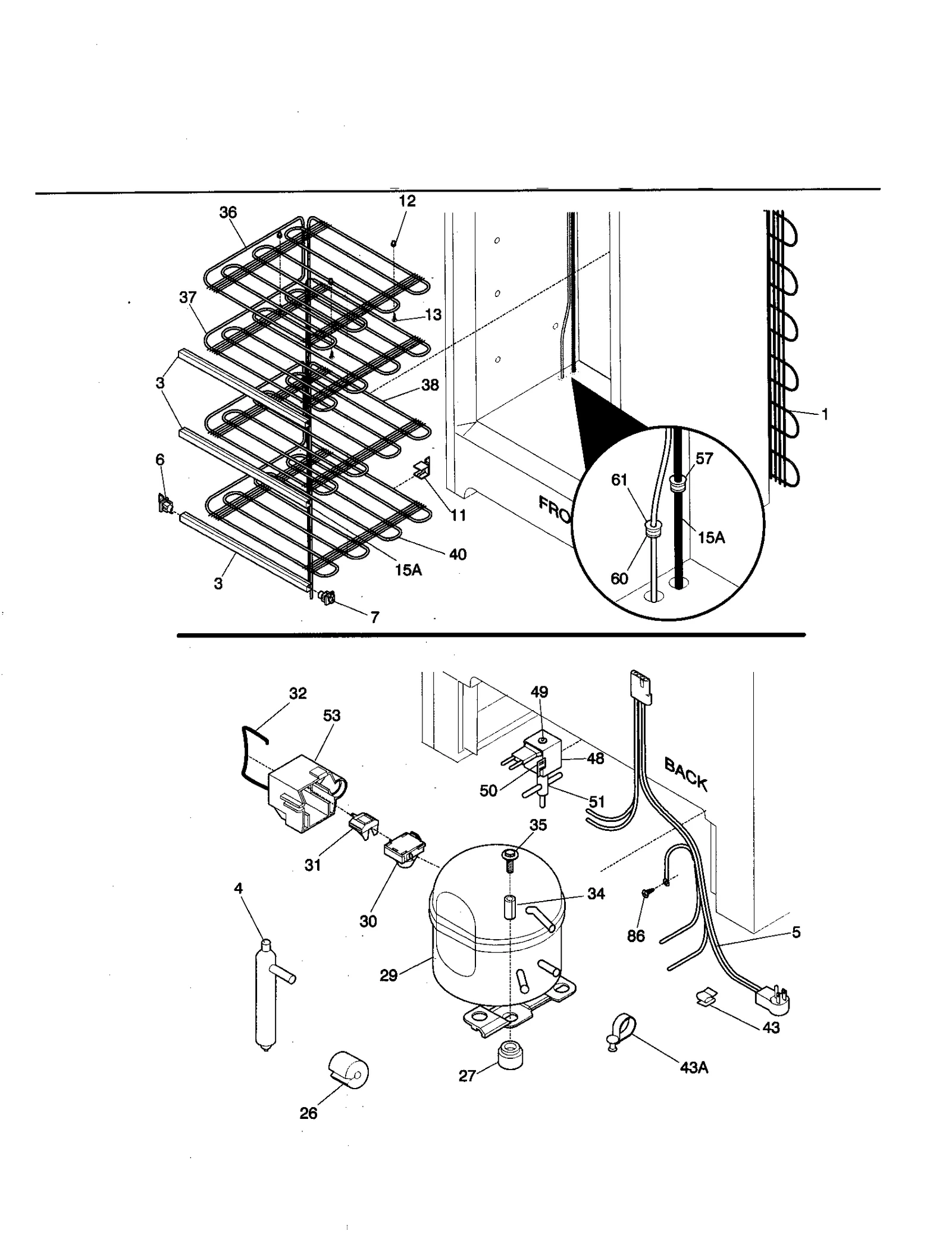

Model Electrolux 253.20402000 Upright Freezer (Kenmore 25320402000) – Common Parts & Diagrams

3
Freezer Drain Plug
Freezer Drain Plug WCI 216502600 Contact Us For Availability
View on Model
5
Main Harness
Main Harness WCI 216561600 Contact Us For Availability
View on Model
9
Inner Panel
Inner Panel WCI 216527608 Contact Us For Availability
View on Model
11
Freezer Shelf Support
Freezer Shelf Support WCI 216474600 Contact Us For Availability
View on Model
11
Outer Panel
Outer Panel WCI 216557801 Contact Us For Availability
View on Model
12
Freezer Door Hinge Bearing
Freezer Door Hinge Bearing WCI 216225700 Contact Us For Availability
View on Model
12A
Insert Nameplate
Insert Nameplate WCI 216482500 Contact Us For Availability
View on Model
13
Freezer Door Stop
Freezer Door Stop WCI 08016354 Contact Us For Availability
View on Model
13
Freezer Evaporator Screw
Freezer Evaporator Screw WCI 216138900 Contact Us For Availability
View on Model
14
Washer
Washer WCI 5303313518 Contact Us For Availability
View on Model
15A
Heat Exchange
Heat Exchange WCI 216404900 Contact Us For Availability
View on Model
21
Freezer Temperature Control Thermostat
Freezer Temperature Control Thermostat WCI 216620100 Contact Us For Availability
View on Model
21A
Screw
Screw WCI 08005520 Contact Us For Availability
View on Model
22
Freezer Door Hinge Bearing
Freezer Door Hinge Bearing WCI 216443600 Contact Us For Availability
View on Model
25
Freezer Door Inner Liner Screw
Freezer Door Inner Liner Screw WCI 216022800 Contact Us For Availability
View on Model
26
Freezer Door Closer Bearing
Freezer Door Closer Bearing WCI 216503300 Contact Us For Availability
View on Model
26
Spacer Tube
Spacer Tube WCI 216511900 Contact Us For Availability
View on Model
26
Gasket
Gasket WCI 216524300 Contact Us For Availability
View on Model
28
Drive Rack
Drive Rack WCI 216607402 Contact Us For Availability
View on Model
31
Relay
Relay WCI 216100116 Contact Us For Availability
View on Model
32
Freezer Breather Valve
Freezer Breather Valve WCI 5309950074 Contact Us For Availability
View on Model
34
Sleeve
Sleeve WCI 5306594529 Contact Us For Availability
View on Model
35
Freezer Compressor Mounting Screw
Freezer Compressor Mounting Screw WCI 5303272328 Contact Us For Availability
View on Model
40
Shelf
Shelf WCI 216070400 Contact Us For Availability
View on Model
43
Clip
Clip WCI 09950610 Contact Us For Availability
View on Model
48
Solenoid
Solenoid WCI 3201514 Contact Us For Availability
View on Model
49
Clip
Clip WCI 3201513 Contact Us For Availability
View on Model
50
Ground Wire
Ground Wire WCI 216533400 Contact Us For Availability
View on Model
51
Valve
Valve WCI 5303210219 Contact Us For Availability
View on Model
53
Cover
Cover WCI 216347800 Contact Us For Availability
View on Model
60
Tubing-hot G
Tubing-hot G WCI 216500600 Contact Us For Availability
View on Model
61
Hot Gas Plug
Hot Gas Plug WCI 216694400 Contact Us For Availability
View on Model
64
Freezer Breather Valve
Freezer Breather Valve WCI 216403700 Contact Us For Availability
View on Model
87
Screw
Screw WCI 08037849 Contact Us For Availability
View on Model
88
Freezer Flash Defrost Switch
Freezer Flash Defrost Switch WCI 216380500 Contact Us For Availability
View on Model
95
Def Swt Lab
Def Swt Lab WCI 216737900 Contact Us For Availability
View on Model
NI
Freezer Drain Tube Insulation
Freezer Drain Tube Insulation WCI 09948773 Contact Us For Availability
View on Model
NI
Refrigerator Suction Line Sleeve
Refrigerator Suction Line Sleeve WCI 216502500 Contact Us For Availability
View on Model
