Model Kenmore 253-356801 ROOM AIR CONDITIONER – Common Parts & Diagrams

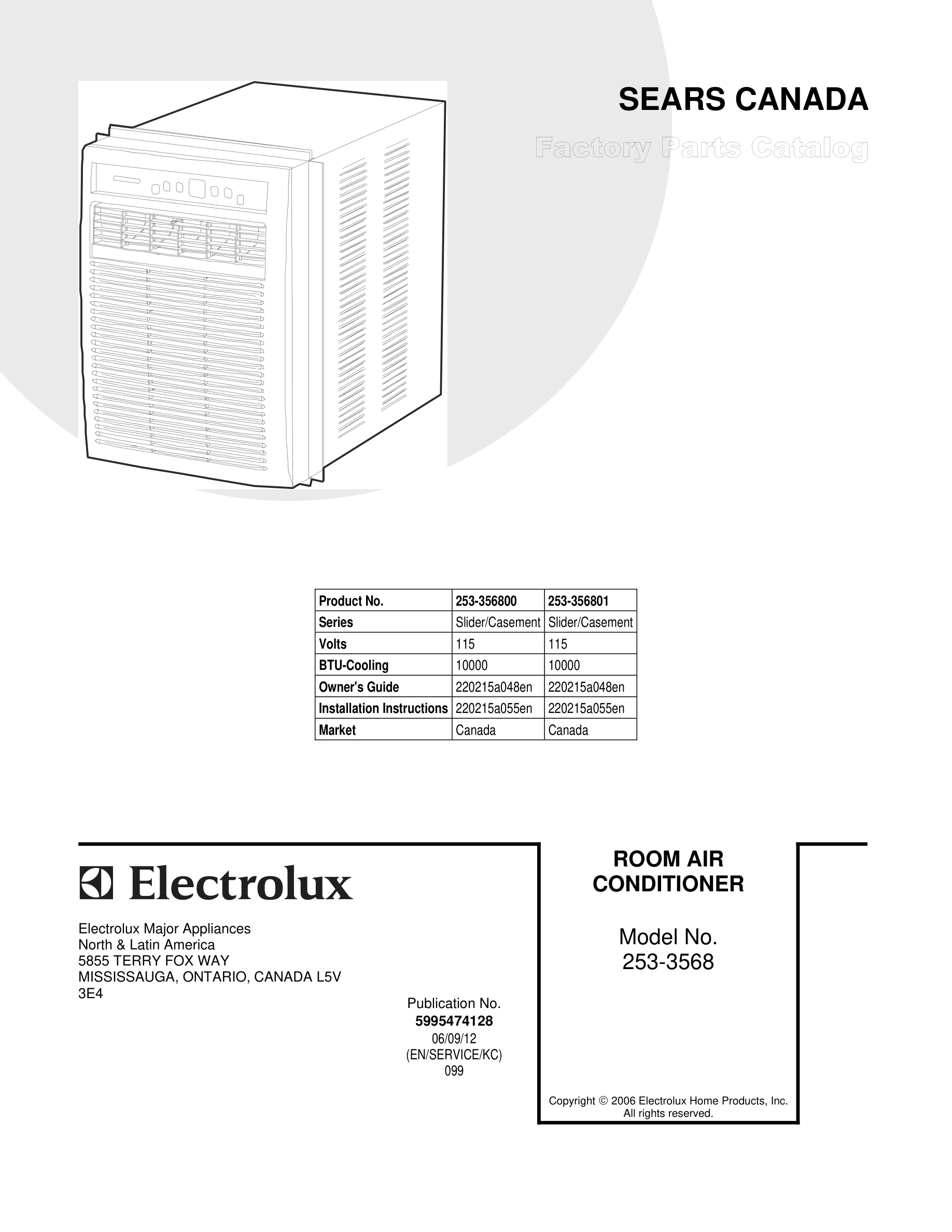

01 - COVER
03 - RECOMMENDED SPARE PARTS
05 - RECOMMENDED SPARE PARTS
06 - WIRING DIAGRAM
Common parts from model Kenmore 253-356801 ROOM AIR CONDITIONER
*
Hardware Kit, installation WCI 5304457796 Contact Us For Availability
1
Louver, horizontal WCI 5304455176 Contact Us For Availability
2
Louver, vertical WCI 5304455177 Contact Us For Availability
3
Louver, horizontal WCI 5304455178 Contact Us For Availability
4
Link, vertical louver WCI 5304455179 Contact Us For Availability
5
Filter, air, molded plastic WCI 5304455180 Contact Us For Availability
6
Panel, front grille WCI 5304455181 Contact Us For Availability
6A
Front Assembly, complete panel, 1, 2, 3, 4, 5 WCI 5304455246 Contact Us For Availability
7
Panel, control WCI 5304455182 Contact Us For Availability
7*
Overlay, control label WCI 5304455272 Contact Us For Availability
8#
PC Board, input/display WCI 5304455183 Contact Us For Availability
9
Cover, control panel WCI 5304455184 Contact Us For Availability
10
Scroll, fan up, top WCI 5304455185 Contact Us For Availability
11
Bracket, condenser mount, left hand WCI 5304455186 Contact Us For Availability
12
Bracket, condenser mount, right hand WCI 5304455187 Contact Us For Availability
13
Scroll, blower housing WCI 5304455188 Contact Us For Availability
14
Bracket, vent door WCI 5304455189 Contact Us For Availability
15
Box, electronic mtg WCI 5304455190 Contact Us For Availability
16#
PC Board, control/power WCI 5304455191 Contact Us For Availability
17#
Capacitor, compressor WCI 5304447350 Contact Us For Availability
18
Strap, capacitor mtg. WCI 5304447282 Contact Us For Availability
19#
Capacitor, fan motor WCI 5304447369 Contact Us For Availability
20
Channel, slide, side mount WCI 5304455194 Contact Us For Availability
21
Cover, control box WCI 5304455199 Contact Us For Availability
22#
Capillary Tube WCI 5304455235 Contact Us For Availability
23#
Discharge Tube WCI 5304455236 Contact Us For Availability
24#
Transformer WCI 5304447375 Contact Us For Availability
25
Retainer, window panel, top WCI 5304455202 Contact Us For Availability
26
Panel, window filler, plastic WCI 5304455203 Contact Us For Availability
27
Retainer, window panel, lower WCI 5304455204 Contact Us For Availability
28
Cabinet, wrapper/sleeve WCI 5304455205 Contact Us For Availability
29#
Compressor WCI 5304455237 Contact Us For Availability
30#
Suction Tube WCI 5304455238 Contact Us For Availability
31
Bracket, mounting, compressor WCI 5304455208 Contact Us For Availability
32
Grille, plastic mesh, rear WCI 5304455209 Contact Us For Availability
33#
Condenser WCI 5304455210 Contact Us For Availability
34#
Fan Blade, axial flow WCI 5304455211 Contact Us For Availability
35
Bracket, condenser mount, right WCI 5304455212 Contact Us For Availability
36
Bracket, condenser mount, left WCI 5304455213 Contact Us For Availability
37
Bulkhead, air system WCI 5304455214 Contact Us For Availability
38
Cover, motor WCI 5304455215 Contact Us For Availability
39#
Motor, fan WCI 5304455240 Contact Us For Availability
40
Base, unit chassis WCI 5304455217 Contact Us For Availability
41
Nut, flange locking WCI 5304455218 Contact Us For Availability
42
Bracket, mounting WCI 5304455219 Contact Us For Availability
43
Screw, cross WCI 5304455220 Contact Us For Availability
44
Bracket, mounting WCI 5304455221 Contact Us For Availability
45
Bracket, motor mtg. WCI 5304455222 Contact Us For Availability
46
Door, vent WCI 5304455223 Contact Us For Availability
47
Bulkhead, partition, front WCI 5304455224 Contact Us For Availability
48
Cover, scroll, rear WCI 5304455225 Contact Us For Availability
49
Link, lever/vent door WCI 5304455226 Contact Us For Availability
50#
Blower Wheel WCI 5304455227 Contact Us For Availability
51#
Sensor, evaporator temp, thermistor WCI 5304455228 Contact Us For Availability
52
Tray, drain pan WCI 5304455229 Contact Us For Availability
53#
Evaporator WCI 5304455230 Contact Us For Availability
54#
Sensor, ambient temp, thermistor WCI 5304455231 Contact Us For Availability
55#
Power Cord, 115 V, with test/reset WCI 5304441762 Contact Us For Availability
56#
Terminal Block, main WCI 5304455232 Contact Us For Availability
57
Cover, electrical, terminal WCI 5304455233 Contact Us For Availability
58#
Remote Control, transmitter WCI 5304436598 Contact Us For Availability
× ![]()
