Model LG 24QP88D-B – Common Parts & Diagrams

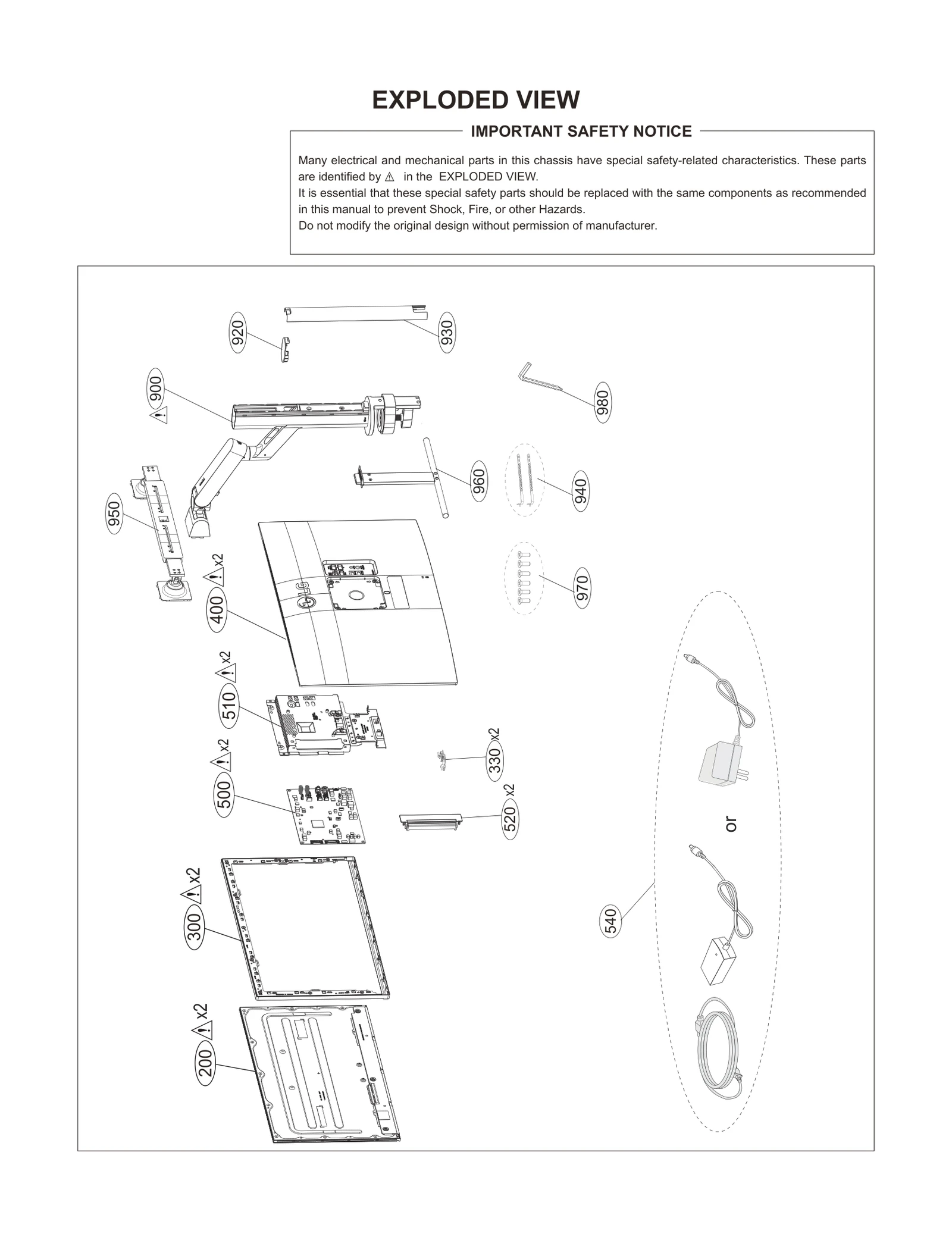

Diagram 0
Diagram 1
Common parts from model LG 24QP88D-B
200
LCD,Module-TFT LGE EAJ65681001 Contact Us For Availability
300
Cabinet Assembly LGE ABJ76750101 Contact Us For Availability
500
BPR Total Assembly LGE EBU67309001 Contact Us For Availability
510
Frame Assembly LGE ADV30028404 Contact Us For Availability
520
Cover LGE MCK70125001 Contact Us For Availability
540
Adapters LGE EAY64929302 Contact Us For Availability
900
Base Assembly LGE AAN30033614 Contact Us For Availability
920
Package Assembly LGE AGF78666824 Contact Us For Availability
930
Package Assembly LGE AGF78666823 Contact Us For Availability
940
Package Assembly LGE AGF78666827 Contact Us For Availability
950
Base Assembly LGE AAN30033702 Contact Us For Availability
970
Package Assembly LGE AGF78666825 Contact Us For Availability
A1
Manual Assembly LGE AFN30067121 Contact Us For Availability
A3
Power Cord,Detach LGE 6410VUH007B Contact Us For Availability
A4
Card LGE 3840TRL039A Contact Us For Availability
A7
Card LGE MBM64637211 Contact Us For Availability
A9
Card LGE MBM67509501 Contact Us For Availability
A10
Card LGE MBM67507701 Contact Us For Availability
A11
Card LGE 3840TWL061C Contact Us For Availability
A12
Card LGE MBM67508702 Contact Us For Availability
A16
Cable,Assembly LGE EAD63932607 Contact Us For Availability
A18
Cable,Assembly LGE EAD65185309 Contact Us For Availability
C10
Harness,Single LGE EAD64550801 Contact Us For Availability
LV1
Cable,FFC LGE EAD65145032 Contact Us For Availability
× ![]()
