Model Whirlpool 24MN-7CKXWV8 GAS RANGE – Common Parts & Diagrams
01 - ACCESS DRAWER

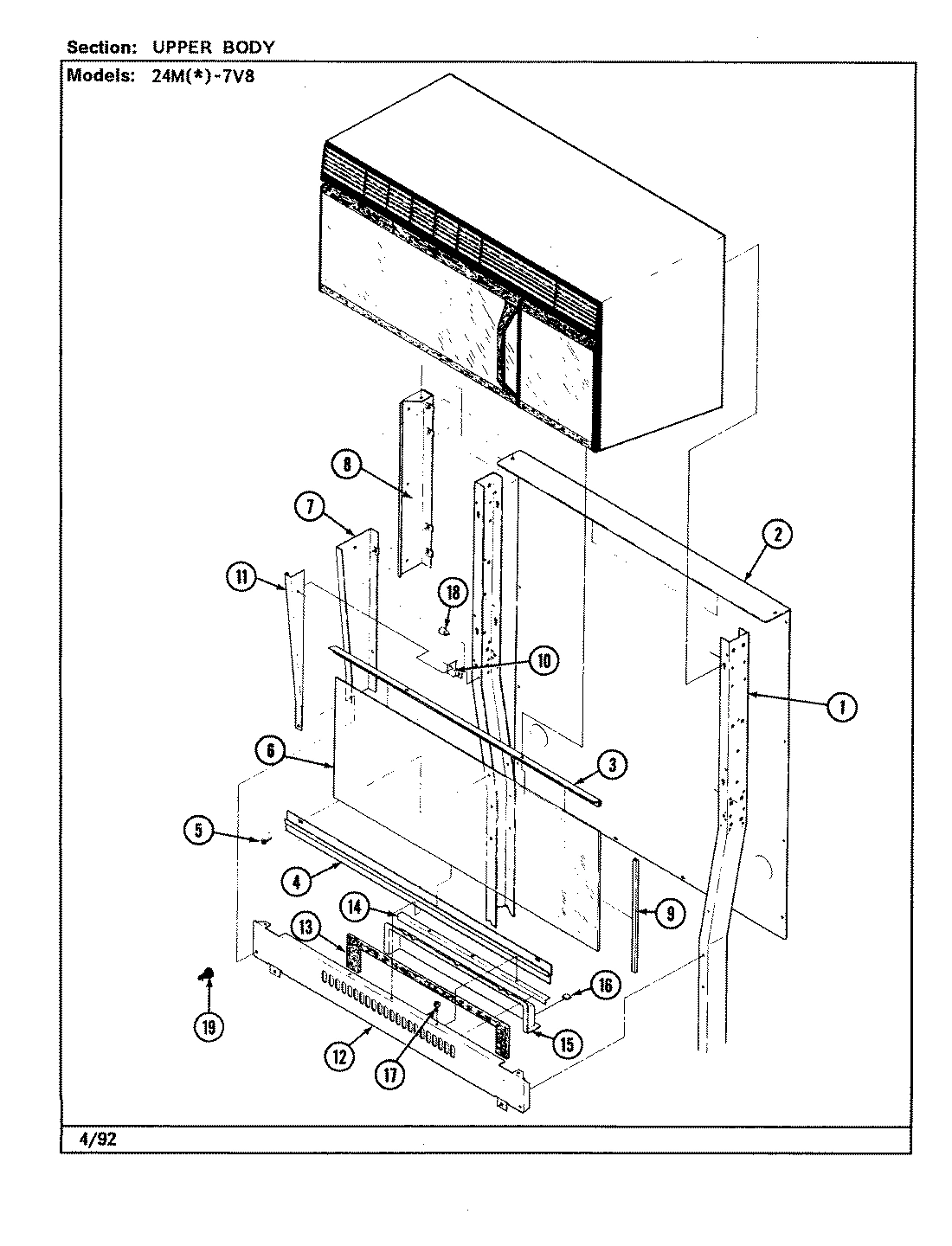

03 - BODY-UPPER

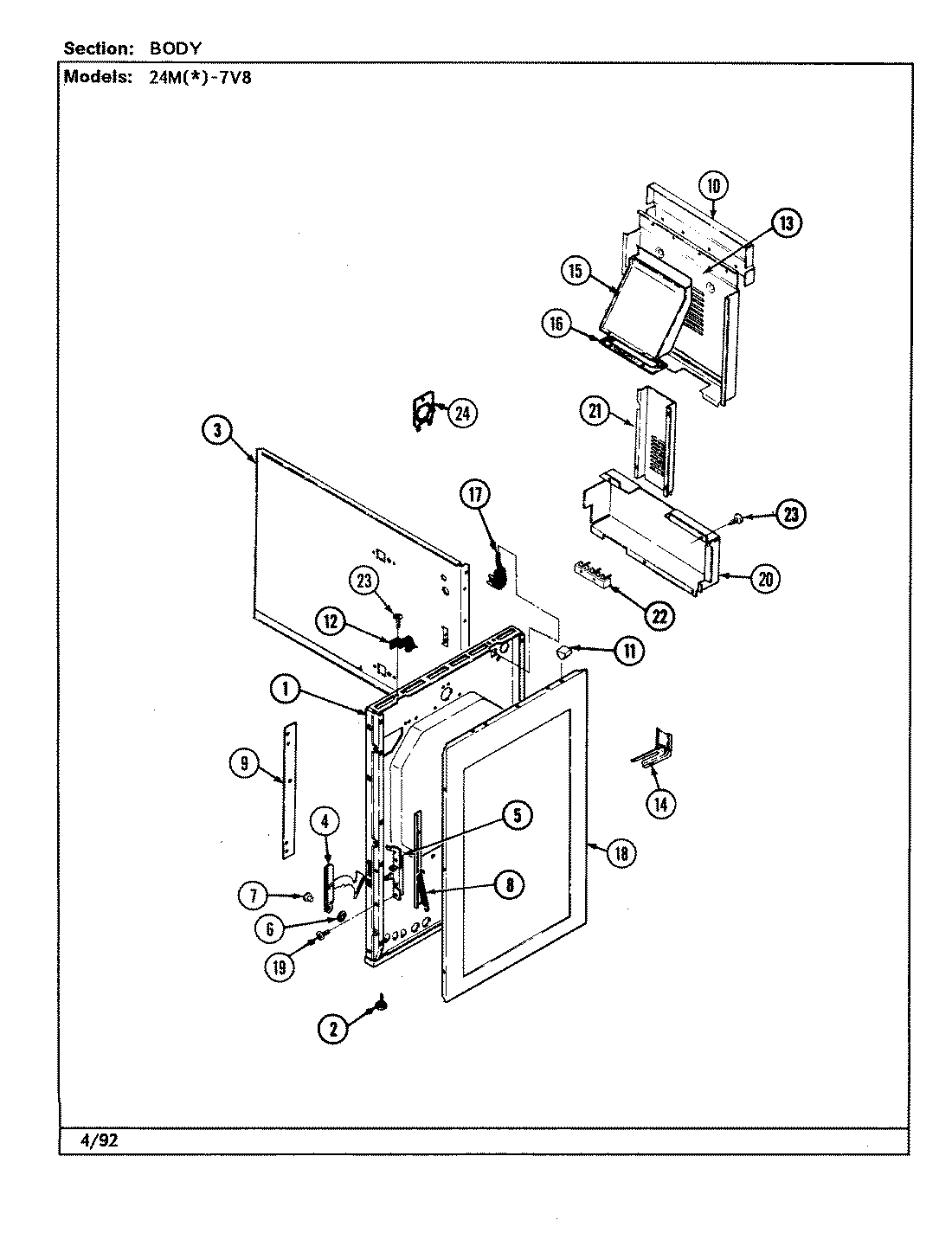

02 - BODY

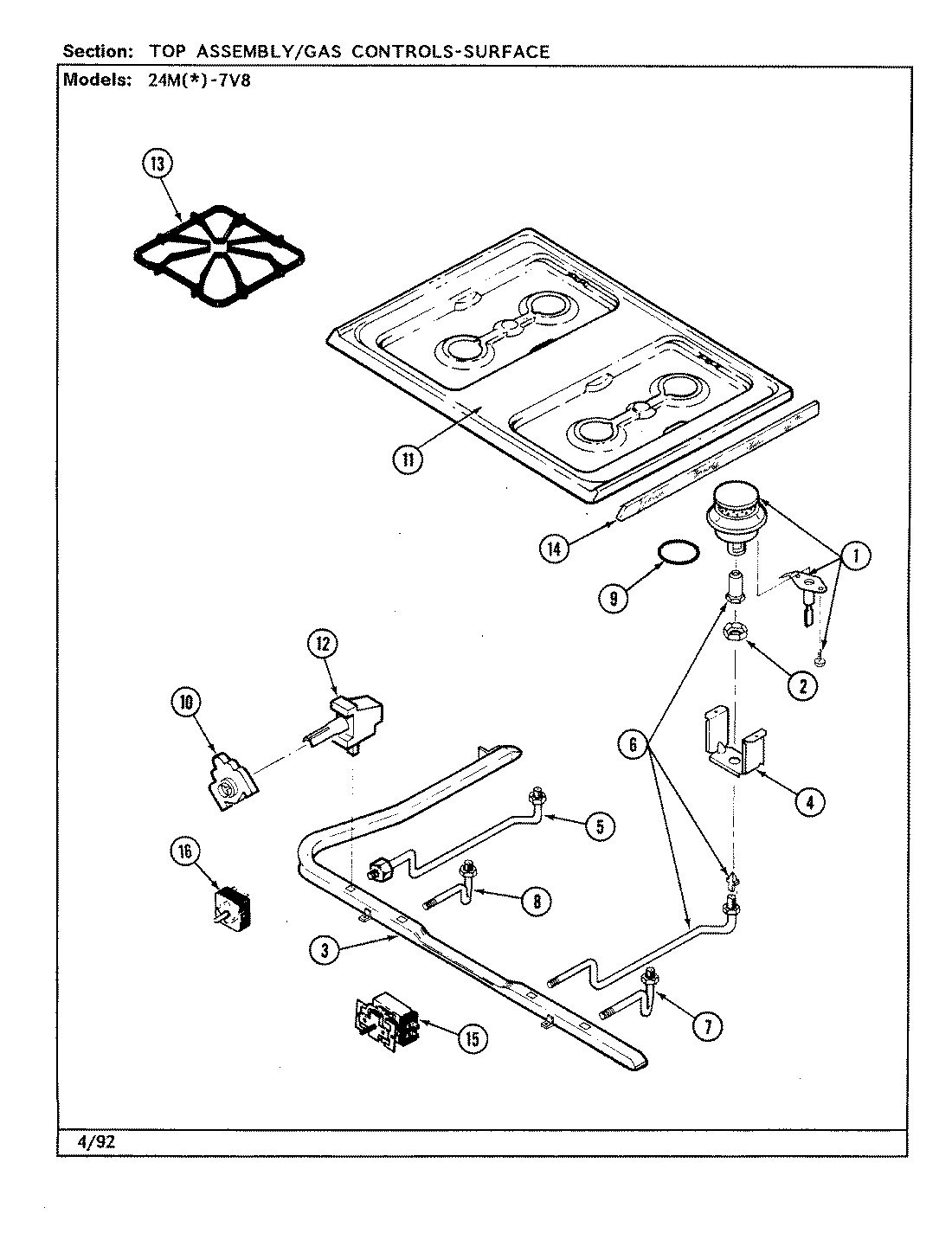

09 - TOP ASSEMBLY/GAS CONTROLS-SURFACE

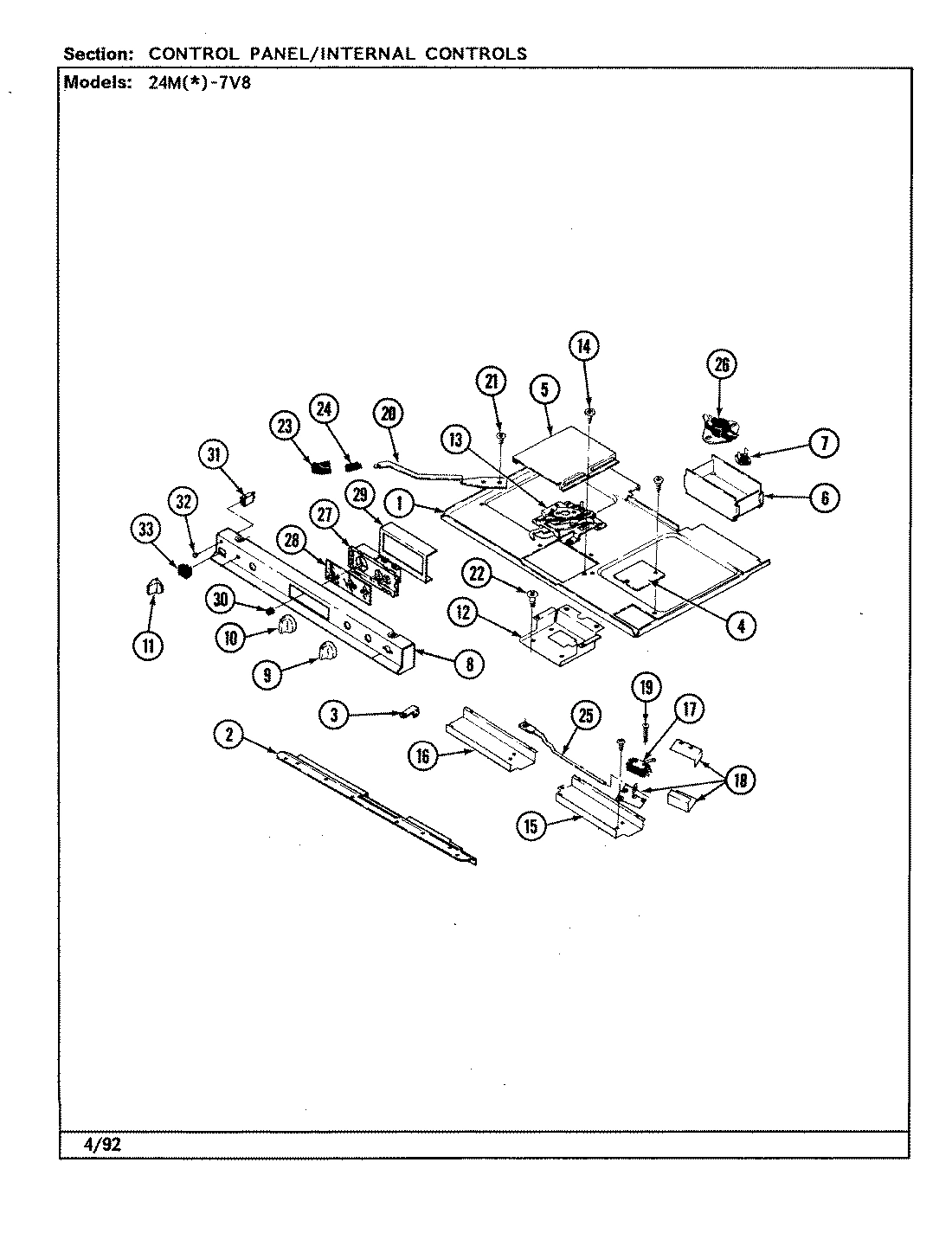

04 - CONTROL PANEL/INTERNAL CONTROLS

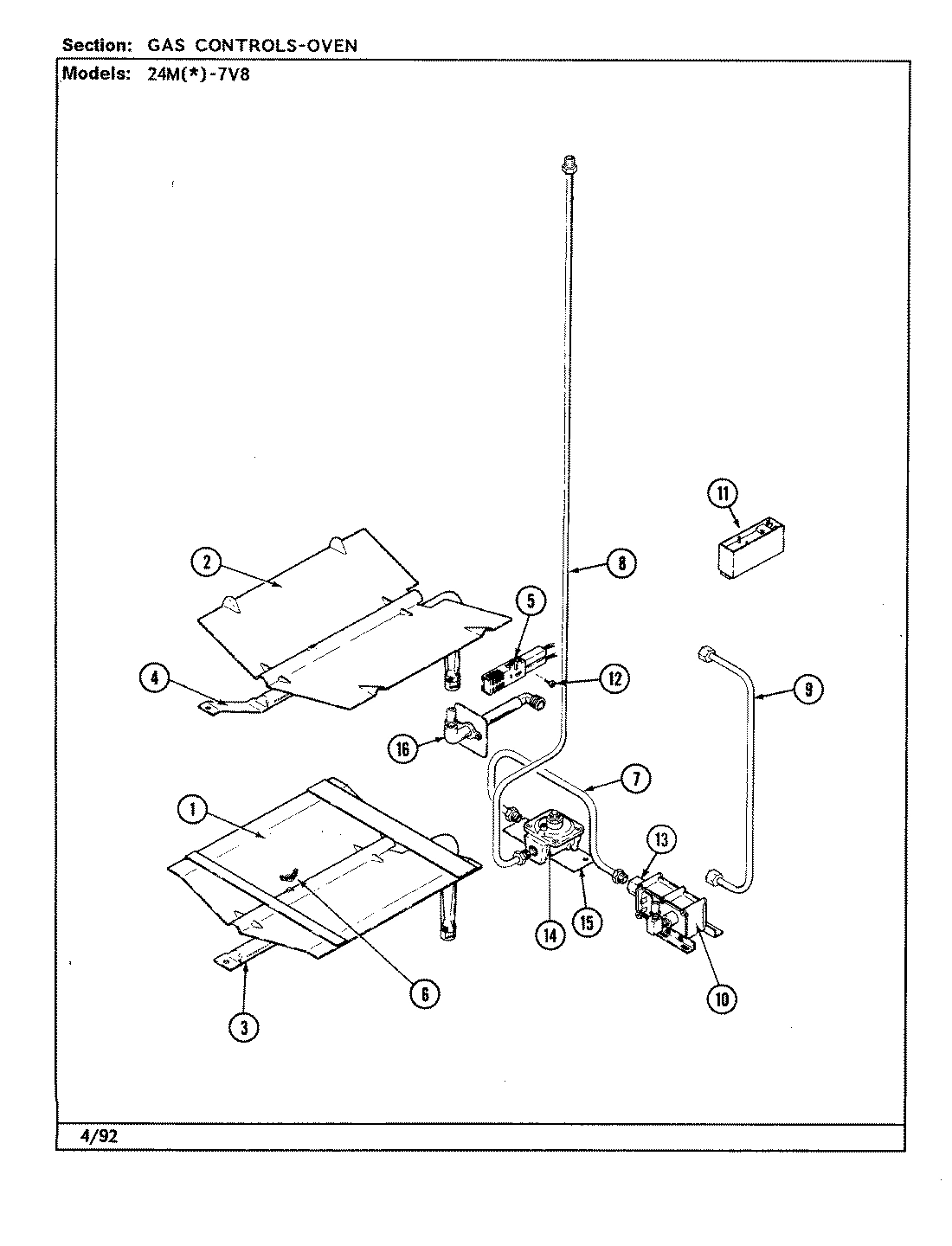

06 - GAS CONTROLS-OVEN

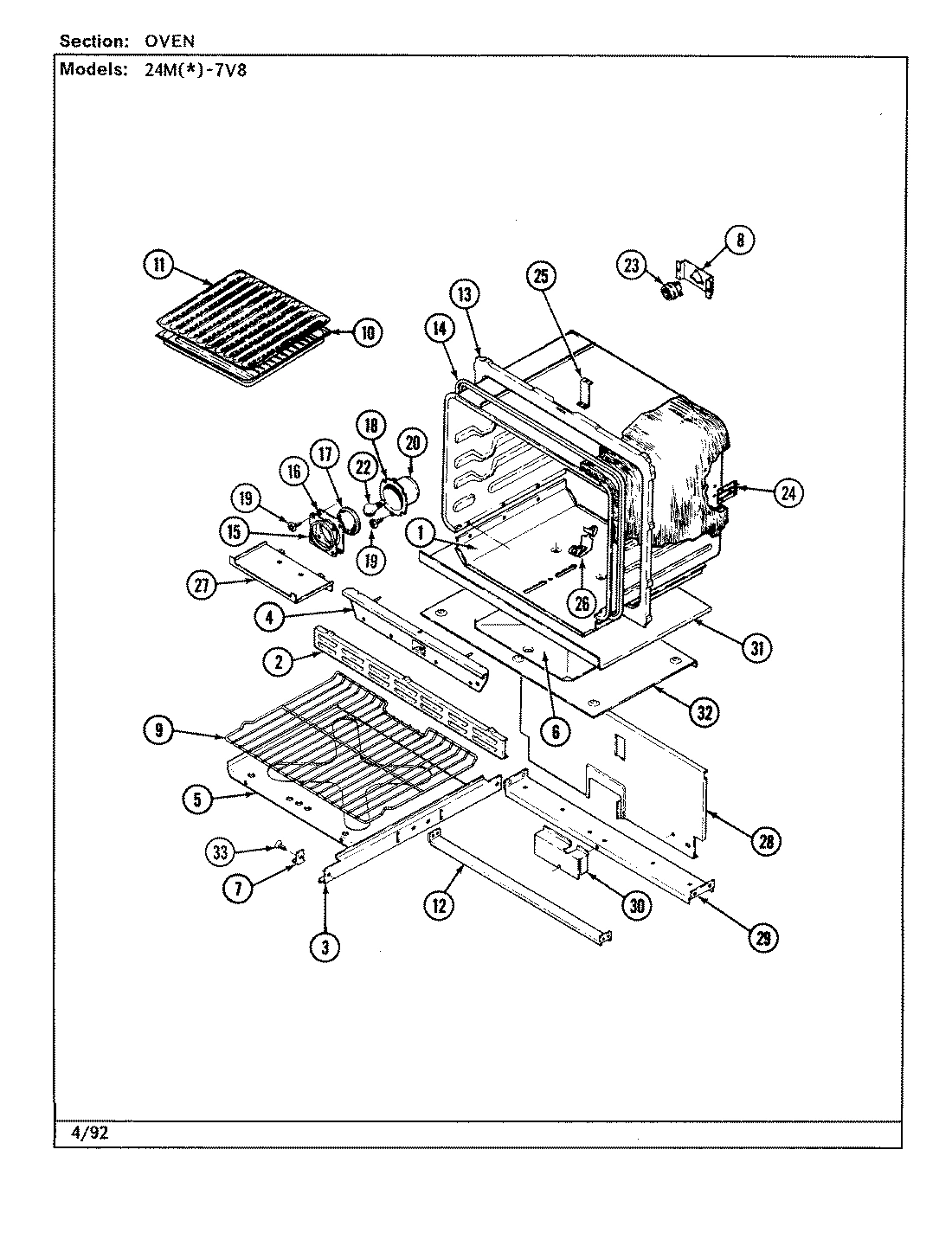

08 - OVEN

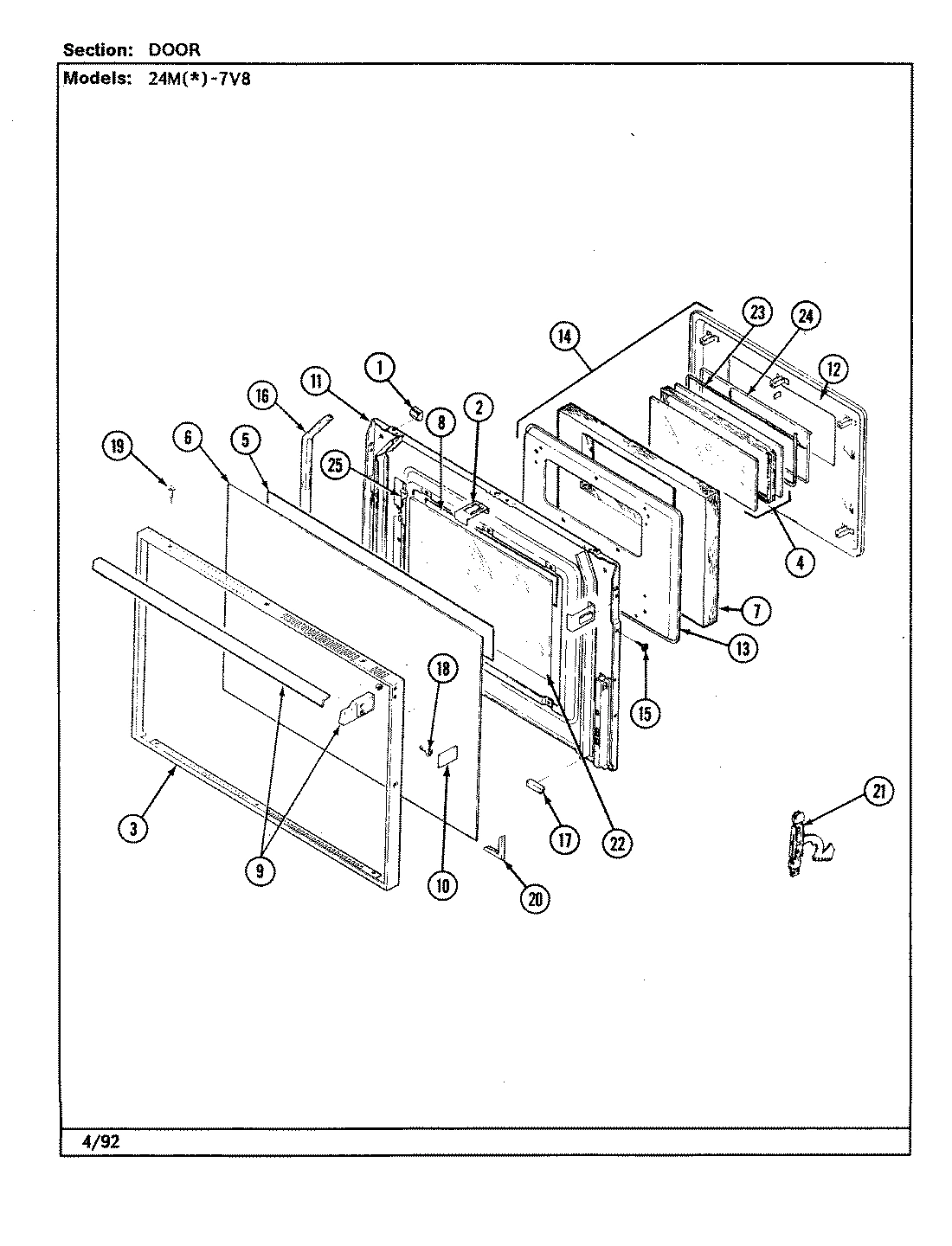

05 - DOOR
07 - MICROWAVE
Common parts from model Whirlpool 24MN-7CKXWV8 GAS RANGE
1
CHANNEL, OVEN SUPPORT WPL 3818F04651 Contact Us For Availability
1
LINING, ASSY INNER SIDE WPL 4009W07480 Contact Us For Availability
1
SCREW, HINGE WPL 7101P01760 Contact Us For Availability
1
NUT, NYLON WPL 7103P04560 Contact Us For Availability
1
BURNER, SEALED WPL 3412D01514 Contact Us For Availability
1
BURNER, SEALED WPL 3412D01726 Contact Us For Availability
1
WIRE, IGNITER WPL 5111A36060 Contact Us For Availability
1
WIRE IGNITER WPL 5111A36160 Contact Us For Availability
1
SCREW WPL 7118P01060 Contact Us For Availability
1
IGNITER TOP BURNER WPL 7432P07260 Contact Us For Availability
1
NOT REQUIRED PART OR SEE NOTE FOR MICROWAVE P WPL W10124350 Contact Us For Availability
1
BOTTOM BURNER BOX WPL 4011F20080 Contact Us For Availability
1
BAFFLE, BAKE WPL 3601W18419 Contact Us For Availability
1
HOUSING, BAKE BURNER WPL 4001F06045 Contact Us For Availability
1
BUMPER, DOOR (SQUARE) WPL 8003P00960 Contact Us For Availability
2
COVER, BACK WIRE WPL 4002F05480 Contact Us For Availability
2
LEG, LEVELING WPL Y7101P25460 Contact Us For Availability
2
PALNUT WPL 7103P11960 Contact Us For Availability
2
FRONT, BURN BOX BOTT WPL 4012F02080 Contact Us For Availability
2
SCREW (1/2``) WPL 7101P04060 Contact Us For Availability
2
BAFFLE, OVEN BURNER WPL 3601F18145 Contact Us For Availability
2
PANEL, LOWER FRONT WPL 2614F00880 Contact Us For Availability
2
CLIP, DOOR WPL 7112P03460 Contact Us For Availability
3
DRAWER, SERVICE WPL 3405F00880 Contact Us For Availability
3
EXTRUSION, GLASS TOP WPL 7706P16560 Contact Us For Availability
3
GROMMET, NYLON WPL 8008P01260 Contact Us For Availability
3
BACK, MAIN WPL 4002F16580 Contact Us For Availability
3
GROMMET WPL 8008P01060 Contact Us For Availability
3
PIPE, MANIFOLD WPL 7513P10460 Contact Us For Availability
3
BRACKET,CONTROL PANEL (R) WPL 3801F04734 Contact Us For Availability
3
BRACKET,CONTROL PANEL (L) WPL 3801F04934 Contact Us For Availability
3
BURNER, OVEN WPL 3403D02745 Contact Us For Availability
3
RUNNER, OUTER WPL 3406F02751 Contact Us For Availability
3
FRAME, DOOR WPL 7706P24360 Contact Us For Availability
4
DRAWER, SERVICE WPL W10127315 Contact Us For Availability
4
EXTRUSION, GLASS BOT WPL 7706P16460 Contact Us For Availability
4
SCREW WPL 7101P05860 Contact Us For Availability
4
SUPPORT, ORIFICE FITTING WPL 3807F37845 Contact Us For Availability
4
COVER, SWITCH WPL 4005F13951 Contact Us For Availability
4
BURNER, BROIL WPL 3403D02845 Contact Us For Availability
4
BAFFLE OVEN FRONT WPL 3601W12519 Contact Us For Availability
4
WINDOW PAK WPL 7902S30360 Contact Us For Availability
5
GLIDE, DRAWER WPL 8016P00460 Contact Us For Availability
5
GLIDE, DRAWER WPL 8016P00960 Contact Us For Availability
5
HINGE ASSY. (LT) WPL 3418A02934 Contact Us For Availability
5
HINGE ASSY. (RT) WPL 3418A03034 Contact Us For Availability
5
GLIDE, OVEN DOOR HINGE WPL 8016P00860 Contact Us For Availability
5
COVER, CATCH ASSY. WPL 4005F13780 Contact Us For Availability
5
COVER IGNITOR WIRE WPL 4005F36345 Contact Us For Availability
5
IGNITER, OVEN WPL 7432P06760 Contact Us For Availability
5
BOTTOM, OVEN WPL 2205F01221 Contact Us For Availability
5
TAPE, FOIL (3`` WIDE) WPL 8270P09060 Contact Us For Availability
6
GLASS, BACKSPLASH WPL 7902P14760 Contact Us For Availability
6
CLIP, HINGE PIN WPL 7112P01960 Contact Us For Availability
6
FITTING, ORIFICE (REAR)---NA WPL 7507P10560 Contact Us For Availability
6
SUPPORT, THERM DISC WPL 3807F21951 Contact Us For Availability
6
NUT, WING WPL 7103P03060 Contact Us For Availability
6
BAFFLE WPL 3601F11645 Contact Us For Availability
6
GLASS, DOOR WPL 7902P27660 Contact Us For Availability
6
GLASS DOOR WPL 7902P27860 Contact Us For Availability
7
RUNNER, INNER WPL 3406F02680 Contact Us For Availability
7
PANEL, SIDE UPPER (LEFT) WPL 2618F07632 Contact Us For Availability
7
PANEL, SIDE UPPER (RIGHT) WPL 2618F07732 Contact Us For Availability
7
PIN, HINGE WPL 7113P00260 Contact Us For Availability
7
SCREW (6ABX38-ZN) WPL 7101P07760 Contact Us For Availability
7
SWITCH, THERM LOCK WPL 7403P00460 Contact Us For Availability
7
BUMPER WPL 8003P00360 Contact Us For Availability
7
TUBING REGULATOR WPL 7506P11760 Contact Us For Availability
7
GLIDE, FRONT WPL 8016P00560 Contact Us For Availability
7
INSULATION DOOR PAD WPL 4804F00660 Contact Us For Availability
8
PANEL, SIDE UPPER TOP (LT) WPL 2618F04332 Contact Us For Availability
8
PANEL, SIDE UPPER TOP (RT) WPL 2618F04432 Contact Us For Availability
8
SCREW WPL 7101P07560 Contact Us For Availability
8
SPRING, OVEN DOOR WPL 7803P05860 Contact Us For Availability
8
FITTING, ORIFICE (FRT) WPL 7507P11060 Contact Us For Availability
8
SHIELD HEAT ASSY WPL 3604W15451 Contact Us For Availability
8
CLIP, TOP RETAINER WPL 7112P04260 Contact Us For Availability
8
PANEL, MANIFOLD WPL 7712P09260 Contact Us For Availability
8
TRIM MANIFOLD WPL 7712P09360 Contact Us For Availability
8
TUBE, MANIFOLD FEED----NA WPL 7506P10160 Contact Us For Availability
8
BRACKET WPL 3801F02451 Contact Us For Availability
8
TAPE WPL 8270P09160 Contact Us For Availability
9
HANDLE, DOOR WHITE WPL 7701P03160 Contact Us For Availability
9
HANDLE, DOOR WPL 7701P04760 Contact Us For Availability
9
SCREW, METAL GROUNDING WPL 7101P28760 Contact Us For Availability
9
TRIM, GLASS RETAINER WPL 7720P08360 Contact Us For Availability
9
BAFFLE SIDE PANEL WPL 3601F21451 Contact Us For Availability
9
GASKET, BURNER WPL 7201P05060 Contact Us For Availability
9
KNOB, VALVE WPL 7733P06560 Contact Us For Availability
9
KNOB, BURNER WPL 7733P06660 Contact Us For Availability
9
TUBING, 3/8 X 20-3/4 WPL 3414F05744 Contact Us For Availability
9
RACK, OVEN WPL 7801P03160 Contact Us For Availability
10
INSERT, HANDLE (CHROME) WPL 7728P06860 Contact Us For Availability
10
BRACKET, SIDE PANEL (LT) WPL 3804F04345 Contact Us For Availability
10
BRACKET, SIDE PANEL (RT) WPL 3804F04445 Contact Us For Availability
10
BAFFLE, FLUE BOX TOP WPL 3601F10751 Contact Us For Availability
10
SWITCH, IGNITER WPL 7403P28760 Contact Us For Availability
10
KNOB, THERMOSTAT WPL 7731P02060 Contact Us For Availability
10
KNOB, THERMOSTAT WPL 7731P04360 Contact Us For Availability
10
VALVE, BROIL & BAKE - NAT WPL 7501P09560 Contact Us For Availability
10
PAN, BROIL WPL Y3401F02019 Contact Us For Availability
11
SCREW WPL 7101P06160 Contact Us For Availability
11
TRIM, SIDE PANEL (LEFT) WPL 7720P14060 Contact Us For Availability
11
TRIM, SIDE PANEL (RIGHT) WPL 7720P14160 Contact Us For Availability
11
SPACER, MAIN TOP WPL 8003P01160 Contact Us For Availability
11
TOP, MAIN WPL 2001F08081 Contact Us For Availability
11
KNOB, SELECTOR WPL 7711P38160 Contact Us For Availability
11
KNOB, SELECTOR WPL 7739P03360 Contact Us For Availability
11
BRACKET, SPARK MODULE WPL 3801F27045 Contact Us For Availability
11
MODULE, SPARK WPL 7431P02160 Contact Us For Availability
11
INSERT, BROIL PAN WPL Y3413F01619 Contact Us For Availability
11
LINING WPL 2402W17319 Contact Us For Availability
11
NUT, SNAP WPL 7103P11460 Contact Us For Availability
11
LABEL (CLEANING INST.) WPL 8114P27460 Contact Us For Availability
12
PANEL, BACKGUARD LOWER WPL 2620W05581 Contact Us For Availability
12
PANEL, BACKGUARD LOWER WPL 2620W05584 Contact Us For Availability
12
CLIP, TOP RETAINER WPL 7112P07360 Contact Us For Availability
12
SCREW WPL 7101P29660 Contact Us For Availability
12
VALVE, TOP BURNER WPL 7502P22060 Contact Us For Availability
12
SUPPORT, CATCH ASSY. WPL 3807F40845 Contact Us For Availability
12
SCREW (10-24X5/16-NI) WPL 7101P28260 Contact Us For Availability
12
BRACE, INNER SIDE WPL 3802F07651 Contact Us For Availability
12
PAD, DOOR WPL 2410W04119 Contact Us For Availability
13
GASKET, FLUE BOX WPL 7201P02660 Contact Us For Availability
13
BAFFLE, FLUE BOX WPL 3601F11251 Contact Us For Availability
13
GRATE (GRY) WPL 2003W02314 Contact Us For Availability
13
GRATE (DK GRY) WPL 2003W02326 Contact Us For Availability
13
CATCH, DOOR LOCK WPL 8002P02160 Contact Us For Availability
13
NUT, LOXIT (3/8``) WPL 1555251 Contact Us For Availability
13
PAD, INNER WPL 2410F01651 Contact Us For Availability
14
ANGLE-RETAINER, FLUE BOX WPL 3820F00861 Contact Us For Availability
14
BRACKET, ANTI-TIP WPL 3801F21851 Contact Us For Availability
14
SCREW, BRACKET WPL 7101P28960 Contact Us For Availability
14
SCREW WPL 7101P07260 Contact Us For Availability
14
NUT WPL 7103P03460 Contact Us For Availability
14
TRIM, MAIN TOP (LEFT) WPL 7746P02560 Contact Us For Availability
14
TRIM, MAIN TOP (RIGHT) WPL 7746P02660 Contact Us For Availability
14
REGULATOR, PRESSURE WPL 7510P04860 Contact Us For Availability
14
GASKET, OVEN WPL 7201P03660 Contact Us For Availability
14
PAD, ASSY. WPL 2410A04119 Contact Us For Availability
15
BOX, FLUE WPL 4006F09619 Contact Us For Availability
15
BOX, FLUE ASSY WPL 4006W02619 Contact Us For Availability
15
THERMOSTAT WPL 7404P06460 Contact Us For Availability
15
CHANNEL, SWITCH WPL 3818F02745 Contact Us For Availability
15
BRACKET, REGULATOR MTG WPL 3801F19145 Contact Us For Availability
15
RETAINER, LAMP GUARD WPL 3804F01245 Contact Us For Availability
15
RIVET WPL 7107P01760 Contact Us For Availability
16
FASTENER WPL 7104P00160 Contact Us For Availability
16
GASKET WPL 7201P01360 Contact Us For Availability
16
SWITCH, SELECTOR WPL 7403P09260 Contact Us For Availability
16
CHANNEL, AIR WPL 3818F04945 Contact Us For Availability
16
FITTING, BROIL BURNER WPL 7507P06760 Contact Us For Availability
16
GASKET, LAMP RETAINER WPL 7201P01560 Contact Us For Availability
16
SEAL WPL 7208P00260 Contact Us For Availability
17
SEAL, RUBBER WPL 7208P01160 Contact Us For Availability
17
BLOCK WPL 7401P01860 Contact Us For Availability
17
CORD, POWER WPL 7402P04060 Contact Us For Availability
17
BUSHING, SNAP WPL 8007P00360 Contact Us For Availability
17
INSULATION, SWITCH (UPPER) WPL 7003P01960 Contact Us For Availability
17
INSULATION, SWITCH WPL 7003P03960 Contact Us For Availability
17
SWITCH----NA WPL 7403P07760 Contact Us For Availability
17
GLASS, LAMP GUARD WPL 7902P05760 Contact Us For Availability
18
SCREW WPL 7101P30560 Contact Us For Availability
18
SPACER, UPPER SIDE WPL 7105P00360 Contact Us For Availability
18
PANEL, SIDE (WHT)----NA WPL 2618F07371 Contact Us For Availability
18
PANEL, SIDE (ALM) WPL 2618F07374 Contact Us For Availability
18
SUPPORT, LOCK SWITCH WPL 3807F43445 Contact Us For Availability
18
GASKET, HOUSING WPL 7201P01460 Contact Us For Availability
19
SUPPORT, MAIN TOP WPL 7105P00260 Contact Us For Availability
19
SCREW WPL 7101P11260 Contact Us For Availability
19
SCREW WPL 7101P03160 Contact Us For Availability
19
SCREW WPL 7101P06460 Contact Us For Availability
19
SCREW, FRAME WPL 7101P12660 Contact Us For Availability
20
COVER MODULE WPL 4005F39680 Contact Us For Availability
20
LEVER, DOOR LOCK WPL 8009P01960 Contact Us For Availability
20
HOUSING, LAMP WPL 4001F02019 Contact Us For Availability
20
SPACER, GLASS CORNER WPL 8010P04560 Contact Us For Availability
21
STOP, OVEN DOOR WPL 3420A03334 Contact Us For Availability
21
CHANNEL - AIR DUCT WPL 3818F03280 Contact Us For Availability
21
SCREW WPL 7101P01860 Contact Us For Availability
22
BLOCK, TERMINAL WPL 7401P01560 Contact Us For Availability
22
BOLT WPL 7116P00360 Contact Us For Availability
22
BULB, OVEN WPL 7407P02660 Contact Us For Availability
22
GLASS, INNER WPL 7902P09760 Contact Us For Availability
23
HANDLE, LATCH (BLK) WPL 7701P08860 Contact Us For Availability
23
HANDLE, LATCH (WHT) WPL 7701P08960 Contact Us For Availability
23
RECEPTACLE, OVEN LIGHT WPL 7408P03460 Contact Us For Availability
23
GASKET, WINDOW WPL 7201P01860 Contact Us For Availability
24
BRACKET WPL 3801F02145 Contact Us For Availability
24
HARNESS, SUPPLY WPL 5120D01860 Contact Us For Availability
24
HARNESS, LOWER WPL 5185D25660 Contact Us For Availability
24
HARNESS, SERV PLUG WPL 5195D08360 Contact Us For Availability
24
CLIP, LATCH HANDLE WPL 7112P00360 Contact Us For Availability
24
SUPPORT, OVEN REAR WPL 3807F20545 Contact Us For Availability
24
RETAINER WPL 3804F02245 Contact Us For Availability
25
LINK, DOOR LOCK WPL 7807P01260 Contact Us For Availability
25
BRACKET, BURNER BOX WPL 3801F09345 Contact Us For Availability
25
RETAINER, GLASS WPL 3804F05180 Contact Us For Availability
26
SWITCH, THERMAL WPL 7403P09160 Contact Us For Availability
26
CLIP, THERMOSTAT WPL 7112P00460 Contact Us For Availability
27
INSULATION CLOCK WPL 7003P00460 Contact Us For Availability
27
CLOCK (WHT) WPL 7601P16060 Contact Us For Availability
27
CLOCK WPL 7601P18360 Contact Us For Availability
27
BAFFLE, BAKE & BROIL WPL 3601W13045 Contact Us For Availability
27
SCREW WPL 7101P27360 Contact Us For Availability
28
GLASS, CLOCK WPL 7902P02760 Contact Us For Availability
28
BACK, BROILER WPL 4002F15945 Contact Us For Availability
29
BRACKET, CLOCK MTG WPL 3801F11351 Contact Us For Availability
29
SCREW WPL 7118P00460 Contact Us For Availability
29
SUPPORT, VALVE WPL 3807F32945 Contact Us For Availability
30
KNOB, CLOCK (WHT) WPL 7711P41960 Contact Us For Availability
30
KNOB, CLOCK WPL 7711P46660 Contact Us For Availability
30
COVER, OVEN VALVE WPL 4005F25851 Contact Us For Availability
31
LAMP WPL 7407P08260 Contact Us For Availability
31
SUPPORT, OVEN BOTTOM WPL 3807F38845 Contact Us For Availability
32
LENS, INDICATOR LIGHT WPL 7730P00860 Contact Us For Availability
32
SHIELD, SERVICE DRAWER WPL 3604F16245 Contact Us For Availability
33
SWITCH, ROCKER (BLK) WPL 7403P10260 Contact Us For Availability
33
SWITCH, ROCKER (WHT) WPL 7403P20060 Contact Us For Availability
33
SCREW, SPECIAL WPL 7101P01360 Contact Us For Availability
34
MANUAL, USE & CARE WPL 8112P06660 Contact Us For Availability
× ![]()
Login and Registration Form
