Model LG 24MA32D-PU – Common Parts & Diagrams

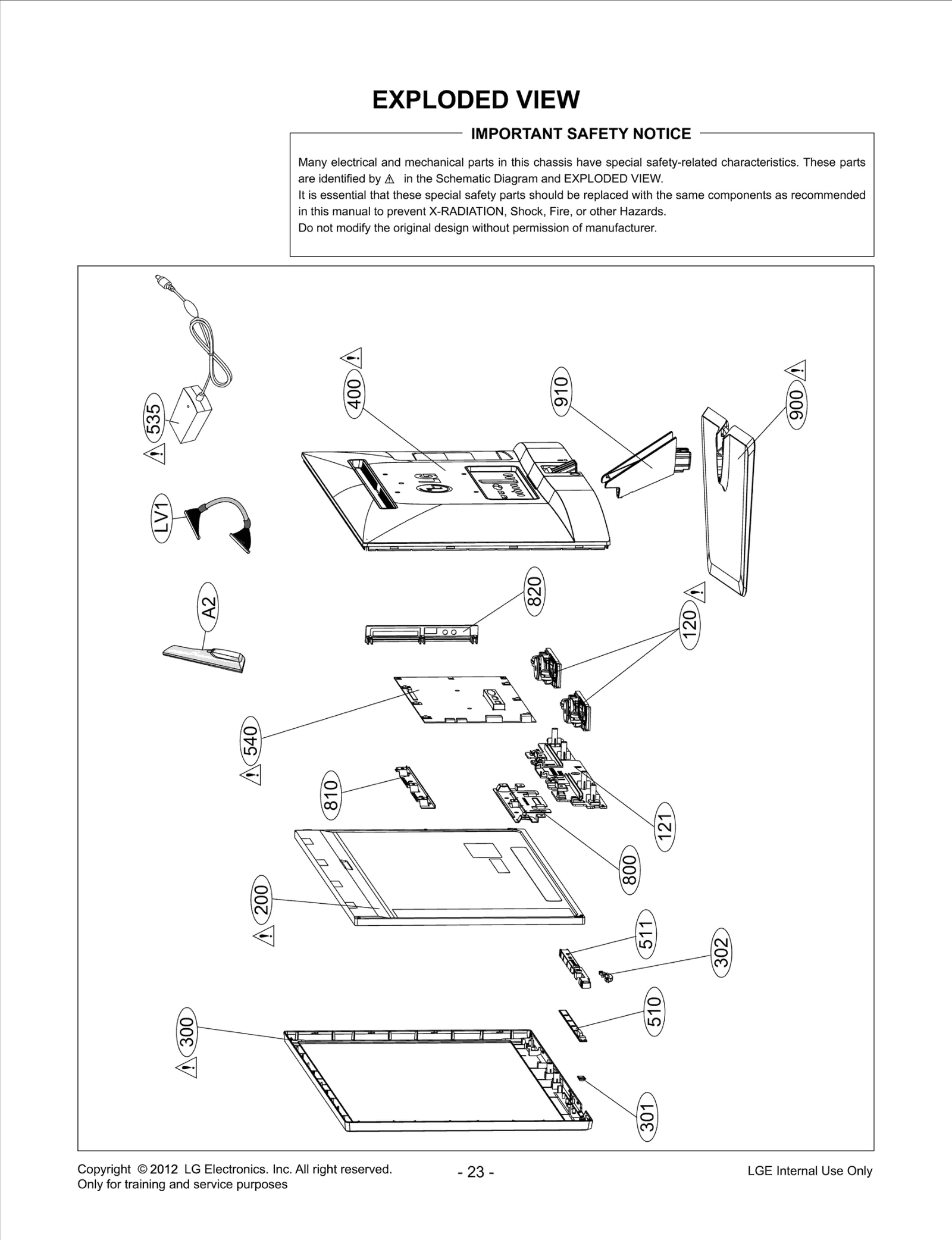

Diagram 0
Diagram 1
Common parts from model LG 24MA32D-PU
120
Speaker,Full Range LGE EAB35995505 Contact Us For Availability
121
Cover LGE MCK67134904 Contact Us For Availability
200
LCD,Module-TFT LGE EAJ62132001 Contact Us For Availability
300
Cabinet Assembly LGE ABJ73867906 Contact Us For Availability
301
Lens LGE MFB62873502 Contact Us For Availability
400
Cover Assembly,Rear LGE ACQ86079506 Contact Us For Availability
510
Package Assembly LGE AGF76500101 Contact Us For Availability
535
Adapters LGE EAY62850003 Contact Us For Availability
540
DMS Chassis Assembly LGE EBT62235901 Contact Us For Availability
800
Plate,Metal LGE MGJ63366502 Contact Us For Availability
810
Plate,Metal LGE MGJ63366302 Contact Us For Availability
900
Base Assembly LGE AAN74031710 Contact Us For Availability
910
Base Assembly LGE AAN74131910 Contact Us For Availability
A2
Remote Controller Assembly LGE AKB73655824 Contact Us For Availability
C249
CAPACITOR,FIXED CERA LGE 0CK475DD56A Contact Us For Availability
C740
CAPACITOR,FIXED CERA LGE 0CK104CK56A Contact Us For Availability
C838
CAPACITOR,FIXED CERA LGE 0CK333CK56A Contact Us For Availability
C860
Capacitor,Ceramic,Ch LGE 0CK335FK66A Contact Us For Availability
C4045
CAPACITOR,FIXED CERA LGE 0CK105CD56A Contact Us For Availability
D710
DIODE,SWITCHING LGE 0DS226009AA Contact Us For Availability
IC100
IC,Serial Flash Memory LGE EAN55718402 Contact Us For Availability
IC100
IC,Serial Flash Memory LGE EAN61327101 Contact Us For Availability
JK406
Connector,DSUB LGE 6630TGA004Q Contact Us For Availability
L2602
FILTER(CIRC),EMC LGE 0LCML00003B Contact Us For Availability
R803
RESISTOR CHIP, 36K 1/10W 5 D. LGE 0RH3602D622 Contact Us For Availability
R815
Resistor,Chip LGE 0RH3003D622 Contact Us For Availability
S4
Cable Tie,Common LGE 347-080A Contact Us For Availability
× ![]()
