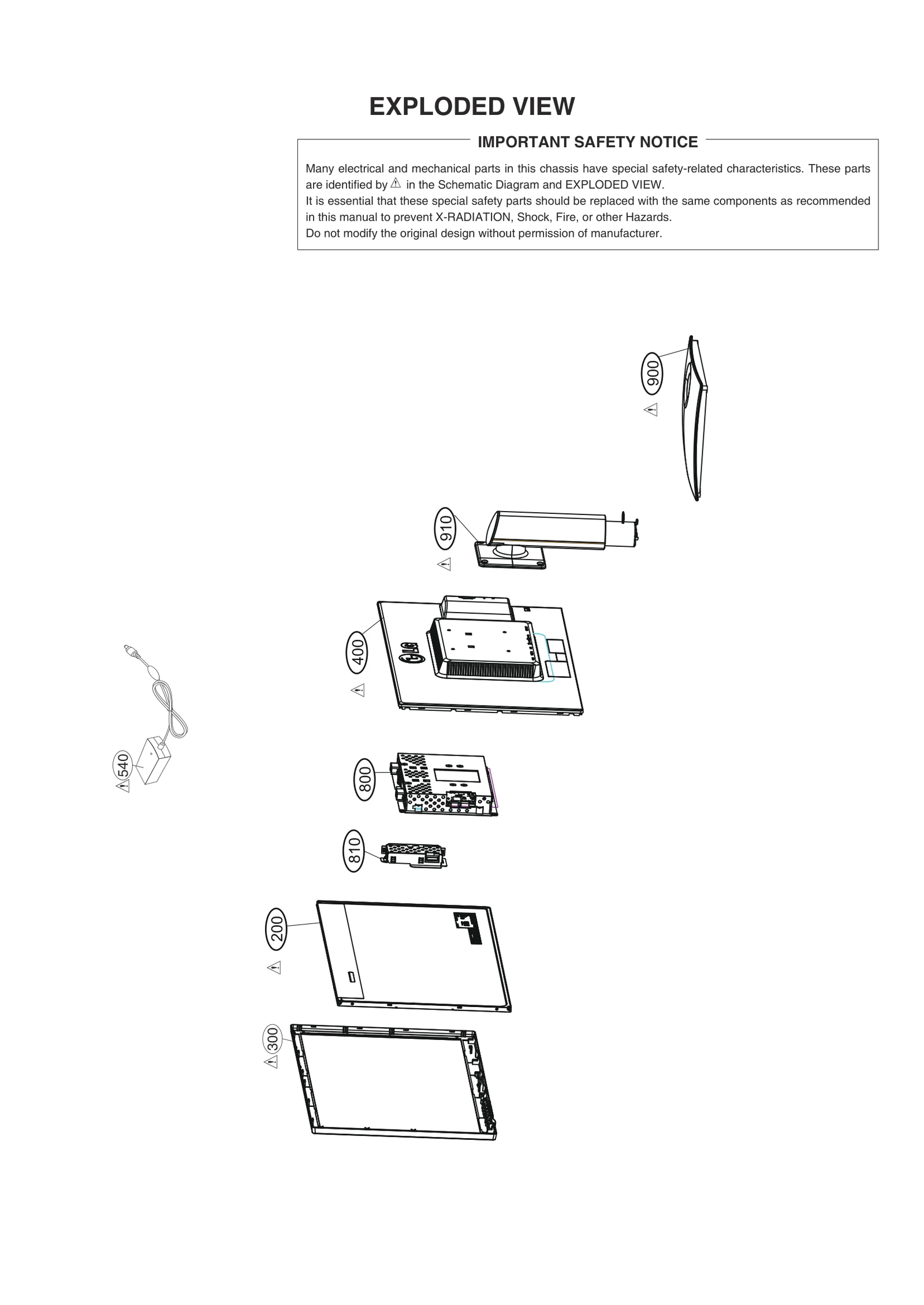

Model LG 24CAV37K-B – Common Parts & Diagrams

300
Cabinet Assembly
Cabinet Assembly LGE ABJ74247317 Contact Us For Availability
View on Model
400
Cover Assembly,Rear
Cover Assembly,Rear LGE ACQ88133002 Contact Us For Availability
View on Model
490
Cable,Assembly
Cable,Assembly LGE EAD57734001 Contact Us For Availability
View on Model
540
Adapters
Adapters LGE EAY63189102 Contact Us For Availability
View on Model
540
Adapters
Adapters LGE EAY62933001 Contact Us For Availability
View on Model
800
Frame Assembly
Frame Assembly LGE ADV74426707 Contact Us For Availability
View on Model
810
DMS Chassis Assembly
DMS Chassis Assembly LGE EBT62356205 Contact Us For Availability
View on Model
900
Base Assembly
Base Assembly LGE AAN74275103 Contact Us For Availability
View on Model
910
Base Assembly
Base Assembly LGE AAN74531409 Contact Us For Availability
View on Model
D600
DIODE,RECTIFIER
DIODE,RECTIFIER LGE 0DR340009AA Contact Us For Availability
View on Model
Q101
TR,Bipolar
TR,Bipolar LGE EBK61012701 Contact Us For Availability
View on Model
R4
Resistor,Chip
Resistor,Chip LGE 0RJ1801C678 Contact Us For Availability
View on Model
R5
Resistor,Chip
Resistor,Chip LGE 0RH1801D422 Contact Us For Availability
View on Model
R6
Resistor,Chip
Resistor,Chip LGE 0RJ4701C678 Contact Us For Availability
View on Model
SW6
Switch,Tact
Switch,Tact LGE EBF55334201 Contact Us For Availability
View on Model
SW6
Switch,Tact
Switch,Tact LGE EBF60670802 Contact Us For Availability
View on Model
SW6
SWITCH,TACT
SWITCH,TACT LGE 6600R00004C Contact Us For Availability
View on Model
ZD4
Diode,Zener
Diode,Zener LGE EAH60661201 Contact Us For Availability
View on Model
n/a2
FLUX
FLUX LGE 7245TZZ009A Contact Us For Availability
View on Model
