Model LG 24BK550Y-B – Common Parts & Diagrams

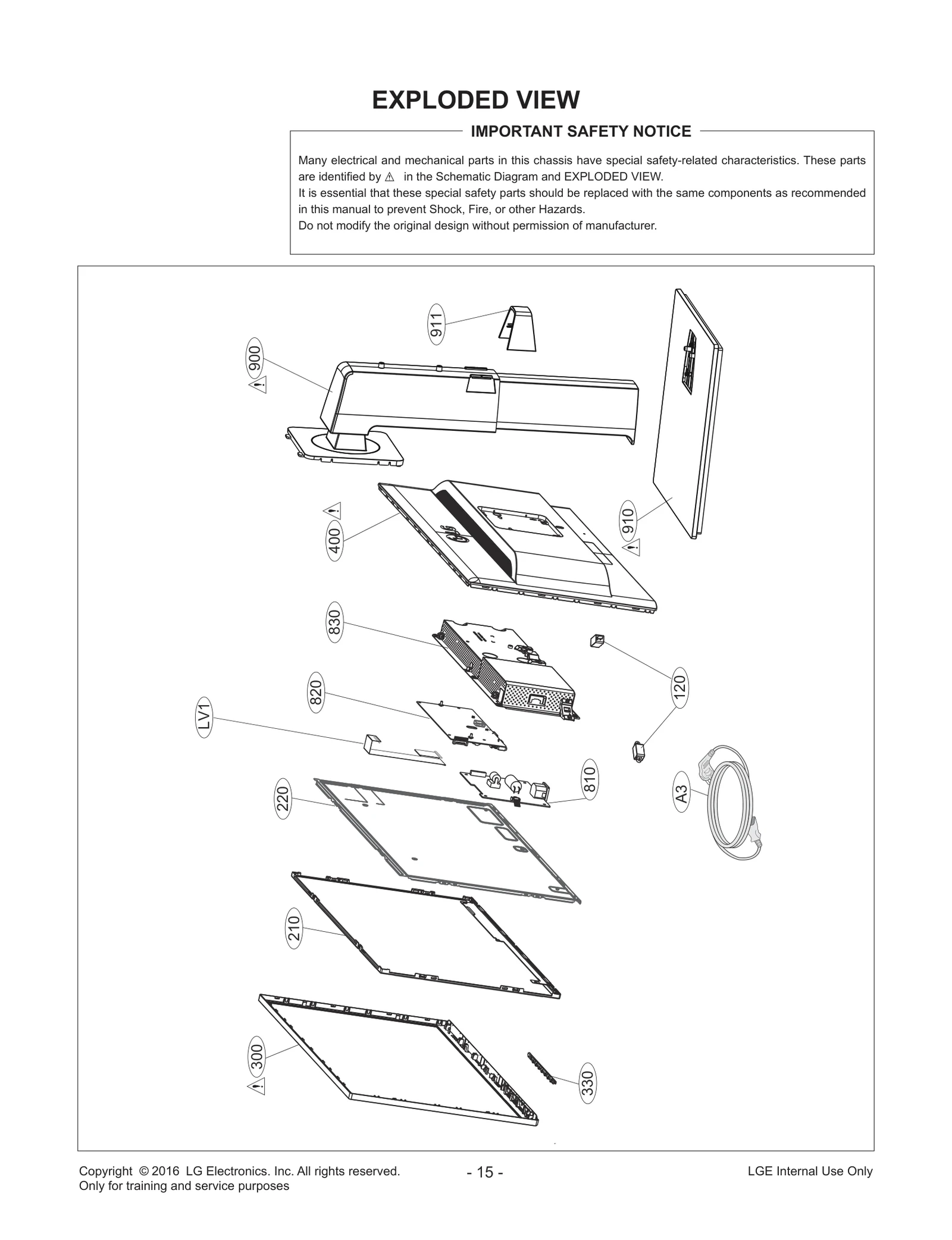

Diagram 0
Diagram 1
Common parts from model LG 24BK550Y-B
120
Speaker Assembly LGE EAB51749311 Contact Us For Availability
200
Module,Assembly LGE EAT62953268 Contact Us For Availability
210
LCD,Panel-TFT LGE EAJ64771102 Contact Us For Availability
210
LCD,Panel-TFT LGE EAJ64771101 Contact Us For Availability
300
Cabinet Assembly LGE ABJ75427501 Contact Us For Availability
810
Power Supply Assembly LGE EAY62909402 Contact Us For Availability
820
Main Board,BPR Total Assembly LGE EBU65706801 Contact Us For Availability
900
Base Assembly LGE AAN75908902 Contact Us For Availability
A1
Manual Assembly LGE AFN77519480 Contact Us For Availability
A4
Card LGE 3840TWL001S Contact Us For Availability
A7
Card LGE MBM65364015 Contact Us For Availability
A8
Cable,Assembly LGE EAD65185203 Contact Us For Availability
A8
Cable,Assembly LGE EAD63954403 Contact Us For Availability
A8
Cable,Assembly LGE EAD00926103 Contact Us For Availability
A9
Card LGE 3840TRL039A Contact Us For Availability
A10
Card LGE MBM65386401 Contact Us For Availability
A11
Card LGE MBM64637211 Contact Us For Availability
A15
Cable,Assembly LGE EAD65185303 Contact Us For Availability
A15
Cable,Assembly LGE EAD62111306 Contact Us For Availability
R719
Resistor,Chip LGE 0RJ1802C678 Contact Us For Availability
× ![]()
