Model Whirlpool 22RW-3BK49 RV GAS RANGE – Common Parts & Diagrams
02 - MAIN TOP & BURNER ASSEMBLY

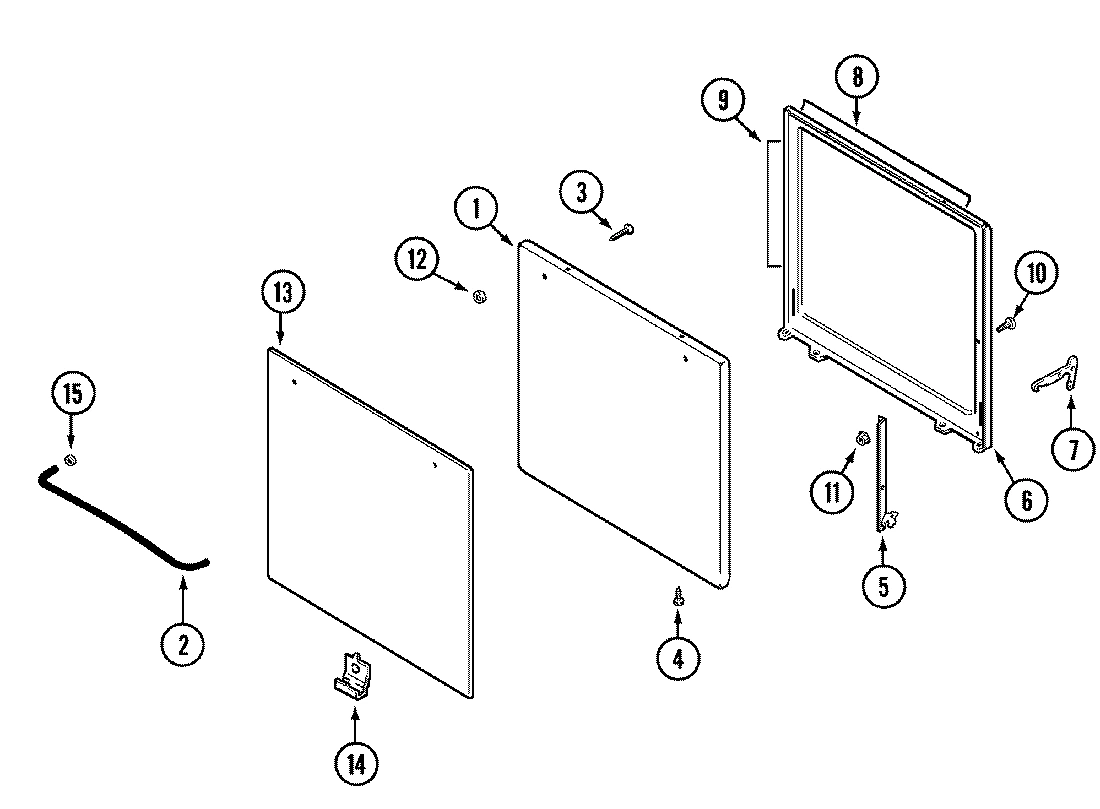

01 - DOOR

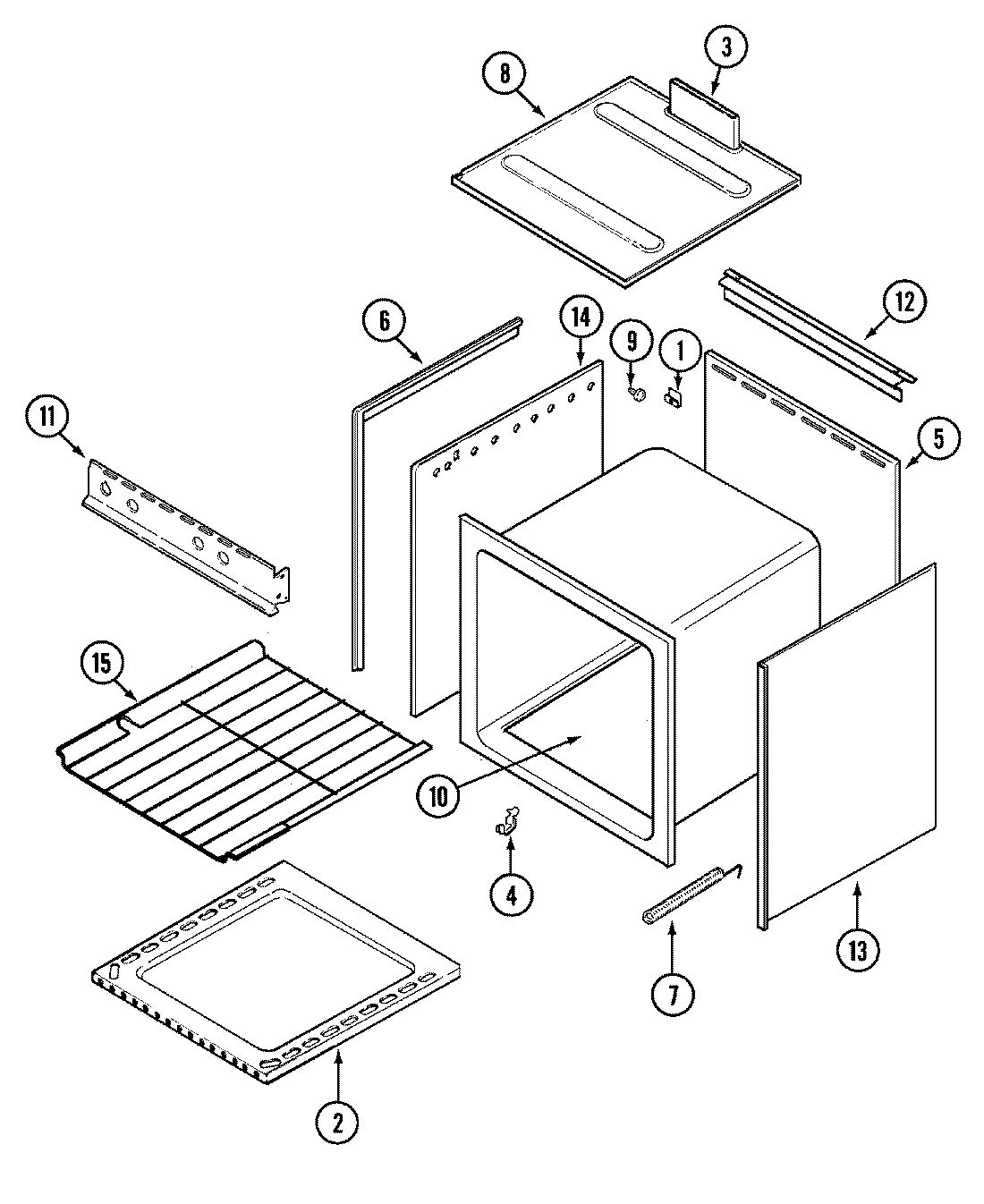

03 - OVEN
Common parts from model Whirlpool 22RW-3BK49 RV GAS RANGE
1
PANEL, DOOR (BLK) WPL 2401F12770 Contact Us For Availability
1
CLIP, MAIN TOP REAR WPL 7112P07160 Contact Us For Availability
2
BURNER REAR (RT) WPL 7505P19560 Contact Us For Availability
2
BURNER REAR (LF) WPL 7505P19660 Contact Us For Availability
2
HANDLE, DOOR WPL 7701P09260 Contact Us For Availability
2
BOTTOM, OVEN WPL 2205F01619 Contact Us For Availability
2
CLIP, OVEN BOTTOM WPL 7112P06560 Contact Us For Availability
3
BURNER ASSY. (FRT) WPL 74001746 Contact Us For Availability
3
SCREW WPL 7101P25660 Contact Us For Availability
3
FLUE BOX ASSY WPL 4006W07580 Contact Us For Availability
4
GROMMET WPL Y8007P02060 Contact Us For Availability
4
SCREW W/WASHER WPL 7101P12460 Contact Us For Availability
4
CLIP, THERMOSTAT WPL 7112P00460 Contact Us For Availability
5
GRATE, TOP WPL 7518P01260 Contact Us For Availability
5
HINGE, DOOR (RT) WPL 3418A05834 Contact Us For Availability
5
HINGE, DOOR (LT) WPL 3418A05934 Contact Us For Availability
5
BACK, MAIN WPL 4002F15051 Contact Us For Availability
5
BOLT, MAIN BACK WPL 7101P22760 Contact Us For Availability
5
SCREW, BLACK WPL 7101P27060 Contact Us For Availability
5
NUT WPL 7103P08260 Contact Us For Availability
5
BACK, MAIN WPL 74002417 Contact Us For Availability
6
INSERT, BURNER WPL 7214P01560 Contact Us For Availability
6
LINING DOOR WPL 2402F12319 Contact Us For Availability
6
TRIM, SIDE (LT) WPL 3608W03370 Contact Us For Availability
6
TRIM, SIDE (RT) WPL 3608W03470 Contact Us For Availability
6
SCREW No.6 X 1/2 WPL 7101P22860 Contact Us For Availability
7
KNOB, VALVE WPL 74001794 Contact Us For Availability
7
KNOB, VALVE WPL 7733P07260 Contact Us For Availability
7
ARM, SPRING WPL 3423F00134 Contact Us For Availability
7
SPRING, OVEN DOOR WPL 7803P05260 Contact Us For Availability
8
KNOB, THERMOSTAT WPL 7731P06760 Contact Us For Availability
8
KNOB, THERMOSTAT WPL 7731P10760 Contact Us For Availability
8
KNOB, THERMOSTAT WPL 7731P10960 Contact Us For Availability
8
SEAL, DOOR (TOP) WPL 7212P01460 Contact Us For Availability
8
BOTTOM, BURNER BOX WPL 4011F15351 Contact Us For Availability
9
PILOT BURNER WPL 7505P20260 Contact Us For Availability
9
PILOT, OVEN WPL 968143 Contact Us For Availability
9
SEAL, DOOR (SIDES) WPL 7212P03960 Contact Us For Availability
9
T-NUT (RV HINGE) WPL 7103P10960 Contact Us For Availability
10
PIPE, MANIFOLD WPL 7513P16160 Contact Us For Availability
10
SCREW WPL 7101P20960 Contact Us For Availability
10
SCREW WPL 7101P06460 Contact Us For Availability
10
BOTTOM, MAIN WPL 4011F12551 Contact Us For Availability
11
FITTING, HALF UNION WPL 7507P08360 Contact Us For Availability
11
REGULATOR, PRESSURE WPL 7510P04360 Contact Us For Availability
11
NUT WPL 7103P03460 Contact Us For Availability
11
PANEL, MANIFOLD WPL 2616F11670 Contact Us For Availability
12
SUPPORT, OVEN BURNER WPL 3807F32045 Contact Us For Availability
12
SHIELD, DEFLECTOR FLUE WPL 3604F12870 Contact Us For Availability
13
BUMPER WPL 8003P00860 Contact Us For Availability
13
SCREW WPL 7101P06160 Contact Us For Availability
13
SIDE, BODY (RT) WPL 4016F03851 Contact Us For Availability
14
TUBING (1/4``) WPL 3414F07844 Contact Us For Availability
14
TUBING (3/16 X 42``) WPL 3414F08044 Contact Us For Availability
14
FLANGE, T STAT WPL 7507P04960 Contact Us For Availability
14
THERMOSTAT WPL 7515P02960 Contact Us For Availability
14
THERMOSTAT WPL 7515P03160 Contact Us For Availability
14
THERMOSTAT WPL 7515P03760 Contact Us For Availability
14
SIDE, BODY (LT) WPL 4016F03751 Contact Us For Availability
15
TOP, MAIN (WHT) WPL 2001F11081 Contact Us For Availability
15
TOP, MAIN (WHT) WPL 74001333 Contact Us For Availability
15
RACK WPL 7801P02760 Contact Us For Availability
16
NUT & FERRULE (3/16``) WPL 1555261K Contact Us For Availability
16
NUT, 1/4`` LOXIT WPL 1555279 Contact Us For Availability
16
VALVE, OVEN WPL 7501P12160 Contact Us For Availability
17
VALVE, TOP BURNER (7100) WPL 74001795 Contact Us For Availability
17
VALVE TOP BURNER WPL 7502P18060 Contact Us For Availability
17
VALVE, TOP BURNER (5200) WPL 7502P18160 Contact Us For Availability
18
MIXER, AIR WPL 3411F00334 Contact Us For Availability
19
FASTENER, PUSH RING RV WPL 7104P00260 Contact Us For Availability
19
IGNITER, TOP WPL 7432P07760 Contact Us For Availability
20
FLASH TUBE WPL 7506P06760 Contact Us For Availability
20
FLASH TUBE WPL 7506P06860 Contact Us For Availability
21
CLIP WPL 7112P06860 Contact Us For Availability
22
WIRE, IGNITER WPL 5111A71960 Contact Us For Availability
22
IGNITER, TOP WPL 7432P07960 Contact Us For Availability
23
KNOB, SURFACE WPL 7739P05160 Contact Us For Availability
24
SUPPORT, TOP BURNER WPL 3807F46245 Contact Us For Availability
25
LIGHTER CUP WPL 7506P06560 Contact Us For Availability
26
SHIELD WPL 3604F21145 Contact Us For Availability
27
MANUAL, USE & CARE WPL 74002262 Contact Us For Availability
28
GUIDE, QUICK REF. - MAGIC CHEF WPL 16000329 Contact Us For Availability
× ![]()
