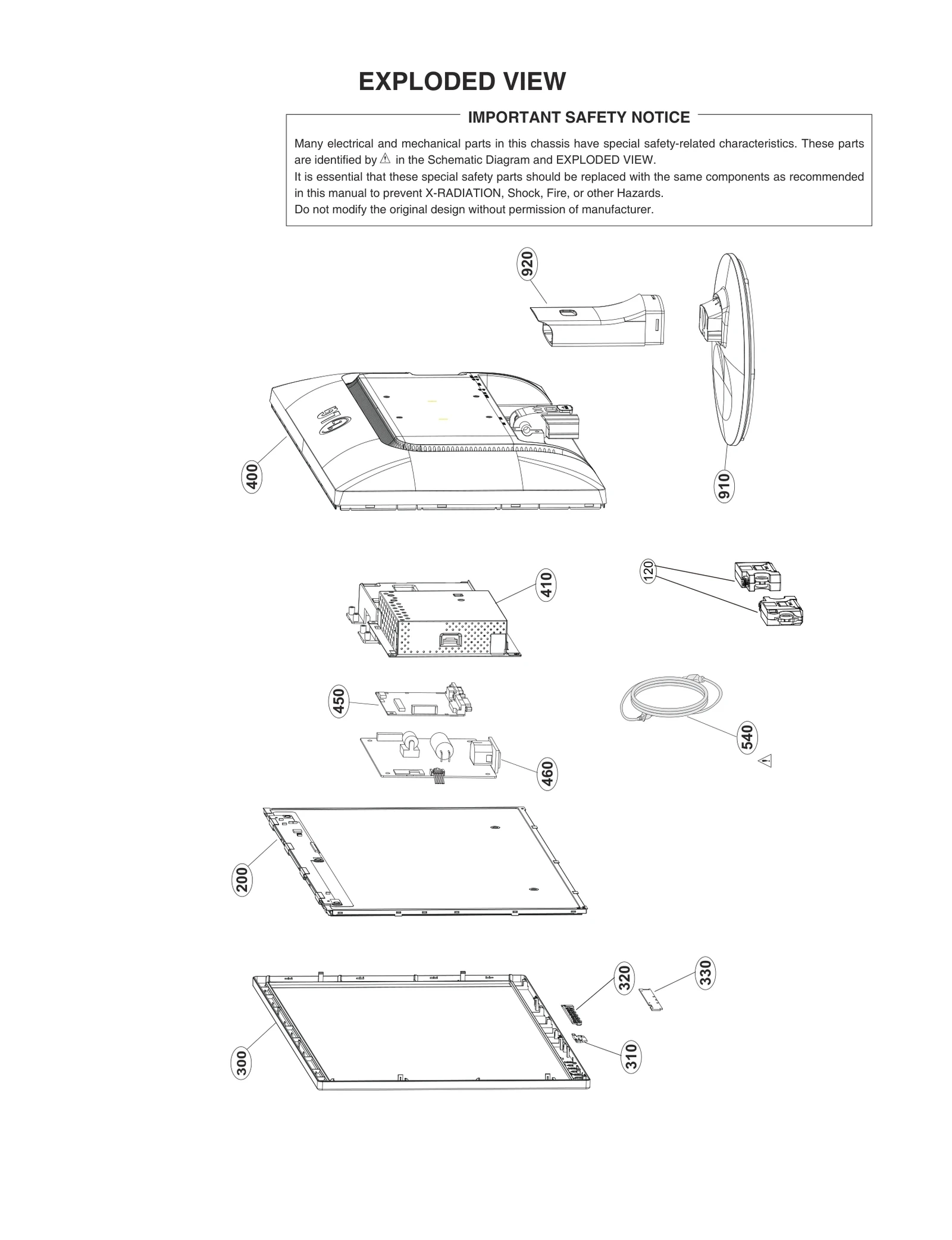

Model LG 22MB35Y-I – Common Parts & Diagrams

120
Speaker Assembly
Speaker Assembly LGE EAB51749301 Contact Us For Availability
View on Model
120
Speaker Assembly
Speaker Assembly LGE EAB51749307 Contact Us For Availability
View on Model
300
Cabinet Assembly
Cabinet Assembly LGE ABJ74947207 Contact Us For Availability
View on Model
310
Bracket Assembly
Bracket Assembly LGE ABA72946302 Contact Us For Availability
View on Model
320
Button,Control
Button,Control LGE MBG62153502 Contact Us For Availability
View on Model
330
Package Assembly
Package Assembly LGE AGF77104901 Contact Us For Availability
View on Model
400
Cover Assembly,Rear
Cover Assembly,Rear LGE ACQ88014511 Contact Us For Availability
View on Model
410
Frame Assembly
Frame Assembly LGE ADV74747207 Contact Us For Availability
View on Model
450
Package Assembly
Package Assembly LGE AGF76707895 Contact Us For Availability
View on Model
460
Power Supply Assembly
Power Supply Assembly LGE EAY62909402 Contact Us For Availability
View on Model
910
Base Assembly
Base Assembly LGE AAN72944609 Contact Us For Availability
View on Model
920
Base Assembly
Base Assembly LGE AAN73950204 Contact Us For Availability
View on Model
LV1
Cable,FFC
Cable,FFC LGE EAD63169825 Contact Us For Availability
View on Model
Q100
TR,Bipolar
TR,Bipolar LGE 0TR390609DC Contact Us For Availability
View on Model
R3
Resistor,Chip
Resistor,Chip LGE 0RJ4701C678 Contact Us For Availability
View on Model
R4
Resistor,Chip
Resistor,Chip LGE 0RJ1801C678 Contact Us For Availability
View on Model
R5
Resistor,Chip
Resistor,Chip LGE 0RH1801D422 Contact Us For Availability
View on Model
SW2
Switch,Tact
Switch,Tact LGE EBF60670802 Contact Us For Availability
View on Model
SW2
Switch,Tact
Switch,Tact LGE EBF55334201 Contact Us For Availability
View on Model
SW2
SWITCH,TACT
SWITCH,TACT LGE 6600R00004C Contact Us For Availability
View on Model
ZD4
Diode,Zener
Diode,Zener LGE EAH60661201 Contact Us For Availability
View on Model
