Model LG 22MB35PY-I – Common Parts & Diagrams

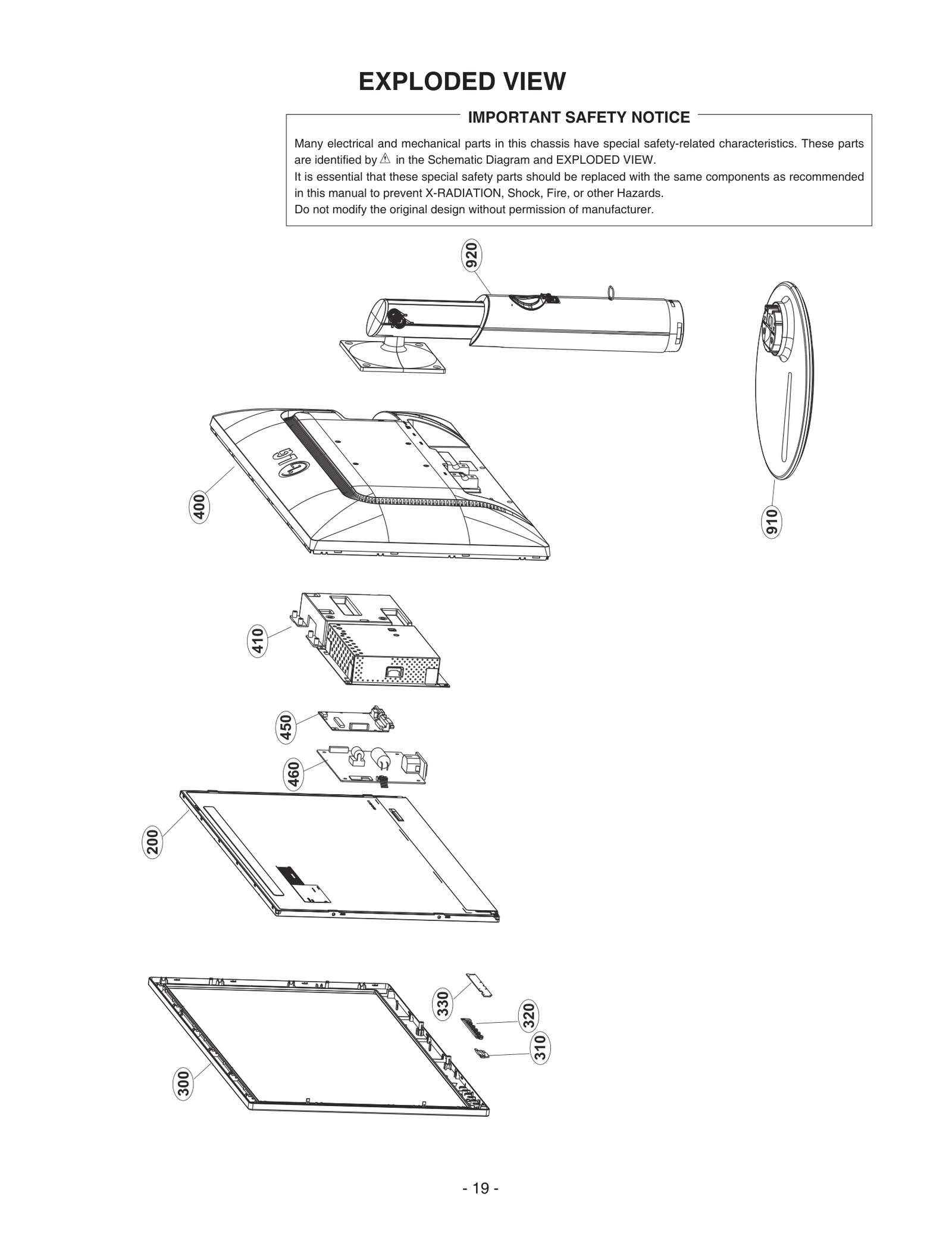

Diagram 0
Diagram 1
Common parts from model LG 22MB35PY-I
120
Speaker Assembly LGE EAB51749307 Contact Us For Availability
120
Speaker Assembly LGE EAB51749301 Contact Us For Availability
200
LCD,Module-TFT LGE EAJ63908801 Contact Us For Availability
310
Bracket Assembly LGE ABA72946301 Contact Us For Availability
330
PCB Assembly LGE EBR74906817 Contact Us For Availability
410
Frame Assembly LGE ADV74747204 Contact Us For Availability
450
BPR Total Assembly LGE EBU62029999 Contact Us For Availability
460
Power Supply Assembly LGE EAY62909402 Contact Us For Availability
910
Base Assembly LGE AAN73910103 Contact Us For Availability
920
Base Assembly LGE AAN73069038 Contact Us For Availability
A1
Manual Assembly LGE AFN77464080 Contact Us For Availability
A4
Card LGE 3840TRL039A Contact Us For Availability
A5
Cable,Assembly LGE EAD64247202 Contact Us For Availability
A5
Cable,Assembly LGE 68509F0003A Contact Us For Availability
A6
CABLE,DVI LGE 68509J0004A Contact Us For Availability
A6
Cable,Assembly LGE EAD64247302 Contact Us For Availability
A7
Card LGE MBM65386401 Contact Us For Availability
A9
Card LGE 3840TWL001S Contact Us For Availability
A10
Card LGE MBM64076546 Contact Us For Availability
A11
Cable,Assembly LGE EAD62571203 Contact Us For Availability
A12
Cable,Assembly LGE EAD60949001 Contact Us For Availability
A12
Cable,Assembly LGE EAD60949002 Contact Us For Availability
C1
Capacitor,Ceramic,Ch LGE 0CC475CD5DA Contact Us For Availability
C200
CAPACITOR,FIXED CERA LGE 0CK475DD56A Contact Us For Availability
C213
CAPACITOR,FIXED CERA LGE 0CK105CD56A Contact Us For Availability
C316
CAPACITOR,FIXED CERA LGE 0CK105CK56A Contact Us For Availability
C319
Capacitor,Ceramic,Ch LGE 0CK474DK56A Contact Us For Availability
C320
Capacitor,Ceramic,Ch LGE 0CZZB00058A Contact Us For Availability
C321
CAPACITOR,FIXED CERA LGE 0CK104CK56A Contact Us For Availability
C330
CAPACITOR,FIXED CERA LGE 0CK104CF56A Contact Us For Availability
C336
Capacitor,Ceramic,Ch LGE 0CC180BKFAA Contact Us For Availability
C350
Capacitor,Ceramic,Ch LGE 0CK104BF56A Contact Us For Availability
JK204
Connector,DSUB LGE 6630TGA005S Contact Us For Availability
JK300
Connector,USB LGE 6630SK00705 Contact Us For Availability
LV1
Cable,FFC LGE EAD62389046 Contact Us For Availability
P201
Connector,Wafer LGE EAG31366104 Contact Us For Availability
P201
CONNECTOR (CIRC),WAF LGE 6602T20009C Contact Us For Availability
P300
Connector,USB LGE 6630SK00804 Contact Us For Availability
P302
Connector,Wafer LGE 6630V90220L Contact Us For Availability
Q101
TRANSISTOR,BIPOLARS LGE 0TRDI80002A Contact Us For Availability
Q302
TR,Bipolar LGE 0TR390609DC Contact Us For Availability
R101
Resistor,Chip LGE 0RJ0562C478 Contact Us For Availability
R104
Resistor,Chip LGE 0RJ4700C678 Contact Us For Availability
R127
Resistor,Chip LGE 0RJ0332C678 Contact Us For Availability
R129
Resistor,Chip LGE 0RJ2202C678 Contact Us For Availability
R130
RESISTOR,METAL GLAZE LGE 0RJ2701C678 Contact Us For Availability
R200
Resistor,Chip LGE 0RJ1004C678 Contact Us For Availability
R205
Resistor,Chip LGE 0RJ0752C678 Contact Us For Availability
R210
Resistor,Chip LGE 0RJ1002C678 Contact Us For Availability
R217
Resistor,Chip LGE 0RJ4701C678 Contact Us For Availability
R247
Resistor,Chip LGE 0RJ2001C678 Contact Us For Availability
R268
Resistor,Chip LGE 0RJ1001C678 Contact Us For Availability
R273
RESISTOR,METAL GLAZE LGE 0RJ1003D677 Contact Us For Availability
R305
Resistor,Chip LGE 0RJ1003C478 Contact Us For Availability
R310
Resistor,Chip LGE 0RJ3301C478 Contact Us For Availability
R311
Resistor,Chip LGE 0RJ1502C478 Contact Us For Availability
R314
Resistor,Chip LGE 0RJ8201C478 Contact Us For Availability
R315
Resistor,Chip LGE 0RJ2003C678 Contact Us For Availability
R317
Resistor,Chip LGE 0RJ1003C678 Contact Us For Availability
R320
RESISTOR,METAL GLAZE LGE 0RJ2002C478 Contact Us For Availability
R321
Resistor,Chip LGE 0RJ2003C478 Contact Us For Availability
R323
Resistor,Chip LGE 0RJ4702C478 Contact Us For Availability
R324
Resistor,Chip LGE 0RJ3902C478 Contact Us For Availability
R330
Resistor,Chip LGE 0RJ5102C678 Contact Us For Availability
R331
Resistor,Chip LGE 0RJ2700C478 Contact Us For Availability
R332
Resistor,Chip LGE 0RJ7502C478 Contact Us For Availability
R336
Resistor,Chip LGE 0RJ3901C478 Contact Us For Availability
R338
Resistor,Chip LGE 0RJ0100J488 Contact Us For Availability
R339
Resistor,Chip LGE 0RJ6800E472 Contact Us For Availability
R351
Resistor,Chip LGE 0RJ0221C678 Contact Us For Availability
R355
Resistor,Chip LGE 0RJ0000C678 Contact Us For Availability
SW300
SWITCH,POLY LGE 6600AR9458Q Contact Us For Availability
ZD2
Diode,Zener LGE EAH60661201 Contact Us For Availability
× ![]()
