Model LG 22M47D-P – Common Parts & Diagrams

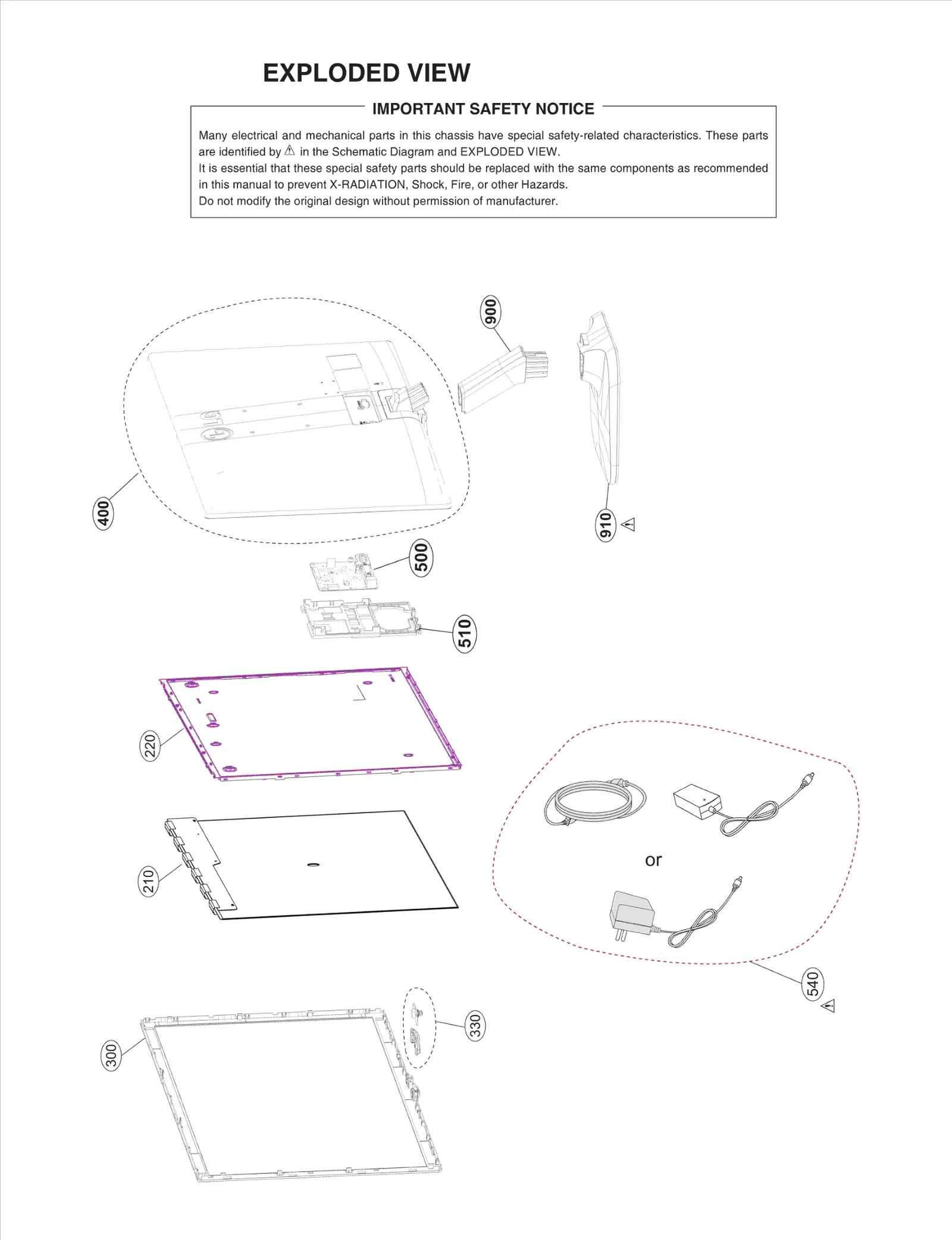

Diagram 0
Diagram 1
Common parts from model LG 22M47D-P
210
LCD,Panel-TFT LGE EAJ62287601 Contact Us For Availability
300
Cabinet Assembly LGE ABJ74647201 Contact Us For Availability
330
PCB Assembly,Sub LGE EBR79939601 Contact Us For Availability
400
Cover Assembly,Rear LGE ACQ88050701 Contact Us For Availability
500
BPR Total Assembly LGE EBU63408101 Contact Us For Availability
510
Bracket LGE MAZ64584702 Contact Us For Availability
540
Adapters LGE EAY62768614 Contact Us For Availability
900
Base Assembly LGE AAN75068801 Contact Us For Availability
A1
Manual Assembly LGE AFN76853730 Contact Us For Availability
A4
Card LGE 3840TWL027W Contact Us For Availability
A5
Cable,Assembly LGE EAD57734001 Contact Us For Availability
A7
Card LGE MBM64797307 Contact Us For Availability
A9
Card LGE MBM65183801 Contact Us For Availability
C113
CAPACITOR,FIXED CERA LGE 0CK475DD56A Contact Us For Availability
C114
Capacitor,Ceramic,Chip LGE 0CH1474K562 Contact Us For Availability
C115
Capacitor,Ceramic,Chip LGE 0CK822BH56A Contact Us For Availability
C127
Capacitor,Ceramic,Ch LGE 0CK104BF56A Contact Us For Availability
C137
Capacitor,Ceramic,Chip LGE 0CC300BKF1A Contact Us For Availability
C143
Capacitor,Ceramic,Chip LGE 0CK105DH56A Contact Us For Availability
C150
CAPACITOR,FIXED CERA LGE 0CK105CD56A Contact Us For Availability
C160
Capacitor,Ceramic,Ch LGE 0CC221BKFAA Contact Us For Availability
C170
Capacitor,Ceramic,Ch LGE 0CK104CHG6A Contact Us For Availability
D203
Diode,Schottky LGE EAH44241601 Contact Us For Availability
D203
DIODE,SWITCHING LGE 0DSON00138A Contact Us For Availability
IC201
IC,MEMORIES LGE 0IMMR00014A Contact Us For Availability
IC201
IC,EEPROM LGE EAN60997601 Contact Us For Availability
JK202
Connector,DSUB LGE EAG61072904 Contact Us For Availability
LV1
Cable,FFC LGE EAD63169813 Contact Us For Availability
P100
Connector,Wafer LGE EAG31366106 Contact Us For Availability
P100
WAFER LGE 6602T20009E Contact Us For Availability
P101
Connector,FFC/FPC/PIC LGE EAG60908201 Contact Us For Availability
P102
Connector,Wafer LGE EAG62172203 Contact Us For Availability
R6
Resistor,Chip LGE 0RJ1200C678 Contact Us For Availability
R8
Resistor,Chip LGE 0RJ2001C678 Contact Us For Availability
R101
Resistor,Chip LGE 0RJ1003C478 Contact Us For Availability
R102
Resistor,Chip LGE 0RJ1802C478 Contact Us For Availability
R104
Resistor,Chip LGE 0RJ3300C678 Contact Us For Availability
R117
Resistor,Chip LGE 0RJ1001C678 Contact Us For Availability
R119
Resistor,Chip LGE 0RJ0221C678 Contact Us For Availability
R124
Resistor,Chip LGE 0RJ4700C678 Contact Us For Availability
R130
Resistor,Chip LGE 0RJ1002C678 Contact Us For Availability
R131
Resistor,Chip LGE 0RJ0562C478 Contact Us For Availability
R133
Resistor,Chip LGE 0RJ0332C678 Contact Us For Availability
R143
Resistor,Chip LGE EBC62857601 Contact Us For Availability
R146
Resistor,Chip LGE 0RJ5102C678 Contact Us For Availability
R158
Resistor,Chip LGE 0RJ1004C678 Contact Us For Availability
R167
Resistor,Chip LGE 0RJ0101C678 Contact Us For Availability
R170
Resistor,Chip LGE 0RJ4701C678 Contact Us For Availability
R176
Resistor,Chip LGE 0RJ2202C678 Contact Us For Availability
R177
RESISTOR,METAL GLAZE LGE 0RJ2701C678 Contact Us For Availability
R184
Resistor,Chip LGE 0RJ0000C678 Contact Us For Availability
R203
Resistor,Chip LGE 0RJ0752C678 Contact Us For Availability
R241
Resistor,Chip LGE 0RJ1003C678 Contact Us For Availability
× ![]()
