Model LG 22LW760M – Common Parts & Diagrams

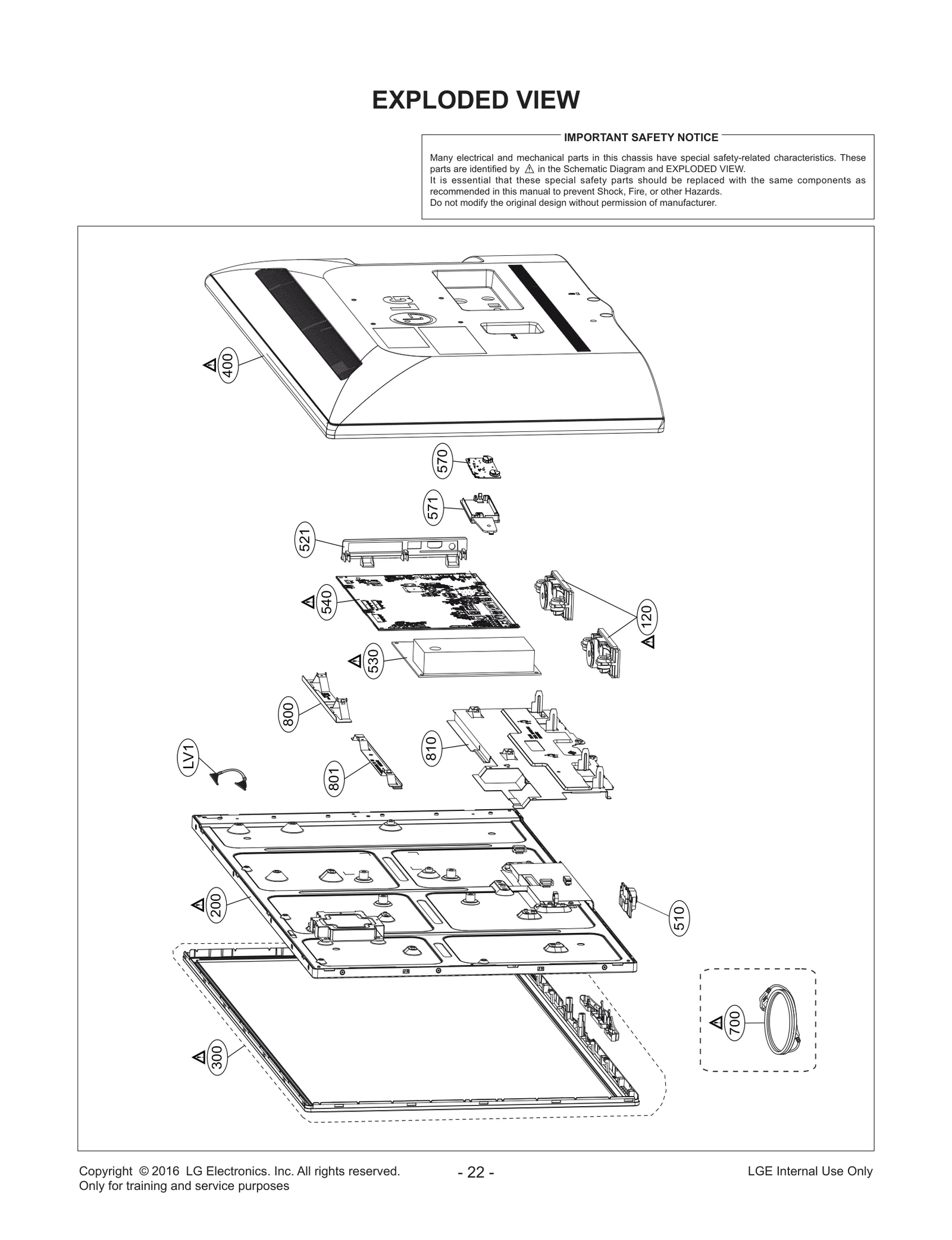

Diagram 0
Diagram 1
Common parts from model LG 22LW760M
200
LCD,Module-TFT LGE EAJ62828001 Contact Us For Availability
300
Cabinet Assembly LGE ABJ74148137 Contact Us For Availability
400
Cover Assembly,Rear LGE ACQ87079008 Contact Us For Availability
500
PCB Assembly,Sub LGE EBR82256101 Contact Us For Availability
521
Cover LGE MCK67135070 Contact Us For Availability
530
SMPS,AC/DC LGE EAY62609502 Contact Us For Availability
540
Mainboard,BPR Total Assembly,SVC LGE EBU63827702 Contact Us For Availability
571
Cover LGE MCK69191902 Contact Us For Availability
700
Power Cord,Detach LGE EAD61728003 Contact Us For Availability
800
Plate,Metal LGE MGJ63673401 Contact Us For Availability
801
Frame Assembly LGE ADV74885602 Contact Us For Availability
C606
CAPACITOR,FIXED CERA LGE 0CK475DD56A Contact Us For Availability
C2318
CAPACITOR,FIXED CERA LGE 0CK333CK56A Contact Us For Availability
C2346
Capacitor,Ceramic,Chip LGE 0CK226DC67A Contact Us For Availability
C5621
CAPACITOR,FIXED CERA LGE 0CK104CK56A Contact Us For Availability
C8615
Capacitor,Ceramic,Chip LGE 0CH1224K512 Contact Us For Availability
C9584
CAPACITOR,FIXED CERA LGE 0CK474DH56A Contact Us For Availability
D9500
Diode,Switching LGE 0DSGD00038A Contact Us For Availability
L101
FILTER(CIRC),EMC LGE 0LCML00003B Contact Us For Availability
R3402
Resistor,Chip LGE EBC01890805 Contact Us For Availability
R6402
RESISTOR CHIP 22 1/10W 5 D.R/ LGE 0RH0222D622 Contact Us For Availability
R9538
Resistor,Chip LGE 0RH4700D422 Contact Us For Availability
R9551
RESISTOR CHIP 75K 1/10W 5 D.R/ LGE 0RH7502D622 Contact Us For Availability
R9581
Resistor,Chip LGE 0RH2000D422 Contact Us For Availability
× ![]()
