Model Whirlpool 22JK-7KLXV8 GAS RANGE – Common Parts & Diagrams
05 - DOOR/DRAWER

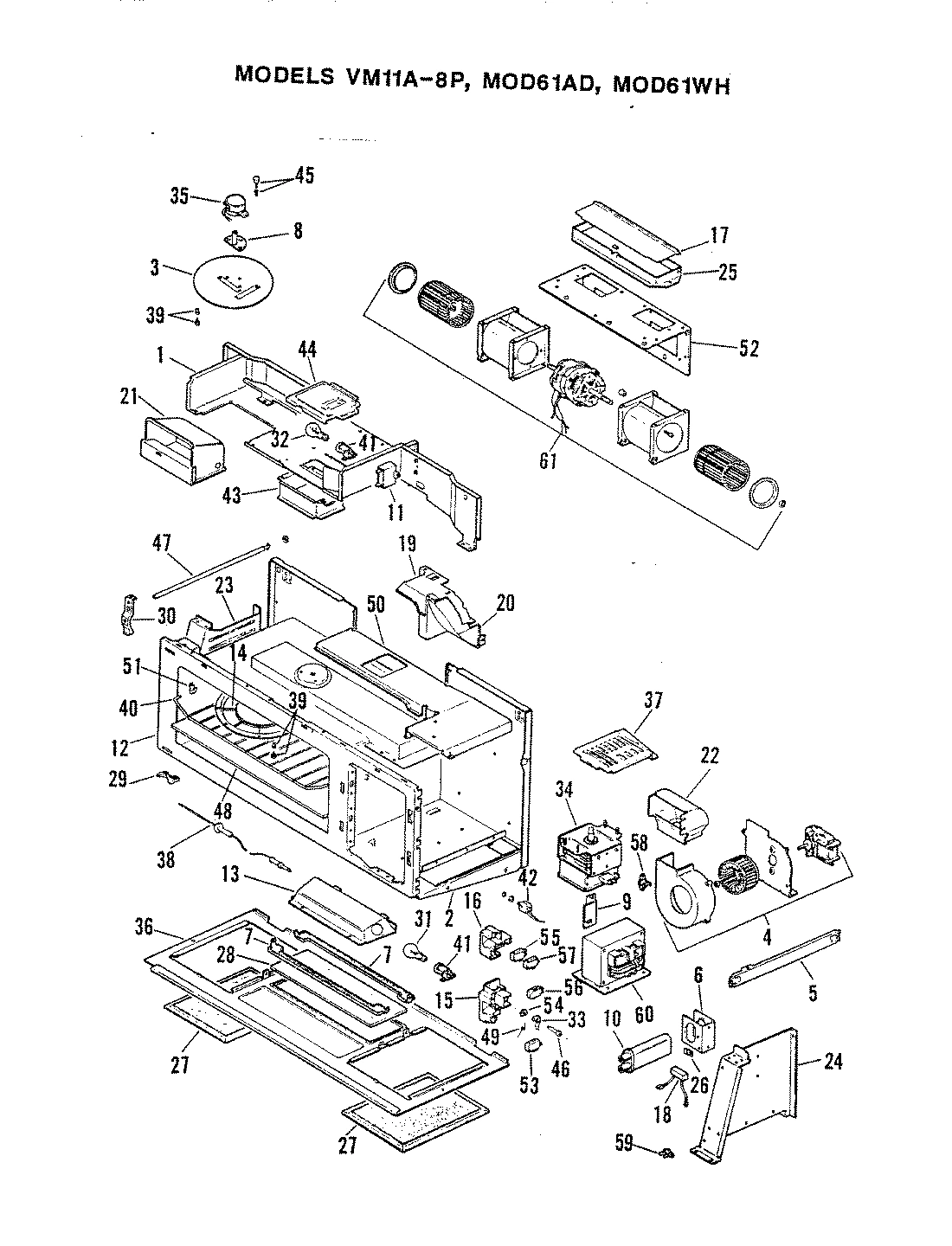

01 - BASE & CAVITY (VM11-8P)

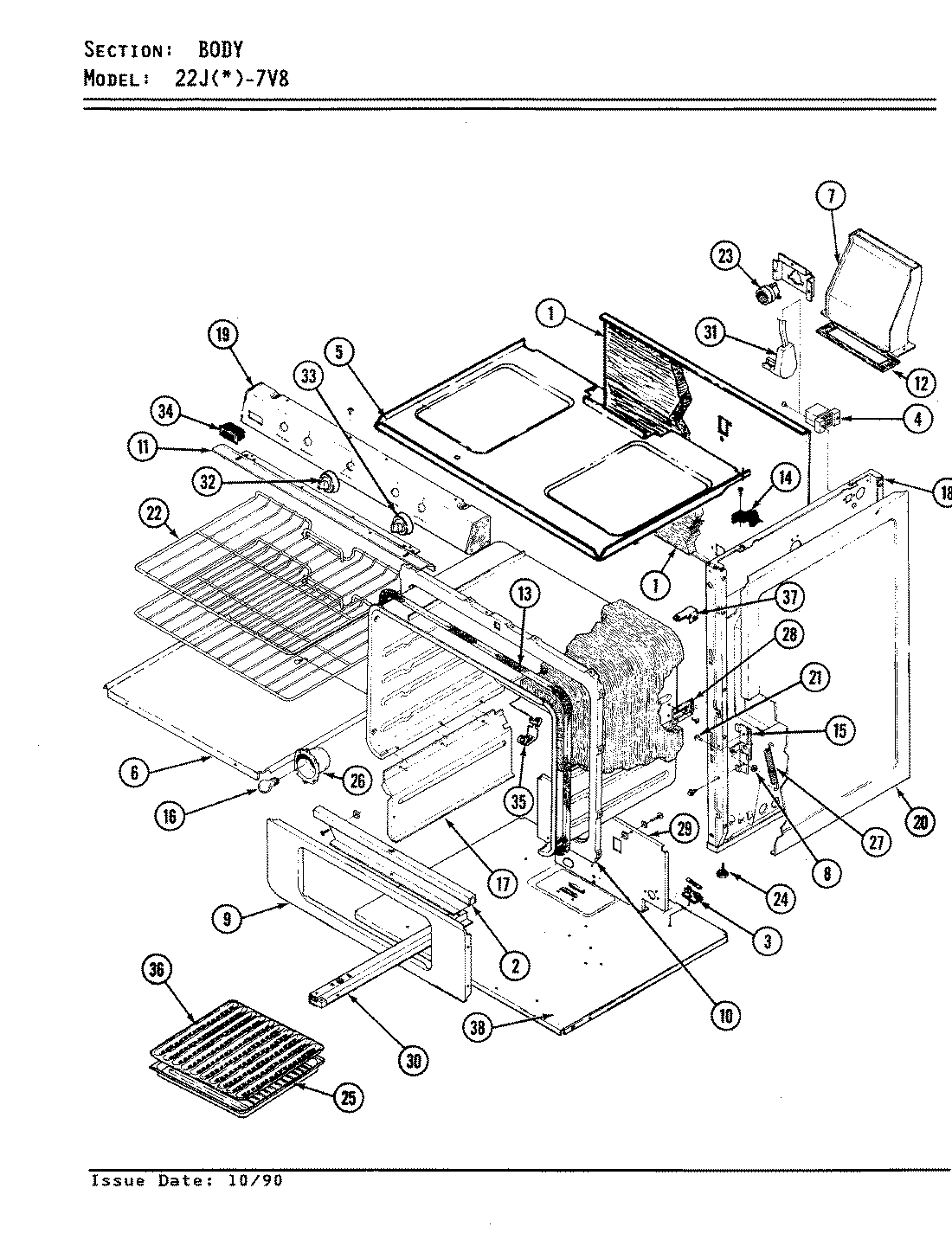

02 - BODY-LOWER

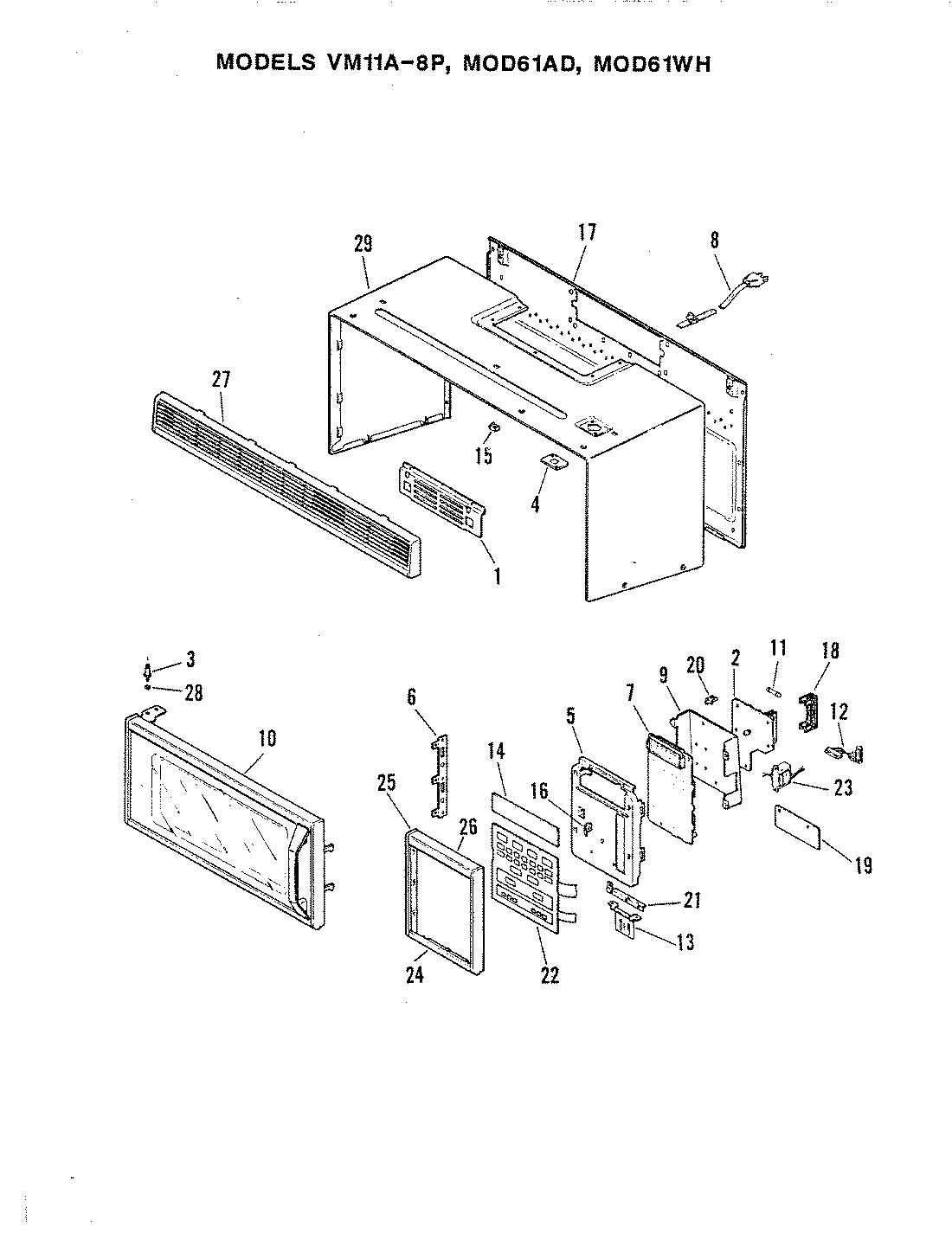

04 - CONTROL PANEL/WRAPPER (VM11-8P)

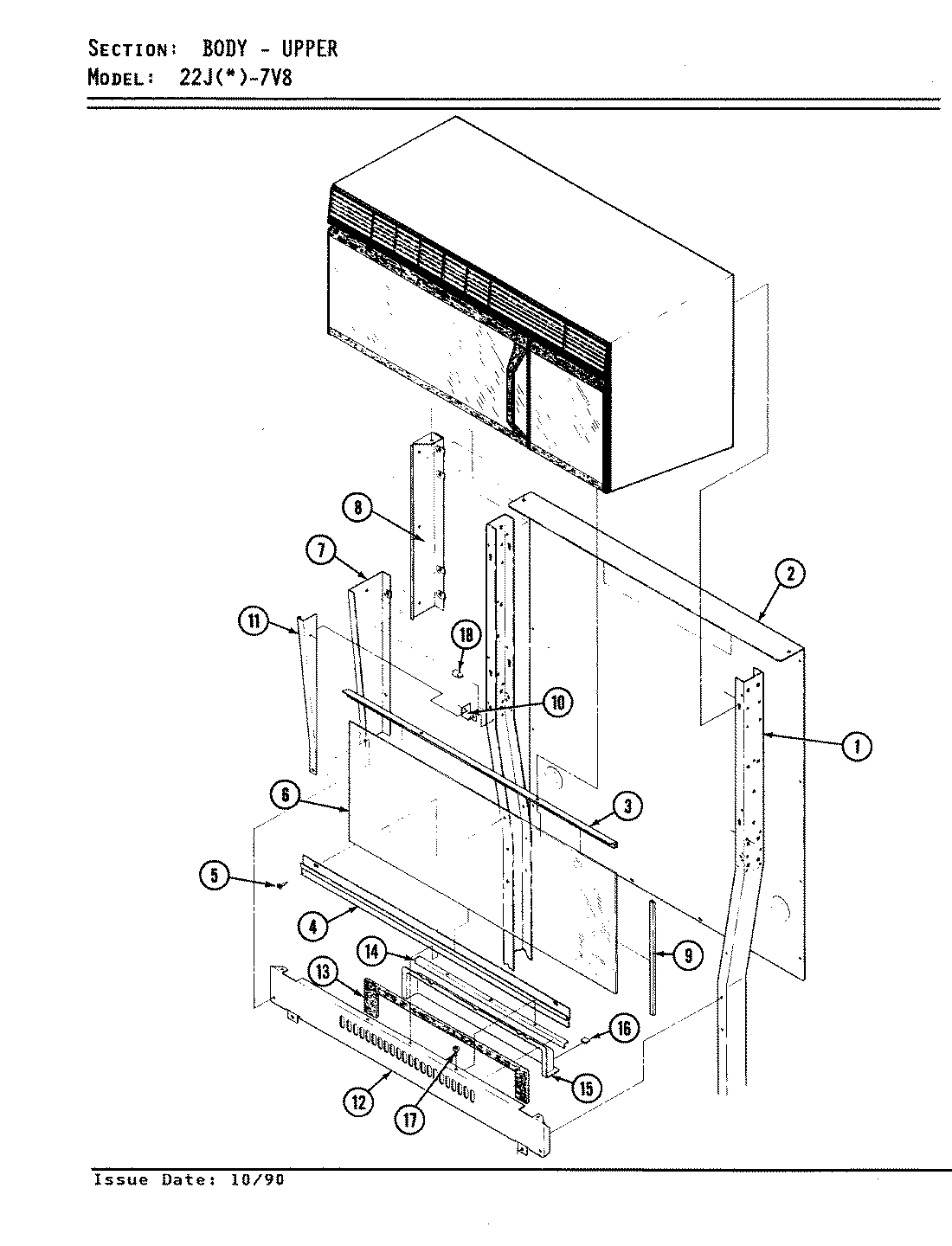

03 - BODY-UPPER

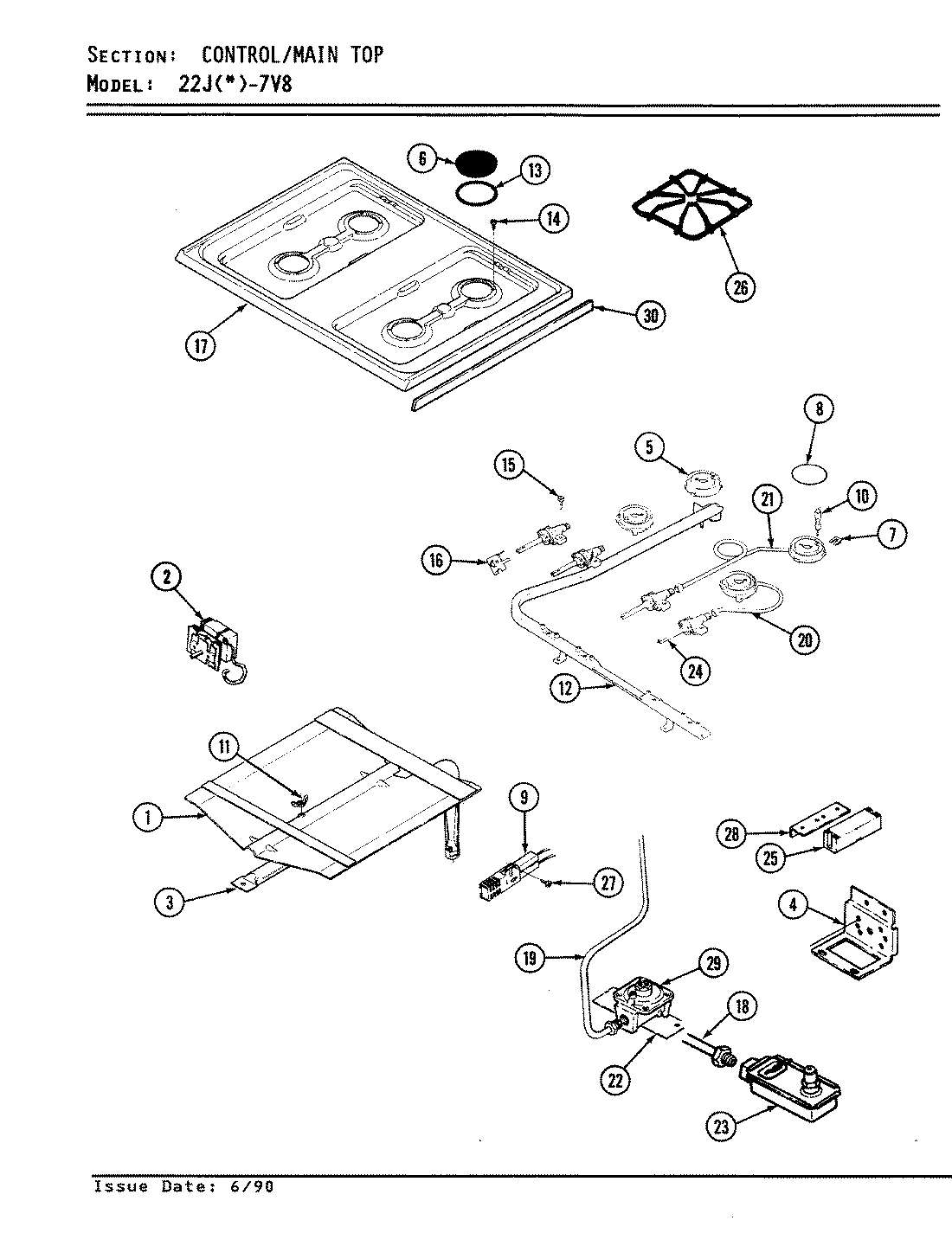

06 - TOP ASSEMBLY/GAS CONTROLS
Common parts from model Whirlpool 22JK-7KLXV8 GAS RANGE
1
BAFFLE, OVEN DOOR WPL 3601F09451 Contact Us For Availability
1
BAFFLE, UPPER WPL 20450004 Contact Us For Availability
1
BACK, MAIN WPL 4002F14480 Contact Us For Availability
1
BACK, MAIN WPL 4002F16580 Contact Us For Availability
1
DAMPER WPL 20800003 Contact Us For Availability
1
CHANNEL, OVEN SUPPORT WPL 3818F04651 Contact Us For Availability
1
BAFFLE, OVEN BURNER WPL 3601F18145 Contact Us For Availability
2
SCREW WPL 7101P07660 Contact Us For Availability
2
BASE WPL 20850003 Contact Us For Availability
2
BAFFLE, OVN FRONT WPL 3601W12416 Contact Us For Availability
2
SCREW WPL 7101P05860 Contact Us For Availability
2
BOARD WPL 21250005 Contact Us For Availability
2
COVER, BACK WIRE WPL 4002F05480 Contact Us For Availability
2
SCREW W/WASHER WPL 7101P27960 Contact Us For Availability
2
THERMOSTAT WPL 7404P06360 Contact Us For Availability
3
CLIP, DOOR WPL 7112P03460 Contact Us For Availability
3
BLADE, STIRRER WPL 21100004 Contact Us For Availability
3
BLOCK, TERMINAL----NA WPL 7401P00360 Contact Us For Availability
3
BOLT WPL 30050112 Contact Us For Availability
3
EXTRUSION, GLASS TOP WPL 7706P16560 Contact Us For Availability
3
BURNER OVEN WPL 3403A01545 Contact Us For Availability
3
BURNER, OVEN WPL 3403D02745 Contact Us For Availability
3
BURNER WPL 7505P10160 Contact Us For Availability
4
BROILER DRAWER ASSY. WPL 3407W00919 Contact Us For Availability
4
DRAWER, BROILER WPL 3407W00923 Contact Us For Availability
4
SCREW WPL 7101P11460 Contact Us For Availability
4
MOTOR, BLOWER WPL 27200010 Contact Us For Availability
4
BLOCK, DISCONNECT (PIN) WPL 7401P01760 Contact Us For Availability
4
BRACKET, CORD WPL 21450043 Contact Us For Availability
4
EXTRUSION, GLASS BOT WPL 7706P16460 Contact Us For Availability
4
SUPPORT WPL 3807F12034 Contact Us For Availability
5
FRAME, BRL DR WPL 7706P18260 Contact Us For Availability
5
BRACKET WPL 21450048 Contact Us For Availability
5
BOTTOM, BURNER BOX WPL 4011F09580 Contact Us For Availability
5
BRACKET, CONTROL PANEL WPL 21450051 Contact Us For Availability
5
SCREW (6ABX38-ZN) WPL 7101P07760 Contact Us For Availability
5
WIRE, IGNITER FRONT WPL 5110A82460 Contact Us For Availability
5
WIRE, IGNITER REAR WPL 5110A82560 Contact Us For Availability
5
BURNER, TOP COMPLETE WPL 7505A15560 Contact Us For Availability
5
BURNER, TOP WPL 7505P18760 Contact Us For Availability
6
FRAME, DOOR WPL 7706P24360 Contact Us For Availability
6
BRACKET, CAPACITOR WPL 21450046 Contact Us For Availability
6
BOTTOM, OVEN WPL 2205F01216 Contact Us For Availability
6
BRACKET, PANEL WPL 21450045 Contact Us For Availability
6
GLASS, BACKGUARD WPL 7902P01160 Contact Us For Availability
6
CAP, SURFACE BURNER, BLACK WPL 7504P00760 Contact Us For Availability
7
FRAME, WINDOW----NA WPL 3603F01380 Contact Us For Availability
7
BRACKET, GLASS WPL 21450047 Contact Us For Availability
7
BOX, FLUE ASSY WPL 4006W02623 Contact Us For Availability
7
CONTROL - DISPLAY WPL 21250004 Contact Us For Availability
7
PANEL, SIDE UPPER (LEFT) WPL 2618F07632 Contact Us For Availability
7
PANEL, SIDE UPPER (RIGHT) WPL 2618F07732 Contact Us For Availability
7
CLIP WPL 7112P07260 Contact Us For Availability
8
GLASS, DOOR INNER WPL 7902P03560 Contact Us For Availability
8
MOUNTING, STIRRER WPL 21450049 Contact Us For Availability
8
FILTER, CHARCOAL WPL 8310P00160 Contact Us For Availability
8
CORD, POWER WPL 22700001 Contact Us For Availability
8
PANEL, SIDE UPPER TOP (LT) WPL 2618F04332 Contact Us For Availability
8
PANEL, SIDE UPPER TOP (RT) WPL 2618F04432 Contact Us For Availability
8
SCREW WPL 7101P07560 Contact Us For Availability
8
GASKET, BURNER WPL 7201P03760 Contact Us For Availability
9
GLASS, DOOR WPL 7902P27460 Contact Us For Availability
9
BARRIER, H.V. TRANSFORMER WPL 21450050 Contact Us For Availability
9
FRONT, OVEN LOWER WPL 2201F03423 Contact Us For Availability
9
COVER, CONTROL PANEL WPL 22750028 Contact Us For Availability
9
TRIM, GLASS RETAINER WPL 7720P08360 Contact Us For Availability
9
IGNITER, OVEN WPL 7432P06760 Contact Us For Availability
10
CAPACITOR WPL 22100004 Contact Us For Availability
10
FRONT, OVEN UPPER WPL 2201F06023 Contact Us For Availability
10
SCREW W/WASHER WPL 7101P12460 Contact Us For Availability
10
DOOR ASSY. WPL 23250005 Contact Us For Availability
10
BRACKET, SIDE PANEL (LT) WPL 3804F04345 Contact Us For Availability
10
BRACKET, SIDE PANEL (RT) WPL 3804F04445 Contact Us For Availability
10
IGNITER, BURNER WPL 7432P05360 Contact Us For Availability
11
HANDLE, DOOR WPL 7701P04760 Contact Us For Availability
11
MTR CAPACITOR WPL 27200009 Contact Us For Availability
11
FRONT, BURNER BOX WPL 4012F02180 Contact Us For Availability
11
FUSE WPL 24350001 Contact Us For Availability
11
TRIM, SIDE PANEL (LEFT) WPL 7720P14060 Contact Us For Availability
11
TRIM, SIDE PANEL (RIGHT) WPL 7720P14160 Contact Us For Availability
11
NUT, WING WPL 7103P03060 Contact Us For Availability
12
HINGE, BROILER (LT) WPL 3418A06334 Contact Us For Availability
12
HEATER WPL 25150001 Contact Us For Availability
12
MANIFOLD PIPE WPL 7513P09360 Contact Us For Availability
12
PIPE, MANIFOLD WPL 7513P10460 Contact Us For Availability
13
CATCH WPL 8002P00160 Contact Us For Availability
13
HINGE, BROILER (RT) WPL 3418A06234 Contact Us For Availability
13
COVER, LIGHT WPL 22750027 Contact Us For Availability
13
GASKET, FLUE BOX WPL 7201P02660 Contact Us For Availability
13
SEAL WPL 7212P00160 Contact Us For Availability
13
HINGE ASSEMBLY WPL 25200010 Contact Us For Availability
13
RING, BLACK WPL 2014F00100 Contact Us For Availability
14
INSERT, HANDLE (CHROME) WPL 7728P06860 Contact Us For Availability
14
COVER, STIRRER WPL 22750026 Contact Us For Availability
14
CLIP, TOP RETAINER WPL 7112P07360 Contact Us For Availability
14
LENS WPL 26550007 Contact Us For Availability
14
ANGLE-RETAINER, FLUE BOX WPL 3820F00861 Contact Us For Availability
14
SCREW WPL 7101P25660 Contact Us For Availability
15
LINING, BROILER DRAWER WPL 2404F02119 Contact Us For Availability
15
LINING, BROILER WPL 2404F02123 Contact Us For Availability
15
COVER, SWITCH WPL 22750030 Contact Us For Availability
15
HINGE ASSY. (LT) WPL 3418A02934 Contact Us For Availability
15
HINGE ASSY. (RT) WPL 3418A03034 Contact Us For Availability
15
SCREW WPL 7101P11260 Contact Us For Availability
15
GLIDE, OVEN DOOR HINGE WPL 8016P00860 Contact Us For Availability
15
NUT WPL 27350022 Contact Us For Availability
15
BOX, UPPER FLUE WPL 4006F02823 Contact Us For Availability
15
SCREW, CONTROL VALVE WPL 7101P04360 Contact Us For Availability
16
LINING, OVEN DOOR WPL 2402W15416 Contact Us For Availability
16
COVER, SWITCH UPPER WPL 22750029 Contact Us For Availability
16
BULB, OVEN WPL 7407P02660 Contact Us For Availability
16
PLATE, GROUND WPL 28450022 Contact Us For Availability
16
FASTENER WPL 7104P00160 Contact Us For Availability
16
SWITCH, BURNER WPL 7403P19060 Contact Us For Availability
16
SWITCH, TOP BURNER WPL 7403P21660 Contact Us For Availability
16
SWITCH, LIGHTER BURNER WPL 7403P24660 Contact Us For Availability
16
SWITCH WPL 7403P25860 Contact Us For Availability
16
SWITCH, TOP IGNITOR WPL 7403P28260 Contact Us For Availability
16
SWITCH, IGNITER WPL 7403P28760 Contact Us For Availability
17
LINK, BROILER WPL 7807P00160 Contact Us For Availability
17
SCREW WPL 7101P06160 Contact Us For Availability
17
DOOR, DAMPER WPL 23050002 Contact Us For Availability
17
LINING, BROILER SIDE WPL 4009F04545 Contact Us For Availability
17
PLATE, MOUNTING WPL 28450021 Contact Us For Availability
17
SCREW WPL 30050111 Contact Us For Availability
17
TOP, MAIN BLK WPL 2001F06390 Contact Us For Availability
17
SPACER, MAIN TOP WPL 8003P01160 Contact Us For Availability
18
PANEL, BROILER DRWR WPL 2403F01470 Contact Us For Availability
18
DIODE WPL 23150004 Contact Us For Availability
18
LINING, INNER SIDE WPL 4009W07180 Contact Us For Availability
18
LINING, ASSY INNER SIDE WPL 4009W07780 Contact Us For Availability
18
SHIELD WPL 30300007 Contact Us For Availability
18
SPACER, UPPER SIDE WPL 7105P00360 Contact Us For Availability
18
TUBE, REGULATOR WPL 7506P09860 Contact Us For Availability
19
SCREW WPL 7101P12360 Contact Us For Availability
19
DUCT WPL 23350016 Contact Us For Availability
19
PANEL, MANIFOLD WPL 7712P10660 Contact Us For Availability
19
SHIELD, CONDENSER WPL 30300008 Contact Us For Availability
19
TUBE, MANIFOLD FEED WPL 7506P10060 Contact Us For Availability
19
FITTING, STRAIGHT WPL 7507P05360 Contact Us For Availability
20
SEAL, RUBBER WPL 7208P01160 Contact Us For Availability
20
DUCT WPL 23350017 Contact Us For Availability
20
SPACER PCB WPL 30650007 Contact Us For Availability
20
TUBE, FRONT BURNER WPL 7506P07660 Contact Us For Availability
21
SPACER, GLASS CORNER WPL 8010P04560 Contact Us For Availability
21
DUCT, AIR WPL 23350015 Contact Us For Availability
21
CLIP, HINGE PIN WPL 7112P01960 Contact Us For Availability
21
PIN, HINGE WPL 7113P00260 Contact Us For Availability
21
SUPPORT WPL 31300016 Contact Us For Availability
21
TUBE, REAR BURNER WPL 7506P07760 Contact Us For Availability
22
SPRING WPL 7803P01460 Contact Us For Availability
22
AIR GUIDE SIDE WPL 23350018 Contact Us For Availability
22
RACK, OVEN WPL 7801P03060 Contact Us For Availability
22
SWITCH, MEMBRANE WPL 31350058 Contact Us For Availability
22
BRACKET, REGULATOR MTG WPL 3801F19145 Contact Us For Availability
23
DUCT, SIDE LEFT WPL 31300020 Contact Us For Availability
23
BRACKET, LAMP HOLDER WPL 3801F05734 Contact Us For Availability
23
COVER WPL 4005F08880 Contact Us For Availability
23
RECEPTACLE, LAMP WPL 7408P00260 Contact Us For Availability
23
TRANSFORMER WPL 32150010 Contact Us For Availability
23
VALVE, OVEN WPL 7501P01760 Contact Us For Availability
23
VALVE, OVEN WPL 7501P10860 Contact Us For Availability
24
INSULATION, DOOR WPL 7002P01260 Contact Us For Availability
24
DUCT, SIDE (RT) WPL 31300021 Contact Us For Availability
24
LEG, LEVELING WPL Y7101P25460 Contact Us For Availability
24
CONTROL TRIM BTM WPL 32300074 Contact Us For Availability
24
SLEEVE WPL 7214P00360 Contact Us For Availability
24
VALVE, TOP BURNER WPL 7502P10060 Contact Us For Availability
24
VALVE, TOP BURNER WPL 7502P14160 Contact Us For Availability
24
VALVE, TOP BURNER WPL 7502P22060 Contact Us For Availability
24
VALVE WPL 7502P22960 Contact Us For Availability
25
DAMPER, HOOD ASSEMBLY WPL 23600003 Contact Us For Availability
25
PAN, BROIL WPL 3401F00423 Contact Us For Availability
25
TRIM CONTROL WPL 32300075 Contact Us For Availability
25
MODULE, SPARK WPL 7431P01660 Contact Us For Availability
25
MODULE, SPARK WPL 7431P01760 Contact Us For Availability
26
FASTENER WPL 23850004 Contact Us For Availability
26
HOUSING, LAMP WPL 4001F01623 Contact Us For Availability
26
CONTROL TRIM TOP WPL 32300073 Contact Us For Availability
26
GRATE, BLACK WPL 7518P00960 Contact Us For Availability
27
FILTER, AIR WPL 23900003 Contact Us For Availability
27
FILTER(NON-VENT) WPL 23900004 Contact Us For Availability
27
SPRING, OVEN DOOR WPL 7803P05860 Contact Us For Availability
27
VENT WPL 32650003 Contact Us For Availability
27
SCREW (10-24X5/16-NI) WPL 7101P28260 Contact Us For Availability
28
GLASS, LAMP WPL 24550011 Contact Us For Availability
28
SUPPORT, OVEN REAR WPL 3807F20545 Contact Us For Availability
28
WASHER WPL 32800033 Contact Us For Availability
28
BRACKET, MODULE SUPPORT WPL 3801F20545 Contact Us For Availability
28
BRACKET, SPARK MODULE WPL 3801F22645 Contact Us For Availability
29
CLIP, BOTTOM WPL 25200012 Contact Us For Availability
29
BACK, BROIL WPL 4002F12345 Contact Us For Availability
29
COVER, BKGD BROIL SECTION WPL 4005F27945 Contact Us For Availability
29
WRAPPER WPL 32950001 Contact Us For Availability
29
NUT, LOXIT (3/8``) WPL 1555251 Contact Us For Availability
29
REGULATOR, PRESSURE WPL 7510P02860 Contact Us For Availability
29
REGULATOR WPL 7510P04060 Contact Us For Availability
29
REGULATOR, PRESSURE WPL 7510P04860 Contact Us For Availability
30
GUIDE, MTG SHAFT WPL 25200011 Contact Us For Availability
30
INSTALLATION KIT WPL 26100003 Contact Us For Availability
30
TRACK, BROILER DWR RIGHT WPL 3404A01351 Contact Us For Availability
30
TRACK, BROILER DWR LEFT WPL 3404A01451 Contact Us For Availability
30
SCREW WPL 7101P11560 Contact Us For Availability
30
SCREW WPL 7101P07260 Contact Us For Availability
30
NUT WPL 7103P06460 Contact Us For Availability
30
TRIM, MAIN TOP (LEFT) WPL 7746P02560 Contact Us For Availability
30
TRIM, MAIN TOP (RIGHT) WPL 7746P02660 Contact Us For Availability
31
LAMP WPL 26350005 Contact Us For Availability
31
CORD, POWER WPL 7402P02560 Contact Us For Availability
31
ORIFICE, SEALED BURNER-LP WPL 7509P03360 Contact Us For Availability
31
ORIFICE, SEALED BURNER-NAT WPL 7509P03460 Contact Us For Availability
32
LAMP, OVEN 30 W WPL 26350004 Contact Us For Availability
32
KNOB, THERMOSTAT WPL 7731P01860 Contact Us For Availability
32
CONVERSION KIT, NATURAL TO LP WPL 5415A02660 Contact Us For Availability
32
GAS CONVERSION KIT WPL 5415A02760 Contact Us For Availability
33
LEVER, HOOK WPL 26600017 Contact Us For Availability
33
KNOB, VALVE WPL 7733P03860 Contact Us For Availability
33
KNOB, VALVE WPL 7733P05360 Contact Us For Availability
33
KNOB WPL 7733P05960 Contact Us For Availability
33
KNOB, VALVE WPL 7733P06560 Contact Us For Availability
34
MAGNETRON WPL 27050004 Contact Us For Availability
34
SWITCH, ROCKER (BLK) WPL 7403P06760 Contact Us For Availability
35
MOTOR, STIRRER WPL 27200011 Contact Us For Availability
35
MOUNTING NUT WPL 27350025 Contact Us For Availability
35
CLIP, THERMOSTAT WPL 7112P00460 Contact Us For Availability
36
PANEL, ACCESS WPL 28000014 Contact Us For Availability
36
INSERT, BROIL PAN WPL 3413F00223 Contact Us For Availability
37
PLUG, MOUNTING PLATE WPL 28500004 Contact Us For Availability
37
BRACKET,CONTROL PANEL (R) WPL 3801F04734 Contact Us For Availability
37
BRACKET,CONTROL PANEL (L) WPL 3801F04934 Contact Us For Availability
38
NOT REQUIRED PART OR SEE NOTE BRACKET/SCREW ( WPL W10124350 Contact Us For Availability
38
PROBE WPL 28600002 Contact Us For Availability
38
BRACKET, ANTI-TIP WPL 3801F21851 Contact Us For Availability
38
BOTTOM, BROILER WPL 4011F16180 Contact Us For Availability
38
SCREW, BRACKET WPL 7101P28960 Contact Us For Availability
39
RIVET, PUSH WPL 29500006 Contact Us For Availability
40
RACK WPL 29050006 Contact Us For Availability
41
RECEPTACLE, LAMP WPL 29150007 Contact Us For Availability
42
RECEPTACLE, PROBE WPL 29150006 Contact Us For Availability
43
REFLECTOR WPL 29200002 Contact Us For Availability
44
REFLECTOR, LAMP WPL 29200003 Contact Us For Availability
45
PUSH RIVET WPL 29500005 Contact Us For Availability
46
SCREW, CAM WPL 30050114 Contact Us For Availability
47
SHAFT ASSEMBLY WPL 30200005 Contact Us For Availability
48
SHELF, W/GASKET WPL 30250003 Contact Us For Availability
49
SPRING, HOOK WPL 30700024 Contact Us For Availability
50
SUPPORT, MOTOR WPL 31300017 Contact Us For Availability
51
RACK, SUPPORT WPL 31300018 Contact Us For Availability
52
BRACKET, MOTOR WPL 31300019 Contact Us For Availability
53
SWITCH WPL 31350063 Contact Us For Availability
54
CAM, SWITCH WPL 21950007 Contact Us For Availability
55
SWITCH, LOGIC WPL 31350060 Contact Us For Availability
56
SWITCH, MONITOR WPL 31350059 Contact Us For Availability
57
SWITCH, PRIMARY WPL 31350061 Contact Us For Availability
58
THERMOSTAT WPL 31600005 Contact Us For Availability
59
THERMOSTAT - HOOD WPL 31600006 Contact Us For Availability
60
TRANSFORMER WPL 32150009 Contact Us For Availability
61
VENTILATION MOTOR CO WPL 27200008 Contact Us For Availability
× ![]()
Login and Registration Form
