Model Whirlpool 21137 ELECTRIC WALL OVEN – Common Parts & Diagrams
01 - BODY

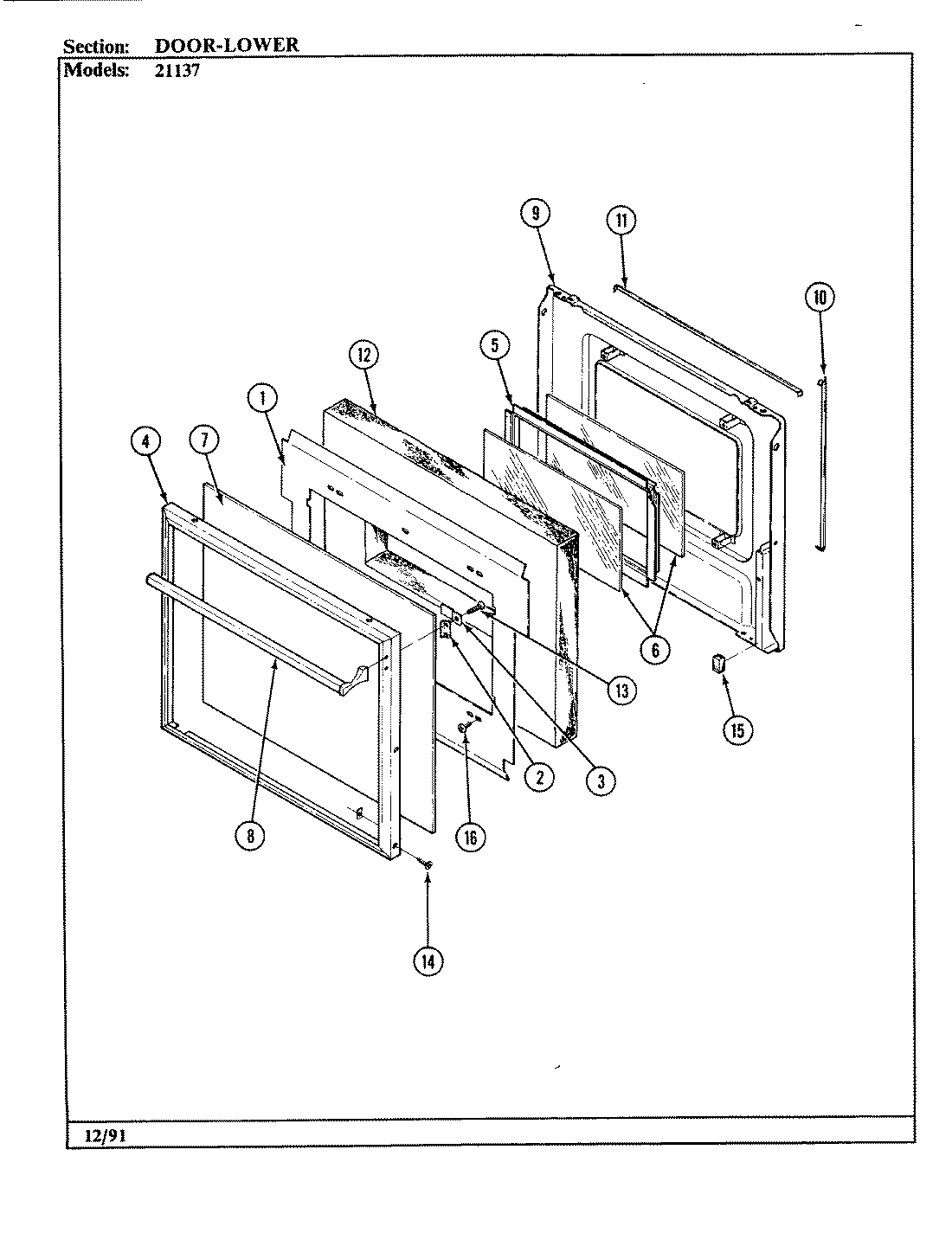

03 - DOOR (LOWER)

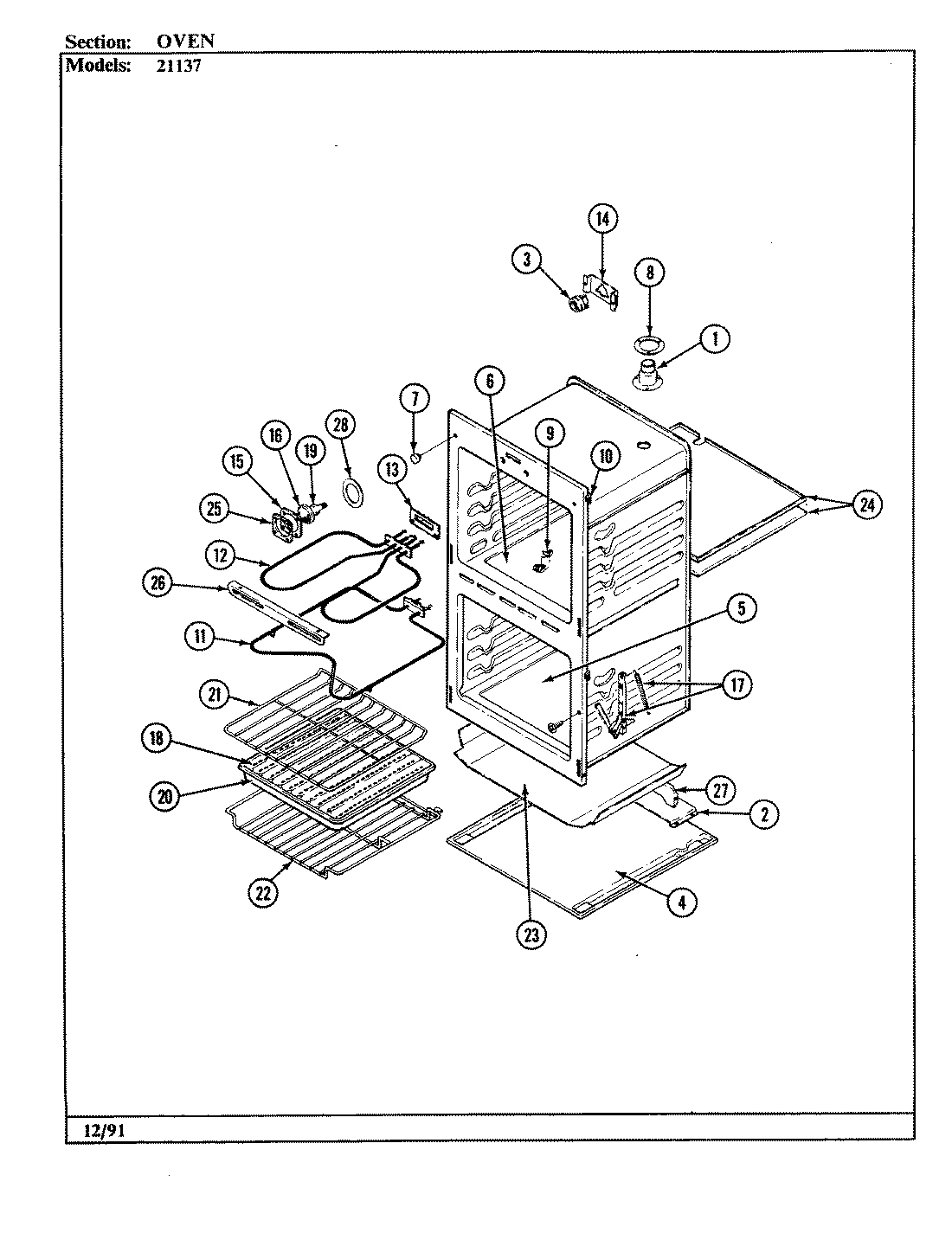

05 - OVEN

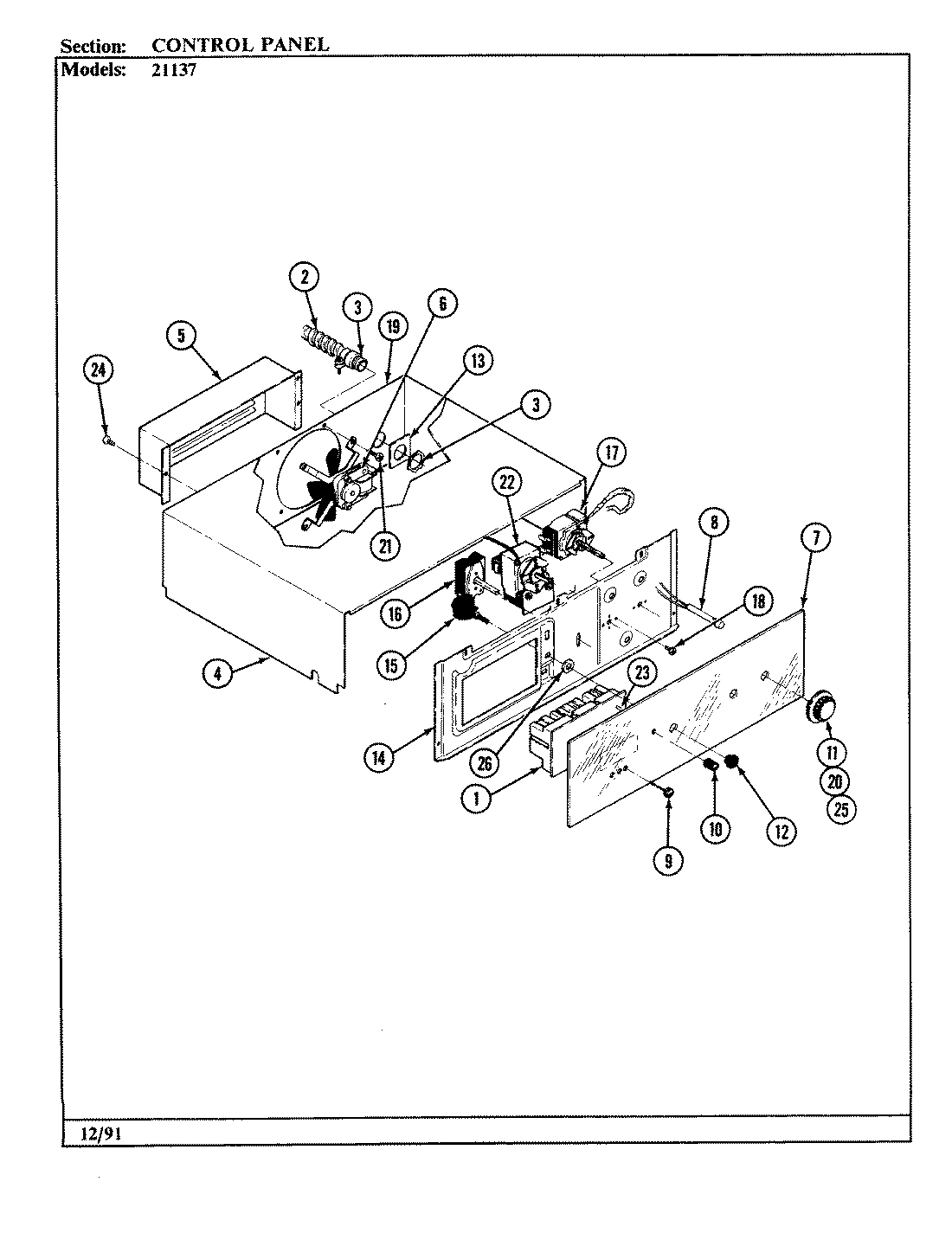

02 - CONTROL PANEL

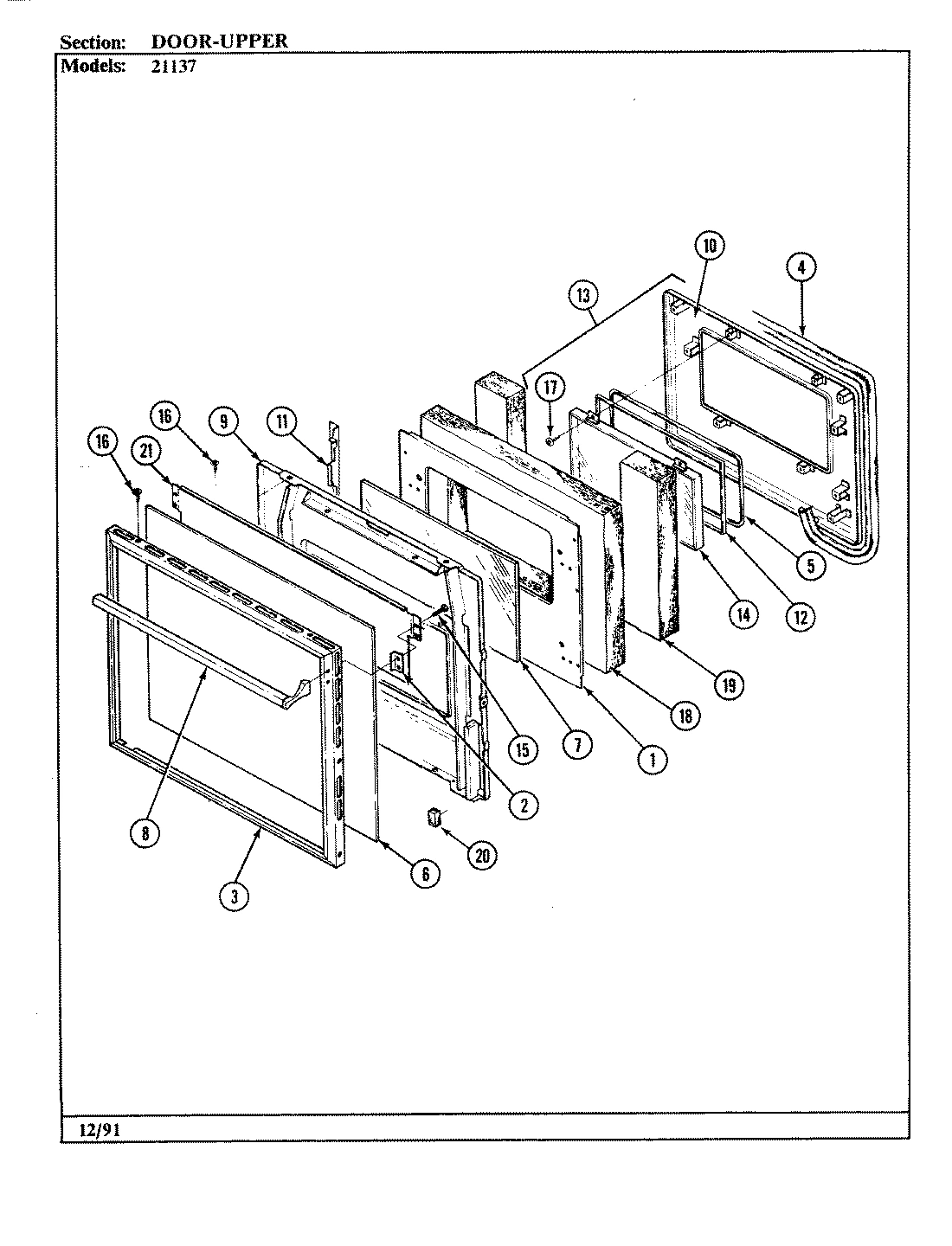

04 - DOOR (UPPER)
Common parts from model Whirlpool 21137 ELECTRIC WALL OVEN
1
BACK, MAIN WPL 4002F14351 Contact Us For Availability
1
BAFFLE, DOOR WPL 3601F10351 Contact Us For Availability
1
SCREW, METAL GROUNDING WPL 7101P28760 Contact Us For Availability
1
CATALYST BURNER WPL 7505P01860 Contact Us For Availability
1
CLOCK WPL 7601P05360 Contact Us For Availability
1
BAFFLE, DOOR ASSEMBLY WPL 3601W13151 Contact Us For Availability
1
SCREW (10ABX1.0-ZN) WPL 7101P06060 Contact Us For Availability
2
CLIP, LATCH HANDLE WPL 7112P00360 Contact Us For Availability
2
CLIP, DOOR HANDLE WPL 7112P01760 Contact Us For Availability
2
BAFFLE, BASE WPL 3601F00580 Contact Us For Availability
2
CONDUIT, FLEXIBLE WPL 7434P00660 Contact Us For Availability
2
SLEEVE, TUBE WPL 8018P00260 Contact Us For Availability
3
BAFFLE, SIDE WPL 3601F13051 Contact Us For Availability
3
RETAINER WPL 3804F01050 Contact Us For Availability
3
SCREW, BASE WPL 7101P08460 Contact Us For Availability
3
RECEPT, OVEN LIGHT WPL 7408P00160 Contact Us For Availability
3
RECEPTACLE, LAMP WPL 7408P00260 Contact Us For Availability
3
CONNECTOR, CABLE WPL 7417P00360 Contact Us For Availability
3
CONNECTOR, CABLE WPL 7417P01760 Contact Us For Availability
3
FRAME WPL 7706P25060 Contact Us For Availability
4
SCREW, SWITCH WPL 7101P03560 Contact Us For Availability
4
FRAME WPL 7706P24860 Contact Us For Availability
4
BASE, WALL OVEN WPL 4003F01180 Contact Us For Availability
4
COVER, WIRE WPL 4005F15051 Contact Us For Availability
4
GASKET WPL 7201P00460 Contact Us For Availability
5
BOX, VENT WPL 4006W04645 Contact Us For Availability
5
FRAME, WINDOW----NA WPL 3603F01380 Contact Us For Availability
5
BOTTOM, OVEN (LOWER) WPL 2205F00415 Contact Us For Availability
5
BOTTOM, OVEN (LOWER) WPL 2205F00419 Contact Us For Availability
5
COVER, FAN WPL 4005F26251 Contact Us For Availability
5
GASKET WPL 7201P02060 Contact Us For Availability
6
BRACKET, HI LIMIT WPL 3801F12845 Contact Us For Availability
6
GLASS, DOOR INNER WPL 7902P03560 Contact Us For Availability
6
BOTTOM, OVEN (UPPER) WPL 2205F00315 Contact Us For Availability
6
BOTTOM, OVEN WPL 2205F00319 Contact Us For Availability
6
FAN ASSEMBLY WPL 7427P00660 Contact Us For Availability
6
GROMMET WPL 8008P00460 Contact Us For Availability
6
GLASS, DOOR SCREENED WPL 7902P26560 Contact Us For Availability
6
TAPE WPL 8270P06560 Contact Us For Availability
7
SCREW WPL 7101P11560 Contact Us For Availability
7
GLASS, DOOR LOWER WPL 7902P26360 Contact Us For Availability
7
BUMPER DOOR (ROUND) WPL 8003P00260 Contact Us For Availability
7
BUMPER, DOOR (SQUARE) WPL 8003P00960 Contact Us For Availability
7
GLASS, CONTROL PANEL WPL 7912P04260 Contact Us For Availability
7
GLASS, INNER WPL 7902P09760 Contact Us For Availability
8
CHANNEL, VENT ASSEMBLY WPL 3818W00215 Contact Us For Availability
8
HANDLE, DOOR WPL 7701P01760 Contact Us For Availability
8
GASKET WPL 7201P01660 Contact Us For Availability
8
LIGHT, INDICATOR----NA WPL 7407P00760 Contact Us For Availability
8
INSULATOR, TERMINAL WPL 7414P00460 Contact Us For Availability
9
COVER, BOX WPL 4005F20251 Contact Us For Availability
9
LINING ASSEMBLY WPL 2402W13215 Contact Us For Availability
9
LINING, DOOR WPL 2402W13219 Contact Us For Availability
9
COVER, CAP HOLE WPL 4005F01135 Contact Us For Availability
9
CLIP, THERMOSTAT WPL 7112P00460 Contact Us For Availability
9
KNOB, CLOCK (BUTTON-BLK) WPL 7711P17160 Contact Us For Availability
9
LINING ASSEMBLY WPL 2402W13015 Contact Us For Availability
9
LINING, DOOR WPL 2402W13019 Contact Us For Availability
9
LABEL (CLEANING INST.) WPL 8114P27460 Contact Us For Availability
10
COVER, LOCK WPL 4005F16045 Contact Us For Availability
10
SEAL, DOOR (VERTICAL) WPL 7212P00760 Contact Us For Availability
10
CLIP, OVEN FRONT WPL 7112P02060 Contact Us For Availability
10
KNOB, CLOCK WPL 7711P42760 Contact Us For Availability
10
PAD, DOOR WPL 2410W03415 Contact Us For Availability
10
PAD, OVEN DOOR WPL 2410W03815 Contact Us For Availability
10
PAD DOOR WPL 2410W03819 Contact Us For Availability
11
INSULATION, WRAPPER WPL 7002P10860 Contact Us For Availability
11
SEAL, DOOR (HORIZONTAL) WPL 7212P00660 Contact Us For Availability
11
ELEMENT BAKE WPL 7406P01360 Contact Us For Availability
11
KNOB, THERMOSTAT WPL 7735P02060 Contact Us For Availability
11
RETAINER, GASKET WPL 3804F02145 Contact Us For Availability
12
INSULATION, TOP & BACK WPL 7002P11260 Contact Us For Availability
12
INSULATION, DOOR LOWER WPL 7002P01960 Contact Us For Availability
12
ELEMENT,BROIL WPL 7406P00360 Contact Us For Availability
12
SLEEVE, SWITCH (BLK) WPL 7214P00760 Contact Us For Availability
12
RETAINER, GLASS WPL 3804F05180 Contact Us For Availability
13
EXTRUSION, BOTTOM (BLK) WPL 7706P15360 Contact Us For Availability
13
GASKET, ELEMENT WPL 7201P00360 Contact Us For Availability
13
PLATE, REINFORCEMENT WPL 3605F13151 Contact Us For Availability
13
PAD, OVEN DOOR ASSEMBLY WPL 2410A03415 Contact Us For Availability
13
PAD, OVEN DOOR ASSEMBLY WPL 2410A03815 Contact Us For Availability
13
PAD, OVEN DOOR ASSY. WPL 2410A04219 Contact Us For Availability
14
EXTRUSION, SIDE-L WPL 7706P11260 Contact Us For Availability
14
EXTRUSION, SIDE-L WPL 7750P01460 Contact Us For Availability
14
EXTENSION, SIDE (LEFT) WPL 7750P02960 Contact Us For Availability
14
BRACKET WPL 3801F02451 Contact Us For Availability
14
PLATE, BACKING WPL 3605F11380 Contact Us For Availability
14
WINDOW ASSY. WPL 5700A08260 Contact Us For Availability
15
EXTRUSION, SIDE-R WPL 7706P11360 Contact Us For Availability
15
EXTRUSION, SIDE-R WPL 7750P01560 Contact Us For Availability
15
EXTENSION, SIDE (RIGHT) WPL 7750P03060 Contact Us For Availability
15
SCREW WPL 7101P23960 Contact Us For Availability
15
SEAL, GLASS WPL 7208P00160 Contact Us For Availability
15
GASKET, LAMP RETAINER WPL 7201P01560 Contact Us For Availability
15
SWITCH, PUSH (BLK) WPL 7403P10960 Contact Us For Availability
16
EXTRUSION, TOP WPL 7706P11460 Contact Us For Availability
16
SCREW WPL 7101P24260 Contact Us For Availability
16
SCREW, HINGE WPL 7101P01760 Contact Us For Availability
16
SCREW, DOOR HANDLE WPL 7101P08960 Contact Us For Availability
16
GLASS, LAMP GUARD WPL 7902P05760 Contact Us For Availability
16
SWITCH, SELECTOR WPL 7403P02360 Contact Us For Availability
17
EXTRUSION, TOP FRONT WPL 7706P18560 Contact Us For Availability
17
SCREW WPL 7101P06160 Contact Us For Availability
17
HINGE, UPPER WPL 7106A01960 Contact Us For Availability
17
HINGE, OVEN DOOR WPL 7106A02060 Contact Us For Availability
17
INSULATION THERMOSTAT WPL 7003P03360 Contact Us For Availability
17
SCREW W/WASHER WPL 7101P27960 Contact Us For Availability
17
THERMOSTAT, UPPER WPL 7404P03960 Contact Us For Availability
18
EXTRUSION, VENT WPL 7756P00660 Contact Us For Availability
18
EXTRUSION, VENT WPL 7756P02360 Contact Us For Availability
18
INSERT, BROILER PAN WPL 3413F01315 Contact Us For Availability
18
INSERT, BROIL PAN WPL 3413F01319 Contact Us For Availability
18
SCREW W/WASHER (BLK) WPL 7101P28060 Contact Us For Availability
18
INSULATION, DOOR----NA WPL 7002P02360 Contact Us For Availability
19
HANDLE, LATCH (BLK) WPL 7701P06860 Contact Us For Availability
19
COVER WPL 3604F03744 Contact Us For Availability
19
HOUSING LAMP WPL 4001W01251 Contact Us For Availability
19
INSULATION, LAMP HOUSING WPL 7002P09460 Contact Us For Availability
19
BULB, OVEN WPL 7407P02660 Contact Us For Availability
19
PLATE, CONDUIT WPL 3605F16451 Contact Us For Availability
19
INSULATION, DOOR WPL 7002P02160 Contact Us For Availability
20
LEVER, LATCH WPL 8009P01160 Contact Us For Availability
20
SEAL, RUBBER WPL 7208P01160 Contact Us For Availability
20
PAN, BROIL WPL 3401F01419 Contact Us For Availability
20
PAN, BROILER WPL 3401F01515 Contact Us For Availability
20
KNOB, SELECTOR WPL 7739P02660 Contact Us For Availability
21
LATCH ASSY. WPL 8002P01660 Contact Us For Availability
21
RACK WPL 7801P00560 Contact Us For Availability
21
SCREW WPL 7101P07960 Contact Us For Availability
21
RETAINER, GLASS WPL 3804F01751 Contact Us For Availability
22
PANEL, SIDE RIGHT WPL 2618F05551 Contact Us For Availability
22
PANEL, SIDE-LT WPL 2618F05651 Contact Us For Availability
22
RACK, OFFSET WPL 7801P00760 Contact Us For Availability
22
THERMOSTAT, LOWER WPL 7404P04260 Contact Us For Availability
23
RET REAR INSUL WPL 3804F05251 Contact Us For Availability
23
RETAINER, BOTTOM WPL 3804W03451 Contact Us For Availability
23
SHAFT, CLOCK WPL 8312P01760 Contact Us For Availability
24
RETAINER,TOP WPL 3804F05351 Contact Us For Availability
24
INSULATION, BOTTON WPL 7002P00760 Contact Us For Availability
24
RETAINER, INSULATION WPL 3801F05451 Contact Us For Availability
25
SHIELD, AIR WPL 3604F10180 Contact Us For Availability
25
RETAINER WPL 3804F01145 Contact Us For Availability
25
KNOB, THERMOSTAT WPL 7735P02160 Contact Us For Availability
26
SHIELD, TERMINAL WPL 3604F04880 Contact Us For Availability
26
SUPPORT, BROIL ELEMENT WPL 3807F17615 Contact Us For Availability
26
NUT, SWITCH WPL 7103P02160 Contact Us For Availability
27
INSULATOR WPL 7003P00160 Contact Us For Availability
27
SWITCH, DOOR LOCK WPL 7403P00760 Contact Us For Availability
27
SUPPORT WPL 3807F13580 Contact Us For Availability
28
SWITCH, HIGH LIMIT WPL 7403P06360 Contact Us For Availability
28
GASKET, HOUSING WPL 7201P01460 Contact Us For Availability
29
TUBE, OVEN VENT WPL 8026P01460 Contact Us For Availability
30
SCREW (1/2``) WPL 7101P04060 Contact Us For Availability
30
NUT, SNAP (ROUND-WHT) WPL 7103P03960 Contact Us For Availability
30
NUT, SNAP (WHT) WPL 7103P04060 Contact Us For Availability
30
NUT, SNAP WPL 7103P05160 Contact Us For Availability
× ![]()
