Model Whirlpool 2095B2A BUILT-IN ELECTRIC OVEN – Common Parts & Diagrams
04 - LOWER BODY

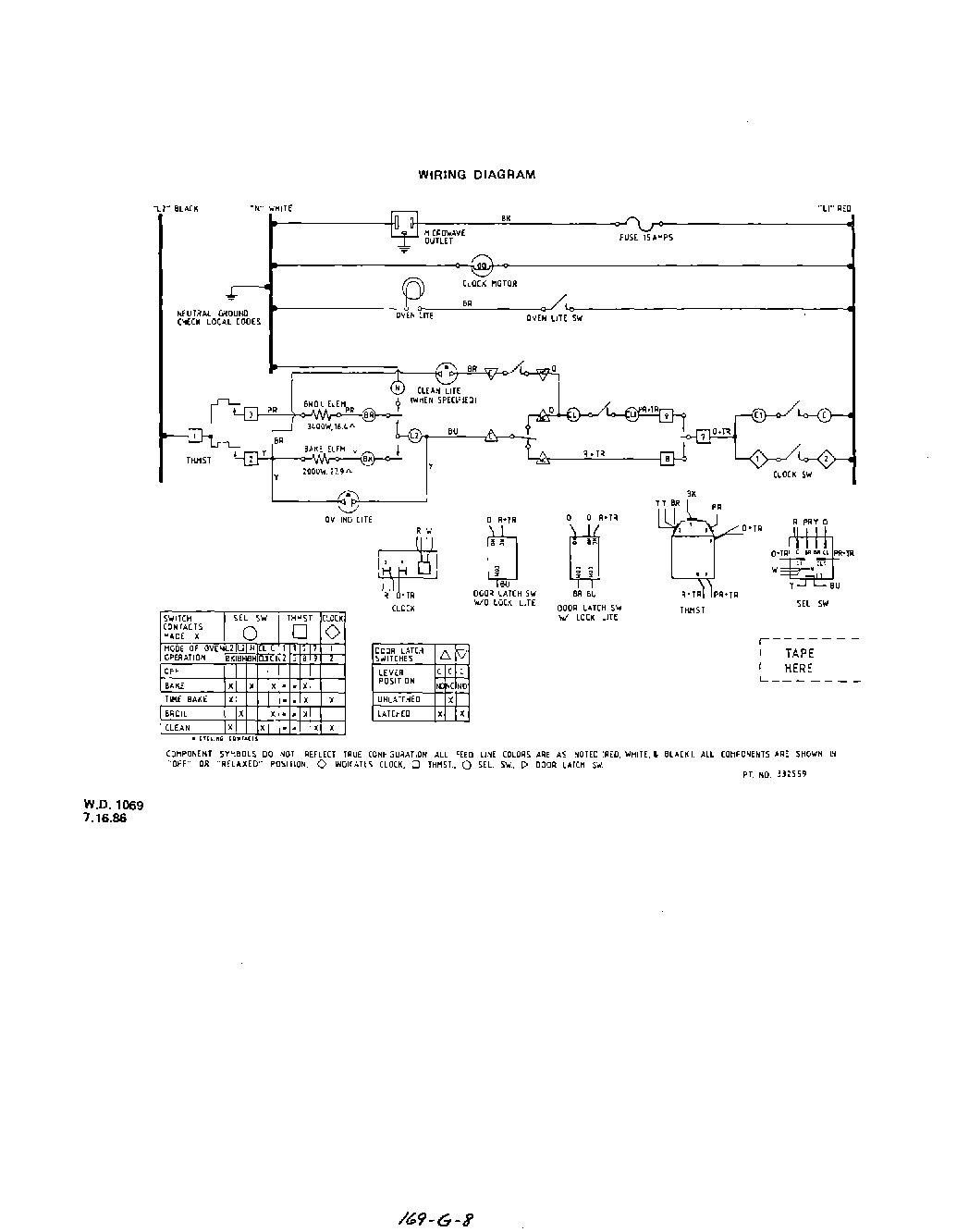

07 - WIRING DIAGRAM

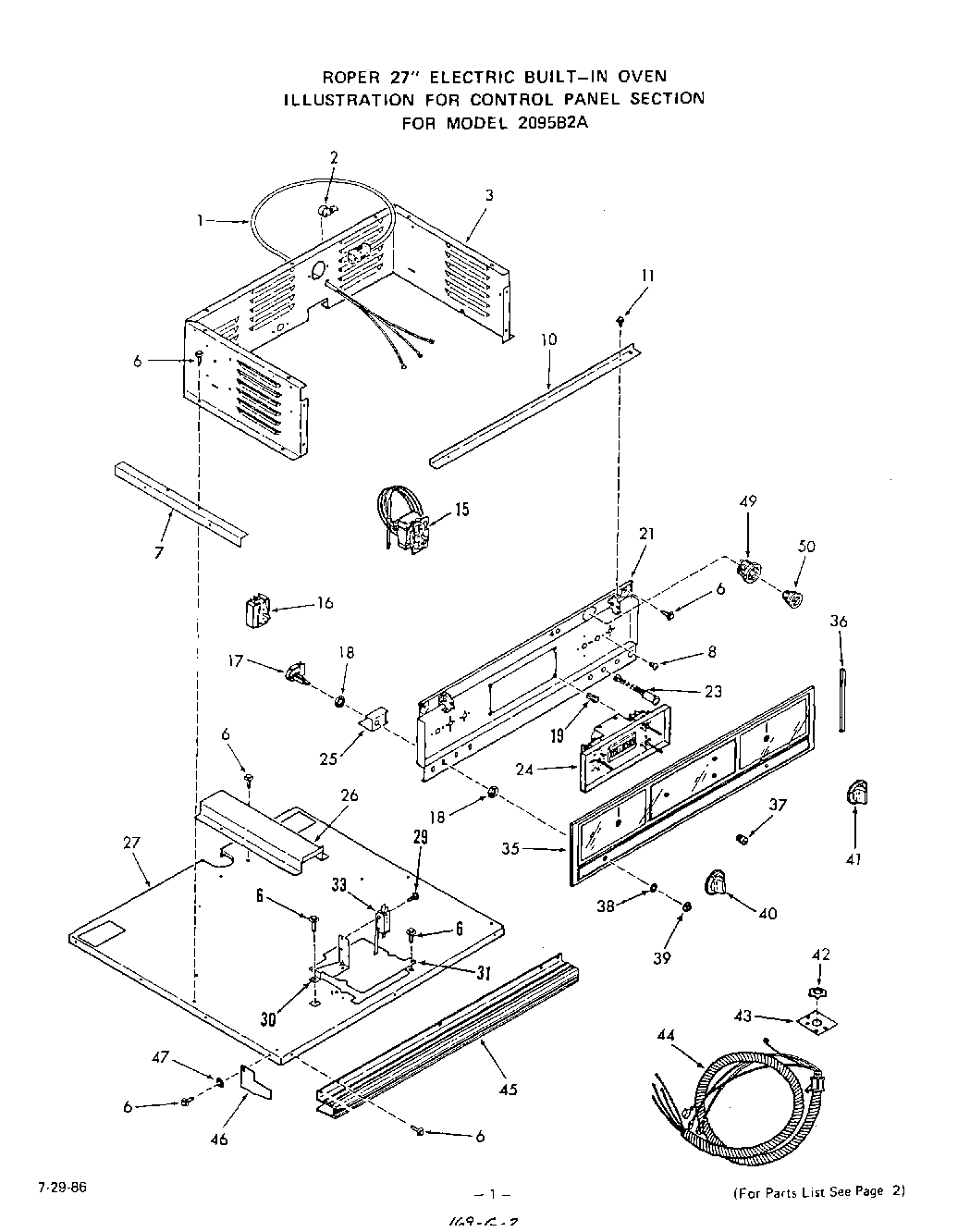

02 - CONTROL PANEL

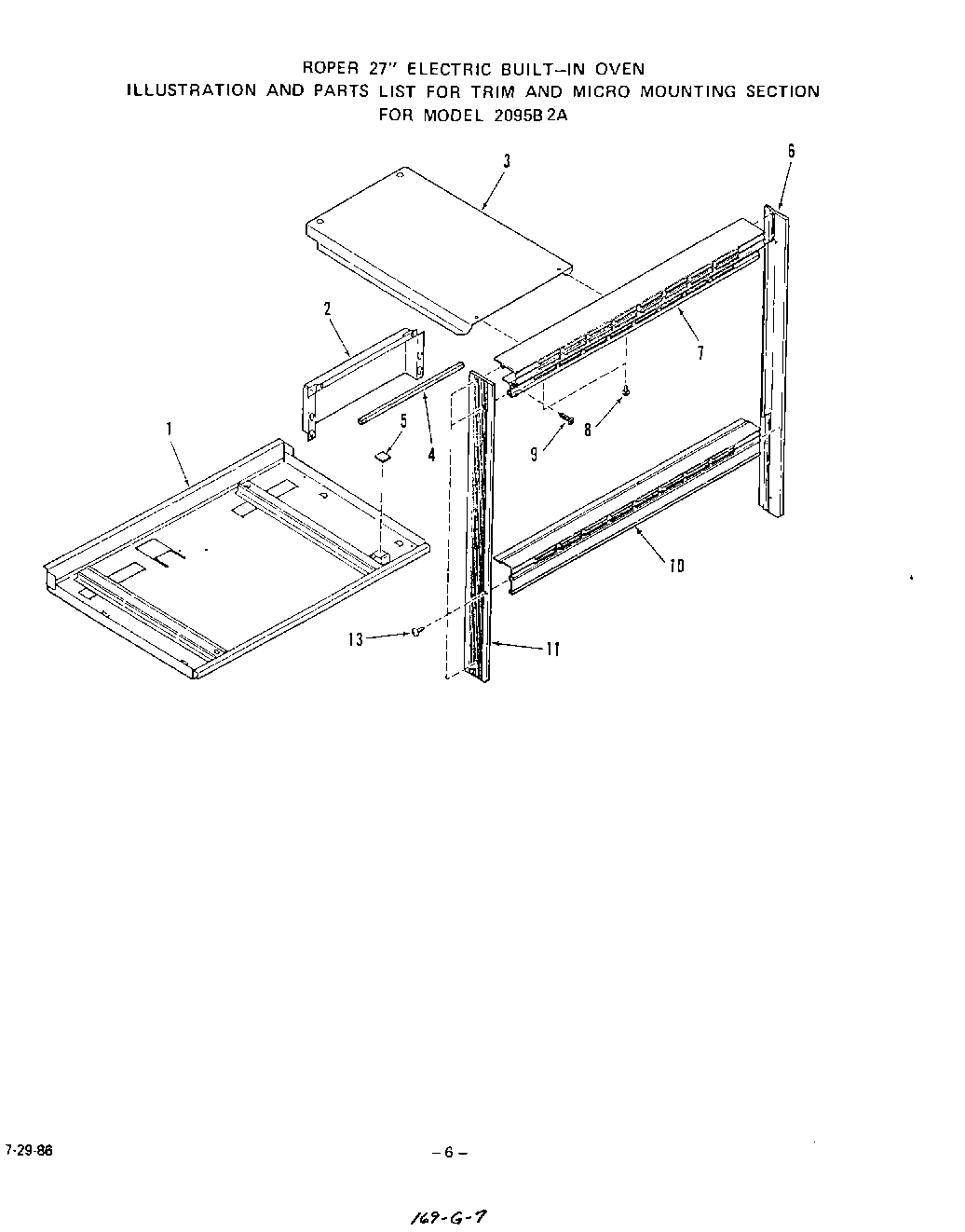

06 - TRIM AND MICRO MOUNTING

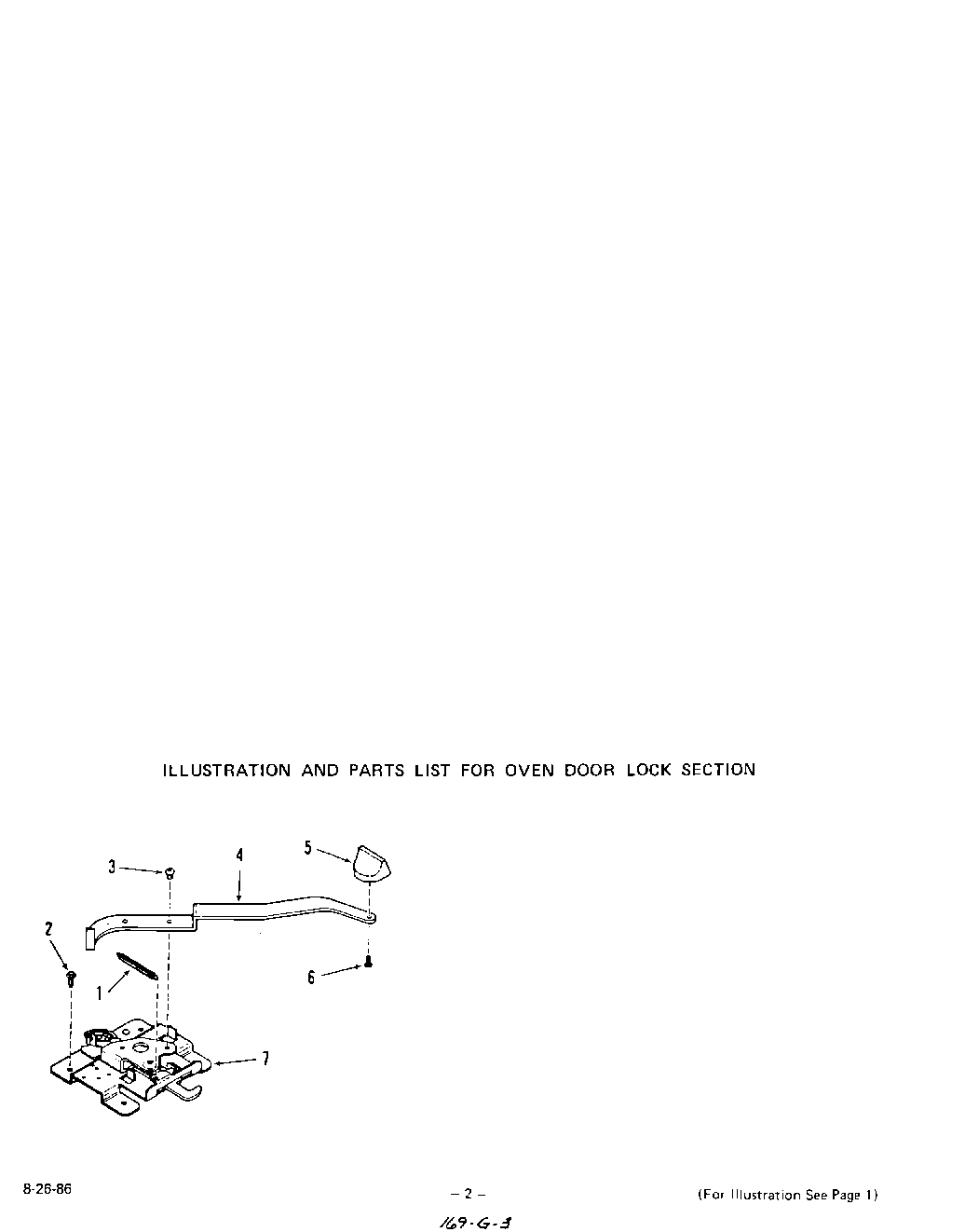

03 - OVEN DOOR LOCK

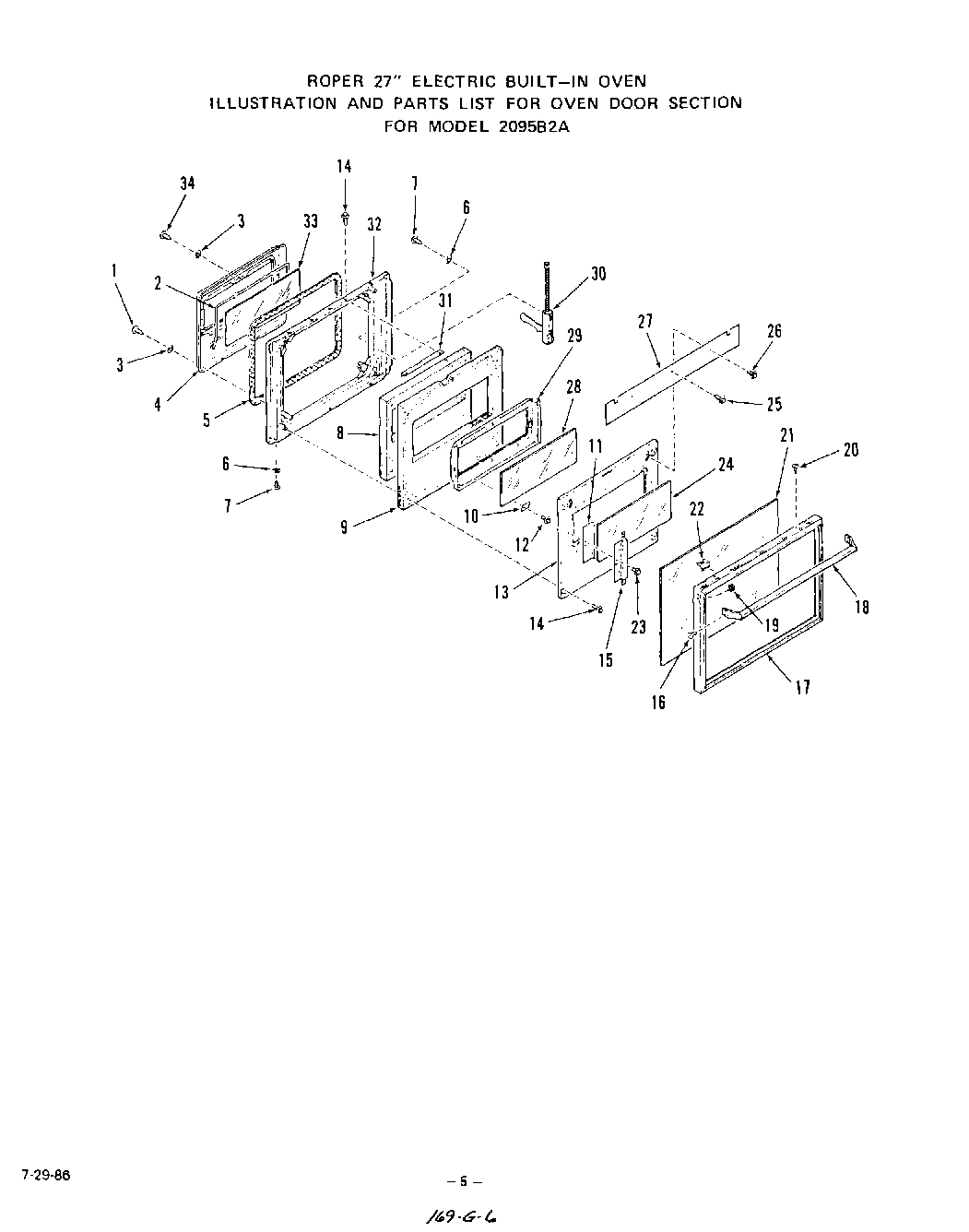

05 - OVEN DOOR
Common parts from model Whirlpool 2095B2A BUILT-IN ELECTRIC OVEN
xWire Harness WPL ARI9203A44 Contact Us For Availability
1
Cord w/Plug WPL 334966 Contact Us For Availability
1
Module Support Bottom WPL 322774 Contact Us For Availability
1
Spring WPL 313075 Contact Us For Availability
1
Screw 10ABx1/2`` WPL 326974 Contact Us For Availability
2
Insulation Retainer-Oven Light WPL 323630 Contact Us For Availability
2
Strain Relief WPL 311112 Contact Us For Availability
2
Vent Box WPL 322764 Contact Us For Availability
2
Seal-Door Glass WPL 302935 Contact Us For Availability
3
Side-Air Channel (Lt. or Rt.) WPL 314109 Contact Us For Availability
3
Control Housing WPL 323720 Contact Us For Availability
3
Extension-Vent WPL 322766 Contact Us For Availability
3
Screw 10-24x1/4`` WPL 288248 Contact Us For Availability
3
Washer WPL 21067 Contact Us For Availability
4
Main Back WPL 323742 Contact Us For Availability
4
Foam Strip WPL 322782 Contact Us For Availability
4
Lock Handle WPL 318379 Contact Us For Availability
4
Plug-Oven Door Lining WPL 331673 Contact Us For Availability
5
Left WPL 323715 Contact Us For Availability
5
Right WPL 323716 Contact Us For Availability
5
Cabinet Side WPL ARI9202A41 Contact Us For Availability
5
Screw 10 - 32 x 3/8`` WPL 102429 Contact Us For Availability
5
Spacer (2 Req) WPL 322097 Contact Us For Availability
5
Knob-Lock Handle WPL 323363 Contact Us For Availability
5
Oven Door Gasket WPL 311925 Contact Us For Availability
6
Spacer (4 Req) WPL 311726 Contact Us For Availability
6
Washer WPL 106462 Contact Us For Availability
6
Side Trim-Right WPL 326586 Contact Us For Availability
6
Screw 6-32x15/32`` WPL 313768 Contact Us For Availability
7
Side Trim-Lt. or Rt. WPL 311725 Contact Us For Availability
7
Stiffener-Lt. or Rt. WPL 315596 Contact Us For Availability
7
Top Trim WPL 327526 Contact Us For Availability
7
Oven Door Lock Asm. (Inc`s. Key 1) WPL 311869 Contact Us For Availability
7
Screw 10-32x5/16`` WPL 286628 Contact Us For Availability
8
Hinge Angle-Lt. or Rt. WPL 322611 Contact Us For Availability
8
Screw 8-32x3/16`` WPL 78565 Contact Us For Availability
8
Insulation-Oven Door Plug WPL 311872 Contact Us For Availability
9
Hinge Box-Lt. or Rt. WPL 322609 Contact Us For Availability
9
Screw 10ABx2 1/2`` WPL 327527 Contact Us For Availability
9
Insulation-Oven Door Lining WPL 311874 Contact Us For Availability
10
Screw 10 - 32 x 1/4`` WPL 105771 Contact Us For Availability
10
Shield-Wires WPL 313980 Contact Us For Availability
10
Trim-Lower WPL 329436 Contact Us For Availability
10
Door Glass Retainer (4 Req) WPL 312888 Contact Us For Availability
11
Insulation (Lt. or Rt.) WPL 279470 Contact Us For Availability
11
Side Trim-Left WPL 326585 Contact Us For Availability
11
Spacer-Oven Door Glass (Lt. or Rt.) WPL 310929 Contact Us For Availability
12
Screw 10 - 32 x 17/32`` WPL 102428 Contact Us For Availability
12
Screw 10-32x17/32`` WPL 295849 Contact Us For Availability
13
Speed Nut 10-32 WPL 107956 Contact Us For Availability
13
Screw 6-32 x 1/2`` WPL 299766 Contact Us For Availability
13
Main WPL 332553 Contact Us For Availability
13
Lock Switch WPL 333040 Contact Us For Availability
13
Retainer-Oven Door Insulation WPL 323678 Contact Us For Availability
14
Base-Lt. or Rt. WPL 313970 Contact Us For Availability
15
Cabinet Bottom WPL 323710 Contact Us For Availability
15
Oven Thermostat WPL 331880 Contact Us For Availability
16
Selector Switch WPL 331881 Contact Us For Availability
16
Screw 8-321/2`` WPL 319447 Contact Us For Availability
17
Insulation Retainer-Oven Side (lt. or Rt.) WPL 323636 Contact Us For Availability
17
Push Switch (Oven & Panel Light) WPL 298794 Contact Us For Availability
17
Frame-Oven Door WPL 325836 Contact Us For Availability
18
Top Oven Vent Box WPL 323640 Contact Us For Availability
18
Lock Nut WPL 236129 Contact Us For Availability
18
Oven Door Handle WPL 325837 Contact Us For Availability
19
Clip WPL 293577 Contact Us For Availability
19
Keps Nut 8-32 WPL 239764 Contact Us For Availability
20
Screw 6-20x3/8`` WPL 327621 Contact Us For Availability
21
Cabinet Back WPL 323722 Contact Us For Availability
21
Mounting Panel-Controls WPL 333136 Contact Us For Availability
21
Oven Door Glass-Outer WPL 311738 Contact Us For Availability
22
Insulation-Cabinet Top WPL 333119 Contact Us For Availability
22
Door Glass Retainer (6 Req) WPL 299596 Contact Us For Availability
23
Broil Element Support WPL 324809 Contact Us For Availability
23
Indicator Light WPL 334853 Contact Us For Availability
23
Screw 10ABx3/4`` WPL 69364 Contact Us For Availability
24
Insulation Retainer-Cabinet Top WPL 333117 Contact Us For Availability
24
Clock w/1 Hr. Timer WPL 330938 Contact Us For Availability
24
Oven Door Glass-Intermediate WPL 308239 Contact Us For Availability
25
Pan-Broiler WPL 331592 Contact Us For Availability
25
Shield-Switch (2 Req) WPL 291351 Contact Us For Availability
25
Screw 10 - 32 x 7/16`` WPL 295850 Contact Us For Availability
26
Insulation Retainer-Oven Top WPL 323634 Contact Us For Availability
26
Screw 6-32x1/4`` WPL 293121 Contact Us For Availability
26
Wire Cover WPL 323663 Contact Us For Availability
27
Insulation Oven Top & Sides (1 Piece) WPL 311712 Contact Us For Availability
27
Cabinet Top WPL 333122 Contact Us For Availability
27
Baffle-Oven Door Lining WPL 311751 Contact Us For Availability
28
Raceway WPL 324352 Contact Us For Availability
28
Oven Door Glass-Center WPL 296214 Contact Us For Availability
29
Front Frame WPL 331666 Contact Us For Availability
29
Screw 6-32x7/8`` WPL 327256 Contact Us For Availability
29
Retainer-Oven Door Glass WPL 323672 Contact Us For Availability
30
Thermostat Bulb Retainer Clip WPL 321539 Contact Us For Availability
30
Bracket-Micro Switch WPL 335115 Contact Us For Availability
30
Oven Door Hinge-Rt. or Lt. WPL 331028 Contact Us For Availability
31
Cover WPL 304835 Contact Us For Availability
31
Cover Plate Lock WPL 333124 Contact Us For Availability
32
Cover Plate-Thermostat Bulb WPL 237762 Contact Us For Availability
32
Lining-Oven Door WPL 331682 Contact Us For Availability
33
Oven Body WPL 331651 Contact Us For Availability
33
Micro Switch-Lock WPL 334973 Contact Us For Availability
33
Oven Door Glass-Inner WPL 312426 Contact Us For Availability
34
Screw 10ABx1 WPL 105799 Contact Us For Availability
35
Lower Trim WPL 313995 Contact Us For Availability
35
Control Panel Glass WPL 329428 Contact Us For Availability
36
Holder-Oven Light Bulb WPL 87883 Contact Us For Availability
36
End Trim-Control Panel Glass (Rt or Lt) WPL 239565 Contact Us For Availability
37
Screw 10-32 x 5/8`` WPL 112013 Contact Us For Availability
37
Knob-Clock (Start & Stop Time) (3) WPL 109225 Contact Us For Availability
38
Oven Light Bulb WPL 111257 Contact Us For Availability
38
Washer WPL 104838 Contact Us For Availability
39
Gasket-Oven Light WPL 229371 Contact Us For Availability
39
Knurled Nut WPL 87403 Contact Us For Availability
40
Bake Element WPL 331164 Contact Us For Availability
40
Knob-Selector Switch WPL 329446 Contact Us For Availability
41
Shield-Element WPL 331670 Contact Us For Availability
41
Knob-Oven Thermostat WPL 334678 Contact Us For Availability
42
Lens Retainer-Oven Light WPL 229372 Contact Us For Availability
42
Nut (For Key 44) WPL 110340 Contact Us For Availability
43
Oven Light Lens WPL 114989 Contact Us For Availability
43
Plate (For Key 44) WPL 294983 Contact Us For Availability
44
Harness Conduit Asm. WPL 333036 Contact Us For Availability
45
Oven Vent Clamp WPL 328303 Contact Us For Availability
45
Lower Trim-Control Panel WPL 314284 Contact Us For Availability
46
Heat Shield (Lt. or Rt.) WPL 312395 Contact Us For Availability
47
Oven Rack (2 Req) WPL 311735 Contact Us For Availability
48
Oven Rack Guide-Rt. or Lt. WPL 305350 Contact Us For Availability
49
Broiler Pan Grid WPL 326297 Contact Us For Availability
49
Fuse Holder WPL 277608 Contact Us For Availability
50
Broil Element WPL 319526 Contact Us For Availability
50
Fuse-15 Amp. WPL 106208 Contact Us For Availability
51
Screw 10ABx3/8`` WPL 69605 Contact Us For Availability
52
Cover Plate-Lock WPL 323648 Contact Us For Availability
53
Insulation Cover WPL 114300 Contact Us For Availability
54
Bracket WPL 313627 Contact Us For Availability
× ![]()
