Model LG 19EN33S-B – Common Parts & Diagrams

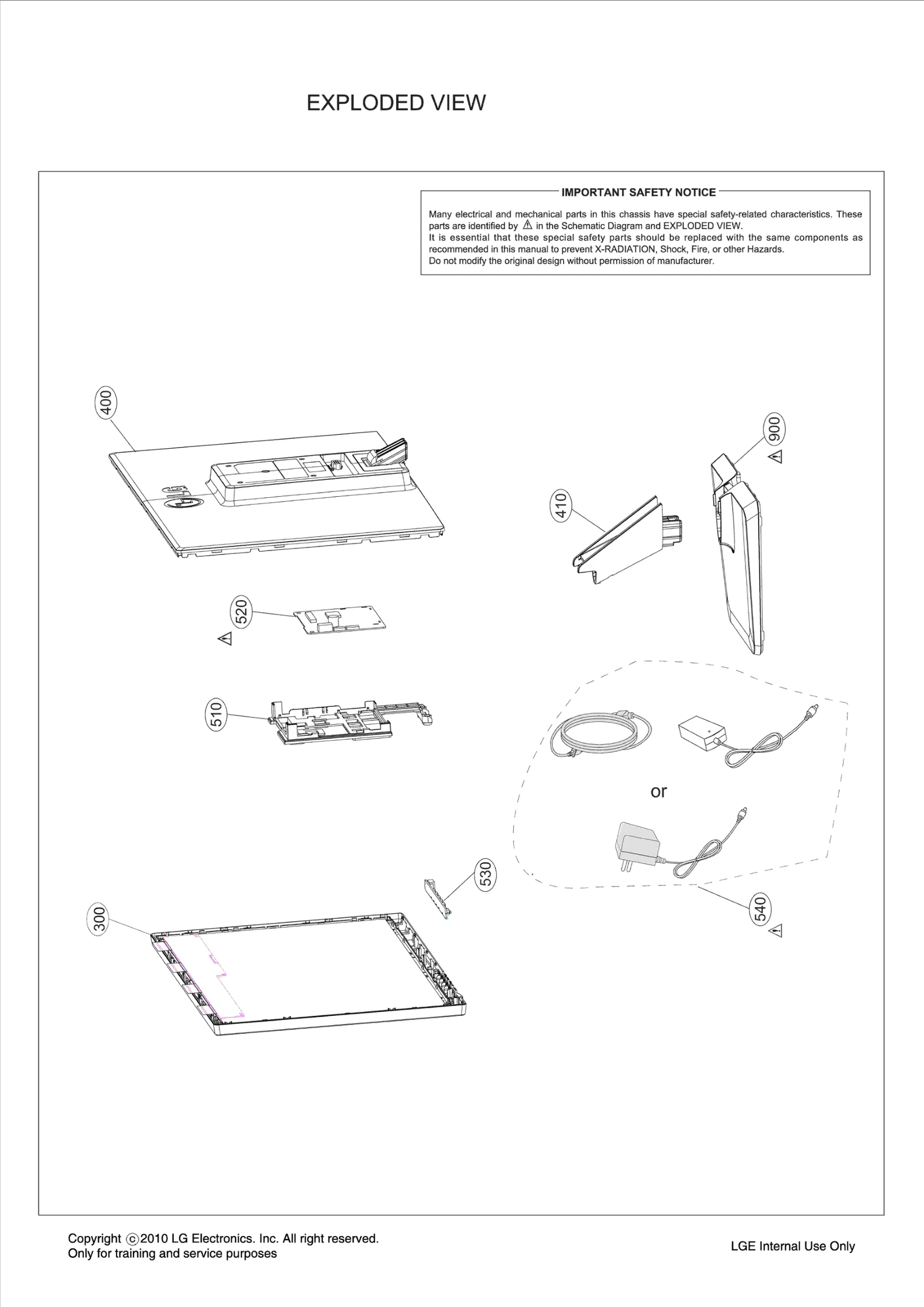

Diagram 0
Diagram 1
Common parts from model LG 19EN33S-B
300
Module,Assembly LGE EAT61794901 Contact Us For Availability
400
Cover Assembly,Rear LGE ACQ85920932 Contact Us For Availability
410
Base Assembly LGE AAN74131901 Contact Us For Availability
520
BPR Total Assembly LGE EBU61994401 Contact Us For Availability
530
PCB Assembly LGE EBR76492501 Contact Us For Availability
540
Adapters LGE EAY62830303 Contact Us For Availability
540
Adapters LGE EAY62768607 Contact Us For Availability
900
Base Assembly LGE AAN74132101 Contact Us For Availability
A1
S/W Package LGE SAB33074542 Contact Us For Availability
A4
Card LGE MBM63800803 Contact Us For Availability
A5
Cable,Assembly LGE EAD57734001 Contact Us For Availability
C102
Capacitor,Ceramic,Chip LGE 0CC300BKF1A Contact Us For Availability
C115
Capacitor,Ceramic,Ch LGE 0CK104BF56A Contact Us For Availability
C125
Capacitor,Ceramic,Ch LGE 0CK101BK4EA Contact Us For Availability
C305
CAPACITOR,FIXED ELEC LGE 0CE106WFKDC Contact Us For Availability
C314
CAPACITOR,FIXED CERA LGE 0CK105CD56A Contact Us For Availability
C320
Capacitor,Ceramic,Chip LGE 0CK332BK56A Contact Us For Availability
D2
Diode,TVS LGE EAH42720601 Contact Us For Availability
LV1
Cable,FFC LGE EAD62122516 Contact Us For Availability
P100
WAFER LGE 6602T20009E Contact Us For Availability
P100
Connector,Wafer LGE EAG31366106 Contact Us For Availability
P400
Connector,DSUB LGE EAG61072904 Contact Us For Availability
R2
RESISTOR,METAL GLAZE LGE 0RJ1001D677 Contact Us For Availability
R3
RESISTOR,METAL GLAZE LGE 0RJ1501D677 Contact Us For Availability
R100
Resistor,Chip LGE 0RH3300D622 Contact Us For Availability
R101
Resistor,Chip LGE 0RJ0562C478 Contact Us For Availability
R104
Resistor,Chip LGE 0RJ4700C678 Contact Us For Availability
R108
Resistor,Chip LGE 0RJ1500C678 Contact Us For Availability
R112
Resistor,Chip LGE 0RJ2002C678 Contact Us For Availability
R118
Resistor,Chip LGE 0RJ0332C678 Contact Us For Availability
R124
Resistor,Chip LGE 0RJ1203C678 Contact Us For Availability
R131
Resistor,Chip LGE 0RJ2202C678 Contact Us For Availability
R132
Resistor,Chip LGE 0RJ1001C678 Contact Us For Availability
R140
Resistor,Chip LGE 0RJ0101C678 Contact Us For Availability
R141
Resistor,Chip LGE 0RJ6801C678 Contact Us For Availability
R149
Resistor,Chip LGE 0RJ0000C678 Contact Us For Availability
R206
Resistor,Chip LGE 0RJ0332C478 Contact Us For Availability
R321
Resistor,Chip LGE 0RJ6802C678 Contact Us For Availability
R322
Resistor,Chip LGE 0RJ1003C678 Contact Us For Availability
R323
Resistor,Chip LGE 0RJ0221C678 Contact Us For Availability
R327
Resistor,Chip LGE 0RJ4701C478 Contact Us For Availability
R401
Resistor,Chip LGE 0RJ0752C678 Contact Us For Availability
R403
Resistor,Chip LGE 0RJ4701C678 Contact Us For Availability
R405
Resistor,Chip LGE 0RJ1002C678 Contact Us For Availability
X100
Crystal LGE 6212AA2001H Contact Us For Availability
X100
Crystal LGE EAW60658001 Contact Us For Availability
× ![]()
