Model Maytag 19C FREEZER – Common Parts & Diagrams

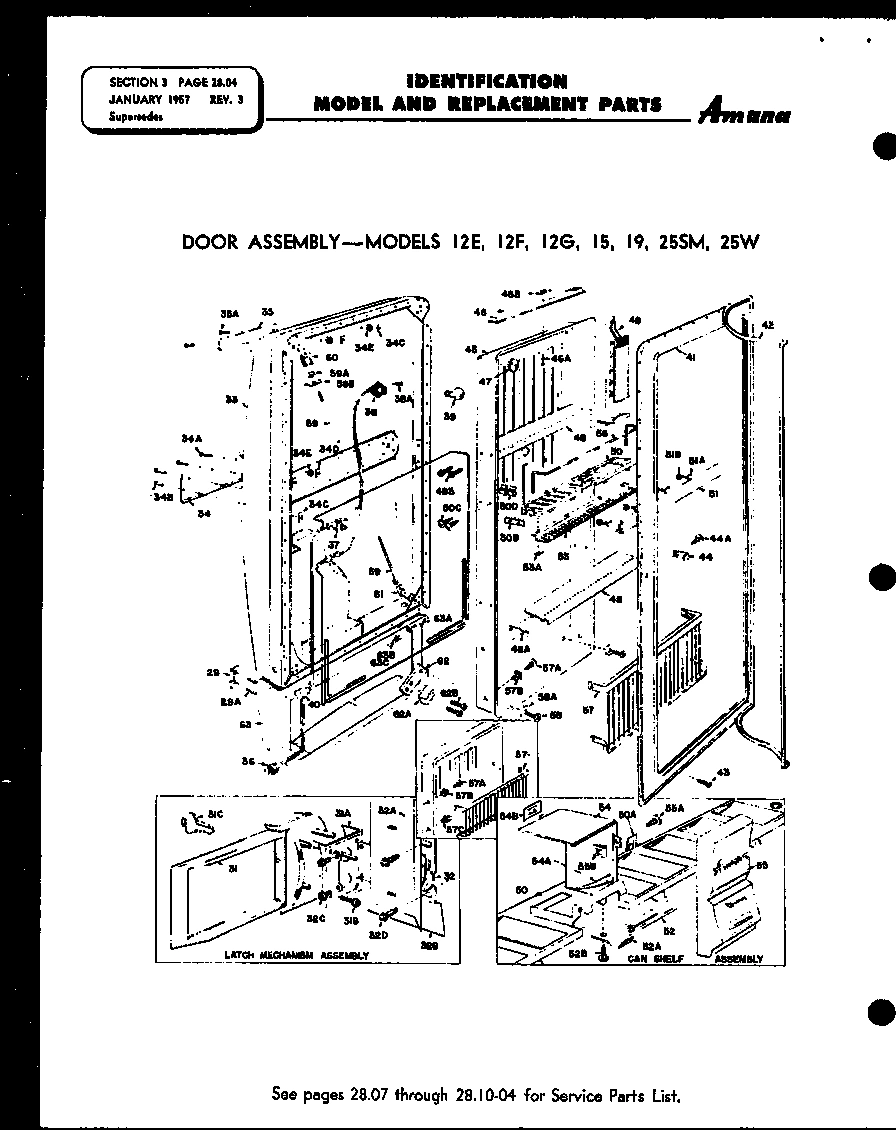

01 - DOOR ASSY

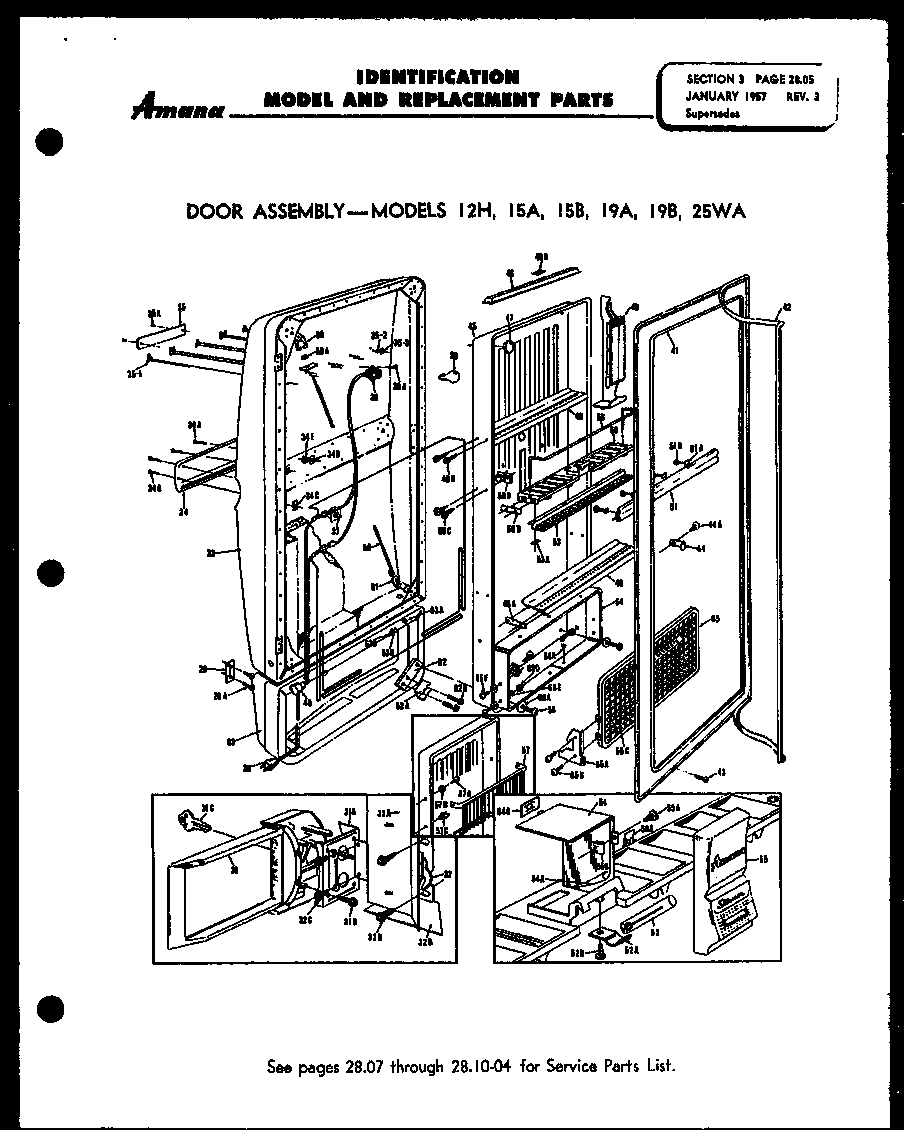

02 - DOOR ASSY

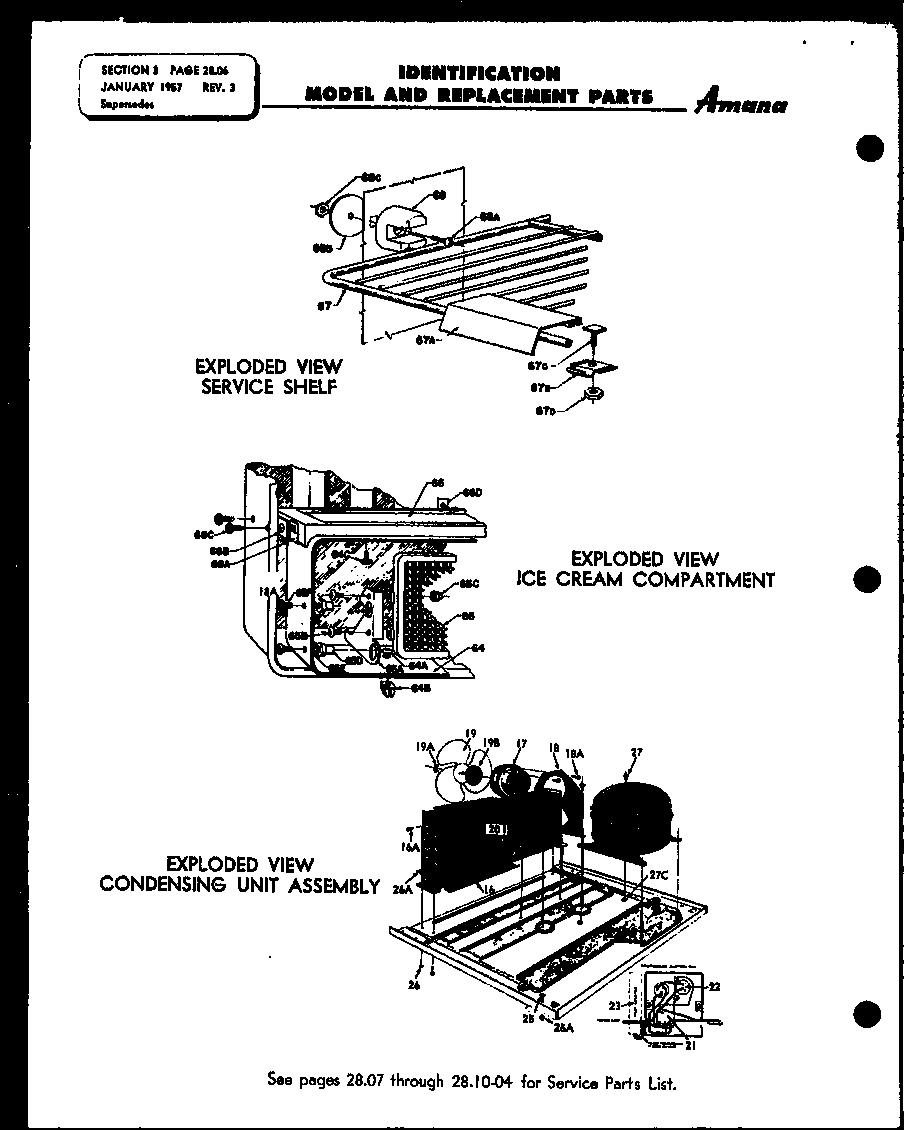

03 - EXPLODED VIEW SERVICE SHELF

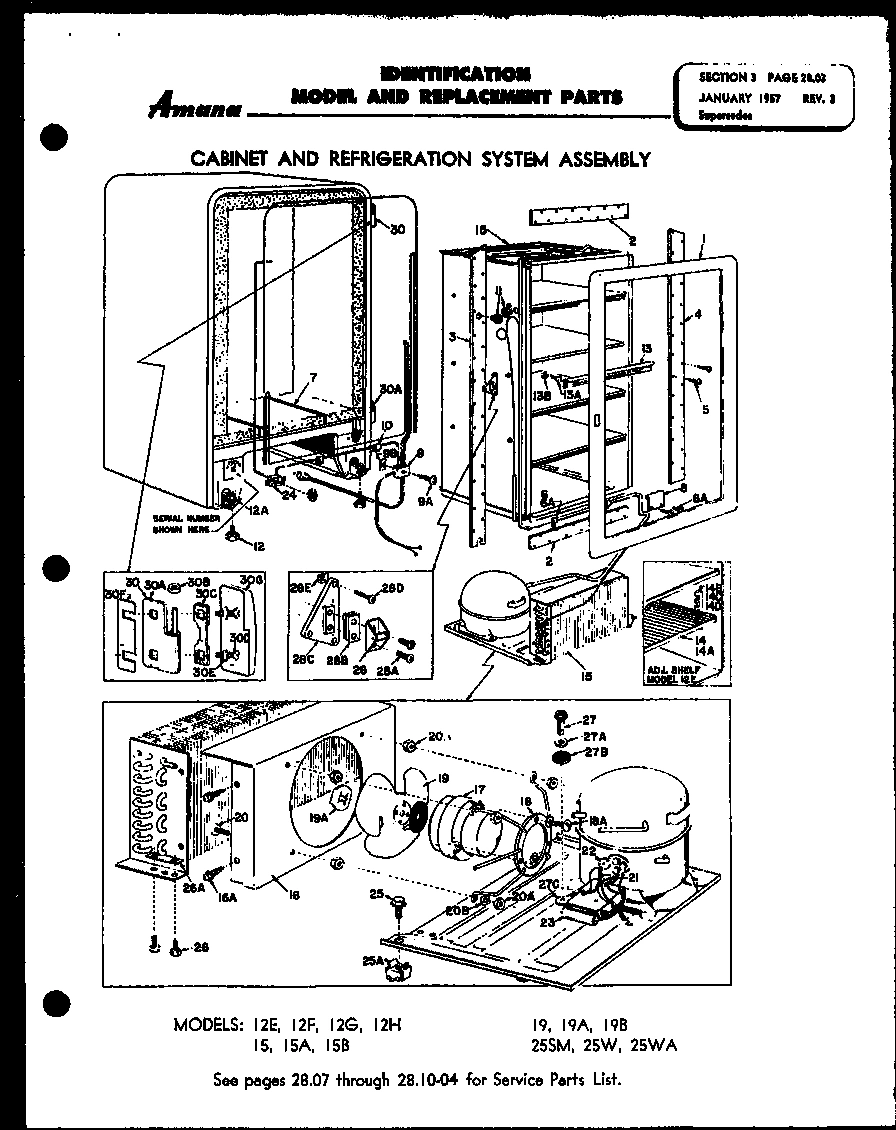

04 - Page 8
Common parts from model Maytag 19C FREEZER
18B SERIAL NUMBER SERIES BEGAN NO. 186.001 MAY NOTE: Contact Us For Availability
1
MAY D0741504 MAY D0741504 Contact Us For Availability
2
MAY B0470201 MAY B0470201 Contact Us For Availability
3
MAY B0476502 MAY B0476502 Contact Us For Availability
4
MAY B0476501 MAY B0476501 Contact Us For Availability
5
MAY A0258601 MAY A0258601 Contact Us For Availability
6
MAY A0256701 MAY A0256701 Contact Us For Availability
7
MAY B0471201 MAY B0471201 Contact Us For Availability
8
MAY A0238701 MAY A0238701 Contact Us For Availability
8
MAY B0470601 MAY B0470601 Contact Us For Availability
9
MAY A0255501 MAY A0255501 Contact Us For Availability
9
MAY A0283101 MAY A0283101 Contact Us For Availability
9
MAY B0475501 MAY B0475501 Contact Us For Availability
9
MAY B0475511 MAY B0475511 Contact Us For Availability
9
MAY C3511601 MAY C3511601 Contact Us For Availability
9
MAY C3511611 MAY C3511611 Contact Us For Availability
12
MAY A0283901 MAY A0283901 Contact Us For Availability
12
MAY A0292201 MAY A0292201 Contact Us For Availability
13
MAY A0259901 MAY A0259901 Contact Us For Availability
13
MAY A0282101 MAY A0282101 Contact Us For Availability
13
MAY B0464703 MAY B0464703 Contact Us For Availability
15
MAY D0752401 MAY D0752401 Contact Us For Availability
16
MAY A0229501 MAY A0229501 Contact Us For Availability
16
MAY D0742901 MAY D0742901 Contact Us For Availability
17
MAY A0287801 MAY A0287801 Contact Us For Availability
18
MAY A0275601 MAY A0275601 Contact Us For Availability
18
MAY A0381401 MAY A0381401 Contact Us For Availability
18
MAY C0681101 MAY C0681101 Contact Us For Availability
18
MAY YA0381501 MAY YA0381501 Contact Us For Availability
19
MAY 30540A MAY 30540A Contact Us For Availability
19
MAY A0287802 MAY A0287802 Contact Us For Availability
19
MAY B0496901 MAY B0496901 Contact Us For Availability
20
MAY A0330501 MAY A0330501 Contact Us For Availability
21
MAY T82091 MAY T82091 Contact Us For Availability
22
MAY T83168 MAY T83168 Contact Us For Availability
23
MAY T85570 MAY T85570 Contact Us For Availability
24
MAY 15909-1 MAY 15909-1 Contact Us For Availability
24
MAY 50719-3 MAY 50719-3 Contact Us For Availability
24
MAY A0306201 MAY A0306201 Contact Us For Availability
25
MAY A0257601 MAY A0257601 Contact Us For Availability
25
MAY A0307501 MAY A0307501 Contact Us For Availability
26
MAY A0261101 MAY A0261101 Contact Us For Availability
26
MAY A0316101 MAY A0316101 Contact Us For Availability
27
MAY A0252501 MAY A0252501 Contact Us For Availability
27
MAY A0254101 MAY A0254101 Contact Us For Availability
27
MAY A0304701 MAY A0304701 Contact Us For Availability
28
MAY A0356401 MAY A0356401 Contact Us For Availability
28
MAY A0282501 MAY A0282501 Contact Us For Availability
28
MAY A0284001 MAY A0284001 Contact Us For Availability
28
MAY A0365401 MAY A0365401 Contact Us For Availability
28
MAY A0374401 MAY A0374401 Contact Us For Availability
28
MAY B0468701 MAY B0468701 Contact Us For Availability
29
MAY A0282401 MAY A0282401 Contact Us For Availability
29
MAY D0743601 MAY D0743601 Contact Us For Availability
30
MAY A0282806 MAY A0282806 Contact Us For Availability
30
MAY A0295501 MAY A0295501 Contact Us For Availability
30
MAY D0743501 MAY D0743501 Contact Us For Availability
30
MAY D0743502 MAY D0743502 Contact Us For Availability
30
MAY D0743503 MAY D0743503 Contact Us For Availability
30
MAY D0743504 MAY D0743504 Contact Us For Availability
30
MAY D0743507 MAY D0743507 Contact Us For Availability
31
MAY A0037301 MAY A0037301 Contact Us For Availability
31
MAY A0291201 MAY A0291201 Contact Us For Availability
31
MAY A0320201 MAY A0320201 Contact Us For Availability
31
MAY B0484901 MAY B0484901 Contact Us For Availability
31
MAY C0667102 MAY C0667102 Contact Us For Availability
31
MAY D3709401 MAY D3709401 Contact Us For Availability
32
MAY A0318901 MAY A0318901 Contact Us For Availability
32
MAY A0356501 MAY A0356501 Contact Us For Availability
32
MAY A0364601 MAY A0364601 Contact Us For Availability
32
MAY A0379201 MAY A0379201 Contact Us For Availability
32
MAY B0467801 MAY B0467801 Contact Us For Availability
32
MAY B0467903 MAY B0467903 Contact Us For Availability
32
MAY B0468302 MAY B0468302 Contact Us For Availability
32
MAY B0484301 MAY B0484301 Contact Us For Availability
33
MAY A0297401 MAY A0297401 Contact Us For Availability
33
MAY D3720401 MAY D3720401 Contact Us For Availability
34
MAY A0369601 MAY A0369601 Contact Us For Availability
34
MAY B0482601 MAY B0482601 Contact Us For Availability
34
MAY B0483801 MAY B0483801 Contact Us For Availability
34
MAY D3712201 MAY D3712201 Contact Us For Availability
35
MAY A0254701 MAY A0254701 Contact Us For Availability
35
MAY A0294501 MAY A0294501 Contact Us For Availability
35
MAY B0490201 MAY B0490201 Contact Us For Availability
36
MAY B0474301 MAY B0474301 Contact Us For Availability
36
MAY C3511701 MAY C3511701 Contact Us For Availability
37
MAY A0280701 MAY A0280701 Contact Us For Availability
38
MAY A0289801 MAY A0289801 Contact Us For Availability
38
MAY B0474201 MAY B0474201 Contact Us For Availability
39
MAY A0282801 MAY A0282801 Contact Us For Availability
40
MAY A0284101 MAY A0284101 Contact Us For Availability
41
MAY D0740304 MAY D0740304 Contact Us For Availability
42
MAY D3712901 MAY D3712901 Contact Us For Availability
42
MAY D3737801 MAY D3737801 Contact Us For Availability
43
MAY A0291801 MAY A0291801 Contact Us For Availability
45
MAY D0755201 MAY D0755201 Contact Us For Availability
46
MAY A0284301 MAY A0284301 Contact Us For Availability
46
MAY B0473001 MAY B0473001 Contact Us For Availability
48
MAY A0285901 MAY A0285901 Contact Us For Availability
48
MAY A0286201 MAY A0286201 Contact Us For Availability
48
MAY D0755002 MAY D0755002 Contact Us For Availability
49
MAY D0741006 MAY D0741006 Contact Us For Availability
50
MAY D0741101 MAY D0741101 Contact Us For Availability
51
MAY B0464805 MAY B0464805 Contact Us For Availability
52
MAY A0283501 MAY A0283501 Contact Us For Availability
52
MAY A0285101 MAY A0285101 Contact Us For Availability
52
MAY A0285401 MAY A0285401 Contact Us For Availability
53
MAY A0254501 MAY A0254501 Contact Us For Availability
53
MAY B0474001 MAY B0474001 Contact Us For Availability
54
MAY A0285801 MAY A0285801 Contact Us For Availability
54
MAY D0741201 MAY D0741201 Contact Us For Availability
55
MAY A0248801 MAY A0248801 Contact Us For Availability
55
MAY A0248901 MAY A0248901 Contact Us For Availability
55
MAY D0746102 MAY D0746102 Contact Us For Availability
56
MAY B0472902 MAY B0472902 Contact Us For Availability
58
MAY A0278501 MAY A0278501 Contact Us For Availability
58
MAY A0283201 MAY A0283201 Contact Us For Availability
59
MAY A0256801 MAY A0256801 Contact Us For Availability
59
MAY A0292301 MAY A0292301 Contact Us For Availability
59
MAY A0292601 MAY A0292601 Contact Us For Availability
60
MAY A0292901 MAY A0292901 Contact Us For Availability
61
MAY A0292902 MAY A0292902 Contact Us For Availability
62
MAY A0284201 MAY A0284201 Contact Us For Availability
62
MAY A0284401 MAY A0284401 Contact Us For Availability
62
MAY B0472501 MAY B0472501 Contact Us For Availability
63
MAY A0280401 MAY A0280401 Contact Us For Availability
63
MAY A0280801 MAY A0280801 Contact Us For Availability
63
MAY A0283001 MAY A0283001 Contact Us For Availability
64
MAY A0305302 MAY A0305302 Contact Us For Availability
64
MAY D0754102 MAY D0754102 Contact Us For Availability
64
MAY A0288701 MAY A0288701 Contact Us For Availability
64
MAY A0304101 MAY A0304101 Contact Us For Availability
65
MAY A0305201 MAY A0305201 Contact Us For Availability
65
MAY A0305402 MAY A0305402 Contact Us For Availability
65
MAY A0305502 MAY A0305502 Contact Us For Availability
65
MAY A0362301 MAY A0362301 Contact Us For Availability
65
MAY B0464401 MAY B0464401 Contact Us For Availability
65
MAY C0665007 MAY C0665007 Contact Us For Availability
65
MAY C0665008 MAY C0665008 Contact Us For Availability
65
MAY D0778103 MAY D0778103 Contact Us For Availability
66
MAY A0285501 MAY A0285501 Contact Us For Availability
66
MAY A0286001 MAY A0286001 Contact Us For Availability
66
MAY A0303501 MAY A0303501 Contact Us For Availability
66
MAY A0294101 MAY A0294101 Contact Us For Availability
66
MAY D0754501 MAY D0754501 Contact Us For Availability
67
MAY B0465002 MAY B0465002 Contact Us For Availability
67
MAY B0465101 MAY B0465101 Contact Us For Availability
67
MAY C0665601 MAY C0665601 Contact Us For Availability
68
MAY A0310201 MAY A0310201 Contact Us For Availability
68
MAY A0259701 MAY A0259701 Contact Us For Availability
68
MAY A0261701 MAY A0261701 Contact Us For Availability
68
MAY A0304201 MAY A0304201 Contact Us For Availability
NI
MAY A0312101 MAY A0312101 Contact Us For Availability
NI
MAY D0754608 MAY D0754608 Contact Us For Availability
NI
MAY A0010701 MAY A0010701 Contact Us For Availability
NI
MAY A0012101 MAY A0012101 Contact Us For Availability
NI
MAY A0275801 MAY A0275801 Contact Us For Availability
NI
MAY A0280601 MAY A0280601 Contact Us For Availability
NI
MAY A0281901 MAY A0281901 Contact Us For Availability
NI
MAY B0482401 MAY B0482401 Contact Us For Availability
NI
MAY B0508902 MAY B0508902 Contact Us For Availability
NI
MAY D0743001 MAY D0743001 Contact Us For Availability
× ![]()
