Model Whirlpool 18RB-4 RV GAS RANGE – Common Parts & Diagrams

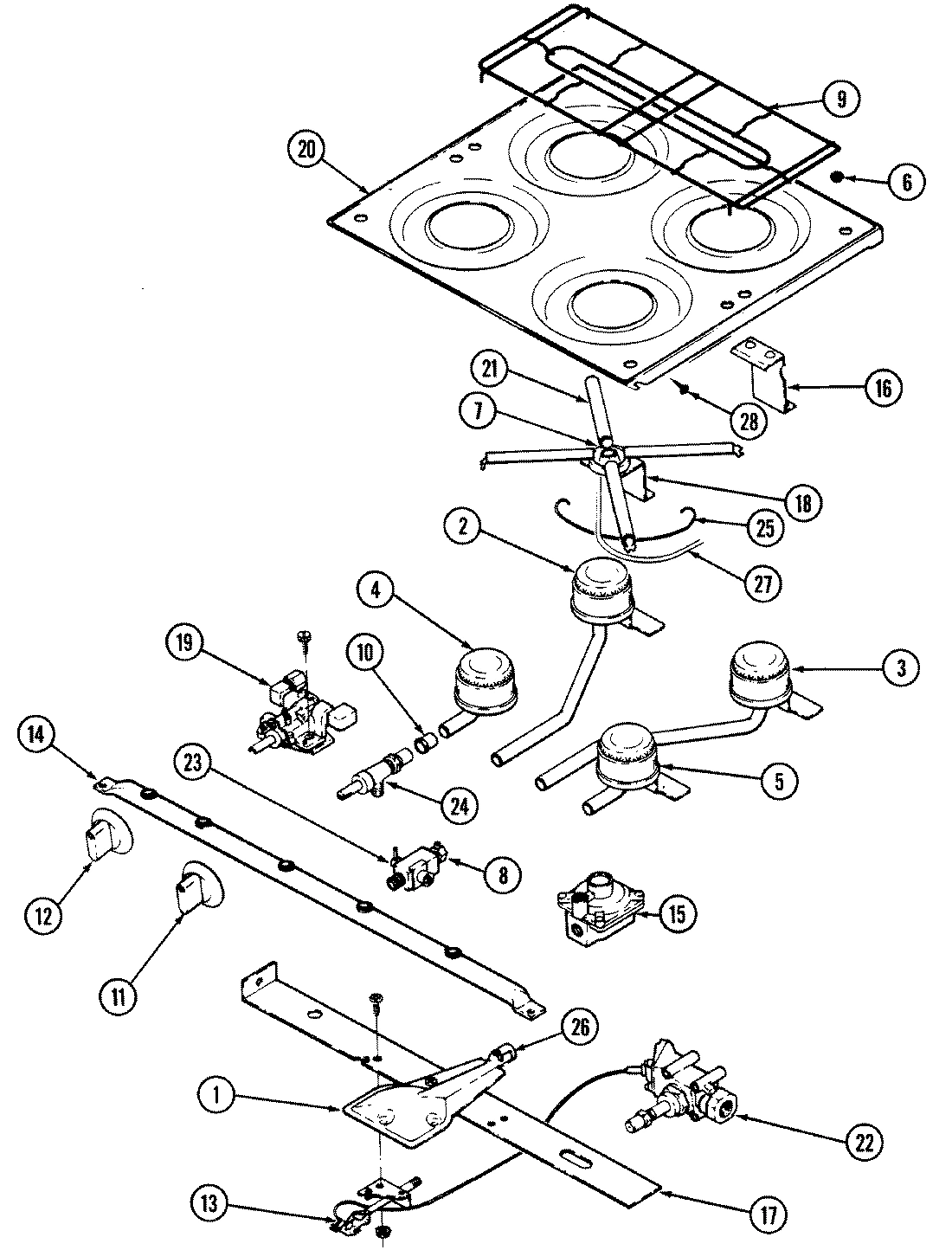

02 - MAIN TOP & BURNER ASSEMBLY

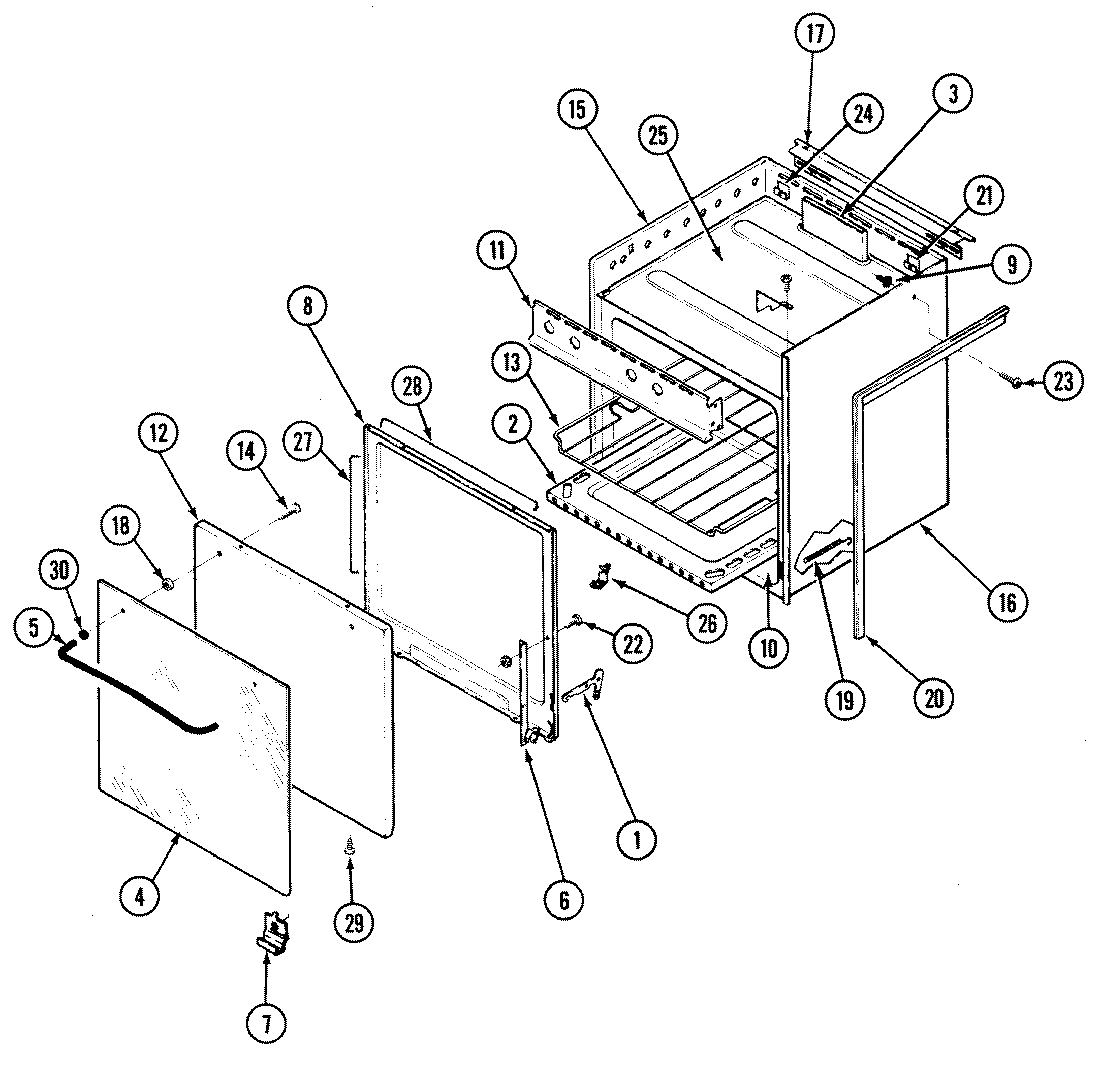

01 - CAVITY & DOOR
Common parts from model Whirlpool 18RB-4 RV GAS RANGE
1
OVEN BURNER ASSY. WPL 3403W02545 Contact Us For Availability
1
ARM, SPRING WPL 3423F00134 Contact Us For Availability
2
BURNER, ASSY L.R. WPL 7505P14960 Contact Us For Availability
2
BOTTOM, OVEN WPL 2205F01619 Contact Us For Availability
2
CLIP, OVEN BOTTOM WPL 7112P06560 Contact Us For Availability
3
BURNER, ASSY R.R. WPL 7505P15060 Contact Us For Availability
3
FLUE BOX ASSY WPL 4006W07580 Contact Us For Availability
5
BURNER, ASSY FRONT WPL 7505P14260 Contact Us For Availability
5
HANDLE, DOOR WPL 7701P09260 Contact Us For Availability
6
GROMMET WPL Y8007P02060 Contact Us For Availability
6
HINGE, DOOR (RT) WPL 3418A05834 Contact Us For Availability
6
HINGE, DOOR (LT) WPL 3418A05934 Contact Us For Availability
8
FILTER, PILOT (R.V. PART) WPL 7507P04660 Contact Us For Availability
8
LINING, DOOR WPL 2402F12919 Contact Us For Availability
9
GRATE, TOP WPL 7518P01260 Contact Us For Availability
9
T-NUT (RV HINGE) WPL 7103P10960 Contact Us For Availability
10
INSERT, BURNER WPL 7214P01560 Contact Us For Availability
10
BOTTOM, MAIN WPL 4011F12551 Contact Us For Availability
11
KNOB, VALVE WPL 7733P07260 Contact Us For Availability
11
PANEL, MANIFOLD WPL 2616F08970 Contact Us For Availability
11
PANEL, MANIFOLD WPL 2616F12170 Contact Us For Availability
12
KNOB, THERMOSTAT WPL 7731P06760 Contact Us For Availability
13
PILOT BURNER WPL 7505P20260 Contact Us For Availability
13
RACK WPL 7801P02760 Contact Us For Availability
14
PIPE, MANIFOLD WPL 7513P09660 Contact Us For Availability
14
SCREW WPL 7101P23160 Contact Us For Availability
15
FITTING, HALF UNION WPL 7507P08360 Contact Us For Availability
15
REGULATOR, PRESSURE WPL 7510P04160 Contact Us For Availability
15
SIDE BODY (LEFT) WPL 4016F03551 Contact Us For Availability
16
SCREW WPL 7101P06460 Contact Us For Availability
16
SCREW WPL 7101P06160 Contact Us For Availability
16
(RIGHT) WPL 4016F03651 Contact Us For Availability
17
SHIELD, DEFLECTOR FLUE WPL 3604F12570 Contact Us For Availability
18
NOT REQUIRED PART OR SEE NOTE SPACER, DOOR GL WPL W10124350 Contact Us For Availability
19
NUT, LOXIT (3/16``) WPL 1555222 Contact Us For Availability
19
NUT & FERRULE 1/4`` KIT WPL 1555280K Contact Us For Availability
19
TUBING (3/16 X 42``) WPL 3414F08044 Contact Us For Availability
19
TUBING (1/4``-OD X 41``) WPL 3414F10144 Contact Us For Availability
19
FLANGE, T STAT WPL 7507P04960 Contact Us For Availability
19
THERMOSTAT WPL 7515P03160 Contact Us For Availability
19
SPRING, OVEN DOOR WPL 7803P05260 Contact Us For Availability
20
TOP, MAIN (BLK) WPL 2001F10890 Contact Us For Availability
20
TRIM RIGHT WPL 3608W03770 Contact Us For Availability
20
TRIM LEFT WPL 3608W03870 Contact Us For Availability
20
SCREW No.6 X 1/2 WPL 7101P22860 Contact Us For Availability
21
BACK, MAIN WPL 4002F15251 Contact Us For Availability
21
BOLT, MAIN BACK WPL 7101P22760 Contact Us For Availability
21
SCREW, BLACK WPL 7101P27060 Contact Us For Availability
21
NUT WPL 7103P08260 Contact Us For Availability
22
NUT & FERRULE (3/16``) WPL 1555261K Contact Us For Availability
22
NUT, 1/4`` LOXIT WPL 1555279 Contact Us For Availability
22
VALVE, OVEN WPL 7501P12160 Contact Us For Availability
22
SCREW WPL 7101P20960 Contact Us For Availability
23
SCREW, LEVER WPL 7101P23060 Contact Us For Availability
24
VALVE, TOP BURNER (5200) WPL 7502P18160 Contact Us For Availability
24
CLIP, MAIN TOP REAR WPL 7112P07160 Contact Us For Availability
25
CLIP WPL 7112P06860 Contact Us For Availability
25
BOTTOM, BURNER BOX WPL 4011F15351 Contact Us For Availability
26
MIXER, AIR WPL 3411F00334 Contact Us For Availability
26
CLIP, CAPILLARY WPL 7112P05360 Contact Us For Availability
27
PILOT, BURNER (W/TUBING) WPL 7505P17960 Contact Us For Availability
27
STRAP, SEAL-SIDE WPL 2207F01450 Contact Us For Availability
27
SEAL, DOOR-SIDE WPL 2418F00160 Contact Us For Availability
28
BUMPER WPL 8003P00860 Contact Us For Availability
28
STRAP, SEAL-TOP WPL 2207F01550 Contact Us For Availability
28
SEAL, DOOR TOP WPL 2418F00460 Contact Us For Availability
29
MANUAL, USE & CARE WPL 8112P10760 Contact Us For Availability
29
SCREW, No.10-16AB WPL 7101P22160 Contact Us For Availability
30
SPACER, HANDLE WPL 8010P07360 Contact Us For Availability
× ![]()
