  • LG 17ZB90R-G.ADY8U1 Parts List

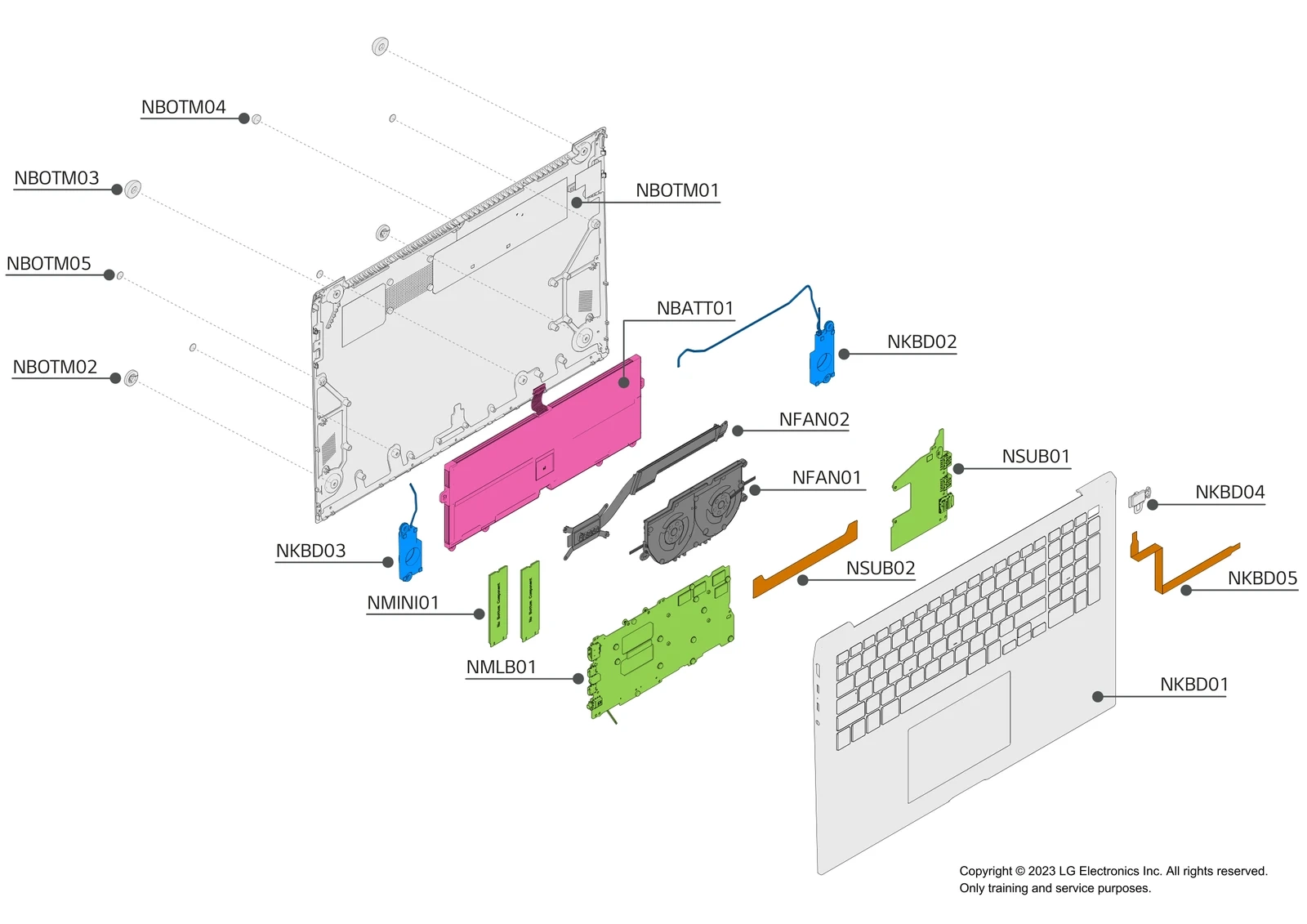

Model LG 17ZB90R-G.ADY8U1 Blanc 17C(17ZB90R) – Common Parts & Diagrams

NADT02
Adapters

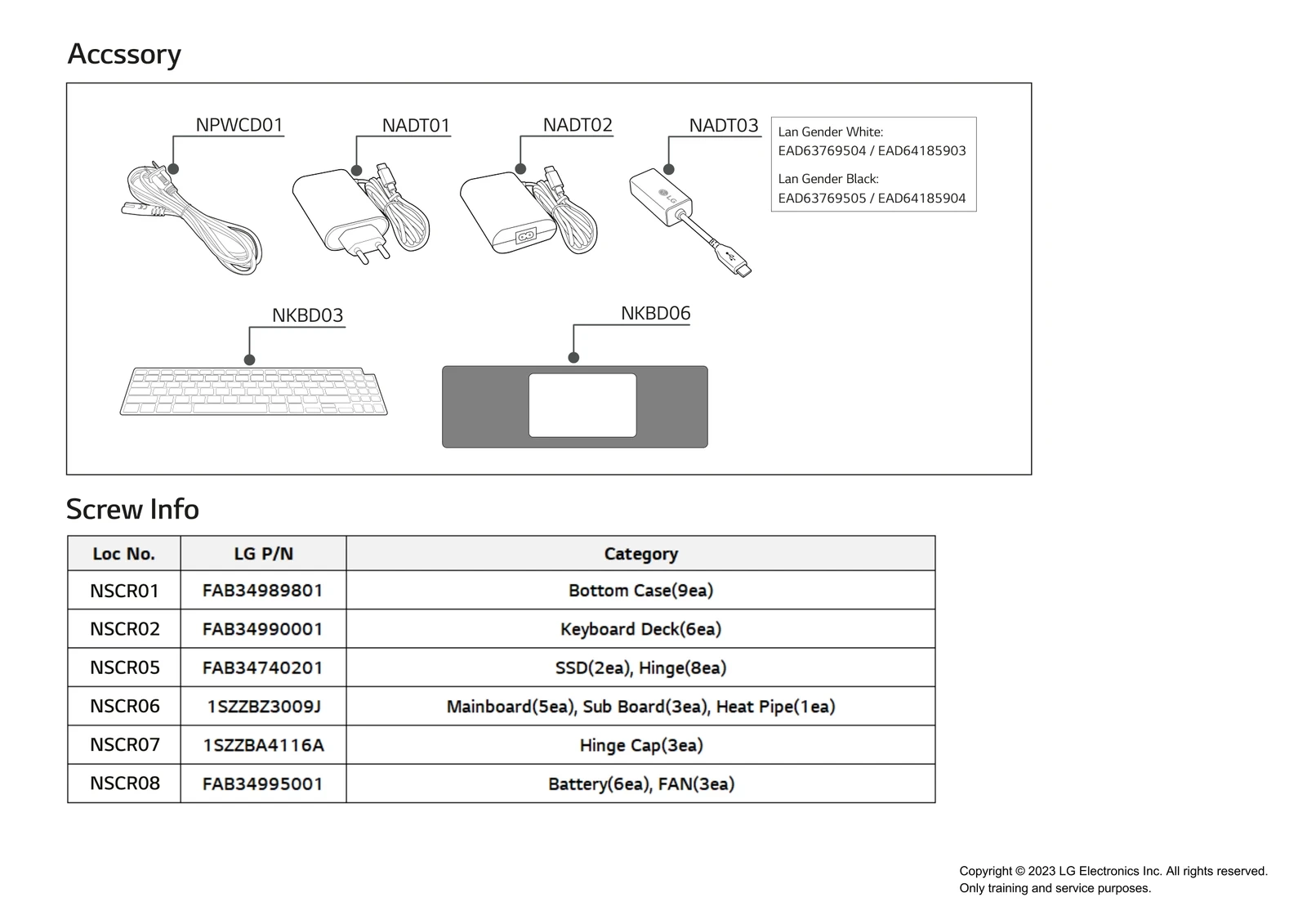

Adapters LGE EAY65895901 Contact Us For Availability
View on Model
NADT03
Cable,Assembly
Cable,Assembly LGE EAD64185904 Contact Us For Availability
View on Model
NBATT01
Rechargeable Battery,Lithium Polymer
Rechargeable Battery,Lithium Polymer LGE EAC64618311 Contact Us For Availability
View on Model
NBOTM01
Case Assembly
Case Assembly LGE ABQ30063813 Contact Us For Availability
View on Model
NBOTM03
Foot
Foot LGE MDP64327802 Contact Us For Availability
View on Model
NFAN01
Fan Module
Fan Module LGE EAL62726001 Contact Us For Availability
View on Model
NFAN02
Heat Sink
Heat Sink LGE MED65493801 Contact Us For Availability
View on Model
NKDECK01
Mechanism Assembly
Mechanism Assembly LGE AFP76448703 Contact Us For Availability
View on Model
NKDECK02
Speaker Assembly
Speaker Assembly LGE EAB65826903 Contact Us For Availability
View on Model
NKDECK03
Speaker Assembly
Speaker Assembly LGE EAB64928432 Contact Us For Availability
View on Model
NKDECK04
Sensor,Fingerprint
Sensor,Fingerprint LGE EBD63285712 Contact Us For Availability
View on Model
NKDECK05
Cable,FFC
Cable,FFC LGE EAD65880501 Contact Us For Availability
View on Model
NKDECK05
Cable,FFC
Cable,FFC LGE EAD65880502 Contact Us For Availability
View on Model
NKDECK06
Sheet
Sheet LGE MHK67674601 Contact Us For Availability
View on Model
NKDECK07
Sheet
Sheet LGE MHK67642201 Contact Us For Availability
View on Model
NLAB04
Label
Label LGE MEZ68999003 Contact Us For Availability
View on Model
NLCD01
Case Assembly
Case Assembly LGE ABQ30061113 Contact Us For Availability
View on Model
NLCD02
Case Assembly
Case Assembly LGE ABQ30061401 Contact Us For Availability
View on Model
NLCD03
LCD,Module-TFT
LCD,Module-TFT LGE EAJ65770201 Contact Us For Availability
View on Model
NLCD04
Harness,Multi
Harness,Multi LGE EAD65882701 Contact Us For Availability
View on Model
NLCD04
Harness,Multi
Harness,Multi LGE EAD65882702 Contact Us For Availability
View on Model
NLCD05
Hinge Assembly
Hinge Assembly LGE AEH76181001 Contact Us For Availability
View on Model
NLCD06
Antenna Assembly
Antenna Assembly LGE EAA65980901 Contact Us For Availability
View on Model
NLCD07
Cap
Cap LGE MBL68673901 Contact Us For Availability
View on Model
NLCD08
Sheet
Sheet LGE MHK67607301 Contact Us For Availability
View on Model
NLCD09
Damper
Damper LGE MCQ70802801 Contact Us For Availability
View on Model
NLCD10
Tape,Double Faced
Tape,Double Faced LGE RAB36920301 Contact Us For Availability
View on Model
NLCD11
Tape,Double Faced
Tape,Double Faced LGE RAB36129801 Contact Us For Availability
View on Model
NLCD12
Tape,Double Faced
Tape,Double Faced LGE RAB36920401 Contact Us For Availability
View on Model
NLCD13
Tape,Double Faced
Tape,Double Faced LGE RAB36928101 Contact Us For Availability
View on Model
NLCD14
Tape,Double Faced
Tape,Double Faced LGE RAB36933621 Contact Us For Availability
View on Model
NLCD15
Sheet
Sheet LGE MHK66766001 Contact Us For Availability
View on Model
NMINI01
SSD
SSD LGE EAZ63543432 Contact Us For Availability
View on Model
NMLB01
PCB Assembly,Main
PCB Assembly,Main LGE EBR41084706 Contact Us For Availability
View on Model
NPWCD01
Power Cord
Power Cord LGE EAD30754402 Contact Us For Availability
View on Model
NSCR01
Screw,Customized
Screw,Customized LGE FAB34989801 Contact Us For Availability
View on Model
NSCR02
Screw,Customized
Screw,Customized LGE FAB34990001 Contact Us For Availability
View on Model
NSCR04
Screw,Machine
Screw,Machine LGE FAB31882801 Contact Us For Availability
View on Model
NSCR05
SCREW,DRAWING
SCREW,DRAWING LGE 1SZZBZ3009J Contact Us For Availability
View on Model
NSCR06
Screw,Customized
Screw,Customized LGE FAB34740201 Contact Us For Availability
View on Model
NSCR07
Screw,Customized
Screw,Customized LGE 1SZZBA4116A Contact Us For Availability
View on Model
NSUB01
PCB Assembly,Sub
PCB Assembly,Sub LGE EBR38924801 Contact Us For Availability
View on Model
NSUB02
PCB,Flexible
PCB,Flexible LGE EAX69764702 Contact Us For Availability
View on Model
NWEBC01
Camera Module
Camera Module LGE EBP63421711 Contact Us For Availability
View on Model
NWEBC01
Camera Module
Camera Module LGE EBP63421709 Contact Us For Availability
View on Model
