Model LG 17Z90TL-W.AUB6U3 – Common Parts & Diagrams

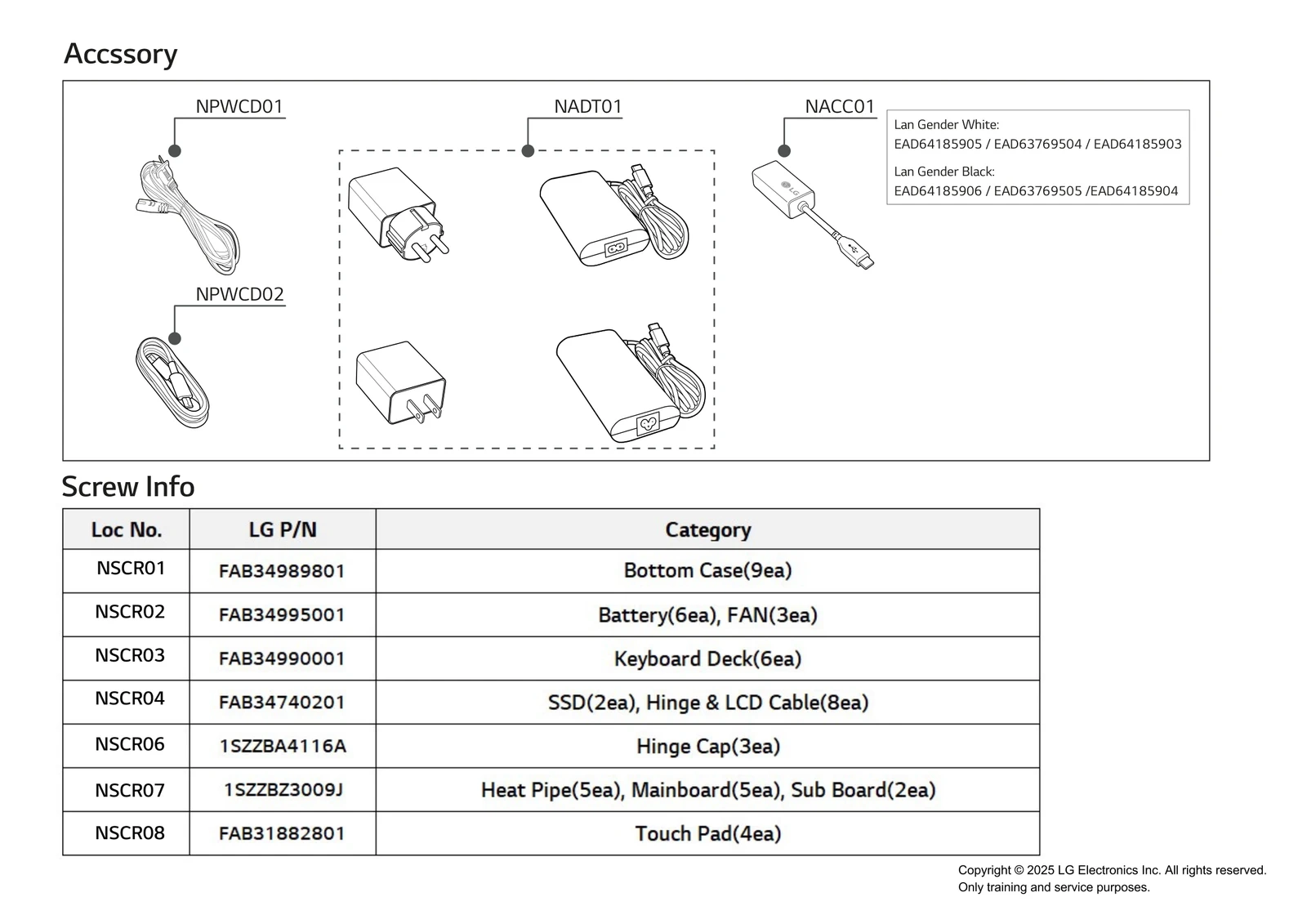

NADT01
Adapters
Adapters LGE EAY65910832 Contact Us For Availability
View on Model

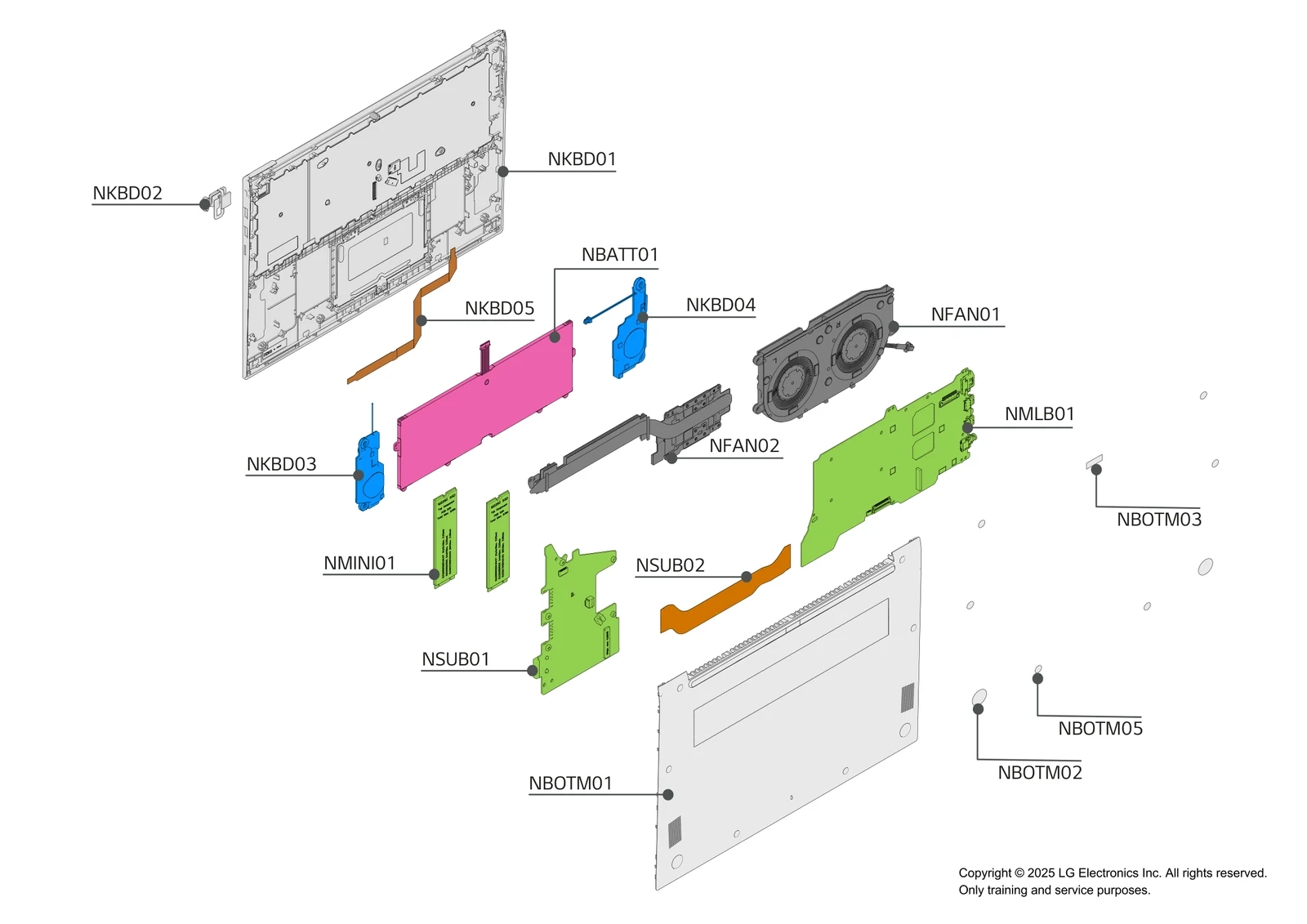

NBATT01
Rechargeable Battery,Lithium Ion
Rechargeable Battery,Lithium Ion LGE EAC64809901 Contact Us For Availability
View on Model
NBOTM01
Case Assembly
Case Assembly LGE ABQ30200902 Contact Us For Availability
View on Model
NBOTM01
Case Assembly
Case Assembly LGE ABQ30200952 Contact Us For Availability
View on Model
NBOTM03
Sheet
Sheet LGE MHK67727902 Contact Us For Availability
View on Model
NFAN02
Heat Sink
Heat Sink LGE MED30112501 Contact Us For Availability
View on Model
NKBD01
Mechanism Assembly
Mechanism Assembly LGE AFP30017502 Contact Us For Availability
View on Model
NKBD02
Sensor,Fingerprint
Sensor,Fingerprint LGE EBD64451401 Contact Us For Availability
View on Model
NKBD03
Speaker Assembly
Speaker Assembly LGE EAB65826901 Contact Us For Availability
View on Model
NKBD04
Speaker Assembly
Speaker Assembly LGE EAB65826902 Contact Us For Availability
View on Model
NKBD05
Cable,FFC
Cable,FFC LGE EAD65880501 Contact Us For Availability
View on Model
NLAB02
Label
Label LGE MEZ00742303 Contact Us For Availability
View on Model
NLAB03
Label
Label LGE MEZ00742401 Contact Us For Availability
View on Model

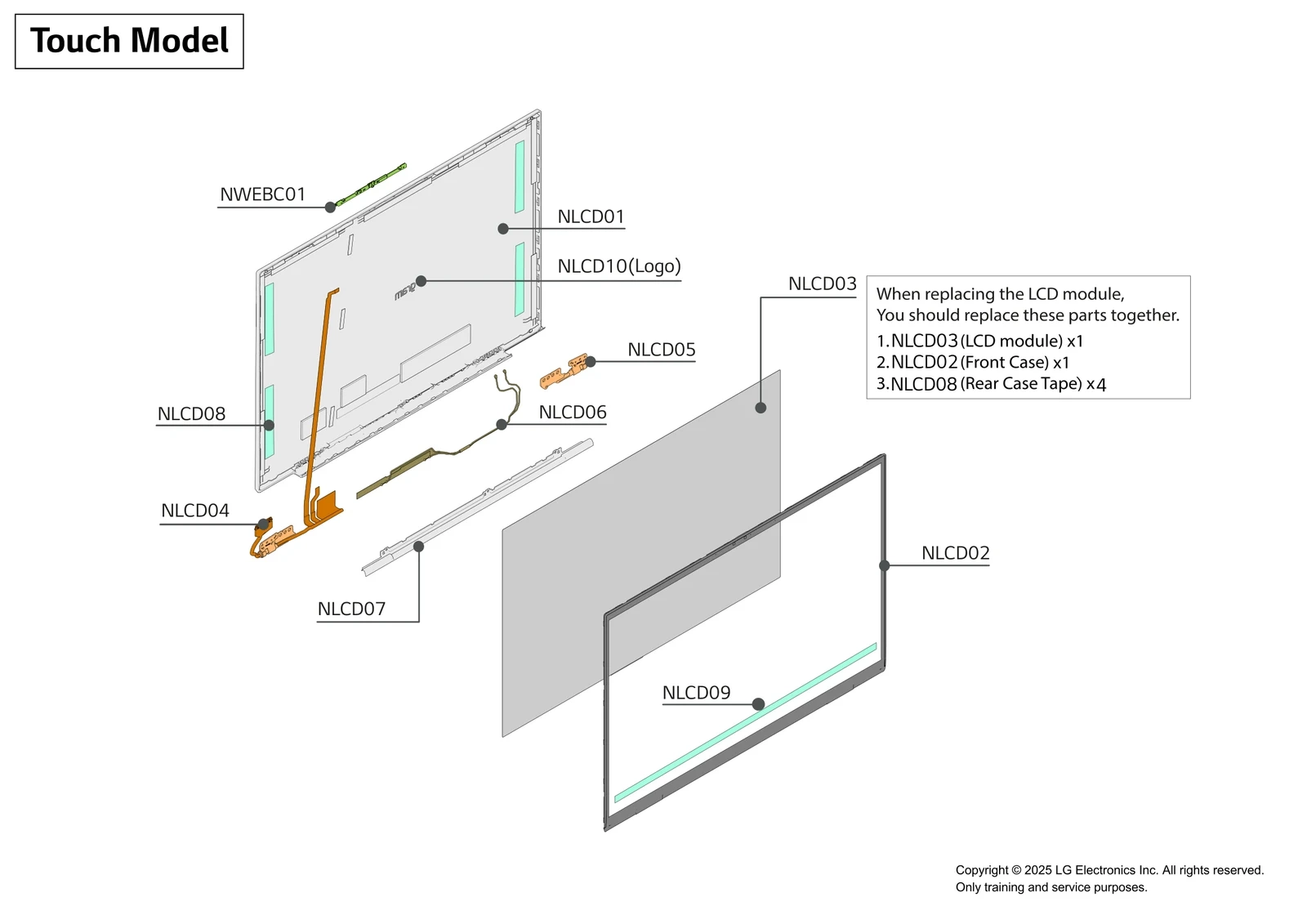

NLCD01
Case Assembly
Case Assembly LGE ABQ30253202 Contact Us For Availability
View on Model
NLCD02
Case Assembly
Case Assembly LGE ABQ30119101 Contact Us For Availability
View on Model
NLCD03
Touch Panel
Touch Panel LGE EBD64437601 Contact Us For Availability
View on Model
NLCD04
Harness,Multi
Harness,Multi LGE EAD66014501 Contact Us For Availability
View on Model
NLCD05
Hinge Assembly
Hinge Assembly LGE AEH76194501 Contact Us For Availability
View on Model
NLCD06
Antenna Assembly
Antenna Assembly LGE EAA30099401 Contact Us For Availability
View on Model
NLCD07
Cap
Cap LGE MBL68747201 Contact Us For Availability
View on Model
NLCD08
Damper
Damper LGE MCQ70851701 Contact Us For Availability
View on Model
NLCD09
Tape,Double Faced
Tape,Double Faced LGE RAB36129801 Contact Us For Availability
View on Model
NLCD10
Sheet
Sheet LGE MHK67726401 Contact Us For Availability
View on Model
NMINI01
SSD
SSD LGE EAZ63543434 Contact Us For Availability
View on Model
NMINI01
SSD
SSD LGE EAZ63544421 Contact Us For Availability
View on Model
NMINI01
SSD
SSD LGE EAZ63545031 Contact Us For Availability
View on Model
NMLB01
PCB Assembly,Main
PCB Assembly,Main LGE EBR26244202 Contact Us For Availability
View on Model
NPWCD02
Cable,Assembly
Cable,Assembly LGE EAD65830124 Contact Us For Availability
View on Model
NSCR01
Screw,Customized
Screw,Customized LGE FAB34989801 Contact Us For Availability
View on Model
NSCR03
Screw,Customized
Screw,Customized LGE FAB34740201 Contact Us For Availability
View on Model
NSCR06
Screw,Customized
Screw,Customized LGE 1SZZBA4116A Contact Us For Availability
View on Model
NSCR07
SCREW,DRAWING
SCREW,DRAWING LGE 1SZZBZ3009J Contact Us For Availability
View on Model
NSCR08
Screw,Machine
Screw,Machine LGE FAB31882801 Contact Us For Availability
View on Model
NSUB01
PCB Assembly,Sub
PCB Assembly,Sub LGE EBR24458201 Contact Us For Availability
View on Model
NSUB02
PCB,Flexible
PCB,Flexible LGE EAX70318101 Contact Us For Availability
View on Model
NWEBC01
Camera Module
Camera Module LGE EBP64159001 Contact Us For Availability
View on Model
