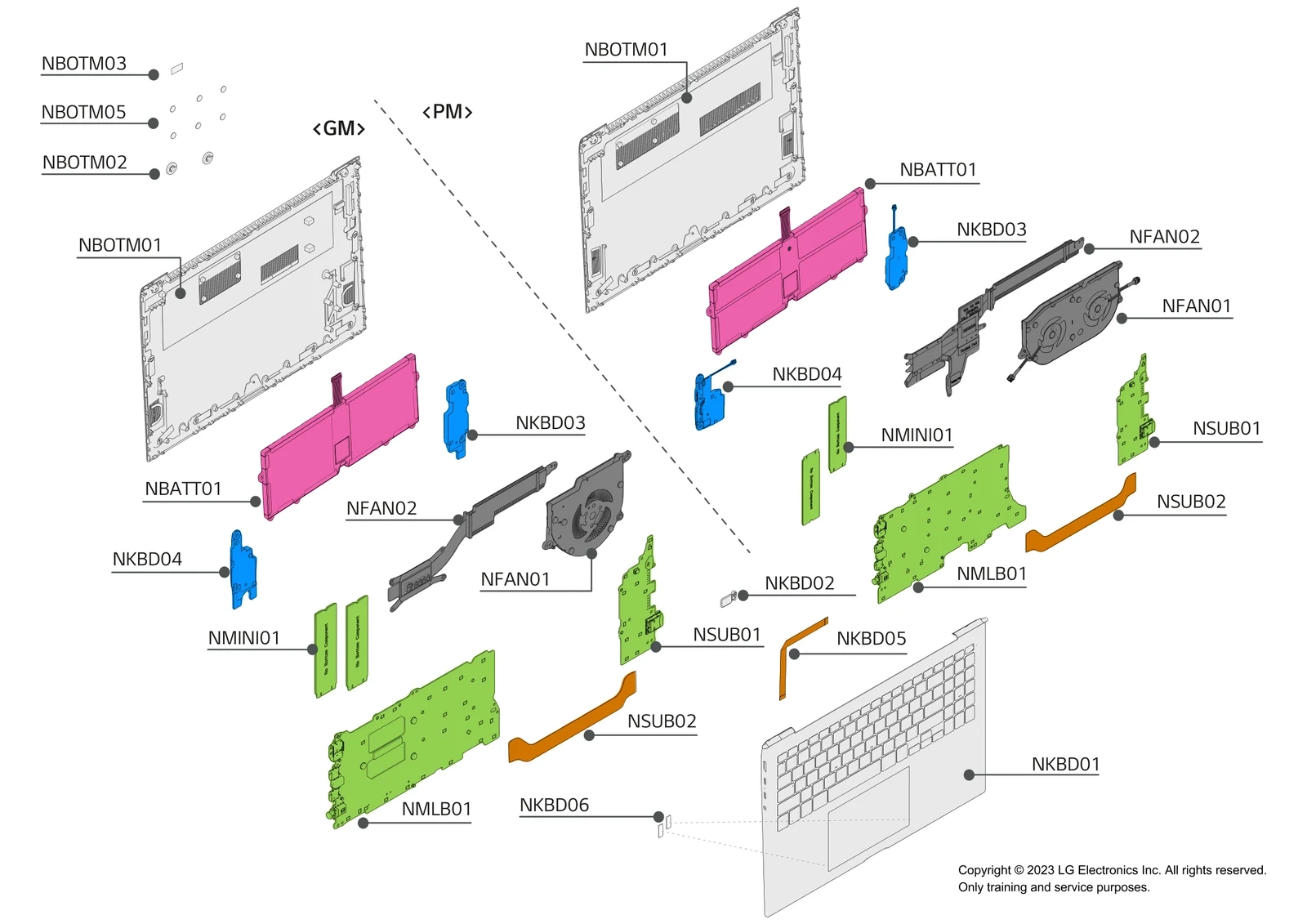

Model LG 16Z90R-A.ADB9U1 Royal 16(16Z90R) – Common Parts & Diagrams

NADT01
Adapters
Adapters LGE EAY65910831 Contact Us For Availability
View on Model
NBATT01
Rechargeable Battery,Lithium Polymer
Rechargeable Battery,Lithium Polymer LGE EAC64798301 Contact Us For Availability
View on Model
NBATT01
Rechargeable Battery,Lithium Polymer
Rechargeable Battery,Lithium Polymer LGE EAC64798311 Contact Us For Availability
View on Model
NBOTM01
Case Assembly
Case Assembly LGE ABQ30209012 Contact Us For Availability
View on Model
NBOTM03
Sheet
Sheet LGE MHK67727902 Contact Us For Availability
View on Model
NFAN01
Fan Module
Fan Module LGE EAL62726601 Contact Us For Availability
View on Model
NFAN02
Heat Sink
Heat Sink LGE MED65495101 Contact Us For Availability
View on Model
NKBD01
Mechanism Assembly
Mechanism Assembly LGE AFP76454612 Contact Us For Availability
View on Model
NKBD02
Button
Button LGE MBG67861612 Contact Us For Availability
View on Model
NKBD03
Speaker Assembly
Speaker Assembly LGE EAB65832101 Contact Us For Availability
View on Model
NKBD04
Speaker Assembly
Speaker Assembly LGE EAB65832102 Contact Us For Availability
View on Model
NKBD05
Cable,FFC
Cable,FFC LGE EAD65935301 Contact Us For Availability
View on Model
NKBD06
Damper
Damper LGE MCQ70802603 Contact Us For Availability
View on Model
NLAB04
Label
Label LGE MEZ68999003 Contact Us For Availability
View on Model
NLAB07
Label
Label LGE MEZ69097601 Contact Us For Availability
View on Model

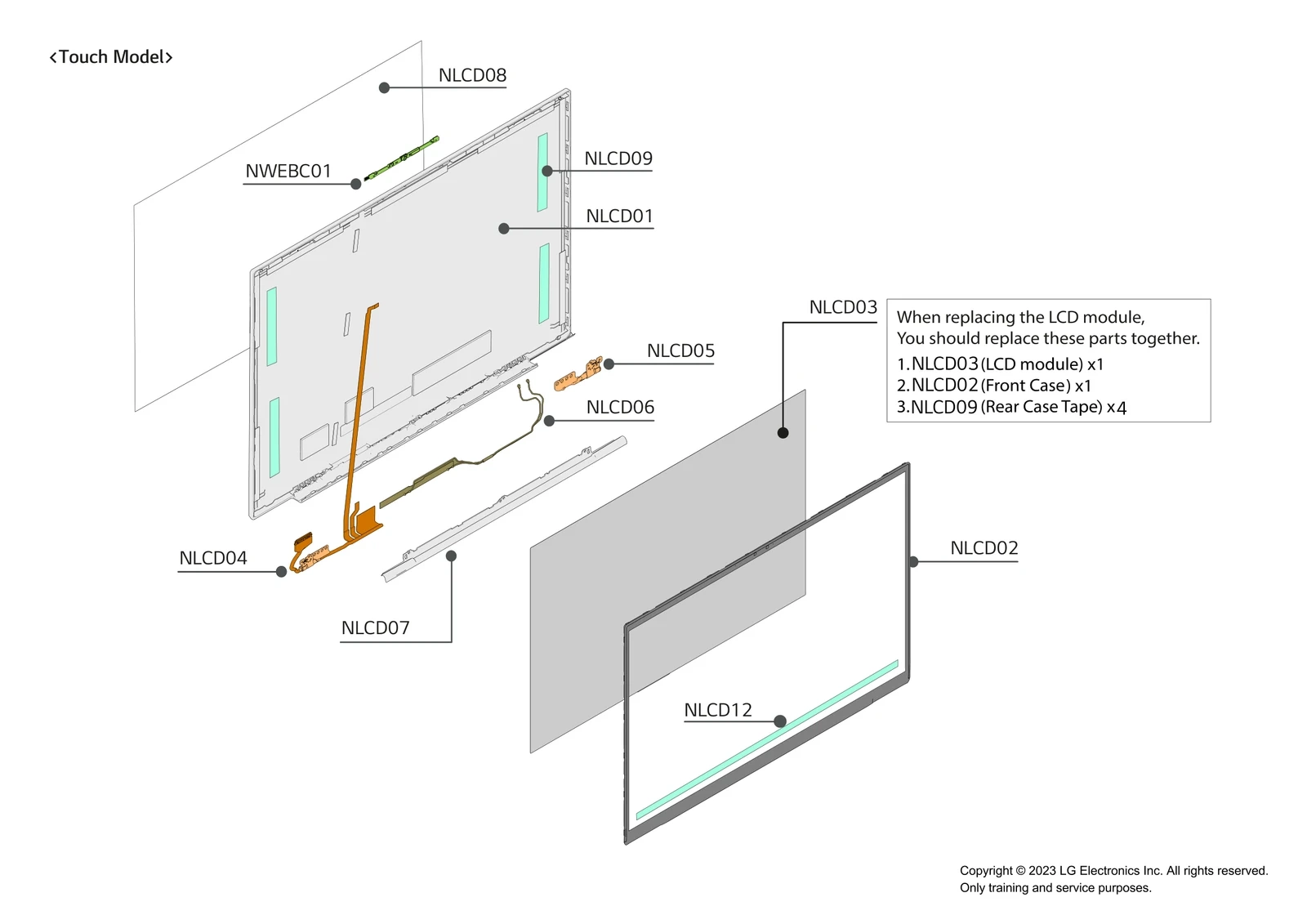

NLCD01
Case Assembly
Case Assembly LGE ABQ30206502 Contact Us For Availability
View on Model
NLCD02
Case Assembly
Case Assembly LGE ABQ30206801 Contact Us For Availability
View on Model
NLCD03
LCD,Module-TFT
LCD,Module-TFT LGE EAJ65830701 Contact Us For Availability
View on Model
NLCD04
Harness,Multi
Harness,Multi LGE EAD65979301 Contact Us For Availability
View on Model
NLCD05
Hinge Assembly
Hinge Assembly LGE AEH76190801 Contact Us For Availability
View on Model
NLCD06
Antenna Assembly
Antenna Assembly LGE EAA65976801 Contact Us For Availability
View on Model
NLCD06
Antenna Assembly
Antenna Assembly LGE EAA65976701 Contact Us For Availability
View on Model
NLCD07
Cap
Cap LGE MBL68729201 Contact Us For Availability
View on Model
NLCD08
Sheet
Sheet LGE MHK67606701 Contact Us For Availability
View on Model
NLCD09
Damper
Damper LGE MCQ70802801 Contact Us For Availability
View on Model
NLCD12
Tape,Double Faced
Tape,Double Faced LGE RAB36949901 Contact Us For Availability
View on Model
NMINI01
SSD
SSD LGE EAZ63544321 Contact Us For Availability
View on Model
NMINI01
SSD
SSD LGE EAZ63543521 Contact Us For Availability
View on Model
NMINI01
SSD
SSD LGE EAZ63543523 Contact Us For Availability
View on Model
NMLB01
PCB Assembly,Main
PCB Assembly,Main LGE EBR41197701 Contact Us For Availability
View on Model
NPWCD01
Cable,Assembly
Cable,Assembly LGE EAD65830122 Contact Us For Availability
View on Model

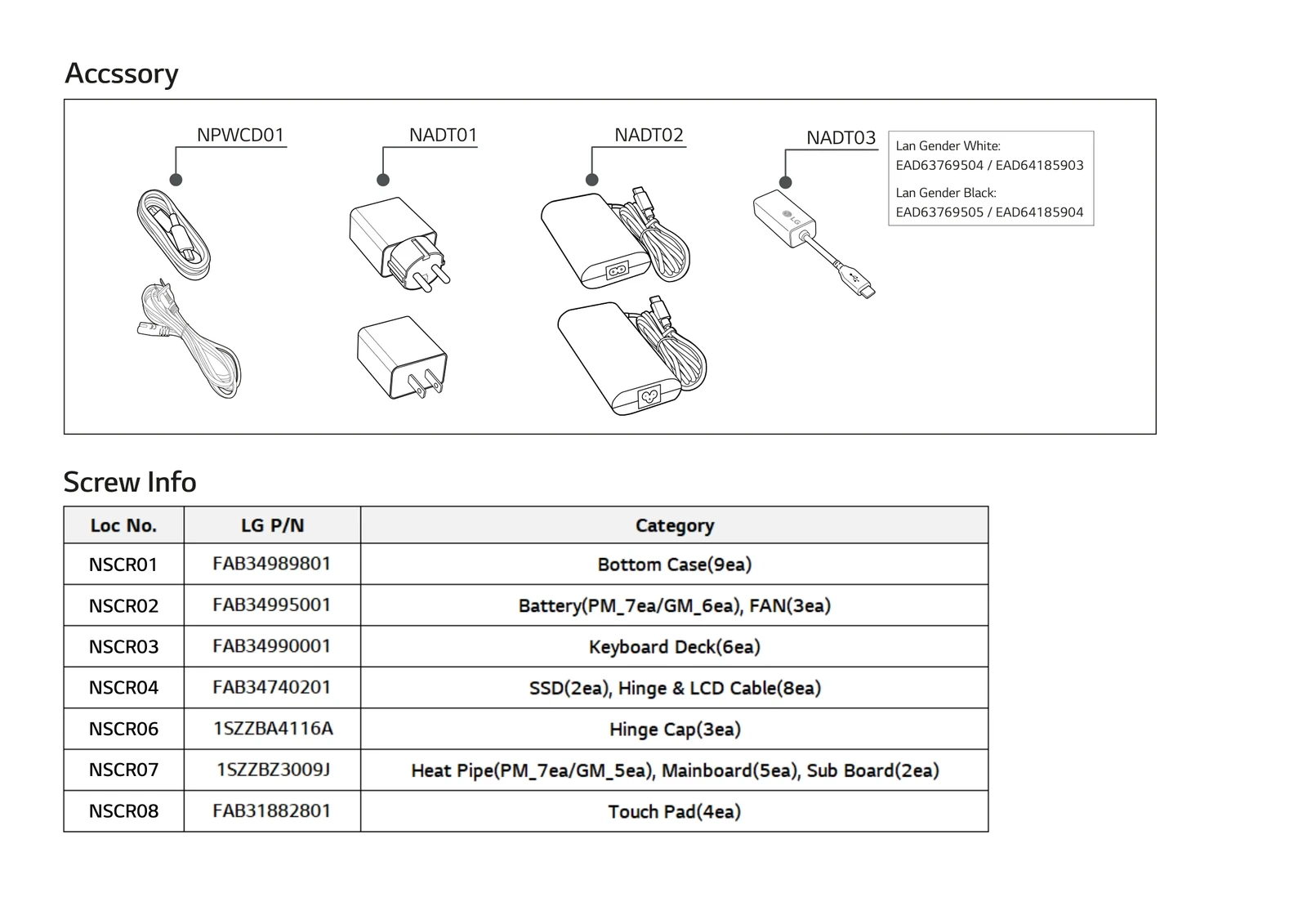

NSCR01
Screw,Customized
Screw,Customized LGE FAB34989801 Contact Us For Availability
View on Model
NSCR02
Screw,Customized
Screw,Customized LGE FAB34995001 Contact Us For Availability
View on Model
NSCR03
Screw,Customized
Screw,Customized LGE FAB34990001 Contact Us For Availability
View on Model
NSCR04
Screw,Customized
Screw,Customized LGE FAB34740201 Contact Us For Availability
View on Model
NSCR06
Screw,Customized
Screw,Customized LGE 1SZZBA4116A Contact Us For Availability
View on Model
NSCR07
SCREW,DRAWING
SCREW,DRAWING LGE 1SZZBZ3009J Contact Us For Availability
View on Model
NSCR08
Screw,Machine
Screw,Machine LGE FAB31882801 Contact Us For Availability
View on Model
NSUB01
PCB Assembly,Sub
PCB Assembly,Sub LGE EBR40134401 Contact Us For Availability
View on Model
NSUB02
PCB,Flexible
PCB,Flexible LGE EAX70026801 Contact Us For Availability
View on Model
NWEBC01
Camera Module
Camera Module LGE EBP63421718 Contact Us For Availability
View on Model
NWEBC01
Camera Module
Camera Module LGE EBP63421719 Contact Us For Availability
View on Model
