  • LG 16Z90P-N.APB7U1 Parts List

Model LG 16Z90P-N.APB7U1 Blanc 16(16Z90P) – Common Parts & Diagrams

NADT02
Adapters
Adapters LGE EAY65895901 Contact Us For Availability
View on Model
NADT03
Cable,Assembly
Cable,Assembly LGE EAD64185904 Contact Us For Availability
View on Model

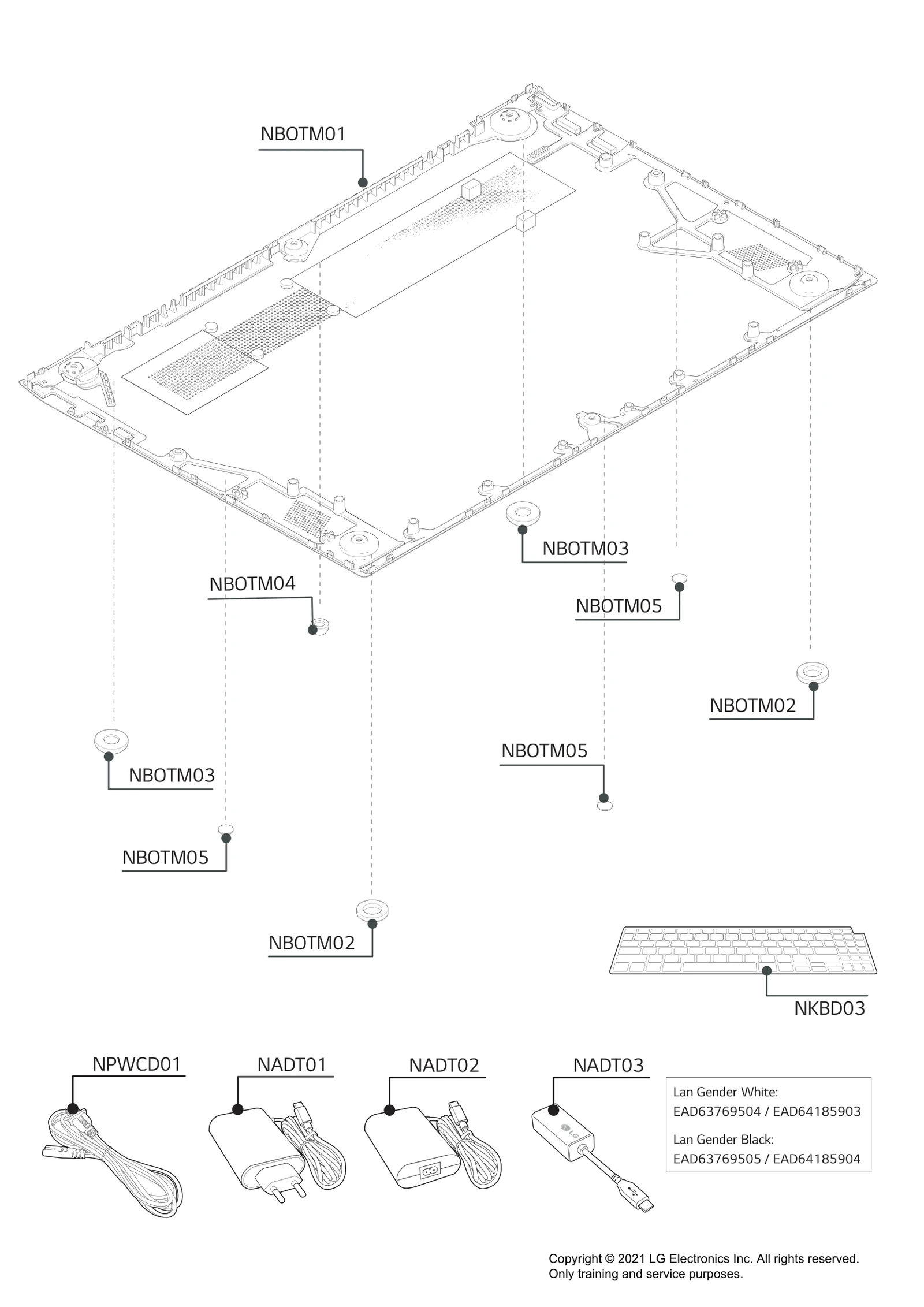

NBOTM01
Case Assembly
Case Assembly LGE ABQ30054813 Contact Us For Availability
View on Model
NBOTM03
Foot
Foot LGE MDP64328502 Contact Us For Availability
View on Model
NFAN01
Fan Module
Fan Module LGE EAL62722401 Contact Us For Availability
View on Model
NFAN02
Heat Sink
Heat Sink LGE MED65476901 Contact Us For Availability
View on Model

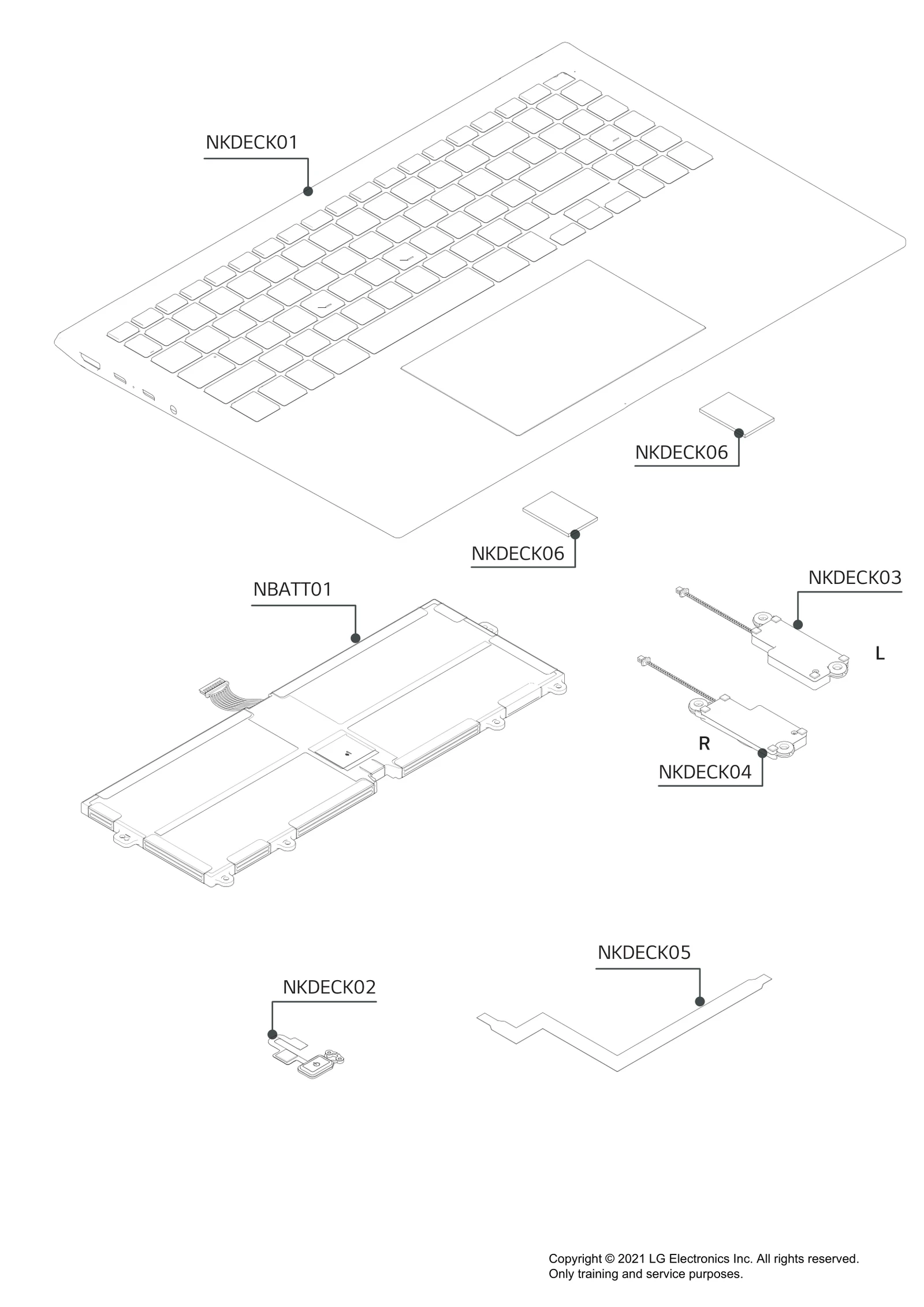

NKDECK01
Mechanism Assembly
Mechanism Assembly LGE AFP76387303 Contact Us For Availability
View on Model
NKDECK02
Sensor,Fingerprint
Sensor,Fingerprint LGE EBD63285712 Contact Us For Availability
View on Model
NKDECK03
Speaker Assembly
Speaker Assembly LGE EAB64928431 Contact Us For Availability
View on Model
NKDECK04
Speaker Assembly
Speaker Assembly LGE EAB64928432 Contact Us For Availability
View on Model
NKDECK05
Cable,FFC
Cable,FFC LGE EAD65880001 Contact Us For Availability
View on Model
NKDECK05
Cable,FFC
Cable,FFC LGE EAD65880002 Contact Us For Availability
View on Model
NKDECK06
Sheet
Sheet LGE MHK67658101 Contact Us For Availability
View on Model
NKDECK06
Sheet
Sheet LGE MHK67674601 Contact Us For Availability
View on Model
NKDECK07
Damper
Damper LGE MCQ70816012 Contact Us For Availability
View on Model
NLAB04
Label
Label LGE MEZ68826403 Contact Us For Availability
View on Model
NLAB05
Label
Label LGE MEZ68840601 Contact Us For Availability
View on Model
NLAB07
Label
Label LGE MEZ67353601 Contact Us For Availability
View on Model

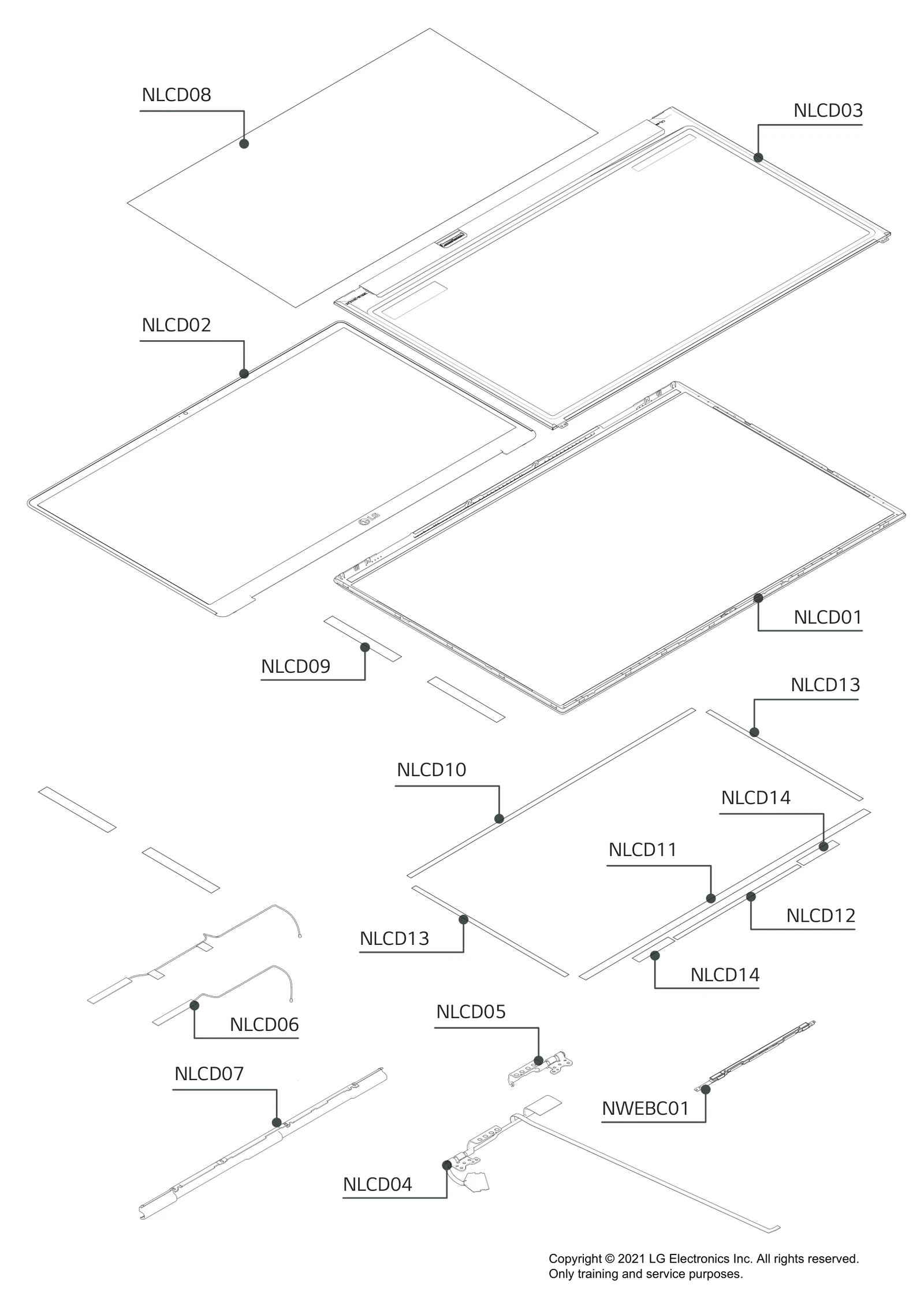

NLCD01
Case Assembly
Case Assembly LGE ABQ30063713 Contact Us For Availability
View on Model
NLCD02
Case Assembly
Case Assembly LGE ABQ30063101 Contact Us For Availability
View on Model
NLCD03
LCD,Module-TFT
LCD,Module-TFT LGE EAJ65678001 Contact Us For Availability
View on Model
NLCD03
LCD,Module-TFT
LCD,Module-TFT LGE EAJ65722201 Contact Us For Availability
View on Model
NLCD04
Harness,Multi
Harness,Multi LGE EAD65879002 Contact Us For Availability
View on Model
NLCD04
Harness,Multi
Harness,Multi LGE EAD65879001 Contact Us For Availability
View on Model
NLCD05
Hinge Assembly
Hinge Assembly LGE AEH76181401 Contact Us For Availability
View on Model
NLCD06
Antenna Assembly
Antenna Assembly LGE EAA65971401 Contact Us For Availability
View on Model
NLCD06
Antenna Assembly
Antenna Assembly LGE EAA65971501 Contact Us For Availability
View on Model
NLCD07
Cap
Cap LGE MBL68674201 Contact Us For Availability
View on Model
NLCD08
Sheet
Sheet LGE MHK67606701 Contact Us For Availability
View on Model
NLCD09
Damper
Damper LGE MCQ70802801 Contact Us For Availability
View on Model
NLCD10
Tape,Double Faced
Tape,Double Faced LGE RAB36919401 Contact Us For Availability
View on Model
NLCD11
Tape,Double Faced
Tape,Double Faced LGE RAB35190901 Contact Us For Availability
View on Model
NLCD12
Tape,Double Faced
Tape,Double Faced LGE RAB36919501 Contact Us For Availability
View on Model
NLCD13
Tape,Double Faced
Tape,Double Faced LGE RAB36927301 Contact Us For Availability
View on Model
NLCD14
Tape,Double Faced
Tape,Double Faced LGE RAB36933601 Contact Us For Availability
View on Model

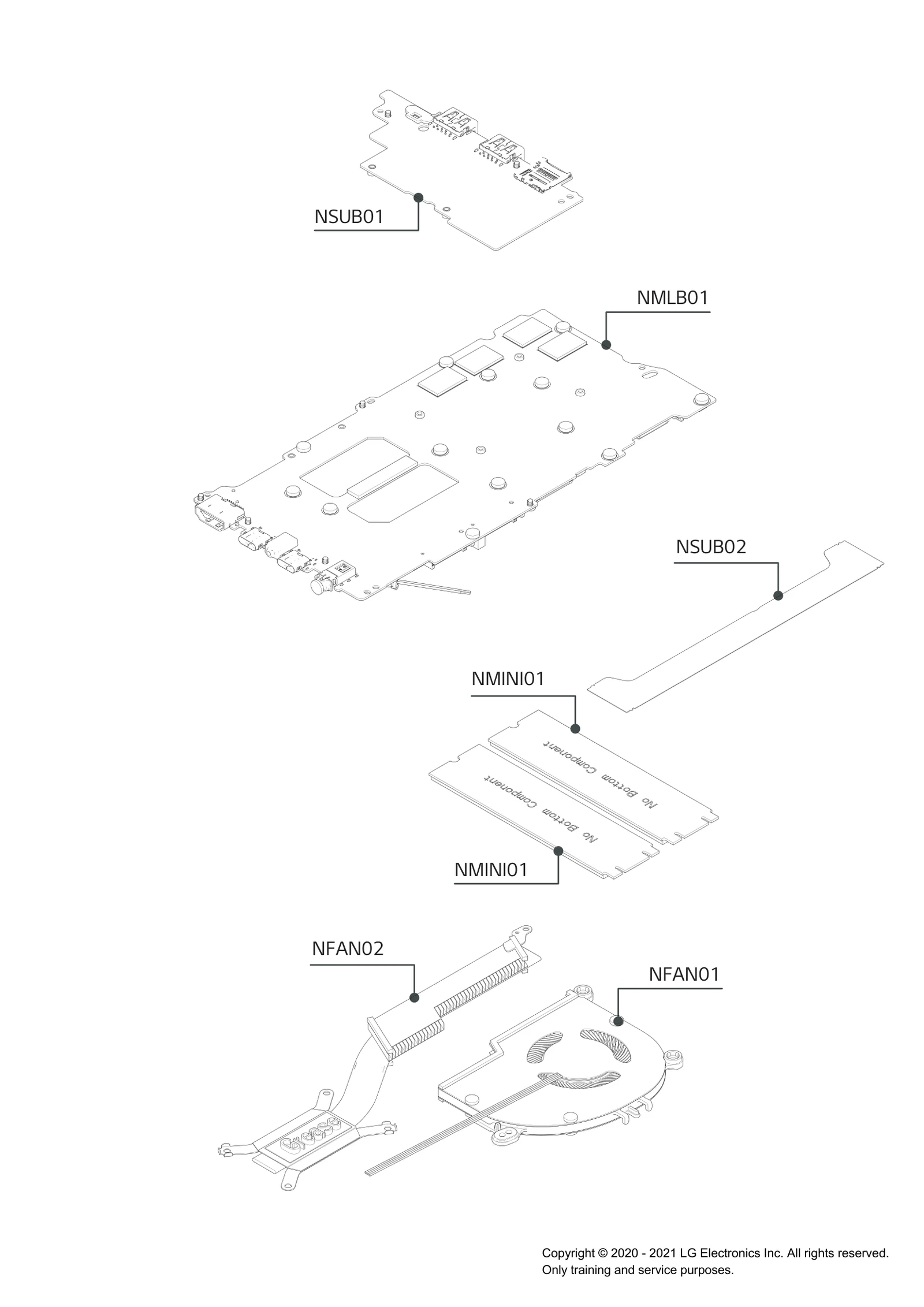

NMINI01
SSD
SSD LGE EAZ63541321 Contact Us For Availability
View on Model
NMINI01
SSD
SSD LGE EAZ63421321 Contact Us For Availability
View on Model
NMLB01
PCB Assembly,Main
PCB Assembly,Main LGE EBR33421203 Contact Us For Availability
View on Model
NPWCD01
Power Cord
Power Cord LGE EAD30754402 Contact Us For Availability
View on Model
NSCR01
Screw,Customized
Screw,Customized LGE FAB33419401 Contact Us For Availability
View on Model
NSCR02
Screw,Customized
Screw,Customized LGE FAB31738904 Contact Us For Availability
View on Model
NSCR03
Screw,Customized
Screw,Customized LGE FAB31738902 Contact Us For Availability
View on Model
NSCR04
Screw,Machine
Screw,Machine LGE FAB31882801 Contact Us For Availability
View on Model
NSCR05
SCREW,DRAWING
SCREW,DRAWING LGE 1SZZBZ3009J Contact Us For Availability
View on Model
NSCR06
Screw,Customized
Screw,Customized LGE FAB34740201 Contact Us For Availability
View on Model
NSCR07
Screw,Customized
Screw,Customized LGE 1SZZBA4116A Contact Us For Availability
View on Model
NSUB01
PCB Assembly,Sub
PCB Assembly,Sub LGE EBR32909401 Contact Us For Availability
View on Model
NSUB02
PCB,Flexible
PCB,Flexible LGE EAX69487601 Contact Us For Availability
View on Model
NSUB02
PCB,Flexible
PCB,Flexible LGE EAX69487603 Contact Us For Availability
View on Model
NWEBC01
Camera Module
Camera Module LGE EBP63421709 Contact Us For Availability
View on Model
NWEBC01
Camera Module
Camera Module LGE EBP63421711 Contact Us For Availability
View on Model
