Model LG 16U70R-N.APC5U1 Aura16R(16U70R) AMD Ryzen, WUXGA LCD, Windows, Alexa, dTPM – Common Parts & Diagrams

Common parts from model LG 16U70R-N.APC5U1 Aura16R(16U70R) AMD Ryzen, WUXGA LCD, Windows, Alexa, dTPM

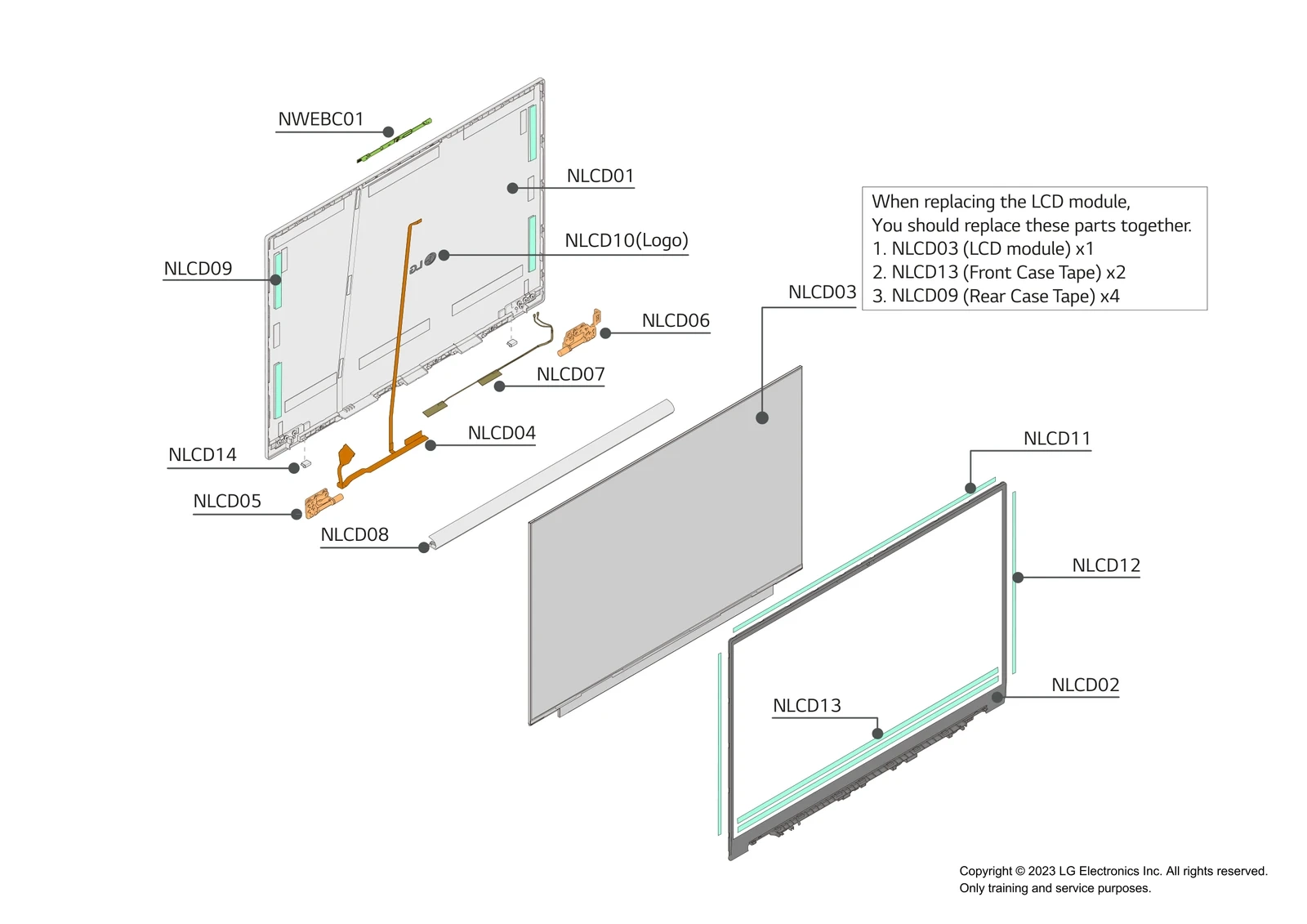

Diagram 0

Print

• This Diagram
• All Diagrams

NADT01

Adapters LGE EAY65905701 Contact Us For Availability

View on Model

NBATT01

Rechargeable Battery,Lithium Polymer LGE EAC64798401 Contact Us For Availability

View on Model

NBOTM01

Case Assembly LGE ABQ30160901 Contact Us For Availability

View on Model

NBOTM02

MDP64327702 LG Foot Backorder LGE MDP64327702 View Details $3.56

View on Model

NBOTM03

Sheet LGE MHK67727902 Contact Us For Availability

View on Model

NBOTM04

Sheet LGE MHK67606904 Contact Us For Availability

View on Model

NFAN01

Heat Sink LGE MED65489001 Contact Us For Availability

View on Model

NFAN02

Fan Module LGE EAL62726001 Contact Us For Availability

View on Model

NKDECK01

Mechanism Assembly LGE AFP76436301 Contact Us For Availability

View on Model

NKDECK02

Sensor,Fingerprint LGE EBD63285715 Contact Us For Availability

View on Model

NKDECK03

Speaker Assembly LGE EAB65826903 Contact Us For Availability

View on Model

NKDECK04

Speaker Assembly LGE EAB64928432 Contact Us For Availability

View on Model

NKDECK05

Cable,FFC LGE EAD65935401 Contact Us For Availability

View on Model

NKDECK06

Damper LGE MCQ70860402 Contact Us For Availability

View on Model

NKDECK07

Damper LGE MCQ70869301 Contact Us For Availability

View on Model

NLAB02

Label LGE MEZ64112342 Contact Us For Availability

View on Model

NLAB03

Label LGE MEZ64112336 Contact Us For Availability

View on Model

NLAB05

Label LGE MEZ68952101 Contact Us For Availability

View on Model

NLCD01

Case Assembly LGE ABQ30160701 Contact Us For Availability

View on Model

NLCD02

Case Assembly LGE ABQ30164901 Contact Us For Availability

View on Model

NLCD03

LCD,Module-TFT LGE EAJ65845301 Contact Us For Availability

View on Model

NLCD04

Harness,Multi LGE EAD65948002 Contact Us For Availability

View on Model

NLCD04

Harness,Multi LGE EAD65948001 Contact Us For Availability

View on Model

NLCD05

Hinge Assembly LGE AEH76187601 Contact Us For Availability

View on Model

NLCD06

Hinge Assembly LGE AEH76187701 Contact Us For Availability

View on Model

NLCD07

Antenna Assembly LGE EAA65978501 Contact Us For Availability

View on Model

NLCD08

Cap Assembly LGE ABN76543101 Contact Us For Availability

View on Model

NLCD09

Damper LGE MCQ70861001 Contact Us For Availability

View on Model

NLCD10

Sheet LGE MHK67773501 Contact Us For Availability

View on Model

NLCD11

Tape,Double Faced LGE RAB36966801 Contact Us For Availability

View on Model

NLCD12

Tape,Double Faced LGE RAB36967001 Contact Us For Availability

View on Model

NLCD13

Tape,Double Faced LGE RAB36966901 Contact Us For Availability

View on Model

NLCD14

Sheet LGE MHK67833801 Contact Us For Availability

View on Model

NMINI01

SSD LGE EAZ63543422 Contact Us For Availability

View on Model

NMLB01

PCB Assembly,Main LGE EBR41316403 Contact Us For Availability

View on Model

NPWCD01

Power Cord LGE EAD02428902 Contact Us For Availability

View on Model

NSCR01

Screw,Customized LGE FAB34989801 Contact Us For Availability

View on Model

NSCR02

Screw,Customized LGE FAB34995001 Contact Us For Availability

View on Model

NSCR03

Screw,Customized LGE FAB34990001 Contact Us For Availability

View on Model

NSCR04

Screw,Customized LGE FAB34740201 Contact Us For Availability

View on Model

NSCR06

Screw,Customized LGE 1SZZBA4116A Contact Us For Availability

View on Model

NSCR07

SCREW,DRAWING LGE 1SZZBZ3009J Contact Us For Availability

View on Model

NSCR08

Screw,Machine LGE FAB31882801 Contact Us For Availability

View on Model

NSUB01

PCB Assembly,Sub LGE EBR39924902 Contact Us For Availability

View on Model

NSUB02

PCB,Flexible LGE EAX69865001 Contact Us For Availability

View on Model

NSUB03

Module,Wifi Bluetooth Module LGE EAT65147901 Contact Us For Availability

View on Model

NWEBC01

Camera Module LGE EBP63421720 Contact Us For Availability

View on Model

×
