Model LG 15Z980-R.AP71U1 Suprimo15(15Z980)Intel UHD Graphics 620(i7/i5), 72Wh, Touch, ITB, Win10 (US Only) – Common Parts & Diagrams

Common parts from model LG 15Z980-R.AP71U1 Suprimo15(15Z980)Intel UHD Graphics 620(i7/i5), 72Wh, Touch, ITB, Win10 (US Only)

Diagram 0

Print

• This Diagram
• All Diagrams

NADT02

Adapters LGE EAY63789201 Contact Us For Availability

View on Model

NADT03

Cable,Assembly LGE EAD63769502 Contact Us For Availability

View on Model

NADT03

Cable,Assembly LGE EAD64185904 Contact Us For Availability

View on Model

NADT03

Cable,Assembly LGE EAD64185902 Contact Us For Availability

View on Model

NADT03

Cable,Assembly LGE EAD63769505 Contact Us For Availability

View on Model

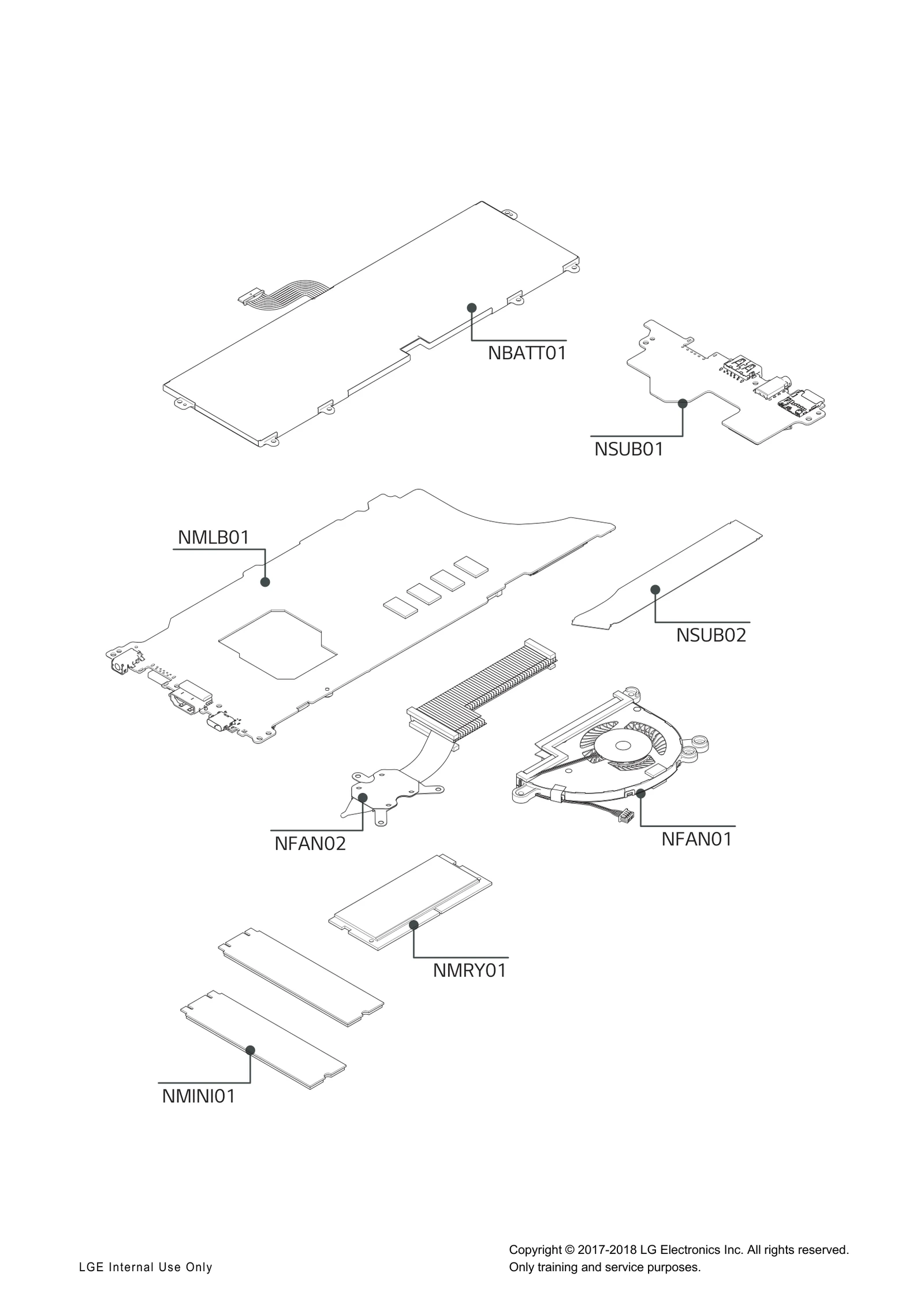

NBATT01

Rechargeable Battery,Lithium Polymer LGE EAC63738201 Contact Us For Availability

View on Model

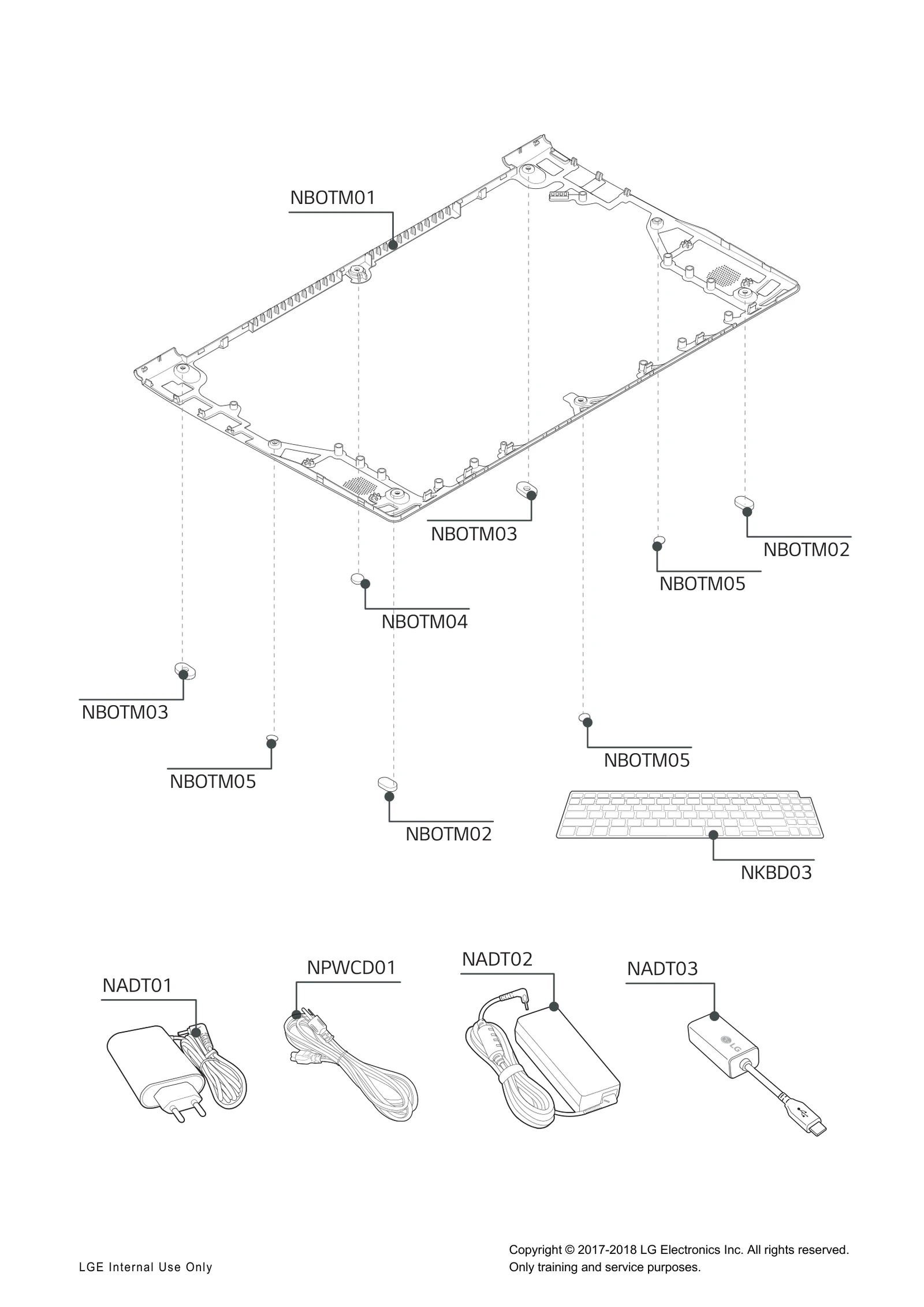

NBOTM01

Case Assembly LGE ABQ76423202 Contact Us For Availability

View on Model

NBOTM02

Foot LGE MDP63586902 Contact Us For Availability

View on Model

NBOTM03

Foot LGE MDP63587002 Contact Us For Availability

View on Model

NBOTM04

Foot LGE MDP63706702 Contact Us For Availability

View on Model

NBOTM05

Sheet LGE MHK64187122 Contact Us For Availability

View on Model

NFAN01

Fan Module LGE EAL62100801 Contact Us For Availability

View on Model

NFAN02

Heat Sink LGE MED64571101 Contact Us For Availability

View on Model

NKDECK01

Mechanism Assembly LGE AFP75426102 Contact Us For Availability

View on Model

NKDECK02

Sensor,Fingerprint LGE EBD63285702 Contact Us For Availability

View on Model

NKDECK03

Speaker Assembly LGE EAB64928402 Contact Us For Availability

View on Model

NKDECK04

Speaker Assembly LGE EAB64928401 Contact Us For Availability

View on Model

NKDECK05

Cable,FFC LGE EAD64487401 Contact Us For Availability

View on Model

NLAB04

Label LGE MEZ67333103 Contact Us For Availability

View on Model

NLAB06

Label LGE MEZ67029202 Contact Us For Availability

View on Model

NLAB07

Label LGE MEZ67353601 Contact Us For Availability

View on Model

NLCD01

Case Assembly LGE ABQ76401802 Contact Us For Availability

View on Model

NLCD02

Case Assembly LGE ABQ76323302 Contact Us For Availability

View on Model

NLCD03

LCD Module LGE EAJ64449201 Contact Us For Availability

View on Model

NLCD04

Harness,Multi LGE EAD64548301 Contact Us For Availability

View on Model

NLCD04

Harness,Multi LGE EAD64548302 Contact Us For Availability

View on Model

NLCD05

Hinge Assembly LGE AEH75316701 Contact Us For Availability

View on Model

NLCD06

Antenna Assembly LGE EAA65104701 Contact Us For Availability

View on Model

NLCD07

Damper LGE MCQ69445801 Contact Us For Availability

View on Model

NLCD08

Damper LGE MCQ68914601 Contact Us For Availability

View on Model

NMINI01

SSD LGE EAZ62921131 Contact Us For Availability

View on Model

NMINI01

SSD LGE EAZ62941102 Contact Us For Availability

View on Model

NMINI01

SSD LGE EAZ62921104 Contact Us For Availability

View on Model

NMLB01

PCB Assembly,Main LGE EBR85841901 Contact Us For Availability

View on Model

NMRY01

IC,DDR4 SDRAM Module LGE EAN64646201 Contact Us For Availability

View on Model

NMRY01

IC,DDR4 SDRAM Module LGE EAN64666001 Contact Us For Availability

View on Model

NPWCD01

Power Cord LGE EAD02428902 Contact Us For Availability

View on Model

NSCR01

Screw,Customized LGE FAB31738902 Contact Us For Availability

View on Model

NSCR02

Screw,Customized LGE FAB33419401 Contact Us For Availability

View on Model

NSCR03

Screw,Machine LGE FAB31882801 Contact Us For Availability

View on Model

NSCR04

SCREW,DRAWING LGE 1SZZBA4080A Contact Us For Availability

View on Model

NSCR05

SCREW,DRAWING LGE 1SZZBZ3009J Contact Us For Availability

View on Model

NSCR06

Screw,Customized LGE FAB31738904 Contact Us For Availability

View on Model

NSUB01

EBR85823301 LG PCB Assembly, SUB Backorder LGE EBR85823301 View Details $171.38

View on Model

NSUB02

PCB,Flexible LGE EAX67905013 Contact Us For Availability

View on Model

NSUB02

PCB,Flexible LGE EAX67905003 Contact Us For Availability

View on Model

NWEBC01

Camera Module LGE EBP63421701 Contact Us For Availability

View on Model

×
