  • LG 14Z90R-Q.APB3U1 Parts List

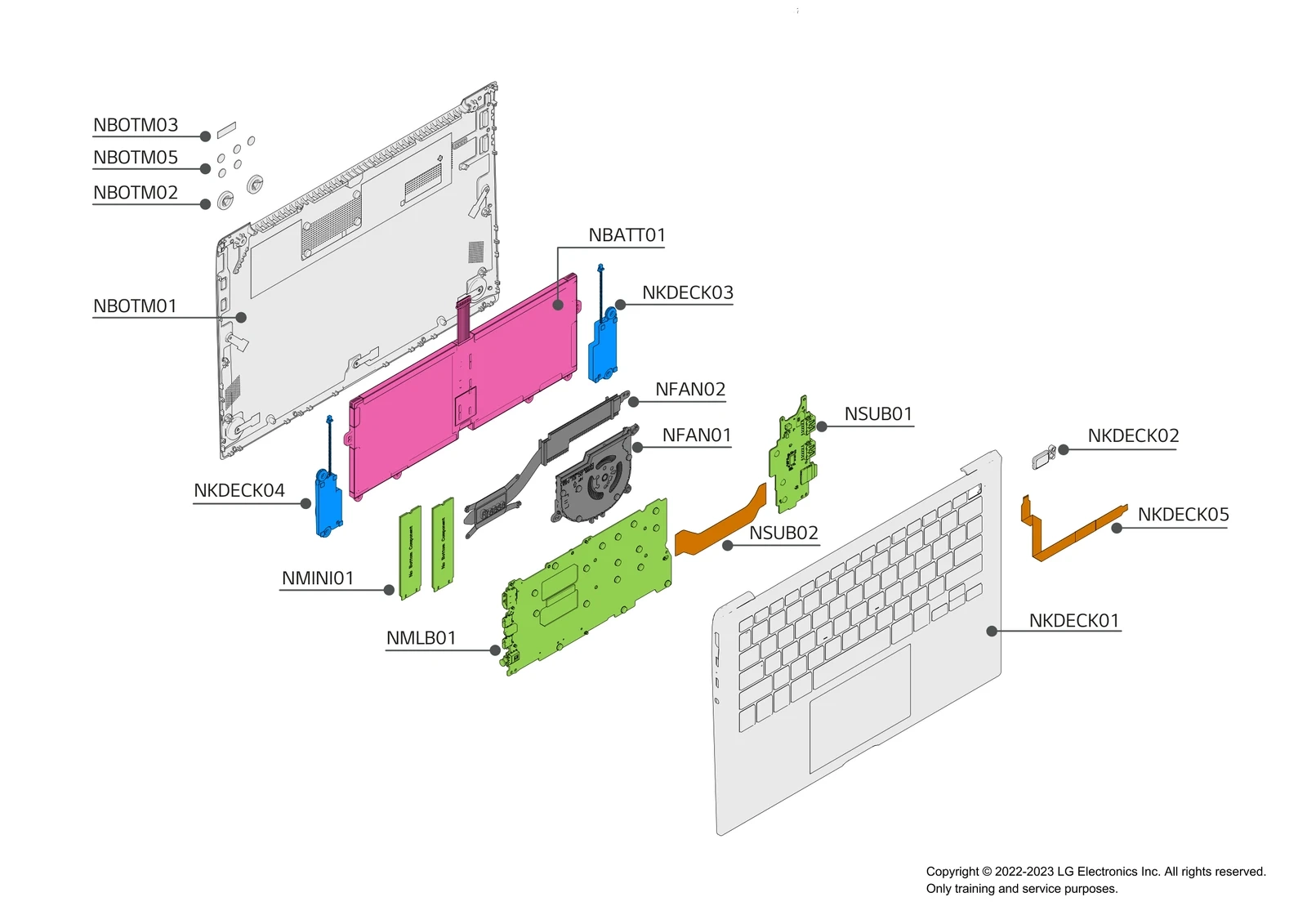

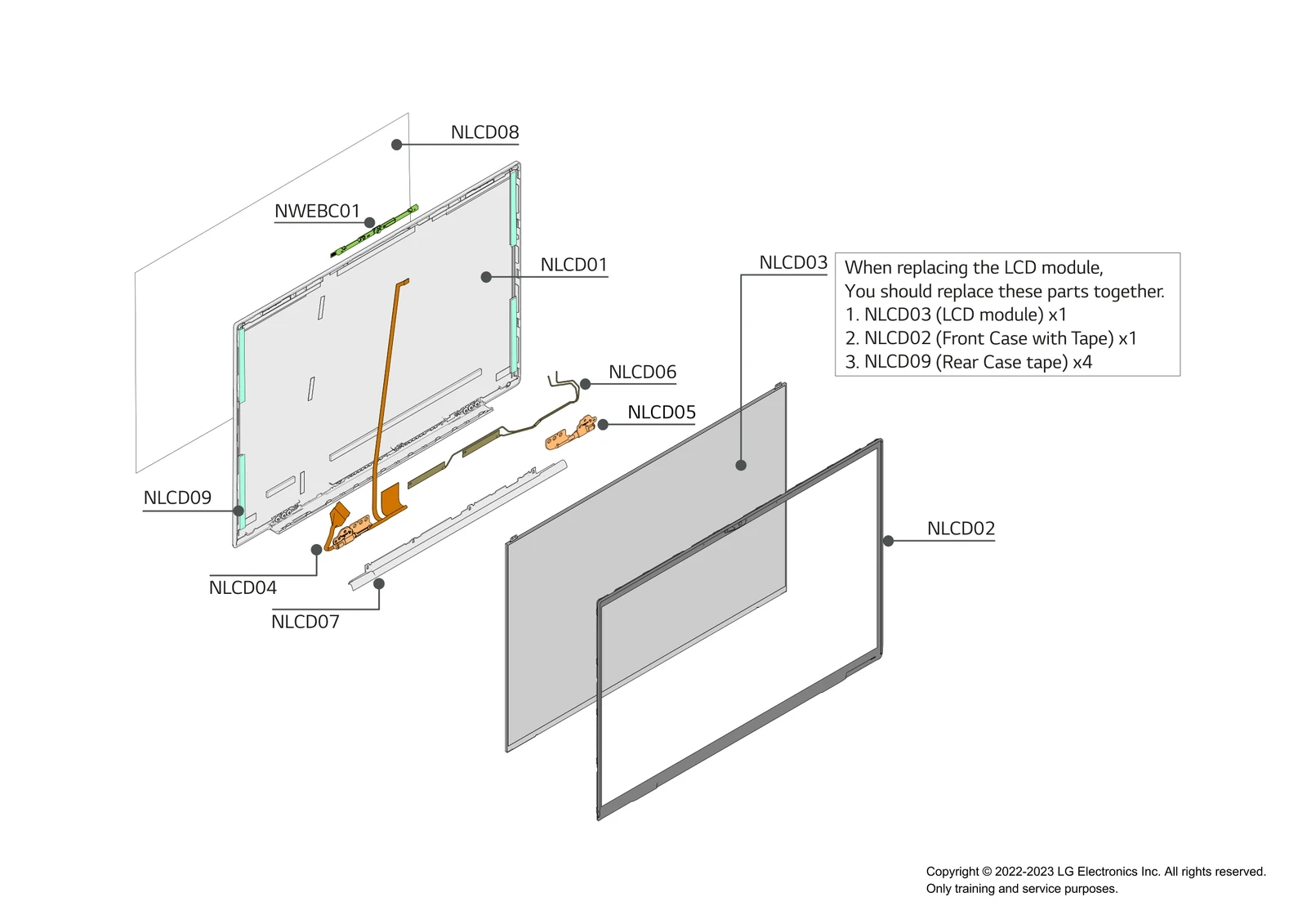

Model LG 14Z90R-Q.APB3U1 Royal 14(14Z90R) – Common Parts & Diagrams

NADT01
Adapters
Adapters LGE EAY65910831 Contact Us For Availability
View on Model
NBATT01
Rechargeable Battery,Lithium Polymer
Rechargeable Battery,Lithium Polymer LGE EAC64798401 Contact Us For Availability
View on Model
NBATT01
Rechargeable Battery,Lithium Polymer
Rechargeable Battery,Lithium Polymer LGE EAC64798411 Contact Us For Availability
View on Model
NBOTM01
Case Assembly
Case Assembly LGE ABQ30145002 Contact Us For Availability
View on Model
NBOTM03
Sheet
Sheet LGE MHK67727902 Contact Us For Availability
View on Model
NFAN01
Fan Module
Fan Module LGE EAL62726001 Contact Us For Availability
View on Model
NFAN02
Heat Sink
Heat Sink LGE MED65487001 Contact Us For Availability
View on Model
NKDECK01
Mechanism Assembly
Mechanism Assembly LGE AFP76462002 Contact Us For Availability
View on Model
NKDECK02
Button
Button LGE MBG67861612 Contact Us For Availability
View on Model
NKDECK03
Speaker Assembly
Speaker Assembly LGE EAB65826903 Contact Us For Availability
View on Model
NKDECK04
Speaker Assembly
Speaker Assembly LGE EAB64928432 Contact Us For Availability
View on Model
NKDECK05
Damper
Damper LGE MCQ70802603 Contact Us For Availability
View on Model
NKDECK05
Cable,FFC
Cable,FFC LGE EAD65880101 Contact Us For Availability
View on Model
NLAB07
Label
Label LGE MEZ68952101 Contact Us For Availability
View on Model
NLCD01
Case Assembly
Case Assembly LGE ABQ30135902 Contact Us For Availability
View on Model
NLCD02
Case Assembly
Case Assembly LGE ABQ30148101 Contact Us For Availability
View on Model
NLCD03
LCD,Module-TFT
LCD,Module-TFT LGE EAJ65770301 Contact Us For Availability
View on Model
NLCD04
Harness,Multi
Harness,Multi LGE EAD65934601 Contact Us For Availability
View on Model
NLCD04
Harness,Multi
Harness,Multi LGE EAD65934602 Contact Us For Availability
View on Model
NLCD05
Hinge Assembly
Hinge Assembly LGE AEH76185301 Contact Us For Availability
View on Model
NLCD06
Antenna Assembly
Antenna Assembly LGE EAA65976301 Contact Us For Availability
View on Model
NLCD06
Antenna Assembly
Antenna Assembly LGE EAA65976401 Contact Us For Availability
View on Model
NLCD07
Cap
Cap LGE MBL68704601 Contact Us For Availability
View on Model
NLCD08
Sheet
Sheet LGE MHK67607101 Contact Us For Availability
View on Model
NLCD09
Damper
Damper LGE MCQ70851701 Contact Us For Availability
View on Model
NLCD10
Tape,Double Faced
Tape,Double Faced LGE RAB36950101 Contact Us For Availability
View on Model
NLCD11
Tape,Double Faced
Tape,Double Faced LGE RAB36927301 Contact Us For Availability
View on Model
NLCD12
Tape,Double Faced
Tape,Double Faced LGE RAB36919102 Contact Us For Availability
View on Model
NLCD13
Tape,Double Faced
Tape,Double Faced LGE RAB36950201 Contact Us For Availability
View on Model
NLCD14
Tape,Double Faced
Tape,Double Faced LGE RAB36933611 Contact Us For Availability
View on Model
NMINI01
SSD
SSD LGE EAZ63544301 Contact Us For Availability
View on Model
NMINI01
SSD
SSD LGE EAZ63543501 Contact Us For Availability
View on Model
NMLB01
PCB Assembly,Main
PCB Assembly,Main LGE EBR40109620 Contact Us For Availability
View on Model

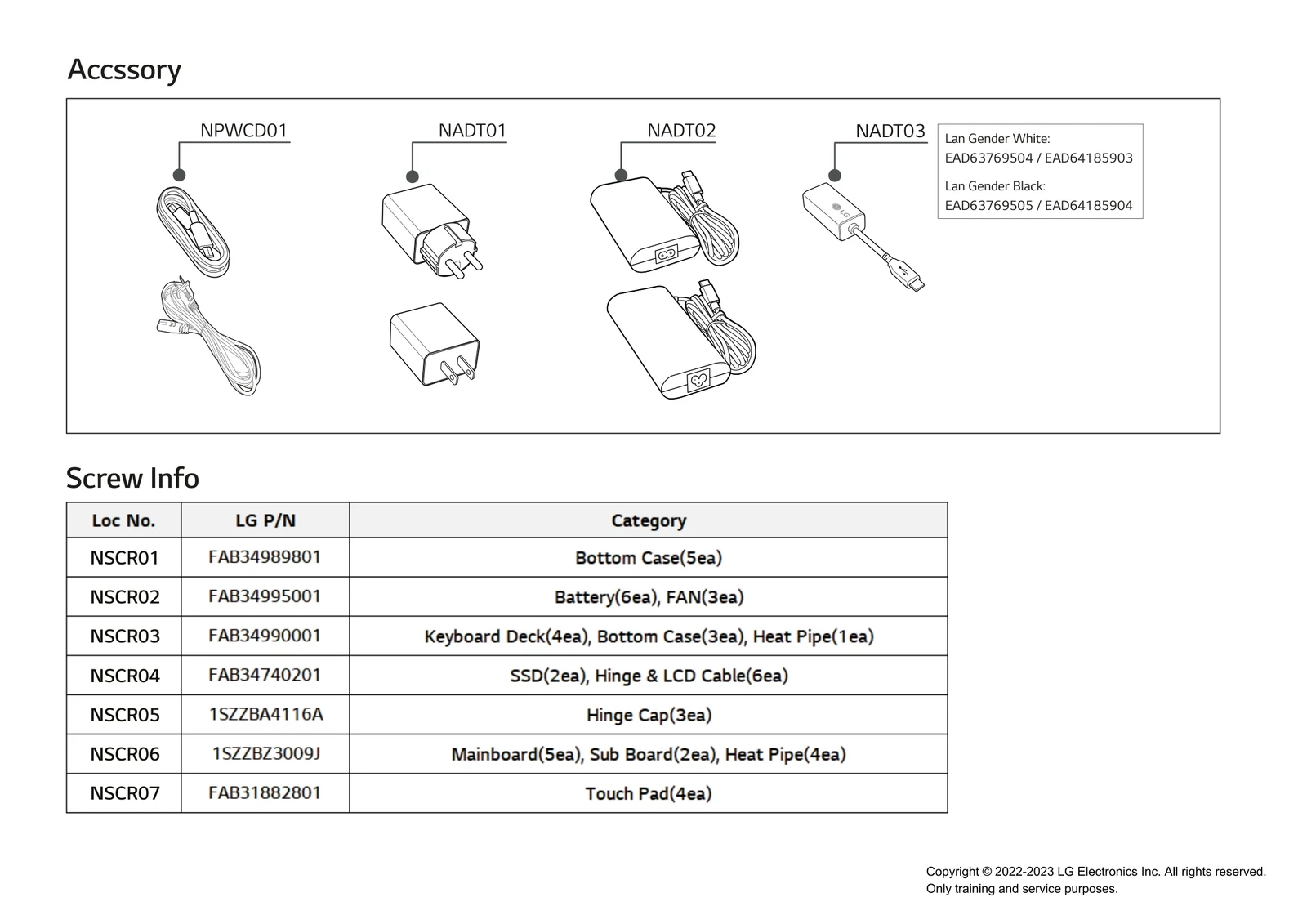

NPWCD01
Cable,Assembly
Cable,Assembly LGE EAD65830122 Contact Us For Availability
View on Model
NSCR01
Screw,Customized
Screw,Customized LGE FAB34989801 Contact Us For Availability
View on Model
NSCR02
Screw,Customized
Screw,Customized LGE FAB34995001 Contact Us For Availability
View on Model
NSCR03
Screw,Customized
Screw,Customized LGE FAB34990001 Contact Us For Availability
View on Model
NSCR04
Screw,Customized
Screw,Customized LGE FAB34740201 Contact Us For Availability
View on Model
NSCR05
Screw,Customized
Screw,Customized LGE 1SZZBA4116A Contact Us For Availability
View on Model
NSCR06
SCREW,DRAWING
SCREW,DRAWING LGE 1SZZBZ3009J Contact Us For Availability
View on Model
NSCR07
Screw,Machine
Screw,Machine LGE FAB31882801 Contact Us For Availability
View on Model
NSUB01
PCB Assembly,Sub
PCB Assembly,Sub LGE EBR37757103 Contact Us For Availability
View on Model
NSUB02
PCB,Flexible
PCB,Flexible LGE EAX69781202 Contact Us For Availability
View on Model
NWEBC01
Camera Module
Camera Module LGE EBP63421719 Contact Us For Availability
View on Model
NWEBC01
Camera Module
Camera Module LGE EBP63421718 Contact Us For Availability
View on Model
