Model LG 14Z90P-K.AA75A8 Blanc 14(14Z90P) Intel Core, 72Wh, TBT, A4PC (US Only) – Common Parts & Diagrams

Common parts from model LG 14Z90P-K.AA75A8 Blanc 14(14Z90P) Intel Core, 72Wh, TBT, A4PC (US Only)

Diagram 0

Print

• This Diagram
• All Diagrams

NADT02

Adapters LGE EAY65895901 Contact Us For Availability

View on Model

NBATT01

Rechargeable Battery,Lithium Polymer LGE EAC63738201 Contact Us For Availability

View on Model

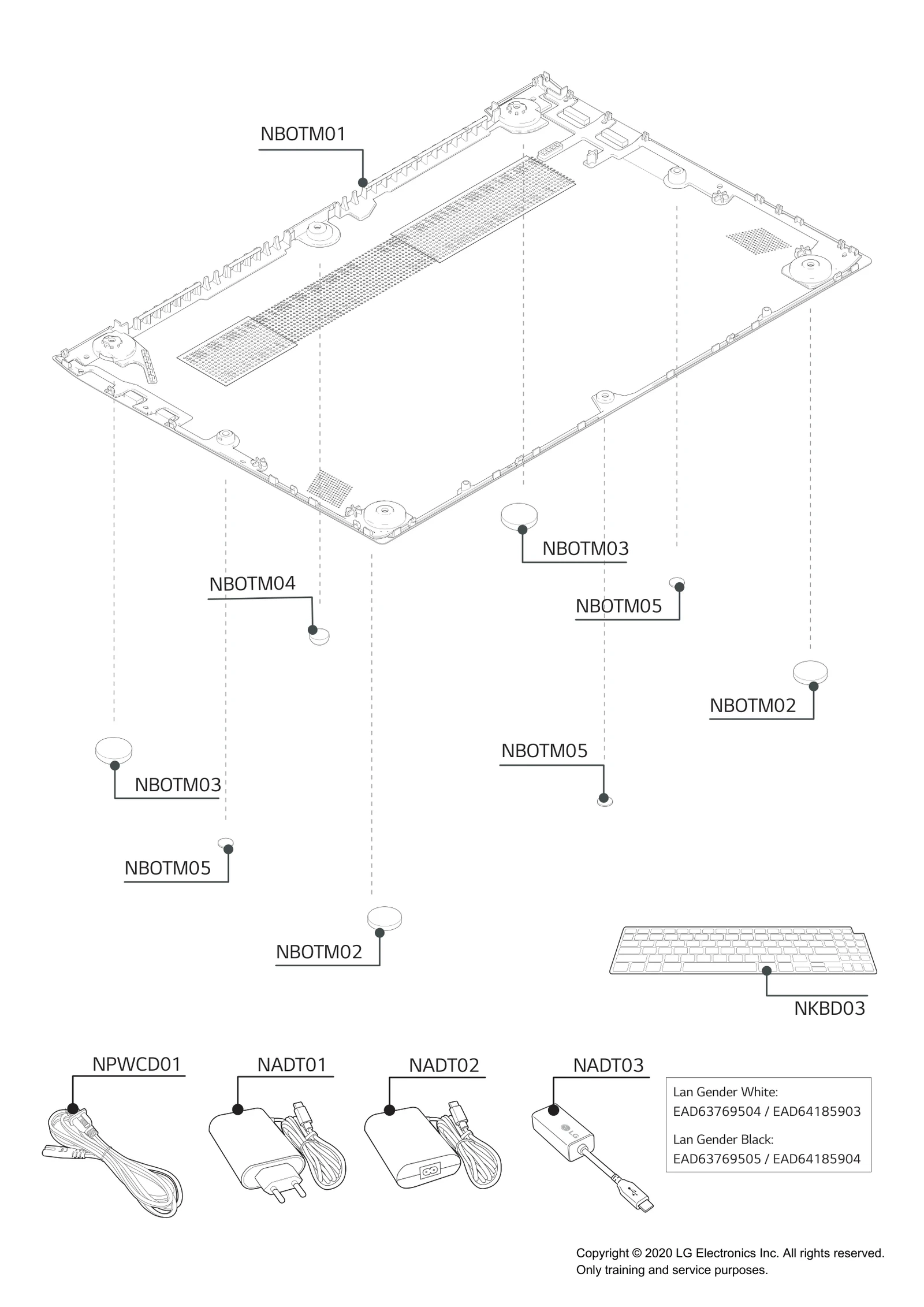

NBOTM01

Case Assembly LGE ABQ30063413 Contact Us For Availability

View on Model

NBOTM02

MDP64327702 LG Foot Backorder LGE MDP64327702 View Details $3.29

View on Model

NBOTM05

MHK67606903 LG Sheet Assembly Backorder LGE MHK67606903 View Details $3.29

View on Model

NFAN01

Fan Module LGE EAL62722401 Contact Us For Availability

View on Model

NFAN02

Heat Sink LGE MED65476901 Contact Us For Availability

View on Model

NKDECK01

Mechanism Assembly LGE AFP76386303 Contact Us For Availability

View on Model

NKDECK02

Sensor,Fingerprint LGE EBD63285712 Contact Us For Availability

View on Model

NKDECK03

Speaker Assembly LGE EAB64928433 Contact Us For Availability

View on Model

NKDECK04

Speaker Assembly LGE EAB64928432 Contact Us For Availability

View on Model

NKDECK05

Cable,FFC LGE EAD65880101 Contact Us For Availability

View on Model

NKDECK05

Cable,FFC LGE EAD65880102 Contact Us For Availability

View on Model

NLAB04

Label LGE MEZ68826403 Contact Us For Availability

View on Model

NLAB05

Label LGE MEZ68840601 Contact Us For Availability

View on Model

NLCD01

Case Assembly LGE ABQ30063313 Contact Us For Availability

View on Model

NLCD02

Case Assembly LGE ABQ30063901 Contact Us For Availability

View on Model

NLCD03

LCD,Module-TFT LGE EAJ65677901 Contact Us For Availability

View on Model

NLCD03

LCD,Module-TFT LGE EAJ65722801 Contact Us For Availability

View on Model

NLCD04

Harness,Multi LGE EAD65882802 Contact Us For Availability

View on Model

NLCD04

Harness,Multi LGE EAD65882801 Contact Us For Availability

View on Model

NLCD05

Hinge Assembly LGE AEH76180901 Contact Us For Availability

View on Model

NLCD06

Antenna Assembly LGE EAA65971701 Contact Us For Availability

View on Model

NLCD06

Antenna Assembly LGE EAA65971601 Contact Us For Availability

View on Model

NLCD07

Cap LGE MBL68674001 Contact Us For Availability

View on Model

NMINI01

SSD LGE EAZ63541311 Contact Us For Availability

View on Model

NMINI01

SSD LGE EAZ63421311 Contact Us For Availability

View on Model

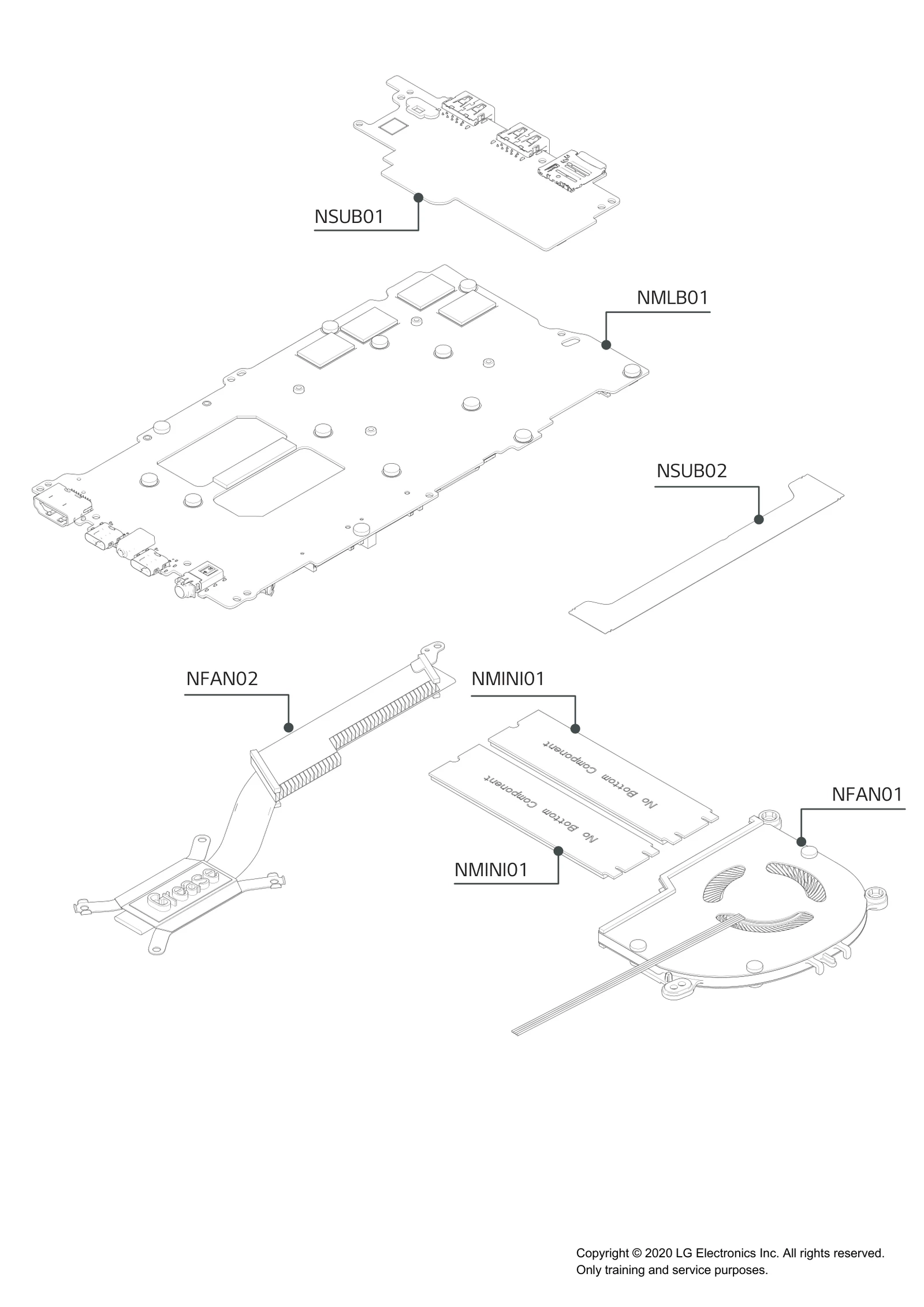

NMLB01

PCB Assembly,Main LGE EBR32930901 Contact Us For Availability

View on Model

NPWCD01

Power Cord LGE EAD30754402 Contact Us For Availability

View on Model

NSCR01

Screw,Customized LGE FAB33419401 Contact Us For Availability

View on Model

NSCR02

Screw,Customized LGE FAB31738904 Contact Us For Availability

View on Model

NSCR03

Screw,Customized LGE FAB31738902 Contact Us For Availability

View on Model

NSCR04

Screw,Machine LGE FAB31882801 Contact Us For Availability

View on Model

NSCR05

SCREW,DRAWING LGE 1SZZBZ3009J Contact Us For Availability

View on Model

NSCR06

Screw,Customized LGE FAB34740201 Contact Us For Availability

View on Model

NSCR07

Screw,Customized LGE 1SZZBA4116A Contact Us For Availability

View on Model

NSUB01

PCB Assembly,Sub LGE EBR32931201 Contact Us For Availability

View on Model

NSUB02

PCB,Flexible LGE EAX69498903 Contact Us For Availability

View on Model

NWEBC01

Camera Module LGE EBP63421711 Contact Us For Availability

View on Model

NWEBC01

Camera Module LGE EBP63421709 Contact Us For Availability

View on Model

×
