Model Whirlpool 1393W4A GAS RANGE – Common Parts & Diagrams

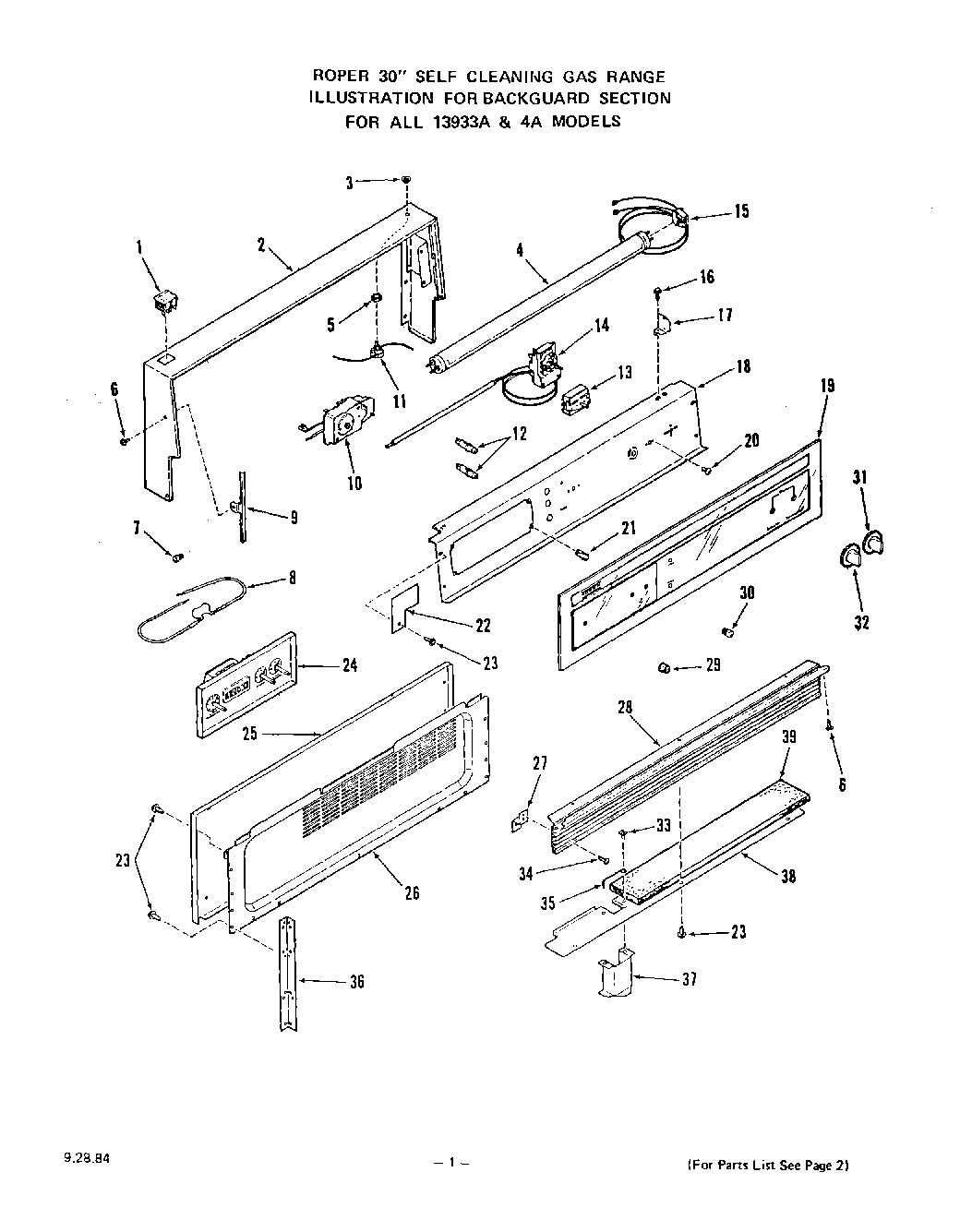

01 - BACKGUARD

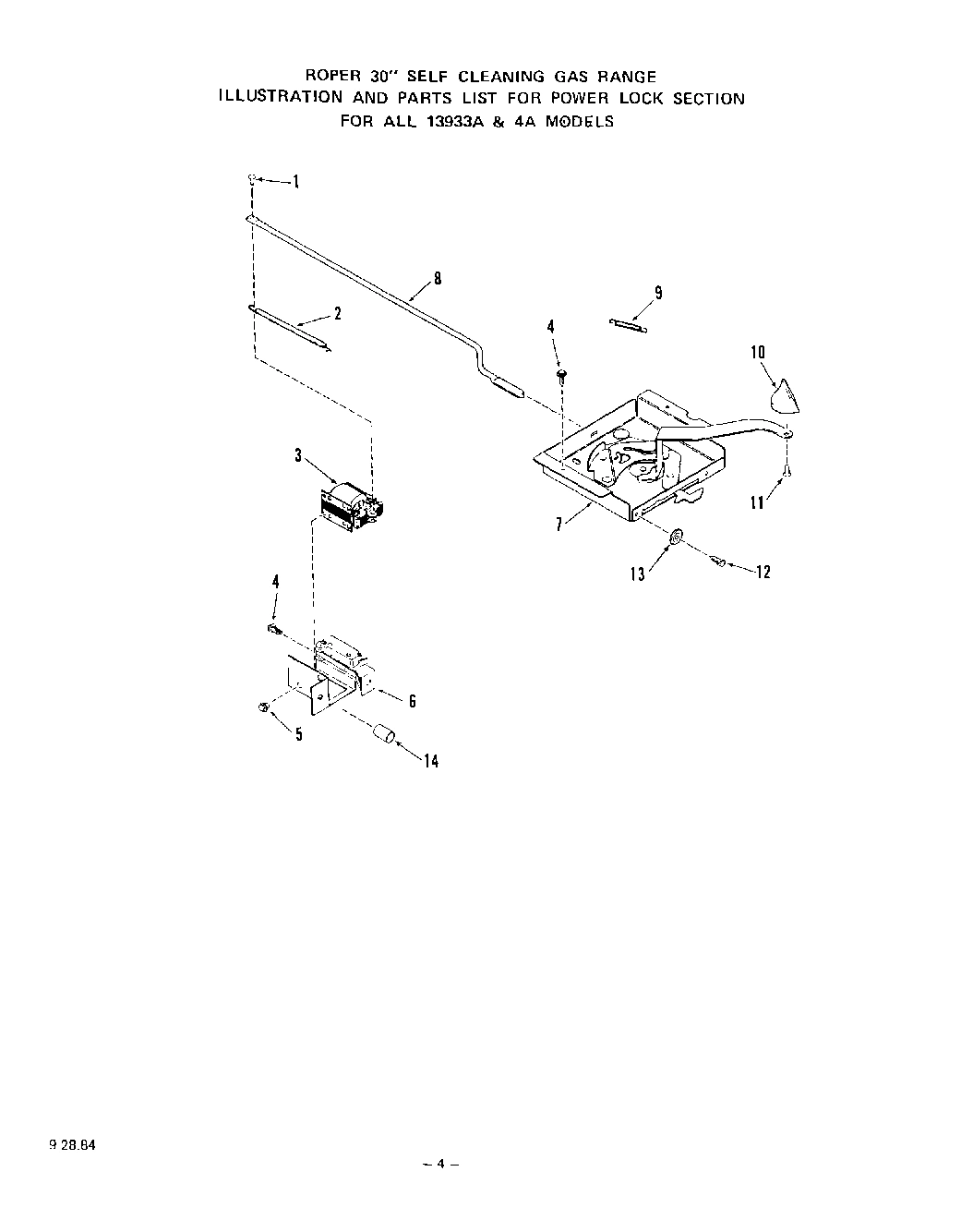

03 - POWER LOCK
02 - MAIN TOP

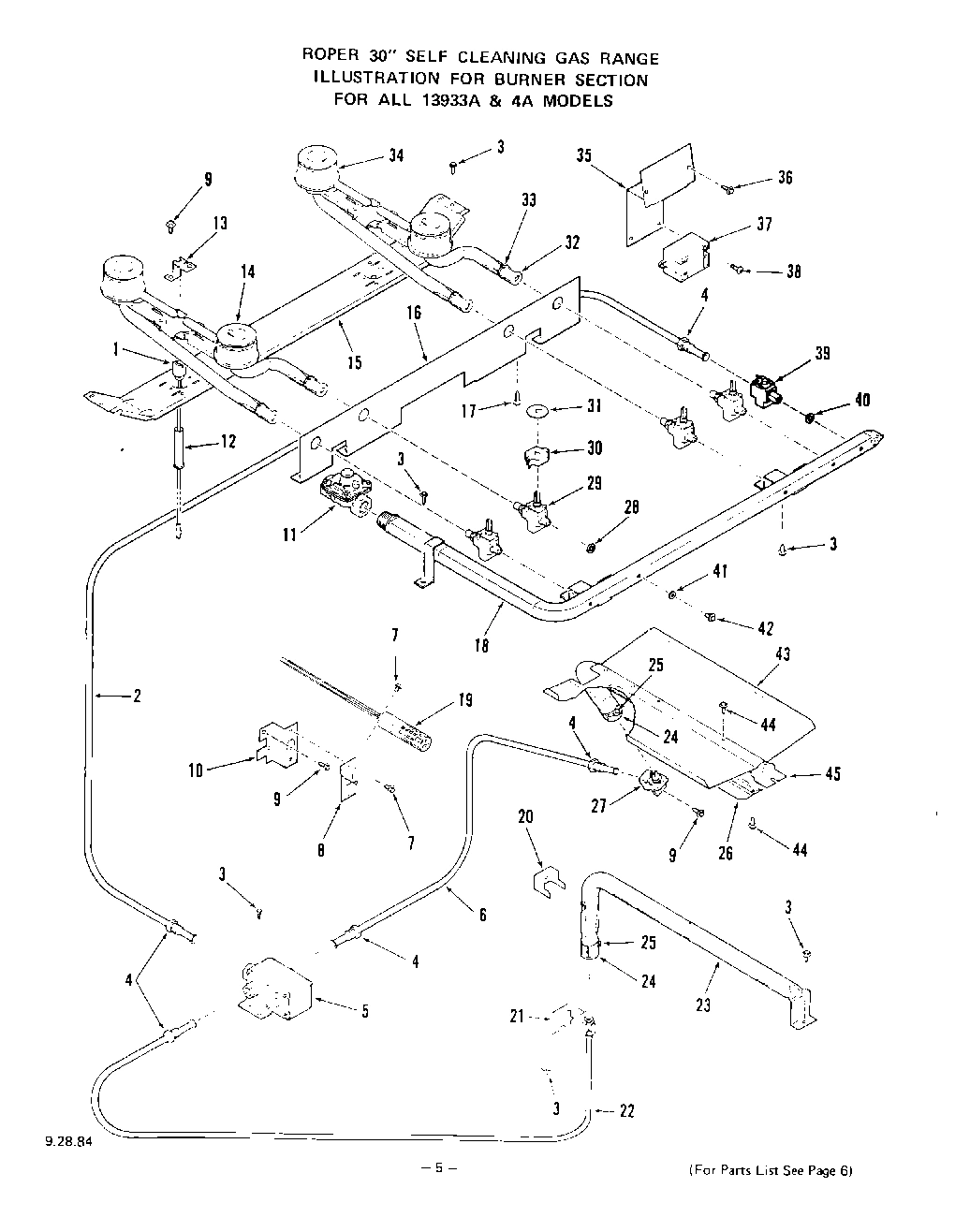

04 - BURNER

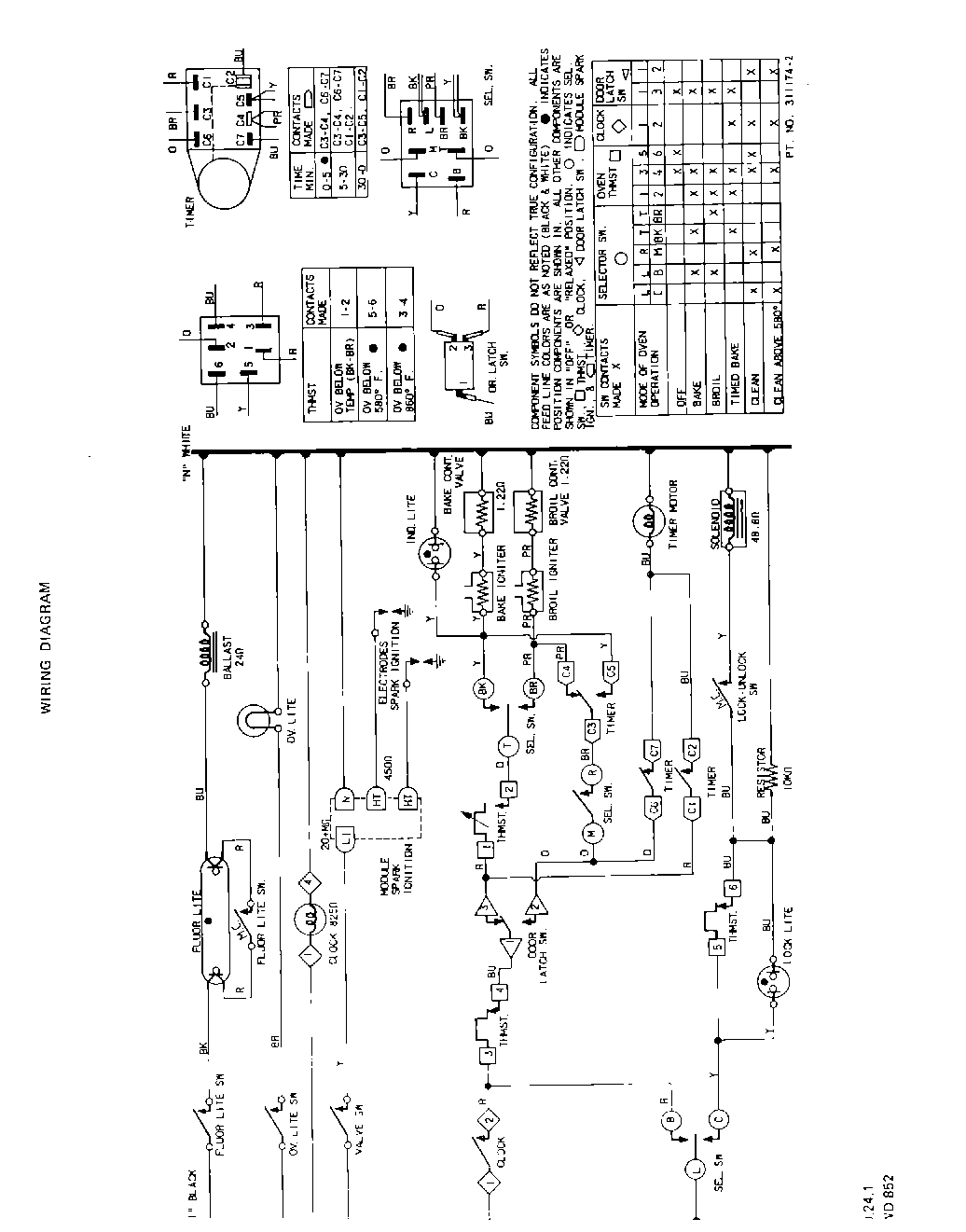

09 - SECTION

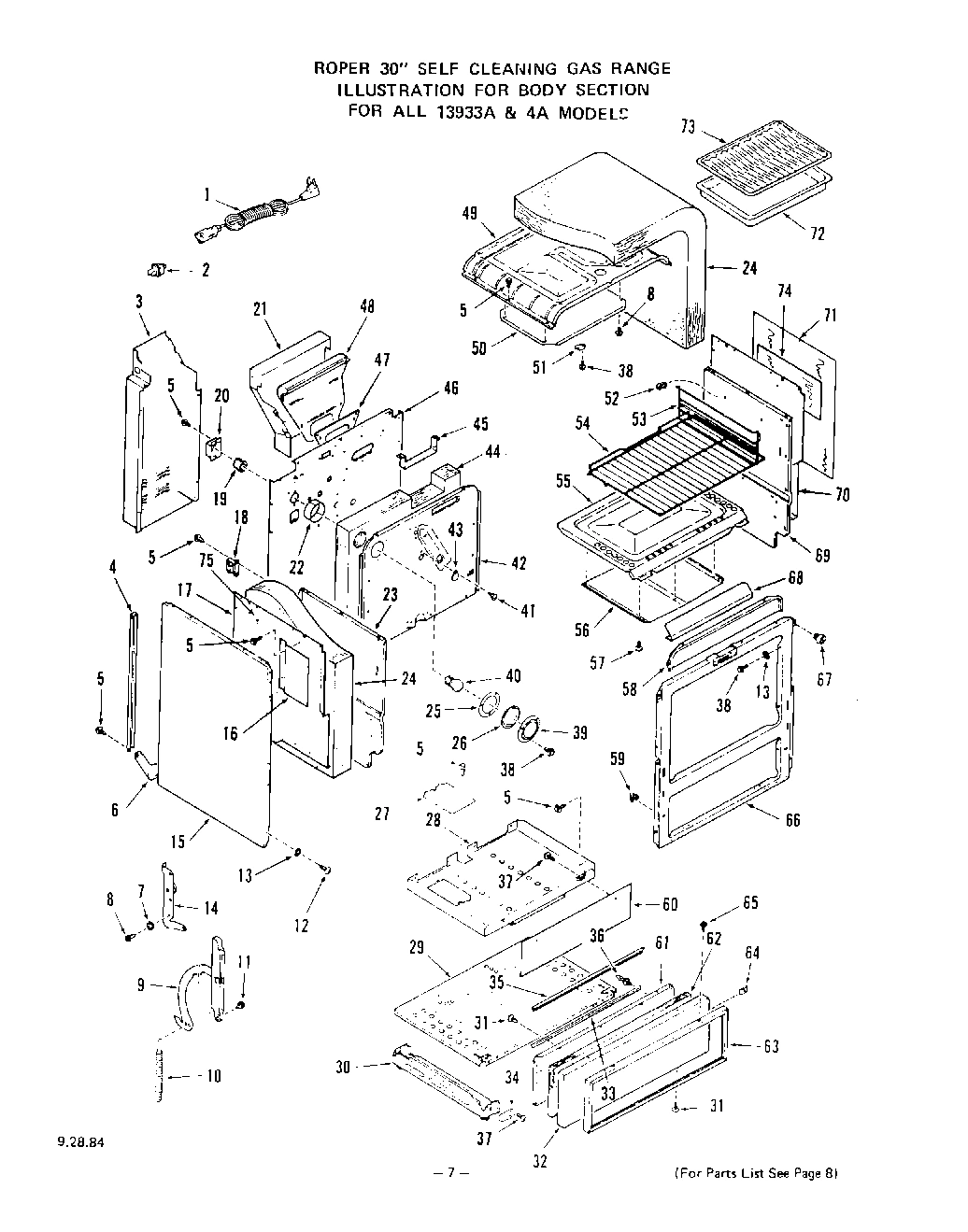

05 - BODY
08 - ROTISSERIE, GRIDDLE

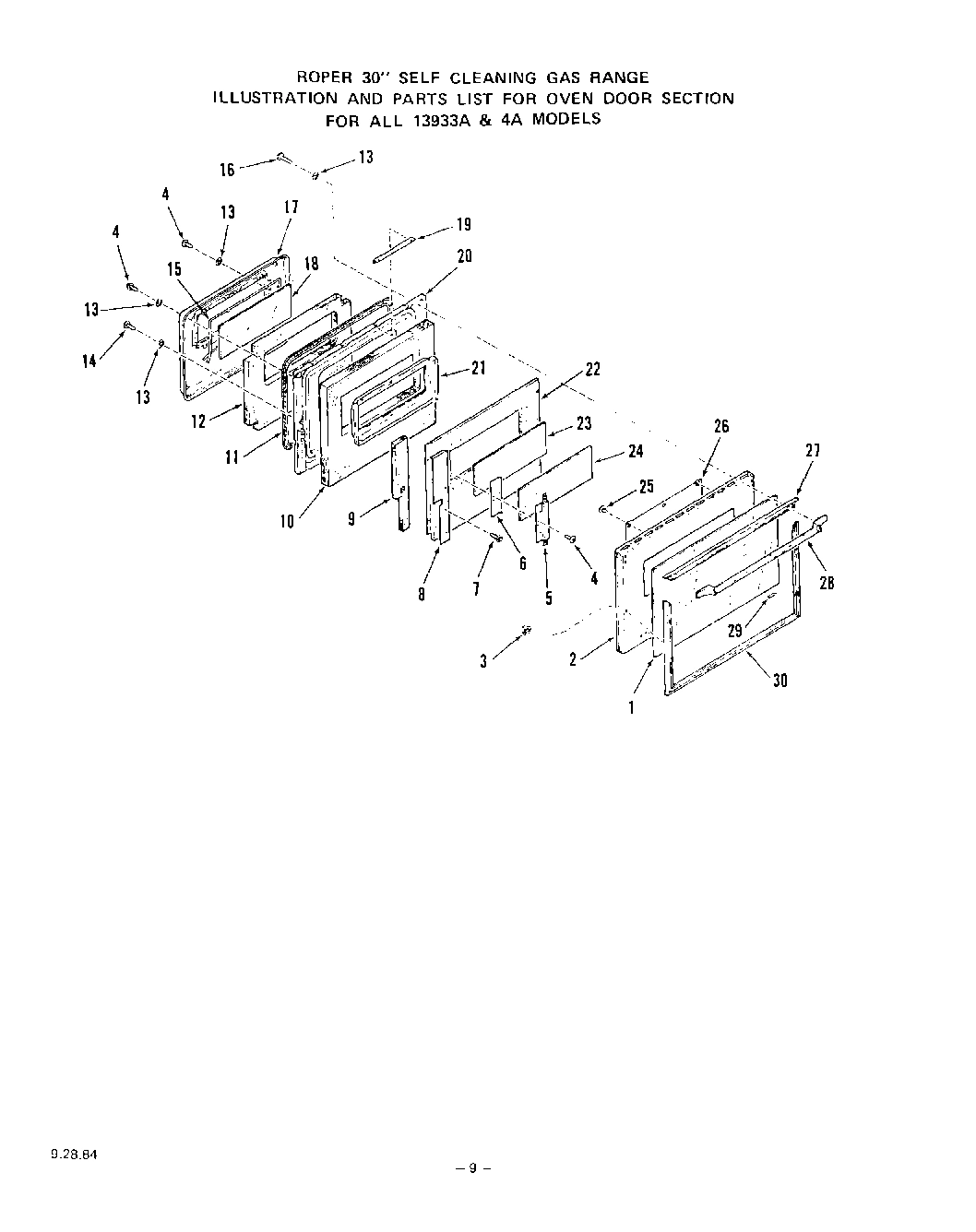

06 - OVEN DOOR
07 - ROTISSERIE , GRIDDLE
Common parts from model Whirlpool 1393W4A GAS RANGE
xParts Not Shown On Illustration WPL ARI8127A52 Contact Us For Availability
1
Top Grate (4 Req) WPL 316786 Contact Us For Availability
1
Switch-Top & Oven Light WPL 307411 Contact Us For Availability
1
Stud WPL 326412 Contact Us For Availability
1
Electrode-Spark Igniter (Right) WPL 312454 Contact Us For Availability
1
Electrode-Spark Igniter (Left) WPL 313629 Contact Us For Availability
1
Set-On-Griddle (Optional) WPL 1006812 Contact Us For Availability
1
Range Service Cord WPL 281381 Contact Us For Availability
1
Outer Door Glass WPL 319296 Contact Us For Availability
2
Spill Bowl (4 Req) WPL 310385 Contact Us For Availability
2
Frame-Backguard WPL 321374 Contact Us For Availability
2
Spring-Solenoid WPL 326413 Contact Us For Availability
2
Tubing 3/8``-Shut Off Valve to Control Valve WPL 323400 Contact Us For Availability
2
Cover - Rotisserie Motor WPL 282918 Contact Us For Availability
2
Disconnect WPL 232150 Contact Us For Availability
2
Front Panel-Oven Door WPL 320717 Contact Us For Availability
3
Main Top (White) WPL 316788 Contact Us For Availability
3
Main Top (Almond) WPL 316789 Contact Us For Availability
3
Main Top (Golden Wheat) WPL 316790 Contact Us For Availability
3
Main Top (Avocado) WPL 316791 Contact Us For Availability
3
Main Top (Coffee) WPL 316792 Contact Us For Availability
3
Main Top (Platinum) WPL 328327 Contact Us For Availability
3
Main Top (Toast) WPL 328328 Contact Us For Availability
3
Knurled Nut WPL 87403 Contact Us For Availability
3
Solenoid Only WPL 319431 Contact Us For Availability
3
Rotisserie Motor WPL 106575 Contact Us For Availability
3
xSwitch (For Key 3) WPL 280199 Contact Us For Availability
3
Wire Cover WPL 324830 Contact Us For Availability
3
Fastener (7 Required) WPL 300007 Contact Us For Availability
4
End Cap (Left) WPL 302660 Contact Us For Availability
4
End Cap (Right) WPL 302661 Contact Us For Availability
4
Fluorescent Lamp (20 W - 24``) WPL 71734 Contact Us For Availability
4
Inverted Nut 3/8`` WPL 113384 Contact Us For Availability
4
mounting bracket-rotisserie motor WPL 324623 Contact Us For Availability
4
Stiffener - Body Side (Lt. or Rt.) WPL 309986 Contact Us For Availability
4
Screw 10ABx1`` WPL 321943 Contact Us For Availability
5
Pal Nut (2 Required) WPL 236129 Contact Us For Availability
5
Mounting Screw WPL 319433 Contact Us For Availability
5
Dual Control Valve WPL 306267 Contact Us For Availability
5
Lockwasher 3/16`` WPL 1164 Contact Us For Availability
6
Cover-Lock Rod WPL 321301 Contact Us For Availability
6
Bracket w/Switch WPL 327034 Contact Us For Availability
6
Tubing 3/8``-Control Valve to Broiler Burner WPL 279542 Contact Us For Availability
6
Screw 8-32 x 3/8`` WPL 238833 Contact Us For Availability
6
Lower Support - Body Side (Right) WPL 293420 Contact Us For Availability
6
Lower Support - Body Side (Left) WPL 293421 Contact Us For Availability
6
Spacer-Oven Door Glass (Lt. or Rt.) WPL 310929 Contact Us For Availability
7
Rear Support-Main Top WPL 322961 Contact Us For Availability
7
Wire Connector WPL 66763 Contact Us For Availability
7
Oven Door Lock Assm. (Inc. Key 9) WPL 324815 Contact Us For Availability
7
Thumbscrew WPL 70287 Contact Us For Availability
7
Lockwasher WPL 69648 Contact Us For Availability
8
Burner Box Bottom WPL 323979 Contact Us For Availability
8
Resistor w/Connector WPL 300326 Contact Us For Availability
8
Rod-Oven Door Lock WPL 310555 Contact Us For Availability
8
Bracket-Igniter (Oven or Broiler Burner) WPL 311689 Contact Us For Availability
8
Skewer WPL 88433 Contact Us For Availability
8
Screw 10 - 32 x 3/8`` WPL 102429 Contact Us For Availability
8
Retainer-Side Insulation (Left) WPL 324849 Contact Us For Availability
8
Retainer-Side Insulation (Right) WPL 324850 Contact Us For Availability
9
Front Extension-Burner Box Bottom WPL 320841 Contact Us For Availability
9
End Trim- Top Lamp Glass (Lt. or Rt.) WPL 299705 Contact Us For Availability
9
Spring-Lock Handle WPL 299599 Contact Us For Availability
9
Rotisserie Spit WPL 100092 Contact Us For Availability
9
Oven Door Hinge (Inc. Key 11) (Lt. or Rt.) WPL 293971 Contact Us For Availability
9
Side Insulation-Lt. or Rt. WPL 320720 Contact Us For Availability
10
Plug Button WPL 239831 Contact Us For Availability
10
Timer WPL 281698 Contact Us For Availability
10
Knob-Oven Door Lock Handle WPL 299627 Contact Us For Availability
10
Bracket-Igniter (Oven Burner) WPL 310497 Contact Us For Availability
10
Spit Support WPL 232137 Contact Us For Availability
10
Spring-Oven Door (Lt. or Rt.) WPL 310993 Contact Us For Availability
10
Insulation-Oven Door Lining WPL 320718 Contact Us For Availability
11
Cover-Lock WPL 310418 Contact Us For Availability
11
Push Switch (Lock-Unlock) WPL 234416 Contact Us For Availability
11
Screw 6-32x15/32`` WPL 313768 Contact Us For Availability
11
Pressure Regulator WPL 311106 Contact Us For Availability
11
Plug Button WPL 100095 Contact Us For Availability
11
Shoulder rivet WPL 293224 Contact Us For Availability
11
Gasket-Oven Door WPL 282441 Contact Us For Availability
12
Indicator Light (Oven, Lock) WPL 296317 Contact Us For Availability
12
Spacer-Lt. or Rt. WPL 320844 Contact Us For Availability
12
Guide Extension - Rotisserie Motor WPL 282925 Contact Us For Availability
12
Screw 8ABx3/4`` WPL 282634 Contact Us For Availability
12
Insulation-Oven Door Plug WPL 321930 Contact Us For Availability
13
Manifold Panel WPL 326232 Contact Us For Availability
13
Selector Switch WPL 321248 Contact Us For Availability
13
Washer WPL 21067 Contact Us For Availability
13
Bracket-Spark Igniter (Lt. or Rt.) WPL 312453 Contact Us For Availability
13
Fixture Wire Lead With 1/4`` Faston & Piggyba WPL 284278 Contact Us For Availability
13
Fixture Wire Lead With 1/4`` Faston & Piggy B WPL 291284 Contact Us For Availability
13
Fixture Wire Lead With 1/4`` Faston & Piggyba WPL 321951 Contact Us For Availability
13
Fixture Wire Lead With 1/4`` Faston & Piggyba WPL 321952 Contact Us For Availability
13
Washer WPL 106462 Contact Us For Availability
14
Knob-Gas Valve (4 Req) WPL 320909 Contact Us For Availability
14
Oven Thermostat WPL 324156 Contact Us For Availability
14
Spacer (2 Req) WPL 310419 Contact Us For Availability
14
Front Top Burner-Lt. or Rt.(Inc`s. 32 & 33) WPL 310198 Contact Us For Availability
14
Rotisserie Cord WPL 282924 Contact Us For Availability
14
Screw 10-32 x 1/2`` WPL 102376 Contact Us For Availability
14
Oven Door Hinge Bracket (Inc. Key 11) (Left) WPL 325651 Contact Us For Availability
14
Oven Door Hinge Bracket (Inc. Key 11) (Right) WPL 325652 Contact Us For Availability
15
Extension-Burner Box Bottom (Left) WPL 320837 Contact Us For Availability
15
Extension-Burner Box Bottom (Right) WPL 320839 Contact Us For Availability
15
Lamp Holder (Right) WPL 114601 Contact Us For Availability
15
Lamp Holder (Left) WPL 114602 Contact Us For Availability
15
Support-Top Burner WPL 312452 Contact Us For Availability
15
Lockwasher WPL 69603 Contact Us For Availability
15
Body Side w/Overlay-Rt. or Lt. (Inc. 71 & 74) WPL 326818 Contact Us For Availability
15
Body Side w/Overlay-Rt. or Lt. (Inc. 71 & 74) WPL 326819 Contact Us For Availability
15
Body Side w/Overlay-Rt. or Lt. (Inc. 71 & 74) WPL 326820 Contact Us For Availability
15
Body Side w/Overlay-Rt. or Lt. (Inc. 71 & 74) WPL 326821 Contact Us For Availability
15
Body Side w/Overlay-Rt. or Lt. (Inc. 71 & 74) WPL 326822 Contact Us For Availability
15
Body Side w/Overlay-Rt. or Lt. (Inc. 71 & 74) WPL 328446 Contact Us For Availability
15
Body Side w/Overlay-Rt. or Lt. (Inc. 71 & 74) WPL 328447 Contact Us For Availability
15
Seal-Fiberglass WPL 302935 Contact Us For Availability
16
Baffle-Burner Box Bottom (Rt. or Lt.) WPL 320753 Contact Us For Availability
16
Wire Shield-Gas Valve WPL 320744 Contact Us For Availability
16
Baffel-Side Panel (Lt or Rt) WPL 311029 Contact Us For Availability
16
Screw 10-24x2-3/8`` WPL 303003 Contact Us For Availability
17
Support Rod-Main Top WPL 307443 Contact Us For Availability
17
Screw 10-32x3/8`` WPL 239113 Contact Us For Availability
17
Bracket-Lamp Holder (Rt. or Lt.) WPL 113236 Contact Us For Availability
17
Rotisserie Pan WPL 291397 Contact Us For Availability
17
xInstallation Instructions WPL 300668 Contact Us For Availability
17
Upper Insulation Retainer-Lt. WPL 322075 Contact Us For Availability
17
Plug-Oven Door Lining WPL 320677 Contact Us For Availability
18
Side Trim-Main Top (Left) WPL 305381 Contact Us For Availability
18
Side Trim-Main Top (Right) WPL 305382 Contact Us For Availability
18
Controls Mounting Panel WPL 310593 Contact Us For Availability
18
Manifold Pipe WPL 323398 Contact Us For Availability
18
Ballast WPL 98186 Contact Us For Availability
18
Inner Door Glass WPL 312426 Contact Us For Availability
19
Top Lamp Glass WPL 322352 Contact Us For Availability
19
Igniter-Oven or Broiler Burner WPL 319887 Contact Us For Availability
19
Holder-Oven Light WPL 87883 Contact Us For Availability
19
Stiffener-Oven Door Lining WPL 310911 Contact Us For Availability
20
Screw 8-32x3/16`` WPL 78565 Contact Us For Availability
20
Support-Oven Burner WPL 282122 Contact Us For Availability
20
Bracket-Oven Lamp Holder WPL 229369 Contact Us For Availability
20
Lining-Oven Door WPL 310912 Contact Us For Availability
21
Tubular Clip WPL 293577 Contact Us For Availability
21
Bracket-Orifice Fitting WPL 282112 Contact Us For Availability
21
Cover-Flue Deflector WPL 324827 Contact Us For Availability
21
Retainer-Oven Door Glass Insulation WPL 324853 Contact Us For Availability
22
Cover-Switch Shield WPL 301799 Contact Us For Availability
22
Tubing 3/8`` w/Orifice WPL 322336 Contact Us For Availability
22
Insulation-Retainer Oven Light WPL 229370 Contact Us For Availability
22
Insulation Retainer WPL 324846 Contact Us For Availability
23
Oven Burner (Inc`s 24 & 25) WPL 318449 Contact Us For Availability
23
Oven Side-Left WPL 285482 Contact Us For Availability
23
Center Door Glass WPL 296214 Contact Us For Availability
24
Clock w/1 Hr. Timer WPL 322348 Contact Us For Availability
24
Air Shutter WPL 312988 Contact Us For Availability
24
Insulation-Oven Top & Sides WPL 282953 Contact Us For Availability
24
Intermediate Door Glass WPL 308239 Contact Us For Availability
25
Auxiliary Cover-Backguard WPL 324857 Contact Us For Availability
25
Screw 10 - 32 x 1/4`` WPL 105771 Contact Us For Availability
25
Adjustment Screw -Air Shutter WPL 312989 Contact Us For Availability
25
Gasket-Lens WPL 229371 Contact Us For Availability
26
Wire Cover-Backguard WPL 324843 Contact Us For Availability
26
Lower Baffle - Broiler Burner WPL 302904 Contact Us For Availability
26
Lens-Oven Light WPL 114989 Contact Us For Availability
26
Shield-Oven Door Lining WPL 314912 Contact Us For Availability
27
Bracket-Backguard Bottom (Lt. or Rt.) WPL 322152 Contact Us For Availability
27
Broiler Orifice Fitting WPL 311981 Contact Us For Availability
27
A WPL 321274 Contact Us For Availability
27
Top Frame-Oven Door Glass WPL 319295 Contact Us For Availability
28
Front-Backguard Bottom WPL 321098 Contact Us For Availability
28
WPL 321272 WPL 321272 Contact Us For Availability
28
Handle-Oven Door WPL 282093 Contact Us For Availability
29
Knob-Clock (Minute Timer) WPL 294810 Contact Us For Availability
29
Gas Valve-4 Required (Inc`s. 28) WPL 313224 Contact Us For Availability
29
WPL 324818 WPL 324818 Contact Us For Availability
29
Cushion (6 Required) WPL 112370 Contact Us For Availability
30
Knob-Clock (Start & Stop Time) WPL 109225 Contact Us For Availability
30
Switch-Gas Valve (4 Required) WPL 310253 Contact Us For Availability
30
WPL 310964 WPL 310964 Contact Us For Availability
30
Switch WPL 311529 Contact Us For Availability
30
Frame-Oven Door Glass WPL 319292 Contact Us For Availability
30
Main WPL 322552 Contact Us For Availability
31
Knob-Oven Thermostat WPL 320916 Contact Us For Availability
31
Shield-Gas Valve (4 Required) WPL 306589 Contact Us For Availability
32
Knob-Selector Switch WPL 320915 Contact Us For Availability
32
Air Shutter WPL 301910 Contact Us For Availability
32
WPL 319860 WPL 319860 Contact Us For Availability
33
Clip WPL 70588 Contact Us For Availability
33
Adjustment Screw-Air Shutter WPL 301911 Contact Us For Availability
33
WPL 295277 WPL 295277 Contact Us For Availability
34
Screw 6-20x3/8`` WPL 329382 Contact Us For Availability
34
Rear Top Burner-Rt. or Lt. (Inc`s. 32 & 33) WPL 310199 Contact Us For Availability
35
Wire Retainer WPL 239225 Contact Us For Availability
35
Bracket-Module WPL 310257 Contact Us For Availability
35
WPL 295278 WPL 295278 Contact Us For Availability
36
Support-Backguard (Lt. or Rt.) WPL 322158 Contact Us For Availability
36
Screw 10-32x1/2`` WPL 239114 Contact Us For Availability
36
WPL 299263 WPL 299263 Contact Us For Availability
37
Wire Shield-Backguard WPL 286889 Contact Us For Availability
37
Module-Spark Igniter WPL 320990 Contact Us For Availability
37
WPL 321162 WPL 321162 Contact Us For Availability
38
Shield-Controls WPL 324824 Contact Us For Availability
38
WPL 316365 WPL 316365 Contact Us For Availability
38
Screw 6-32x3/8`` WPL 105667 Contact Us For Availability
39
Insulation WPL 326356 Contact Us For Availability
39
Shut Off Valve WPL 326830 Contact Us For Availability
39
WPL 229372 WPL 229372 Contact Us For Availability
40
Gask WPL 313563 Contact Us For Availability
40
WPL 111257 WPL 111257 Contact Us For Availability
41
WPL 304241 WPL 304241 Contact Us For Availability
41
WPL 289730 WPL 289730 Contact Us For Availability
42
WPL 311455 WPL 311455 Contact Us For Availability
42
WPL 312013 WPL 312013 Contact Us For Availability
43
WPL 325271 WPL 325271 Contact Us For Availability
43
WPL 229607 WPL 229607 Contact Us For Availability
44
WPL 97217 WPL 97217 Contact Us For Availability
44
WPL 282535 WPL 282535 Contact Us For Availability
45
WPL 318758 WPL 318758 Contact Us For Availability
45
WPL 282156 WPL 282156 Contact Us For Availability
46
WPL 324820 WPL 324820 Contact Us For Availability
47
WPL 282157 WPL 282157 Contact Us For Availability
48
WPL 294197 WPL 294197 Contact Us For Availability
49
WPL 282102 WPL 282102 Contact Us For Availability
50
WPL 285860 WPL 285860 Contact Us For Availability
51
WPL 237762 WPL 237762 Contact Us For Availability
52
WPL 321539 WPL 321539 Contact Us For Availability
53
WPL 306149 WPL 306149 Contact Us For Availability
53
WPL 306150 WPL 306150 Contact Us For Availability
54
WPL 305361 WPL 305361 Contact Us For Availability
55
WPL 283457 WPL 283457 Contact Us For Availability
56
WPL 282127 WPL 282127 Contact Us For Availability
57
WPL 97220 WPL 97220 Contact Us For Availability
58
WPL 282118 WPL 282118 Contact Us For Availability
59
WPL 71003 WPL 71003 Contact Us For Availability
60
WPL 304125 WPL 304125 Contact Us For Availability
62
WPL 282952 WPL 282952 Contact Us For Availability
63
WPL 310977 WPL 310977 Contact Us For Availability
64
WPL 108069 WPL 108069 Contact Us For Availability
65
WPL 327621 WPL 327621 Contact Us For Availability
66
WPL 321919 WPL 321919 Contact Us For Availability
67
WPL 100576 WPL 100576 Contact Us For Availability
68
WPL 281574 WPL 281574 Contact Us For Availability
69
WPL 294195 WPL 294195 Contact Us For Availability
70
WPL 322073 WPL 322073 Contact Us For Availability
71
WPL 239603 WPL 239603 Contact Us For Availability
72
WPL 282278 WPL 282278 Contact Us For Availability
73
WPL 282273 WPL 282273 Contact Us For Availability
74
WPL 326070 WPL 326070 Contact Us For Availability
75
WPL 301769 WPL 301769 Contact Us For Availability
× ![]()
