Model Whirlpool 1265H-EZW ELECTRIC WALL OVEN – Common Parts & Diagrams

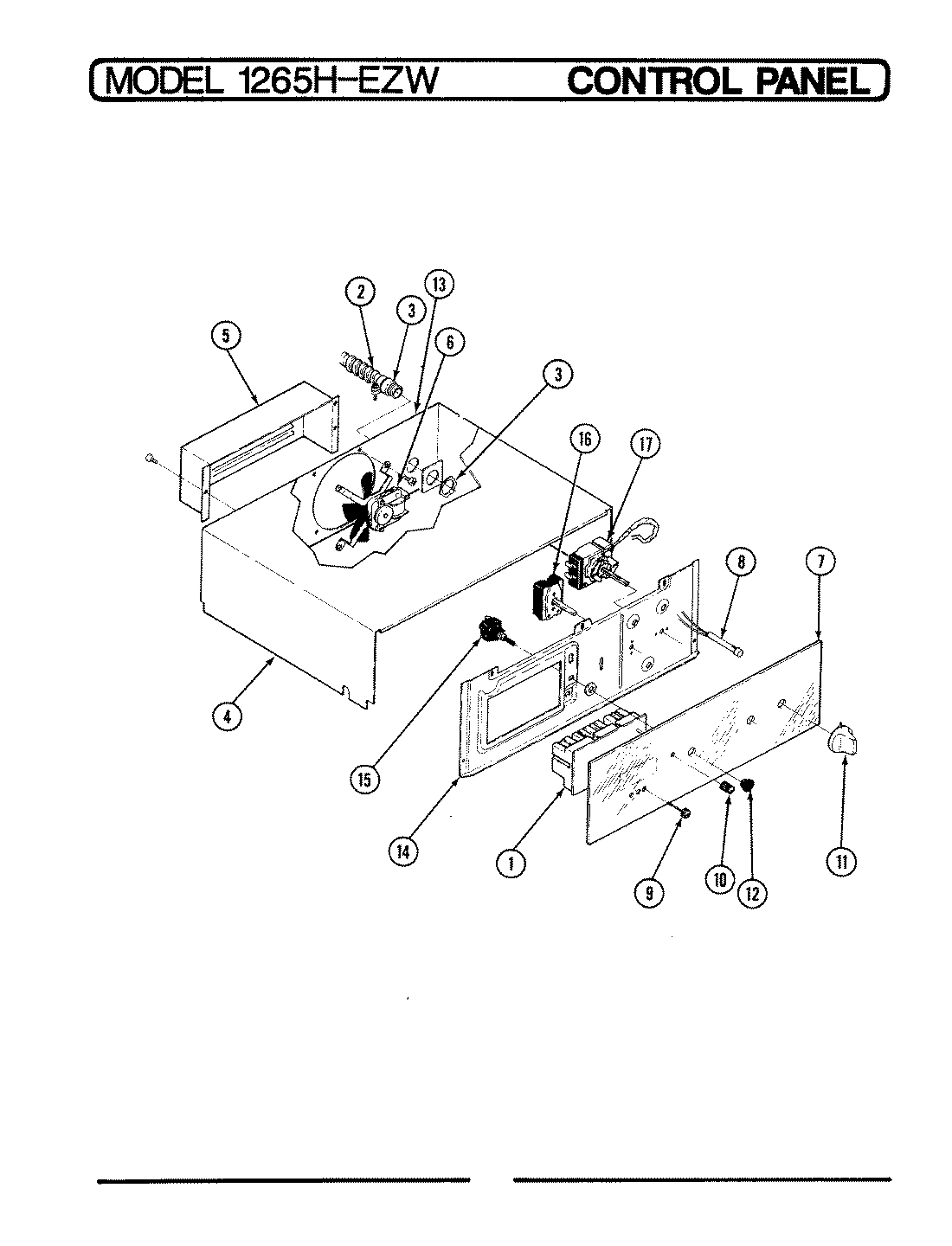

02 - CONTROL PANEL

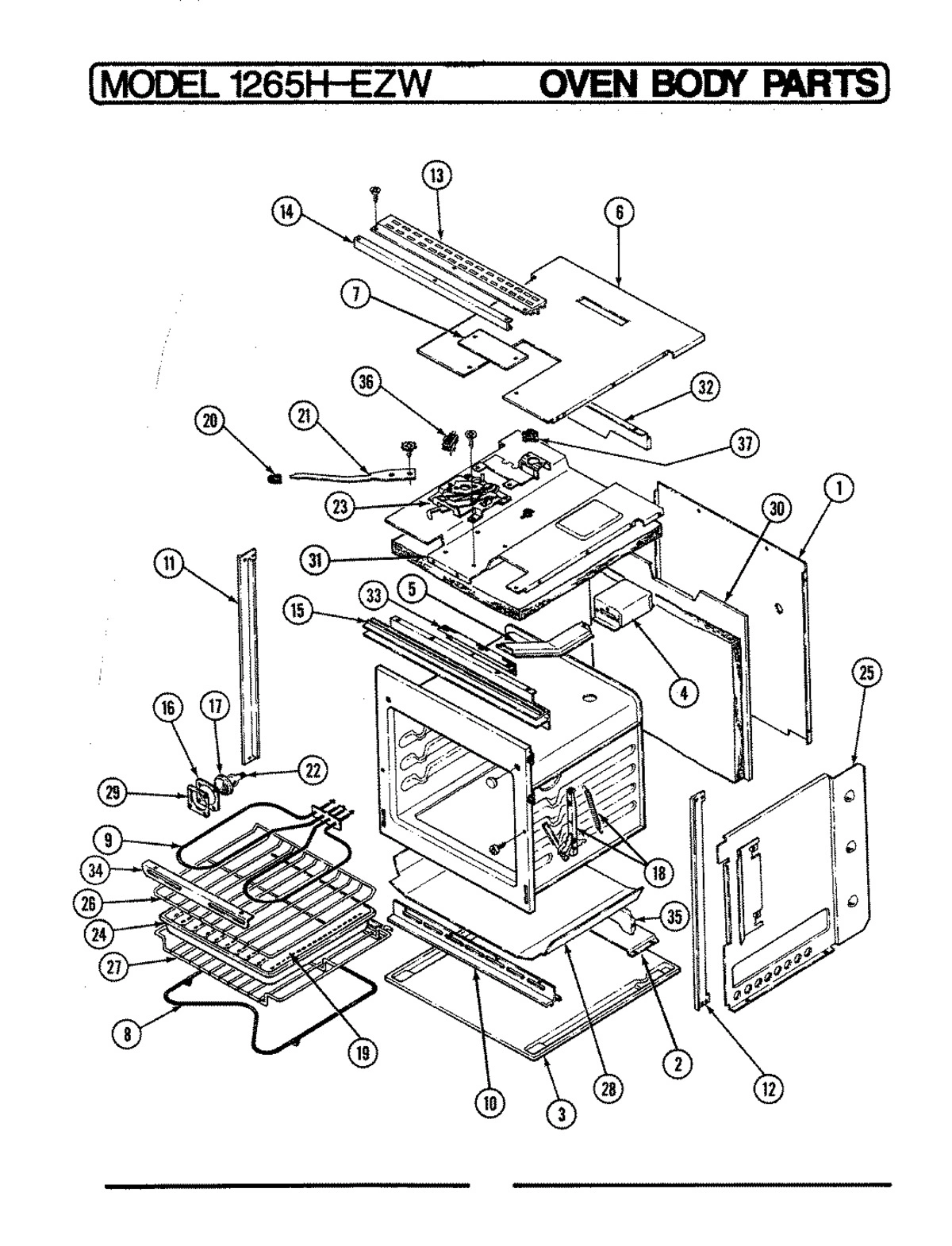

01 - BODY

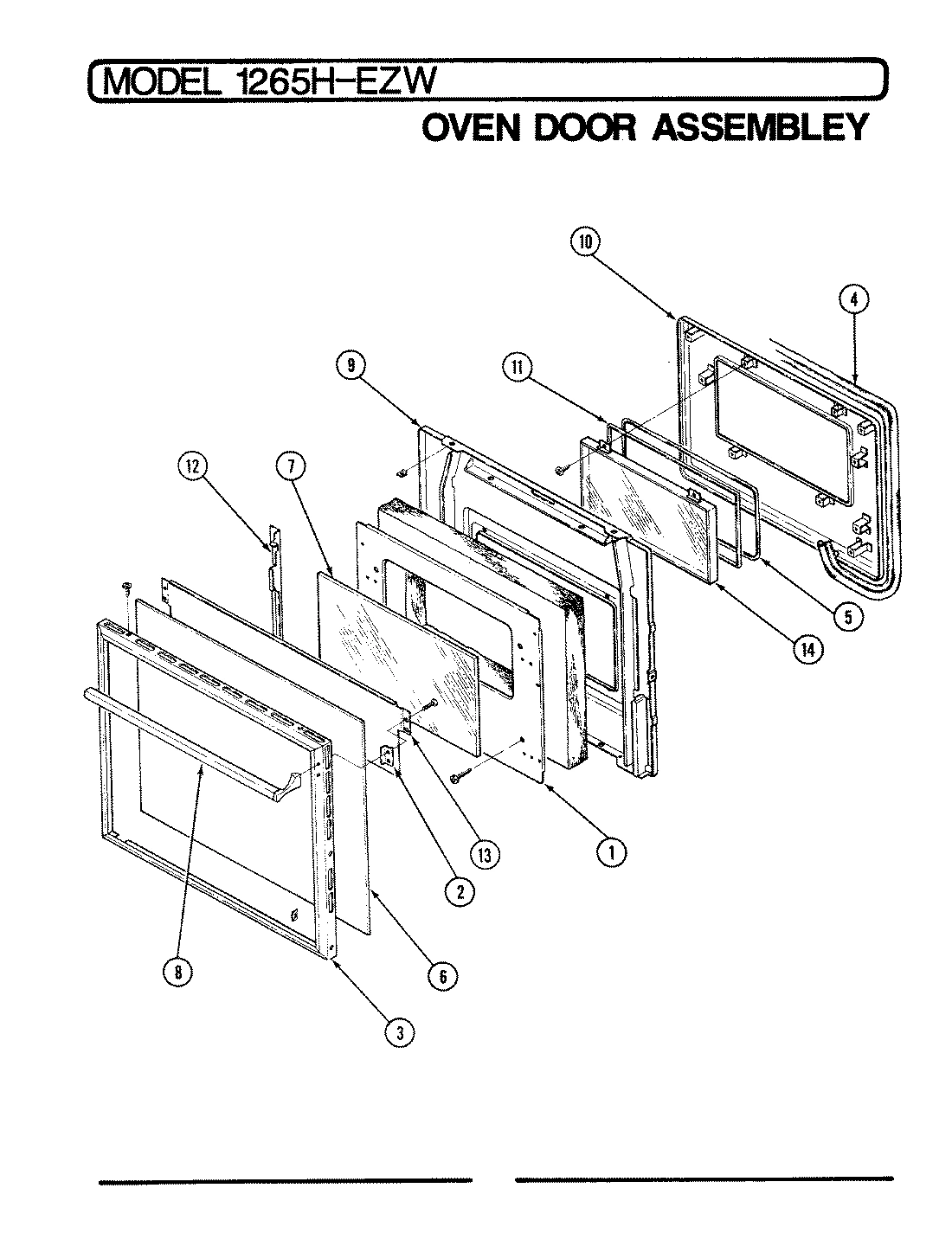

03 - DOOR
Common parts from model Whirlpool 1265H-EZW ELECTRIC WALL OVEN
1
+ CLOCK WPL 7601P04760 Contact Us For Availability
1
BACK MAIN WPL 4002F03951 Contact Us For Availability
1
BAFFLE, DOOR ASSEMBLY WPL 3601W13151 Contact Us For Availability
2
CONDUIT, FLEXIBLE WPL 7434P00660 Contact Us For Availability
2
BAFFLE, BASE WPL 3601F00580 Contact Us For Availability
2
CLIP, DOOR HANDLE WPL 7112P01760 Contact Us For Availability
3
CONNECTOR, CABLE WPL 7417P00380 Contact Us For Availability
3
BASE, WALL OVEN WPL 4003F01120 Contact Us For Availability
3
FRAME, DOOR UPPER WPL 7706P22160 Contact Us For Availability
4
COVER, WIRE WPL 4005F15051 Contact Us For Availability
4
BOX, VENT WPL 4006W04615 Contact Us For Availability
4
GASKET WPL 7201P00460 Contact Us For Availability
5
COVER, FAN WPL 4005F17751 Contact Us For Availability
5
CHANNEL, VENT ASSEMBLY WPL 3818W00215 Contact Us For Availability
5
GASKET WPL 7201P02060 Contact Us For Availability
6
FAN ASSEMBLY WPL 7427P00660 Contact Us For Availability
6
COVER, BOX WPL 4005F20251 Contact Us For Availability
6
GLASS, DOOR SCREENED WPL 7902P26560 Contact Us For Availability
7
GLASS, CONTROL PANEL (BLK) WPL 7912P02560 Contact Us For Availability
7
COVER, LOCK WPL 4005F16045 Contact Us For Availability
7
GLASS, INNER WPL 7902P09760 Contact Us For Availability
8
LIGHT, INDICATOR----NA WPL 7407P00760 Contact Us For Availability
8
ELEMENT BAKE WPL 7406P01360 Contact Us For Availability
8
HANDLE, DOOR WPL 7701P01760 Contact Us For Availability
9
KNOB, CLOCK (BUTTON-BLK) WPL 7711P17160 Contact Us For Availability
9
ELEMENT,BROIL WPL 7406P00360 Contact Us For Availability
9
LINING ASSY, INNER DR WPL 2402W09612 Contact Us For Availability
9
LINING, DOOR WPL 2402W13019 Contact Us For Availability
9
LINING ASSY, OVEN DOOR WPL 2402W13315 Contact Us For Availability
10
KNOB, CLOCK (BLK) WPL 7711P17260 Contact Us For Availability
10
EXTRUSION, BOTTOM (BLK) WPL 7706P15360 Contact Us For Availability
10
PAD, DOOR WPL 2410W03415 Contact Us For Availability
10
PAD, OVEN DOOR WPL 2410W03815 Contact Us For Availability
11
KNOB (CHR) WPL 7711P29160 Contact Us For Availability
11
EXTRUSION, SIDE-L WPL 7706P11760 Contact Us For Availability
11
EXTRUSION, SIDE-L WPL 7750P01660 Contact Us For Availability
11
RETAINER, GASKET WPL 3804F02145 Contact Us For Availability
12
SLEEVE, SWITCH (BLK) WPL 7214P00760 Contact Us For Availability
12
EXTRUSION, SIDE-R WPL 7706P11860 Contact Us For Availability
12
EXTRUSION, SIDE-R WPL 7750P01760 Contact Us For Availability
12
RETAINER, GLASS WPL 3804F05180 Contact Us For Availability
13
PLATE, REINFORCEMENT WPL 3605F13151 Contact Us For Availability
13
EXTRUSION, TOP WPL 7706P11460 Contact Us For Availability
13
RETAINER, GLASS WPL 3804F01751 Contact Us For Availability
14
PLATE, BACKING WPL 3605F11380 Contact Us For Availability
14
EXTRUSION, TOP FRONT WPL 7756P01360 Contact Us For Availability
14
WINDOW ASSY. WPL 5700A08260 Contact Us For Availability
15
SWITCH, PUSH (BLK) WPL 7403P10960 Contact Us For Availability
15
EXTRUSION, VENT WPL 7756P00660 Contact Us For Availability
15
EXTRUSION, VENT WPL 7756P02360 Contact Us For Availability
16
SWITCH, SELECTOR WPL 7403P02360 Contact Us For Availability
16
GASKET, HOUSING WPL 7201P01460 Contact Us For Availability
17
THERMOSTAT, UPPER WPL 7404P03960 Contact Us For Availability
17
GLASS, LAMP GUARD WPL 7902P05760 Contact Us For Availability
18
HINGE, UPPER DOOR WPL 7106A01260 Contact Us For Availability
18
HINGE, UPPER WPL 7106A01960 Contact Us For Availability
19
INSERT, BROIL PAN WPL 3413F00223 Contact Us For Availability
20
HANDLE, DOOR----NA WPL 7701P07160 Contact Us For Availability
21
LEVER, LATCH WPL 8009P01160 Contact Us For Availability
22
BULB, OVEN WPL 7407P02660 Contact Us For Availability
23
LATCH ASSY. WPL 8002P01660 Contact Us For Availability
24
PAN, BROIL WPL 3401F00423 Contact Us For Availability
25
PANEL, SIDE (RT) WPL 2618F05351 Contact Us For Availability
25
PANEL, SIDE (LT) WPL 2618F05451 Contact Us For Availability
26
RACK WPL 7801P00560 Contact Us For Availability
27
RACK, OFFSET WPL 7801P00760 Contact Us For Availability
28
RETAINER, BOTTOM WPL 3804W03451 Contact Us For Availability
29
RETAINER WPL 3804F01145 Contact Us For Availability
30
RETAINER, INSUL-R WPL 3804F00751 Contact Us For Availability
31
RETAINER,TOP WPL 3804F05351 Contact Us For Availability
32
SHIELD, AIR WPL 3604F10180 Contact Us For Availability
33
SHIELD, TERMINAL WPL 3604F04880 Contact Us For Availability
34
SUPPORT, BROIL ELEMENT WPL 3807F17615 Contact Us For Availability
35
SUPPORT WPL 3807F13780 Contact Us For Availability
36
SWITCH, DOOR LOCK WPL 7403P00760 Contact Us For Availability
37
SWITCH, HIGH LIMIT WPL 7403P06360 Contact Us For Availability
× ![]()
