Model Whirlpool 1255AF-CLW ELECTRIC WALL OVEN – Common Parts & Diagrams

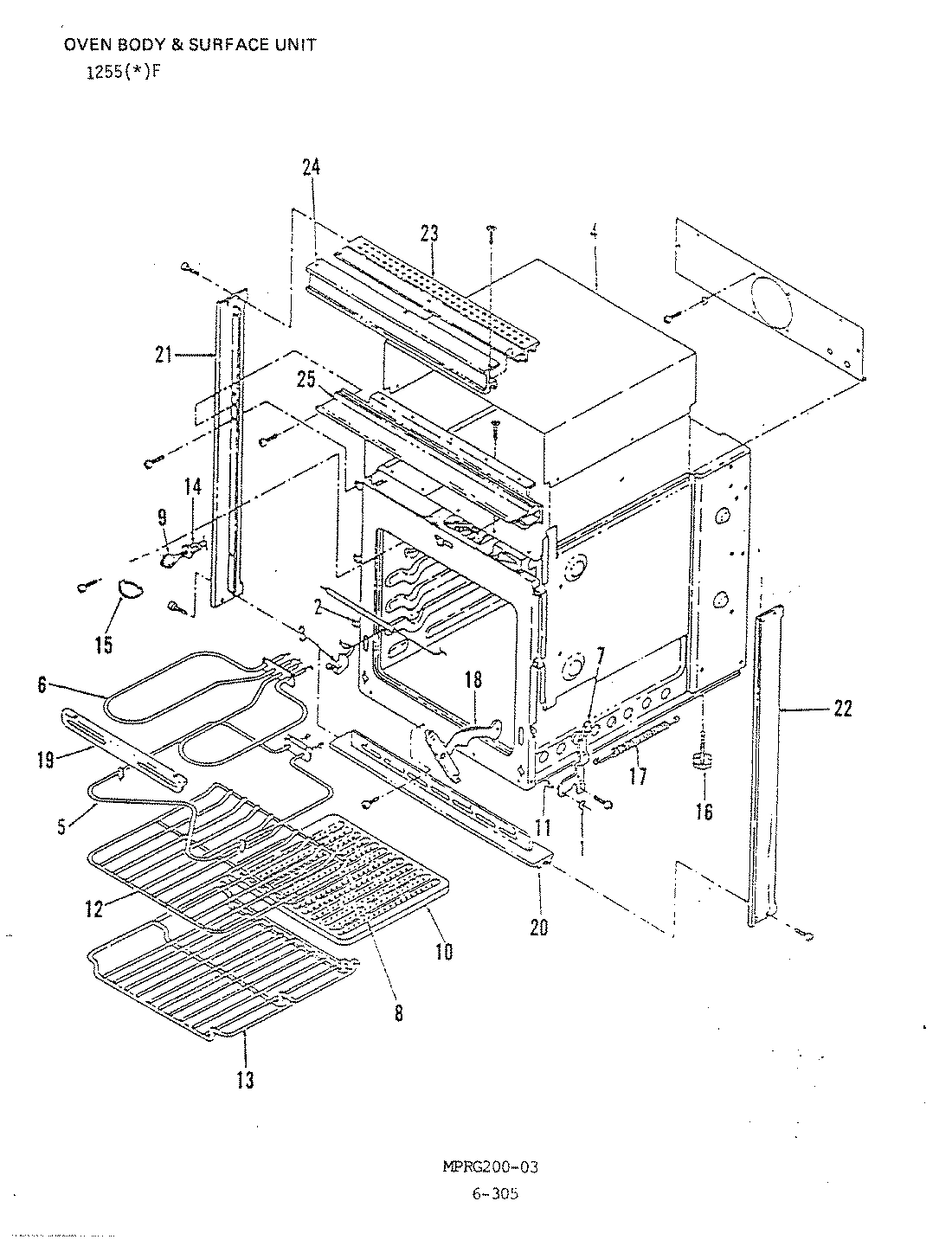

01 - BODY

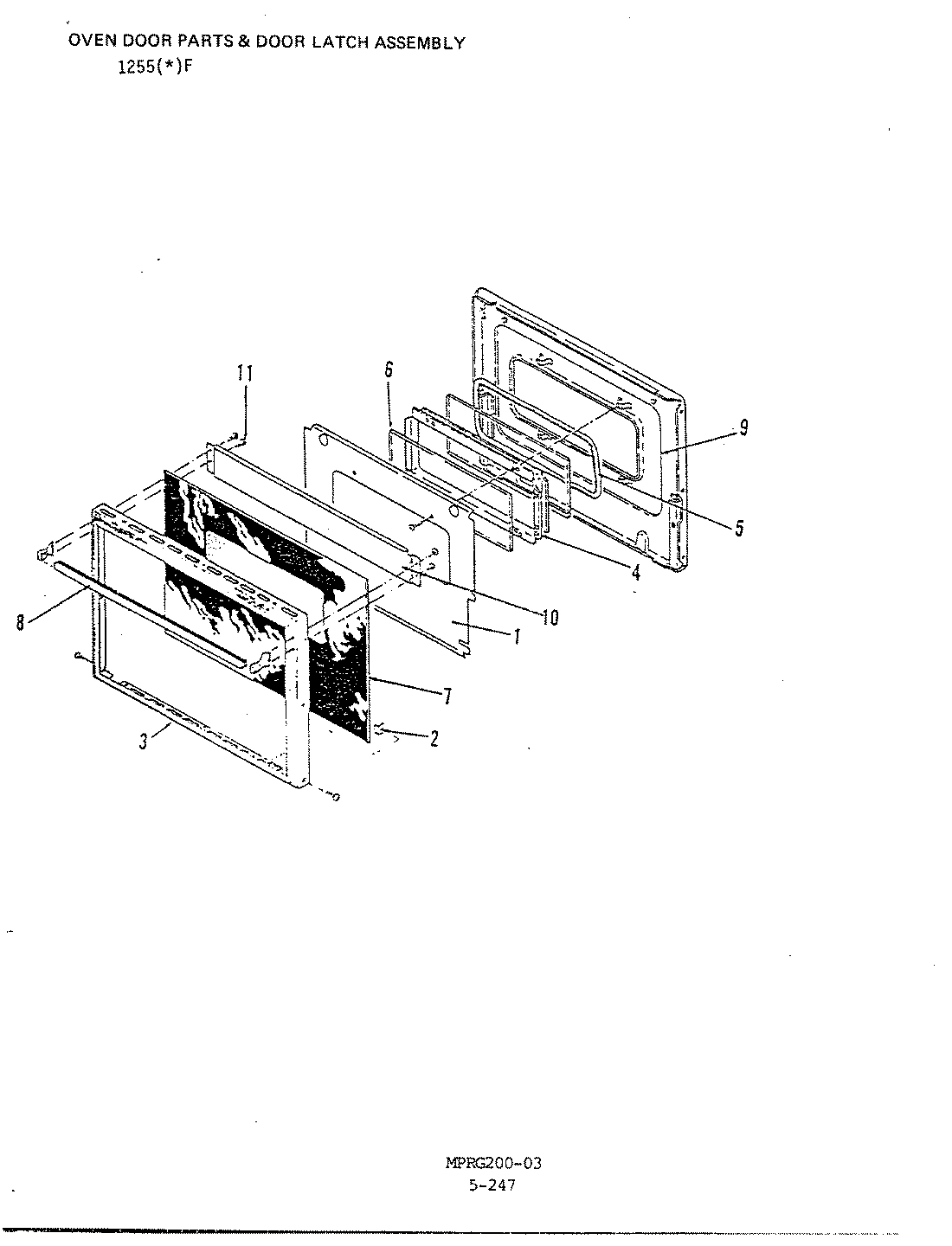

03 - DOOR & LATCH ASSY.

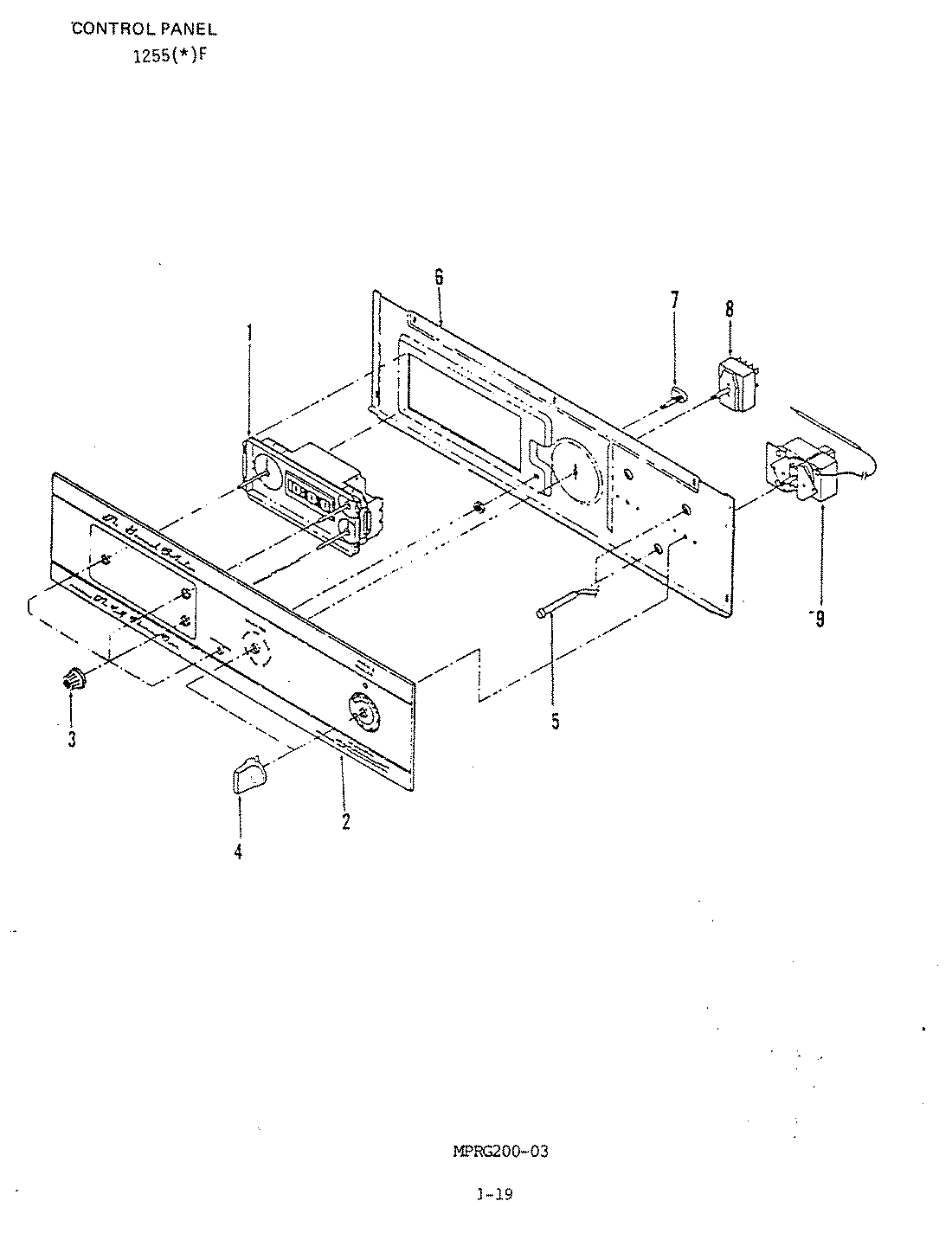

02 - CONTROL PANEL
Common parts from model Whirlpool 1255AF-CLW ELECTRIC WALL OVEN
1
RING, SNAP WPL 1013214 Contact Us For Availability
1
BLOCK WPL 1867210 Contact Us For Availability
1
BAFFLE WPL 0153281 Contact Us For Availability
1
CLIP WPL 1141231 Contact Us For Availability
1
+ CLOCK, SELF CLEAN WPL 7601P03660 Contact Us For Availability
1
CLOCK WPL 7601P04960 Contact Us For Availability
2
CLIP WPL 1141227 Contact Us For Availability
2
CLIP WPL 0319202 Contact Us For Availability
2
CLIP WPL 0319203 Contact Us For Availability
2
GLASS, CONTROL WPL 7902P08060 Contact Us For Availability
3
FRAME, DOOR WPL 1286257 Contact Us For Availability
3
KNOB, SWITCH WPL 1359263 Contact Us For Availability
3
KNOB, CLOCK WPL 1437241 Contact Us For Availability
4
COVER, WIRE WPL 0329241 Contact Us For Availability
4
COVER, BOX WPL 0329242 Contact Us For Availability
4
COVER, BOX WPL 4005F148 Contact Us For Availability
4
COVER, WIRE WPL 4005F150 Contact Us For Availability
4
FRAME ASSY. WPL 0462235 Contact Us For Availability
4
KNOB, SELECTOR WPL 1362231 Contact Us For Availability
4
PLATE, NAME WPL 1598318 Contact Us For Availability
5
GASKET WPL 1313263 Contact Us For Availability
5
BKGD MTNG KIT WPL 1430252 Contact Us For Availability
6
GLASS WPL 1327100 Contact Us For Availability
6
PLATE, BACKING WPL 0719286 Contact Us For Availability
7
HINGE, OVEN DOOR (RT) WPL 3418F02534 Contact Us For Availability
7
HINGE, OVEN DOOR (LT) WPL 3418F02634 Contact Us For Availability
7
GLASS WPL 1327206 Contact Us For Availability
8
INSERT WPL Y0507229 Contact Us For Availability
8
HANDLE, DOOR WPL 1355302 Contact Us For Availability
9
LINING,WINDOW OVN DR WPL 0602342 Contact Us For Availability
9
LINING,WINDOW OVN DR WPL 0602343 Contact Us For Availability
9
PANEL,WINDOW OVEN WPL 0680328A Contact Us For Availability
9
PANEL,WINDOW OVEN DR WPL 0680328B Contact Us For Availability
9
PANEL,WINDOW OVEN DR WPL 0680328G Contact Us For Availability
9
PANEL,WINDOW OVEN DR WPL 0680328N Contact Us For Availability
9
PANEL,WINDOW OVEN DR WPL 0680328Y Contact Us For Availability
9
THERMOSTAT WPL 7404P02860 Contact Us For Availability
11
PIN, OVEN DOOR HINGE WPL 1584204 Contact Us For Availability
11
SPRING WPL 1790308 Contact Us For Availability
12
RACK WPL 1636242 Contact Us For Availability
13
RACK WPL 1636246 Contact Us For Availability
14
RECEPTACLE, OVEN LIGHT WPL 1657202 Contact Us For Availability
14
BUMPER WPL 1784202 Contact Us For Availability
15
COVER WPL 0329216 Contact Us For Availability
16
SCREW WPL 1986288 Contact Us For Availability
17
SPRING WPL 1790310 Contact Us For Availability
19
SUPPORT WPL 0862451 Contact Us For Availability
19
SUPPORT, BROIL ELEMENT WPL Y0862419 Contact Us For Availability
20
EXTRUSION, BOTTOM WPL 7706P08460 Contact Us For Availability
20
EXTRUSION, BOTTOM (BLK) WPL 7706P15360 Contact Us For Availability
21
EXTRUSION, SIDE-L WPL 7706P11760 Contact Us For Availability
22
EXTRUSION, SIDE-R WPL 7706P11860 Contact Us For Availability
23
EXTRUSION, TOP WPL 7706P11460 Contact Us For Availability
24
EXTRUSION, TOP FRONT WPL 7706P11560 Contact Us For Availability
25
EXTRUSION, VENT WPL 7706P11960 Contact Us For Availability
25
TRIM, VENT WPL 7706P13660 Contact Us For Availability
× ![]()
