Model Whirlpool 11JN-10 GAS RANGE – Common Parts & Diagrams

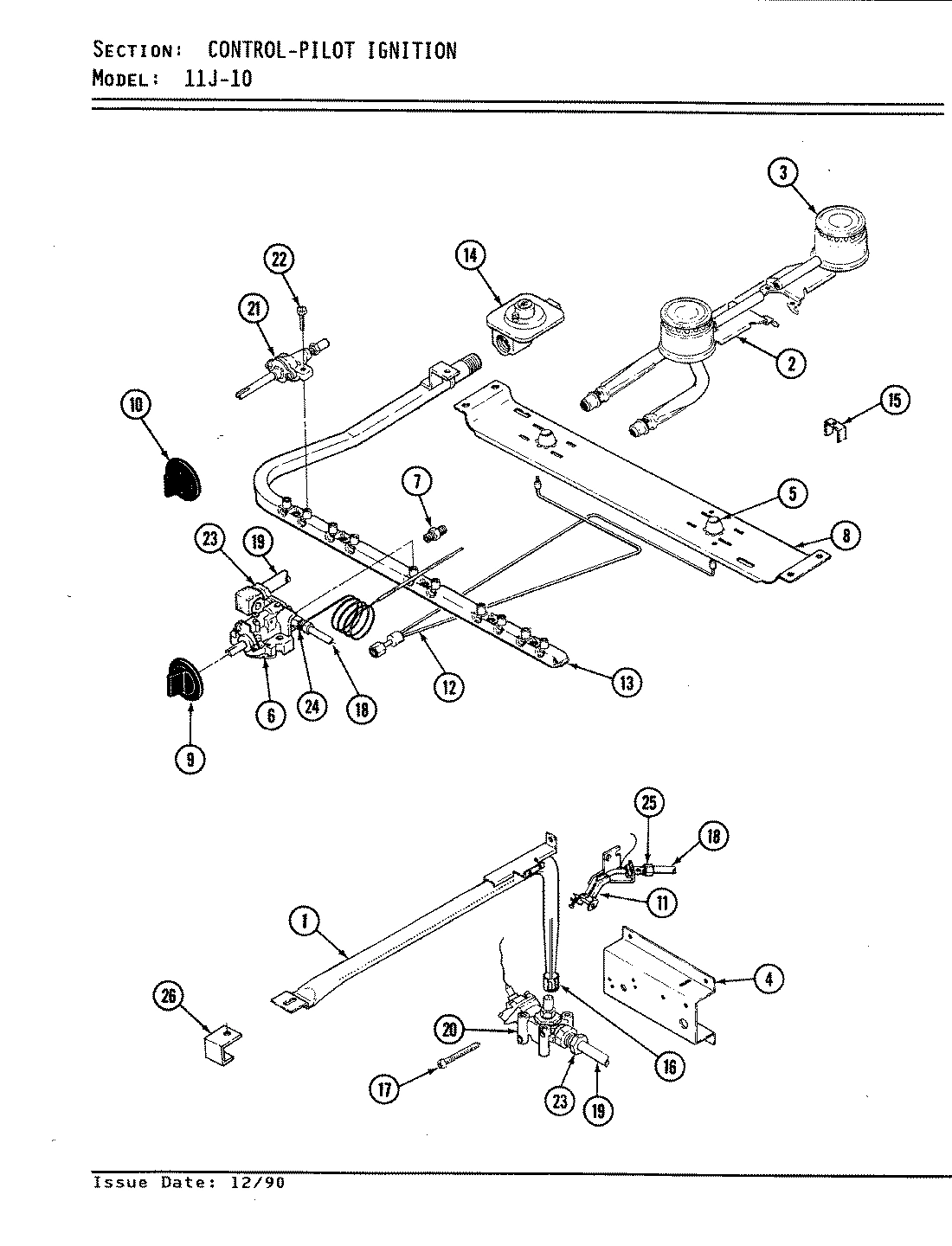

03 - GAS CONTROLS

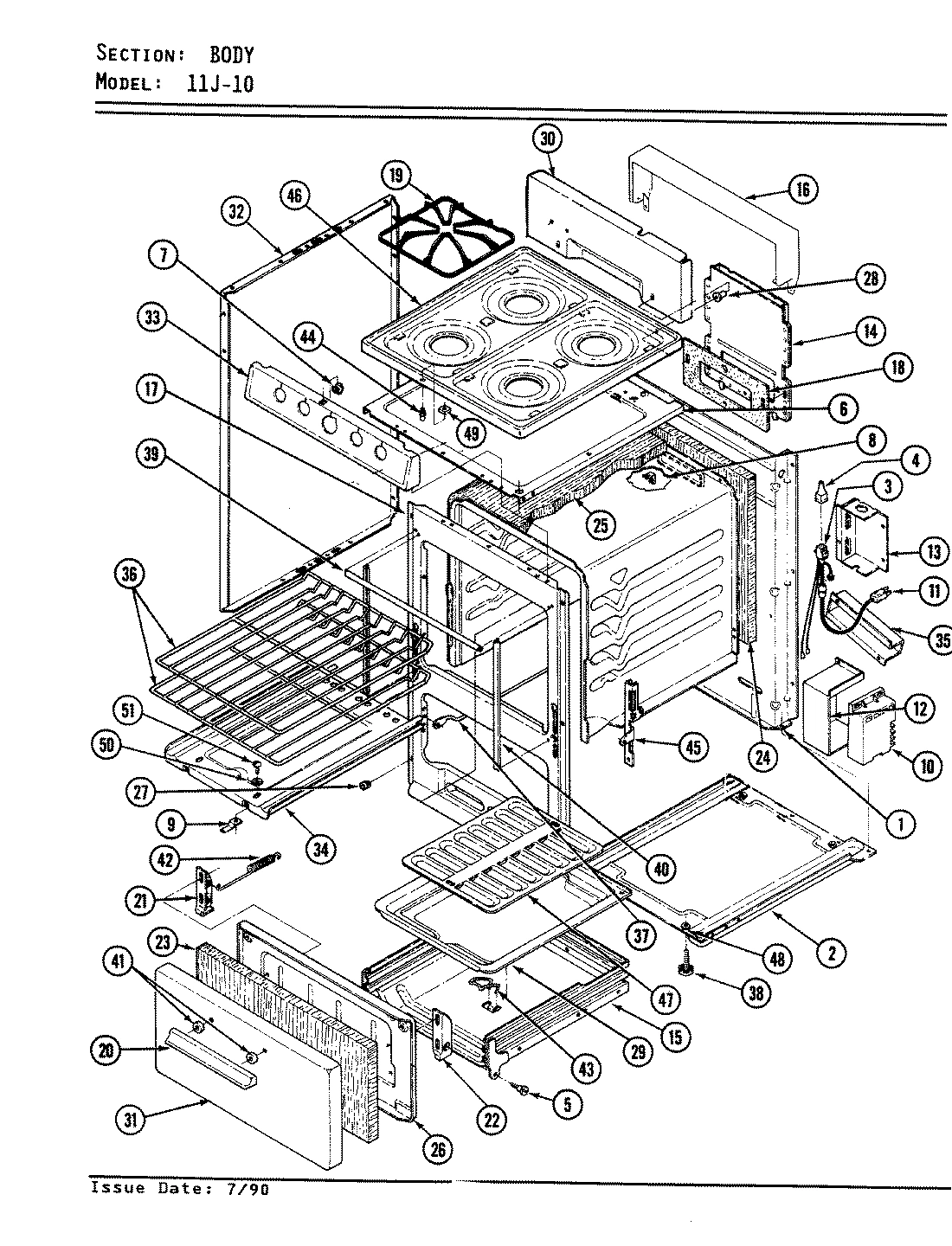

01 - BODY

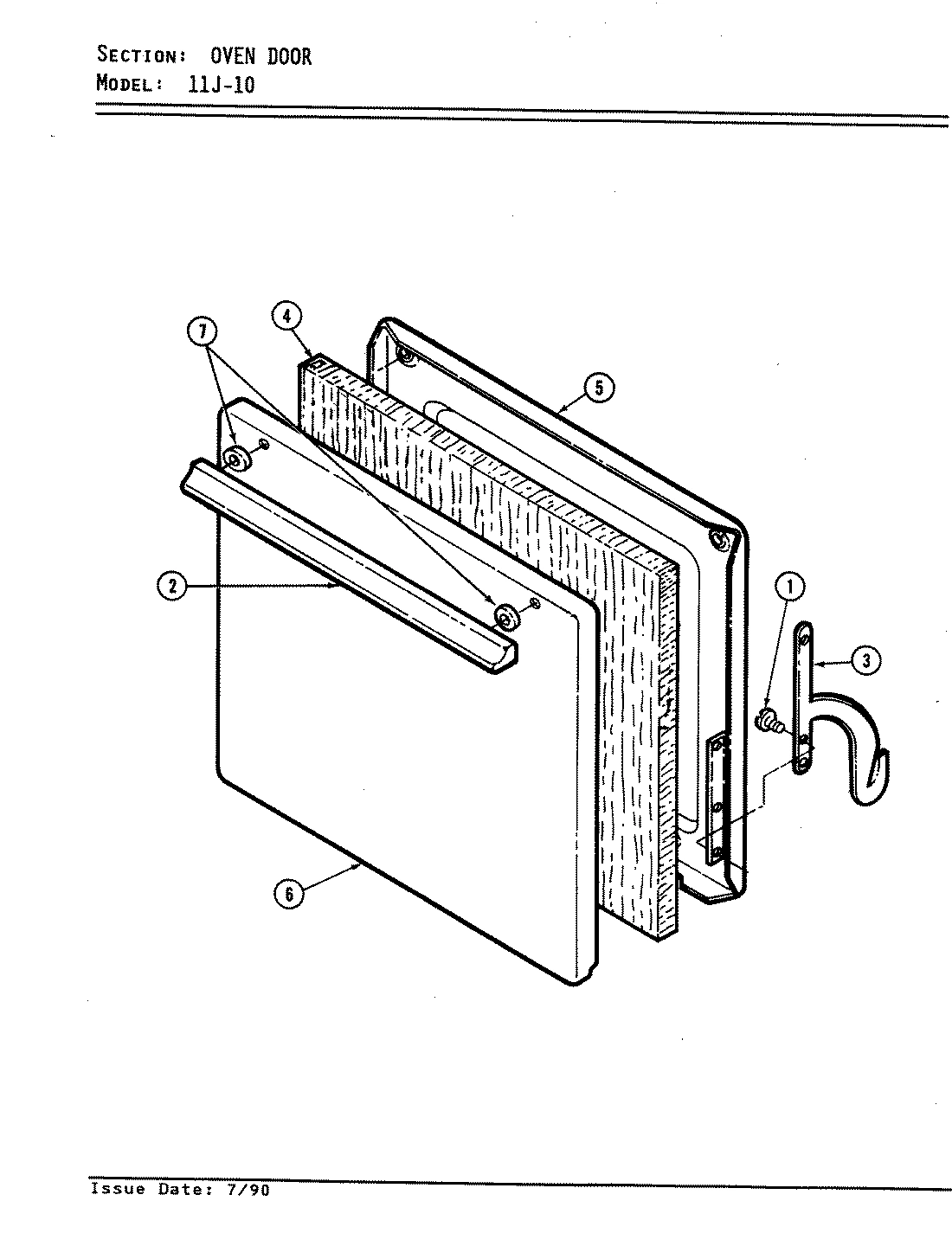

02 - DOOR
Common parts from model Whirlpool 11JN-10 GAS RANGE
1
BURNER OVEN ASSY WPL 3403A00545 Contact Us For Availability
1
BURNER, OVEN WPL 3403D04045 Contact Us For Availability
1
BACK, MAIN WPL 4002F13780 Contact Us For Availability
1
SCREW, CLAMP WPL 7101P08060 Contact Us For Availability
1
NUT LOCK WPL 7103P07260 Contact Us For Availability
1
BOLT, SHOULDER WPL 7118P00960 Contact Us For Availability
2
BURNER, TOP (FRT) WPL 7505P17360 Contact Us For Availability
2
BASE, MAIN WPL 4003F01680 Contact Us For Availability
2
HANDLE, DOOR (CHR) WPL 7701P02960 Contact Us For Availability
3
BURNER, TOP (REAR) WPL 7505P17260 Contact Us For Availability
3
BLOCK, DISCONNECT (PIN) WPL 7401P01760 Contact Us For Availability
3
HINGE, OVEN DOOR WPL 3418F05334 Contact Us For Availability
4
SUPPORT, OVEN VALVE WPL 3807F36945 Contact Us For Availability
4
BLOCK, DISCONNECT FE WPL 7401P02260 Contact Us For Availability
4
INSULATION, OVEN DOOR WPL 7002P10260 Contact Us For Availability
5
CONE, TOP LIGHTER----NA WPL 8030P00160 Contact Us For Availability
5
BOLT, SHOULDER WPL 7118P00860 Contact Us For Availability
5
LINING, OV DR WPL 2402W10223 Contact Us For Availability
6
THERMOSTAT WPL 7515P02860 Contact Us For Availability
6
THERMOSTAT WPL 7515P03060 Contact Us For Availability
6
THERMOSTAT WPL 7515P03360 Contact Us For Availability
6
NOT REQUIRED PART OR SEE NOTE BRACKET/SCREW ( WPL W10124350 Contact Us For Availability
6
BRACKET, ANTI-TIP WPL 3801F21851 Contact Us For Availability
6
BOX, BURNER WPL 4011F16480 Contact Us For Availability
6
SCREW, BRACKET WPL 7101P28960 Contact Us For Availability
6
SCREW WPL 7101P05960 Contact Us For Availability
6
PANEL, OVEN DOOR (WHT) WPL 2401W05971 Contact Us For Availability
7
FILTER, TOP LIGHTER WPL 7507P03260 Contact Us For Availability
7
SPRING, CATCH - FEMALE WPL 8002P02260 Contact Us For Availability
7
SPACER, DOOR HANDLE WPL 8010P02060 Contact Us For Availability
8
SUPPORT, TOP BURNER WPL 3807F35380 Contact Us For Availability
8
CLIP, CAPILLARY WPL 7112P05360 Contact Us For Availability
9
DIAL, OVEN CONTROL WPL 7711P39460 Contact Us For Availability
9
KNOB, THERMOSTAT WPL 7731P05960 Contact Us For Availability
9
CLIP, OVEN BOTTOM PL WPL 3819F01161 Contact Us For Availability
10
KNOB, VALVE WPL 7733P01560 Contact Us For Availability
10
MODULE, SPARK WPL 7431P00660 Contact Us For Availability
11
LIGHTER OV. BR. WPL Y0L01002199 Contact Us For Availability
11
CORD, POWER WPL 7402P01860 Contact Us For Availability
12
NUT WPL 7103P10660 Contact Us For Availability
12
NUT, TOP PILOT WPL 7103P12860 Contact Us For Availability
12
LIGHTER, TOP BURNER WPL 7432P04960 Contact Us For Availability
12
PILOT, BURNER (TOP) WPL 7505P07360 Contact Us For Availability
12
COVER, MODULE SPARK WPL 4005F31851 Contact Us For Availability
12
SCREW WPL 7101P06160 Contact Us For Availability
13
PIPE MANIFOLD WPL 7513P09960 Contact Us For Availability
13
PIPE, MANIFOLD WPL 7513P12860 Contact Us For Availability
13
PIPE MANIFOLD WPL 7513P14460 Contact Us For Availability
13
COVER, WIRE ASSEMBLY WPL 4005F32651 Contact Us For Availability
14
REGULATOR PRESSURE WPL 7510P02260 Contact Us For Availability
14
BOX FLUE VENT WPL 4006W06245 Contact Us For Availability
15
SHIELD TOP LIGHTER WPL 3604F12251 Contact Us For Availability
15
DRAWER BROILER WPL 3407W00523 Contact Us For Availability
16
SHUTTER OVEN BURNER WPL 4G12401322 Contact Us For Availability
16
FRAME, BACKGUARD WPL 3603F01750 Contact Us For Availability
17
SUPPORT, BURNER WPL 3807F33651 Contact Us For Availability
17
FRONT, MAIN WPL 2201W04823 Contact Us For Availability
18
TUBING, CNTRL/PILO (3/16``) WPL 3414F01344 Contact Us For Availability
18
GASKET, VENT DEFLECT WPL 7201P03860 Contact Us For Availability
19
TUBING, 3/8 WPL 3414F04444 Contact Us For Availability
19
GRATE WPL 2003W00100 Contact Us For Availability
19
GRATE (BLK) WPL 2003W02600 Contact Us For Availability
20
VALVE, OVEN WPL 7501P06860 Contact Us For Availability
20
HANDLE, DRAWER (CHR) WPL 7701P01260 Contact Us For Availability
21
VALVE, TOP BURNER WPL 7502P12660 Contact Us For Availability
21
VALVE, TOP BURNER WPL 7502P12760 Contact Us For Availability
21
VALVE, BURNER WPL 7502P16760 Contact Us For Availability
21
VALVE, BURNER WPL 7502P16860 Contact Us For Availability
21
VALVE, BURNER WPL 7502P18760 Contact Us For Availability
21
VALVE, BURNER WPL 7502P18860 Contact Us For Availability
21
VALVE, BURNER WPL 7502P23760 Contact Us For Availability
21
VALVE, BURNER WPL 7502P23860 Contact Us For Availability
21
HINGE, BROILER DRAWER (LT) WPL 3418F03480 Contact Us For Availability
22
SCREW, CONTROL WPL 7101P01060 Contact Us For Availability
22
SCREW, CONTROL VALVE WPL 7101P04360 Contact Us For Availability
22
SCREW, VALVE WPL 7101P04460 Contact Us For Availability
22
SCREW WPL 7101P29560 Contact Us For Availability
22
SCREW WPL 7101P29660 Contact Us For Availability
22
HINGE, BROILER DRAWER (RT) WPL 3418F03580 Contact Us For Availability
23
INSULATION, BROILER DOOR WPL 7002P06760 Contact Us For Availability
24
NUT, LOCK WPL 7103P08560 Contact Us For Availability
26
LINING, BROILER DRAWER WPL 2404F02223 Contact Us For Availability
27
NUT, EXPANSION WPL 7103P08060 Contact Us For Availability
28
NUT, PROJECTION WELD WPL 7103P08960 Contact Us For Availability
29
PAN, BROILER WPL 3401F01623 Contact Us For Availability
30
PANEL, BKGD WHT WPL 2601F21081 Contact Us For Availability
31
PANEL, DRAWER (WHT) WPL 2403W01971 Contact Us For Availability
32
PANEL, SIDE WPL 2618F07071 Contact Us For Availability
33
PANEL, MANIFOLD (WHITE) WPL 2616F06971 Contact Us For Availability
33
SCREW, BKGD TRIM BWN WPL 7101P00660 Contact Us For Availability
33
NUT, TINNERMAN WPL 7103P10060 Contact Us For Availability
34
PLATE, OVEN BOTTOM WPL 5720A00323 Contact Us For Availability
35
WIRE RACEWAY WPL 3830F00151 Contact Us For Availability
36
RACK, OVEN WPL 7801P01960 Contact Us For Availability
37
SCREW WPL 7101P06860 Contact Us For Availability
37
ROD, BROILER RUNNER (LT) WPL 3808F00761 Contact Us For Availability
37
ROD, BROILER RUNNER (RT) WPL 3808F00861 Contact Us For Availability
37
NUT WPL 7103P03460 Contact Us For Availability
38
LEG, LEVELING WPL Y7101P25460 Contact Us For Availability
39
SEAL, DOOR (TOP) WPL 7212P01460 Contact Us For Availability
40
SEAL, DOOR (SIDE) WPL 7212P01560 Contact Us For Availability
42
SPRING, OVEN DOOR WPL 7803P03260 Contact Us For Availability
42
SPRING, BROILER DRAWER WPL 7803P03360 Contact Us For Availability
43
STOP, BROILER DRAWER WPL 7809P00460 Contact Us For Availability
44
STRIKE, MAIN TO WPL 8024P00360 Contact Us For Availability
45
WPL 7103P07160 WPL 7103P07160 Contact Us For Availability
45
WPL 7101P07260 WPL 7101P07260 Contact Us For Availability
45
WPL 3807F29034 WPL 3807F29034 Contact Us For Availability
45
WPL 3807F29134 WPL 3807F29134 Contact Us For Availability
45
WPL 7101P18860 WPL 7101P18860 Contact Us For Availability
46
WPL 2001F05081 WPL 2001F05081 Contact Us For Availability
47
WPL 3413F00723 WPL 3413F00723 Contact Us For Availability
48
WPL 7103P10760 WPL 7103P10760 Contact Us For Availability
49
WPL 7103P10560 WPL 7103P10560 Contact Us For Availability
50
WPL 7109P01560 WPL 7109P01560 Contact Us For Availability
51
WPL 7118P00460 WPL 7118P00460 Contact Us For Availability
× ![]()
