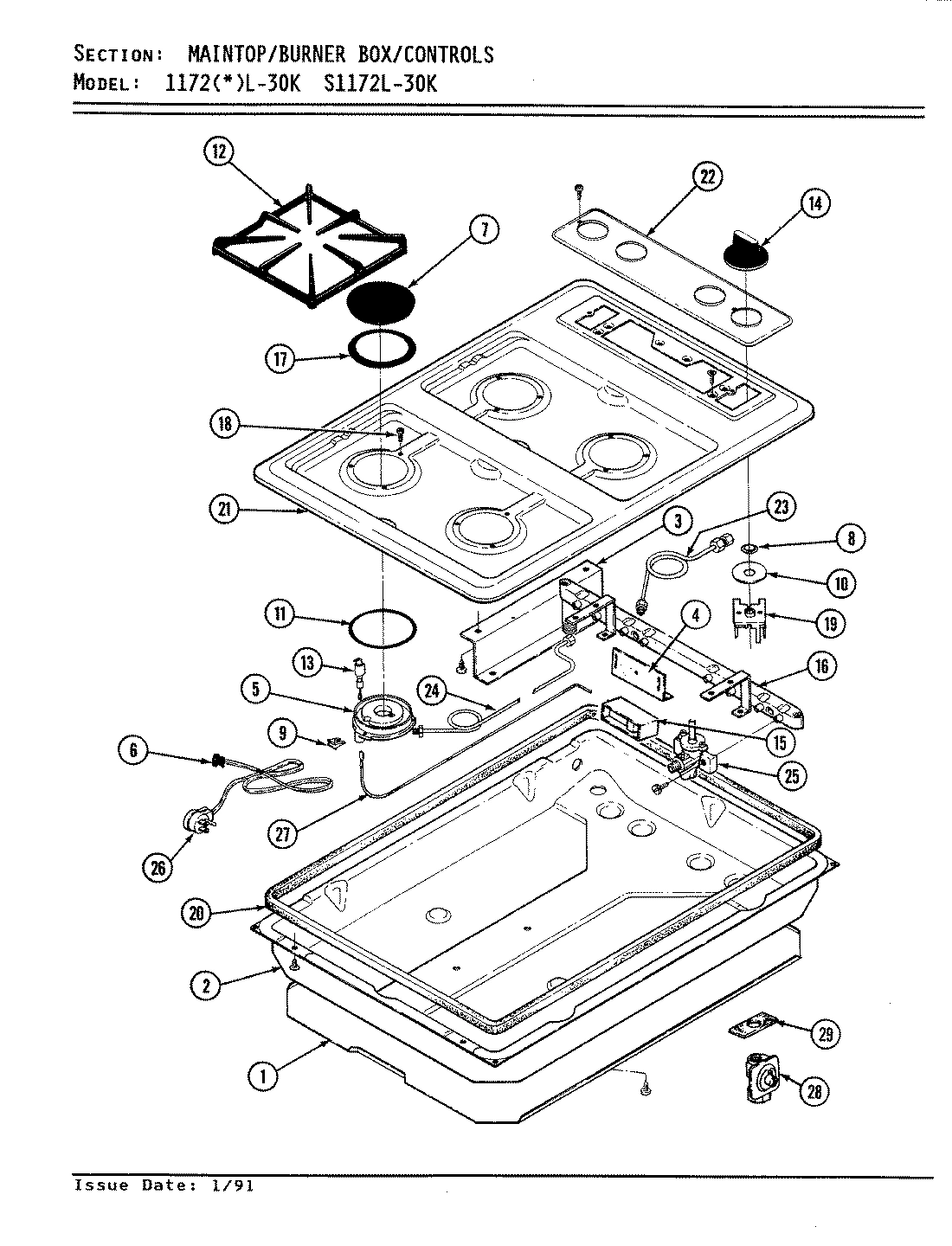

Model Whirlpool 1172WL-30K GAS COOK-TOP – Common Parts & Diagrams

1
BAFFLE, BOTTOM
BAFFLE, BOTTOM WPL 3601F18551 Contact Us For Availability
View on Model
1
BLOCK, DISCONNECT (PIN)
BLOCK, DISCONNECT (PIN) WPL 7401P01760 Contact Us For Availability
View on Model
1
BLOCK
BLOCK WPL 7401P01860 Contact Us For Availability
View on Model
1
SCREW, BLUNT END
SCREW, BLUNT END WPL 7718P00460 Contact Us For Availability
View on Model
2
BOTTOM, BURNER BOX
BOTTOM, BURNER BOX WPL 4011F12280 Contact Us For Availability
View on Model
2
SCREW
SCREW WPL 7101P26160 Contact Us For Availability
View on Model
3
BRACE, MAIN TOP
BRACE, MAIN TOP WPL 3802F07545 Contact Us For Availability
View on Model
4
BRACKET, TIE DOWN
BRACKET, TIE DOWN WPL 3801F19245 Contact Us For Availability
View on Model
4
BRACKET, SPARK MODULE
BRACKET, SPARK MODULE WPL 3801F22645 Contact Us For Availability
View on Model
5
BURNER ASSY
BURNER ASSY WPL 3403D01859 Contact Us For Availability
View on Model
6
BUSHING, SNAP
BUSHING, SNAP WPL 8007P00360 Contact Us For Availability
View on Model
7
CAP, BURNER
CAP, BURNER WPL 3403D01959 Contact Us For Availability
View on Model
8
CLIP
CLIP WPL 7112P02460 Contact Us For Availability
View on Model
9
CLIP
CLIP WPL 7112P07260 Contact Us For Availability
View on Model
10
COVER, BURNER VALVE
COVER, BURNER VALVE WPL 7724P00460 Contact Us For Availability
View on Model
11
GASKET, BURNER
GASKET, BURNER WPL 7201P03760 Contact Us For Availability
View on Model
12
GRATE, BLACK
GRATE, BLACK WPL 7518P01460 Contact Us For Availability
View on Model
13
IGNITER, BURNER
IGNITER, BURNER WPL 7432P05360 Contact Us For Availability
View on Model
14
KNOB, BURNER (BLACK)
KNOB, BURNER (BLACK) WPL 7733P04560 Contact Us For Availability
View on Model
15
SCREW
SCREW WPL 7101P04260 Contact Us For Availability
View on Model
15
MODULE, SPARK
MODULE, SPARK WPL 7431P01760 Contact Us For Availability
View on Model
16
PIPE, MANIFOLD
PIPE, MANIFOLD WPL 7513P08960 Contact Us For Availability
View on Model
17
RING, BLACK
RING, BLACK WPL 2014F00190 Contact Us For Availability
View on Model
18
SCREW
SCREW WPL 7101P25660 Contact Us For Availability
View on Model
19
SWITCH, BURNER
SWITCH, BURNER WPL 7403P19060 Contact Us For Availability
View on Model
20
TAPE, FOAM 94``
TAPE, FOAM 94`` WPL 8270P07360 Contact Us For Availability
View on Model
21
TOP, MAIN (WHITE)
TOP, MAIN (WHITE) WPL 2001W07981 Contact Us For Availability
View on Model
22
SCREW
SCREW WPL 7118P01060 Contact Us For Availability
View on Model
22
PLATE, NAME
PLATE, NAME WPL 7719P00860 Contact Us For Availability
View on Model
22
PANEL, CONTROL (BLK)
PANEL, CONTROL (BLK) WPL 7720P14660 Contact Us For Availability
View on Model
23
TUBING, TOP BURNER
TUBING, TOP BURNER WPL 7506P08460 Contact Us For Availability
View on Model
24
TUBE, TOP BURNER
TUBE, TOP BURNER WPL 7506P08360 Contact Us For Availability
View on Model
25
SCREW, CONTROL VALVE
SCREW, CONTROL VALVE WPL 7101P04360 Contact Us For Availability
View on Model
25
VALVE, TOP BURNER
VALVE, TOP BURNER WPL 7502P10660 Contact Us For Availability
View on Model
26
CORD, POWER
CORD, POWER WPL 7402P01460 Contact Us For Availability
View on Model
27
WIRE, IGNITER 13``
WIRE, IGNITER 13`` WPL 5110A09260 Contact Us For Availability
View on Model
27
WIRE, IGNITER 25``
WIRE, IGNITER 25`` WPL 5110A09360 Contact Us For Availability
View on Model
28
REGULATOR, PRESSURE
REGULATOR, PRESSURE WPL 7510P00260 Contact Us For Availability
View on Model
29
KIT, CONVERT NT. TO LP.
KIT, CONVERT NT. TO LP. WPL 5415A01960 Contact Us For Availability
View on Model
29
SEAL, MANIFOLD PIPE
SEAL, MANIFOLD PIPE WPL 7208P01960 Contact Us For Availability
View on Model
