Model Whirlpool 1171AH-30K GAS COOK-TOP – Common Parts & Diagrams

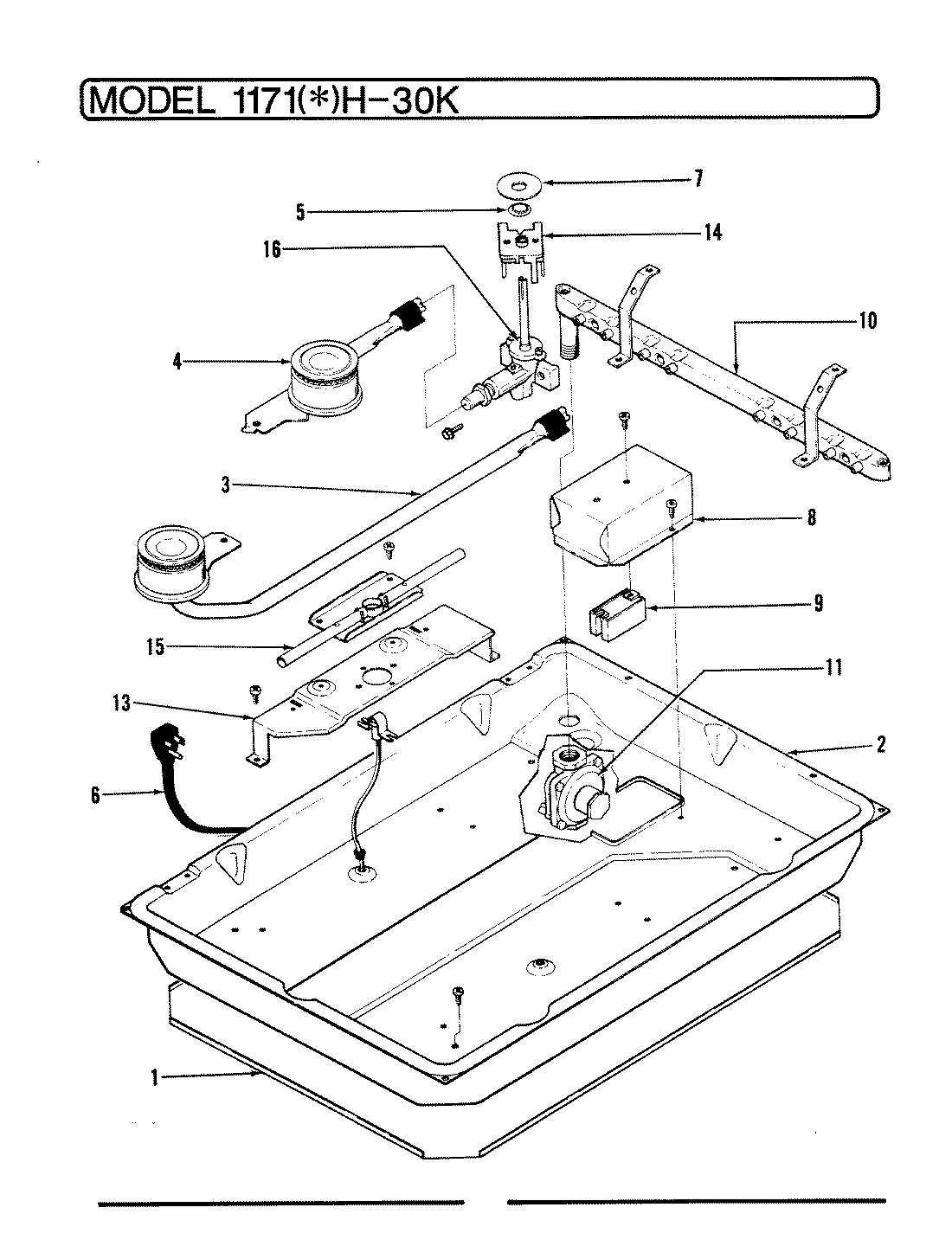

Common parts from model Whirlpool 1171AH-30K GAS COOK-TOP

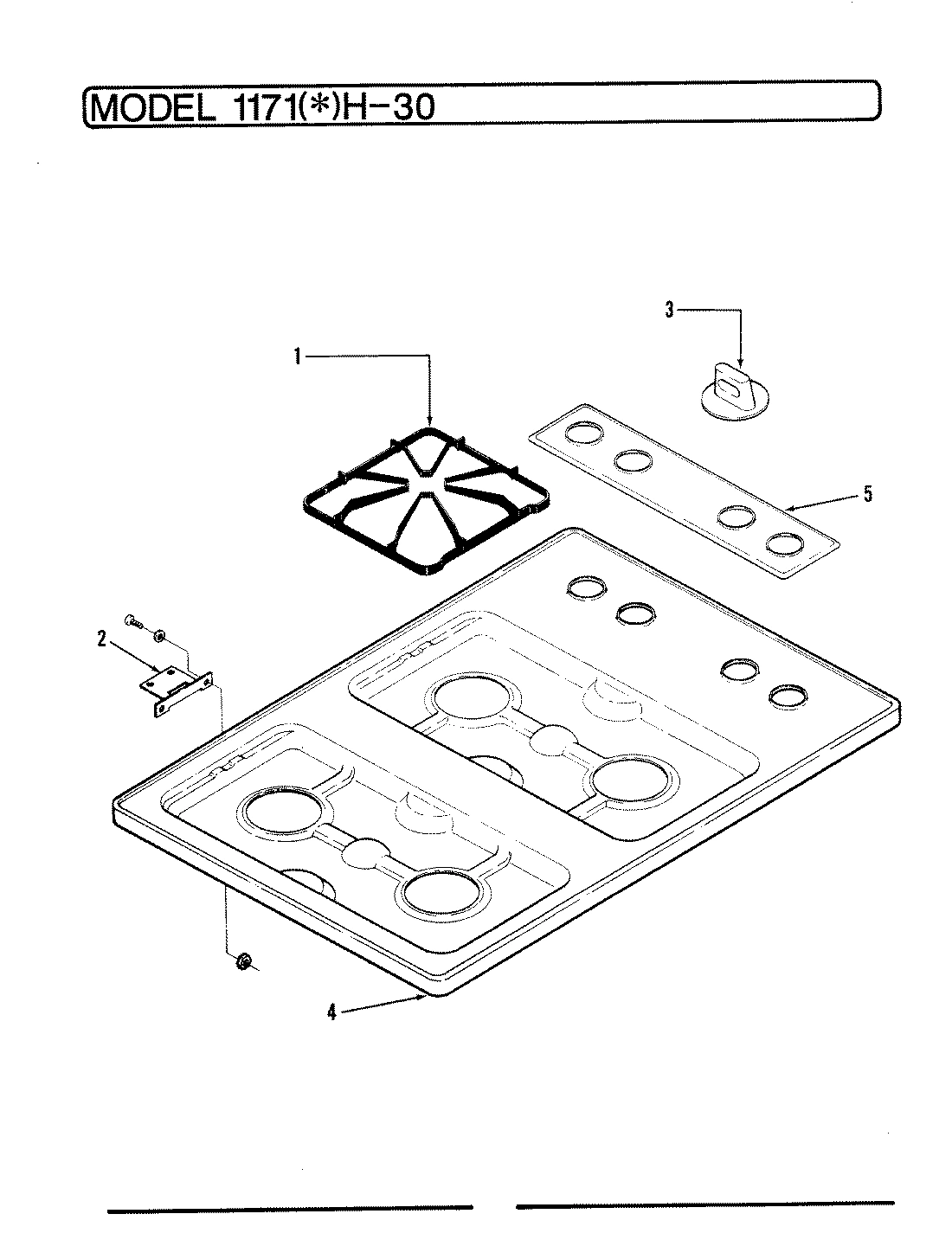

02 - TOP ASSY.

Print

• This Diagram
• All Diagrams

1

GRATE, BURNER WPL Y0G00300912 Contact Us For Availability

View on Model

1

BAFFLE, BOTTOM WPL 4E61701341 Contact Us For Availability

View on Model

2

HINGE, TOP WPL 0H01400511 Contact Us For Availability

View on Model

2

BOTTOM, BURNER BOX WPL 4E10105246 Contact Us For Availability

View on Model

3

KNOB, VALVE WPL Y0K01001743 Contact Us For Availability

View on Model

3

BURNER, ASY TOP -L WPL Y0B06103222 Contact Us For Availability

View on Model

4

TOP, MAIN WPL 4G080091MA Contact Us For Availability

View on Model

4

BURNER, ASY TOP -R WPL Y0B06103122 Contact Us For Availability

View on Model

5

TRIM, CONTROL PANEL WPL Y0T00500916 Contact Us For Availability

View on Model

5

CLIP, RETAINER SWITC WPL 0C00102699 Contact Us For Availability

View on Model

6

MANUAL, USE & CARE WPL 8110P00960 Contact Us For Availability

View on Model

6

MANUAL, USE & CARE WPL 8112P03060 Contact Us For Availability

View on Model

6

SET, CORD WPL Y0S05300199 Contact Us For Availability

View on Model

7

COVER, BURNER VALVE WPL Y0C03100499 Contact Us For Availability

View on Model

8

COVER, TRANSFORMER WPL 4G27203045 Contact Us For Availability

View on Model

9

MODULE, SPARK SURFAC WPL Y0M00700399 Contact Us For Availability

View on Model

10

PIPE, MANIFOLD WPL 0P07502799 Contact Us For Availability

View on Model

11

PRESSURE, REGULATOR WPL Y0R00302699 Contact Us For Availability

View on Model

12

IGNITOR, SPARK WPL Y0I00504799 Contact Us For Availability

View on Model

13

SUPPORT, BURNER WPL 4G55406326 Contact Us For Availability

View on Model

14

WP7403P190-60 Whirlpool Switch Backorder WPL WP7403P190-60 View Details $87.79

View on Model

15

TUBE, ASSY FLASH WPL Y0T02200716 Contact Us For Availability

View on Model

16

VALVE, BURNER WPL Y0V03012699 Contact Us For Availability

View on Model

×
