Model Whirlpool 1100PAW-KL GAS RANGE – Common Parts & Diagrams

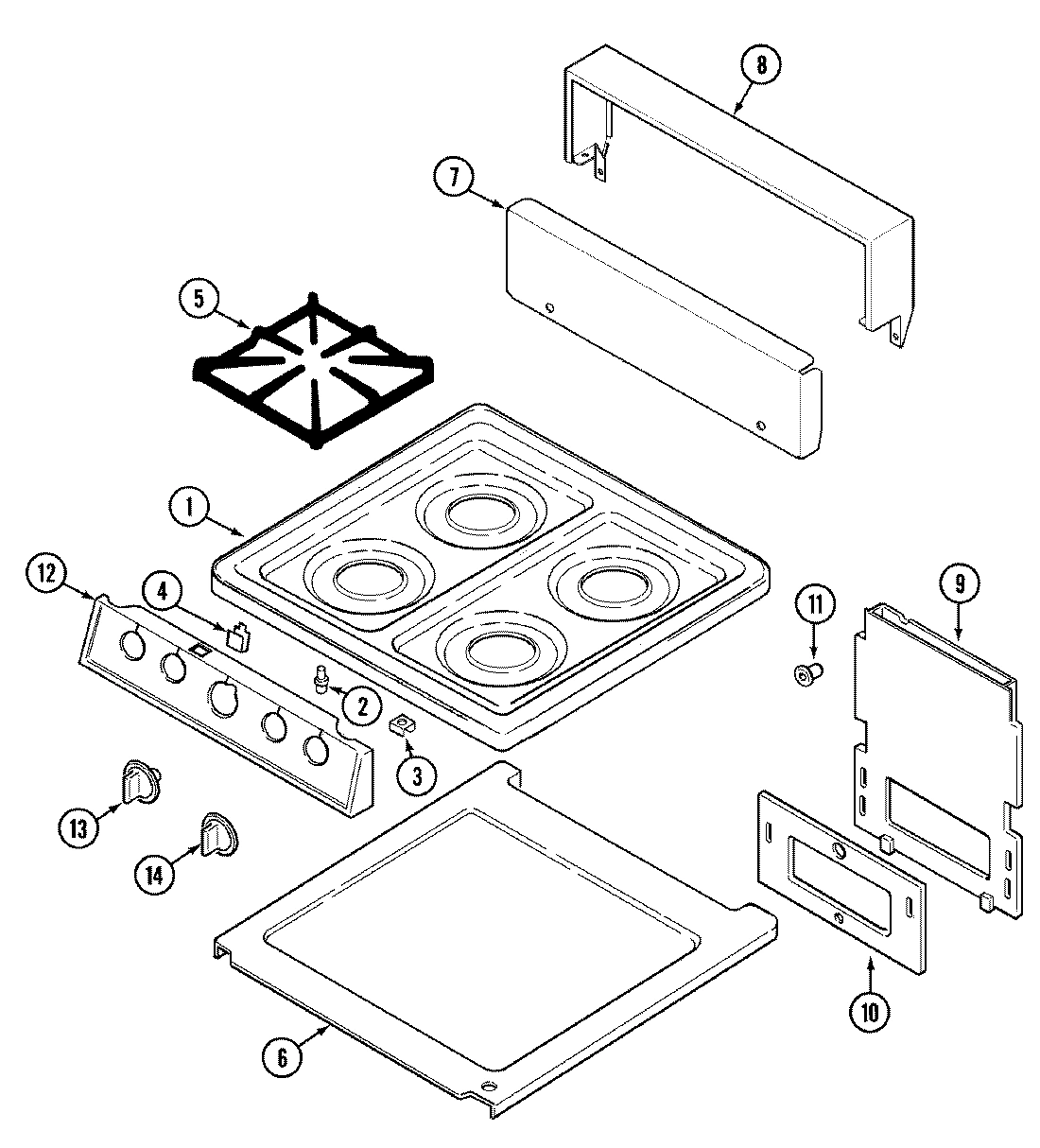

04 - TOP ASSEMBLY
05 - WIRING INFORMATION

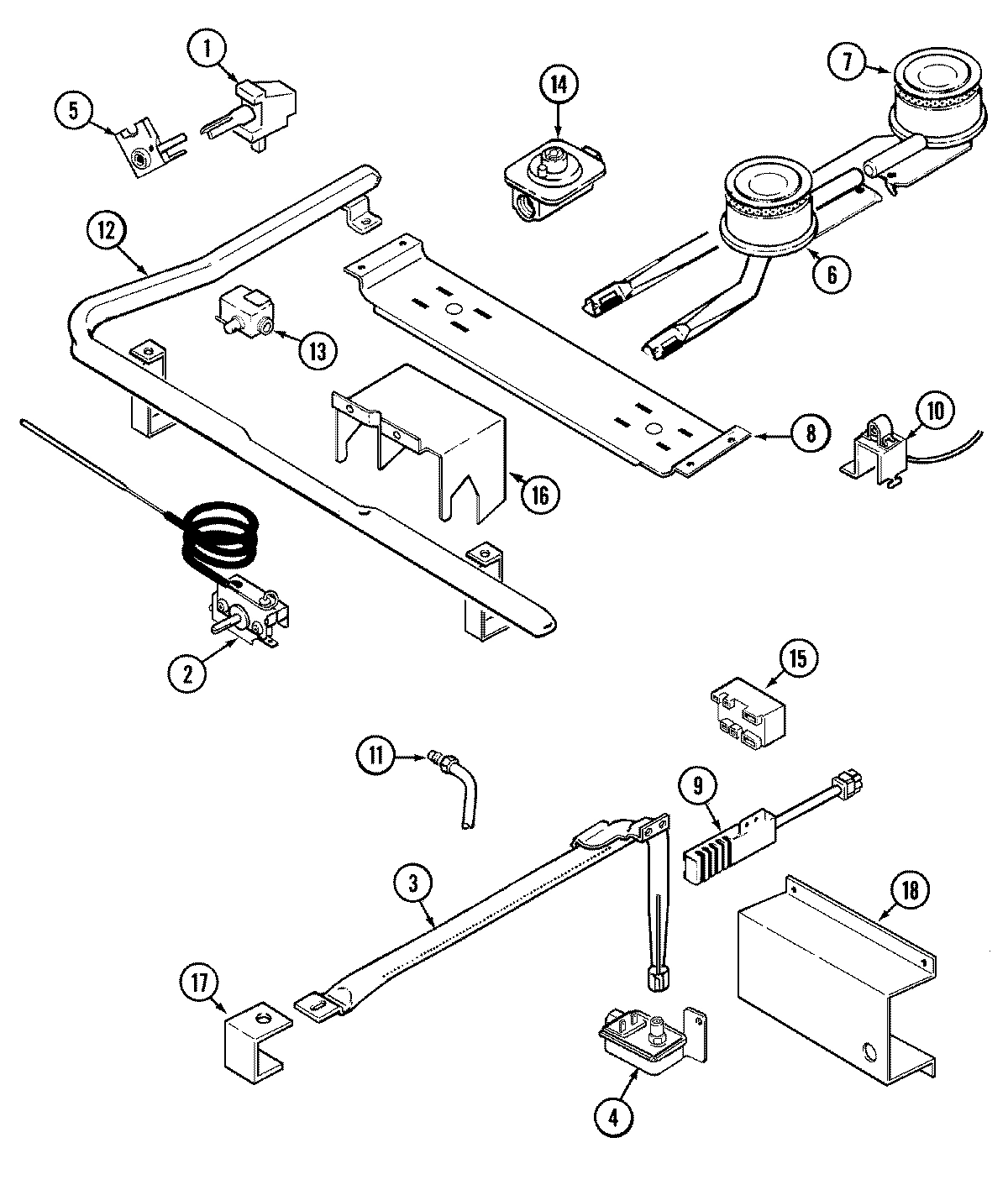

03 - GAS CONTROLS

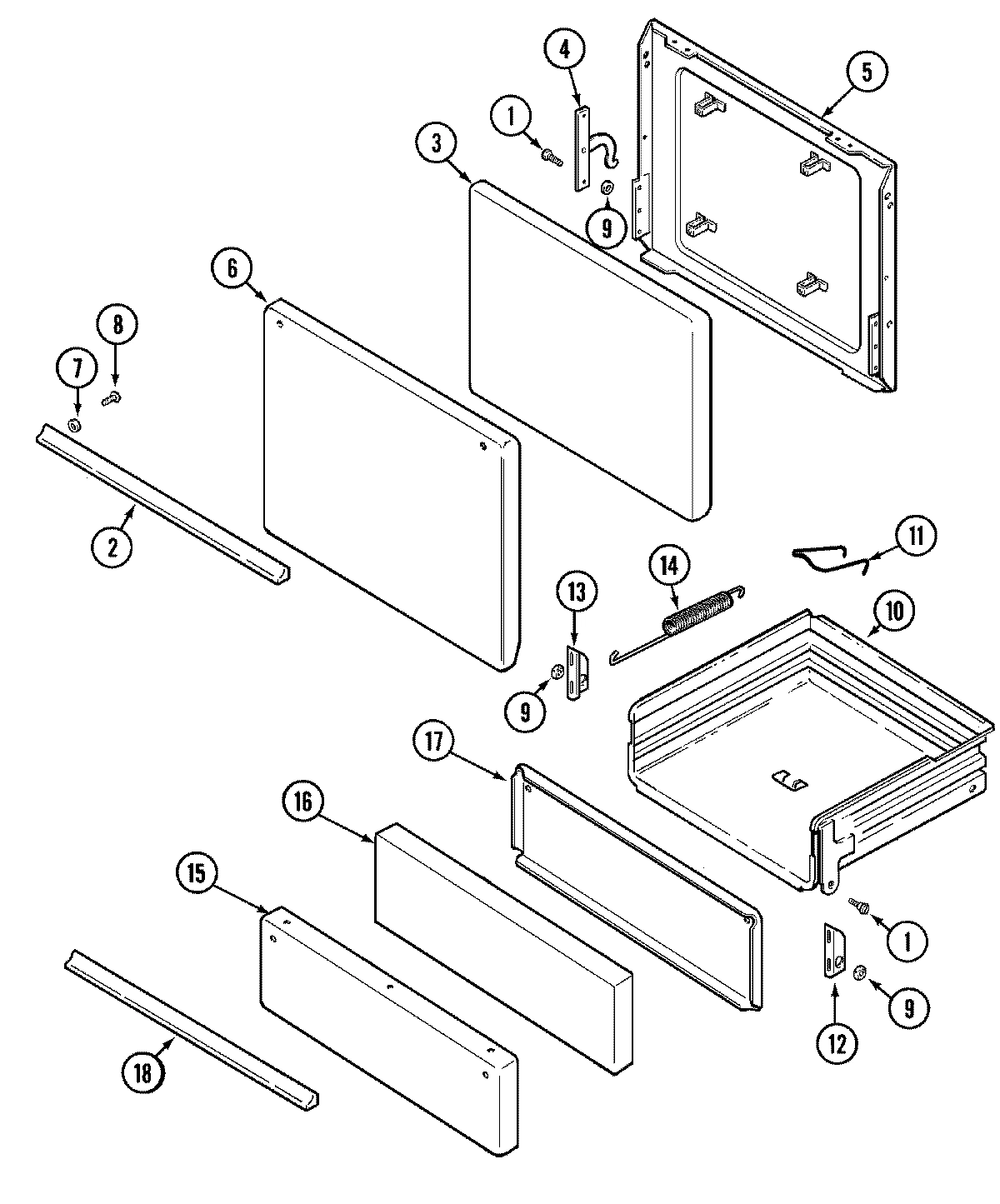

02 - DOOR/DRAWER

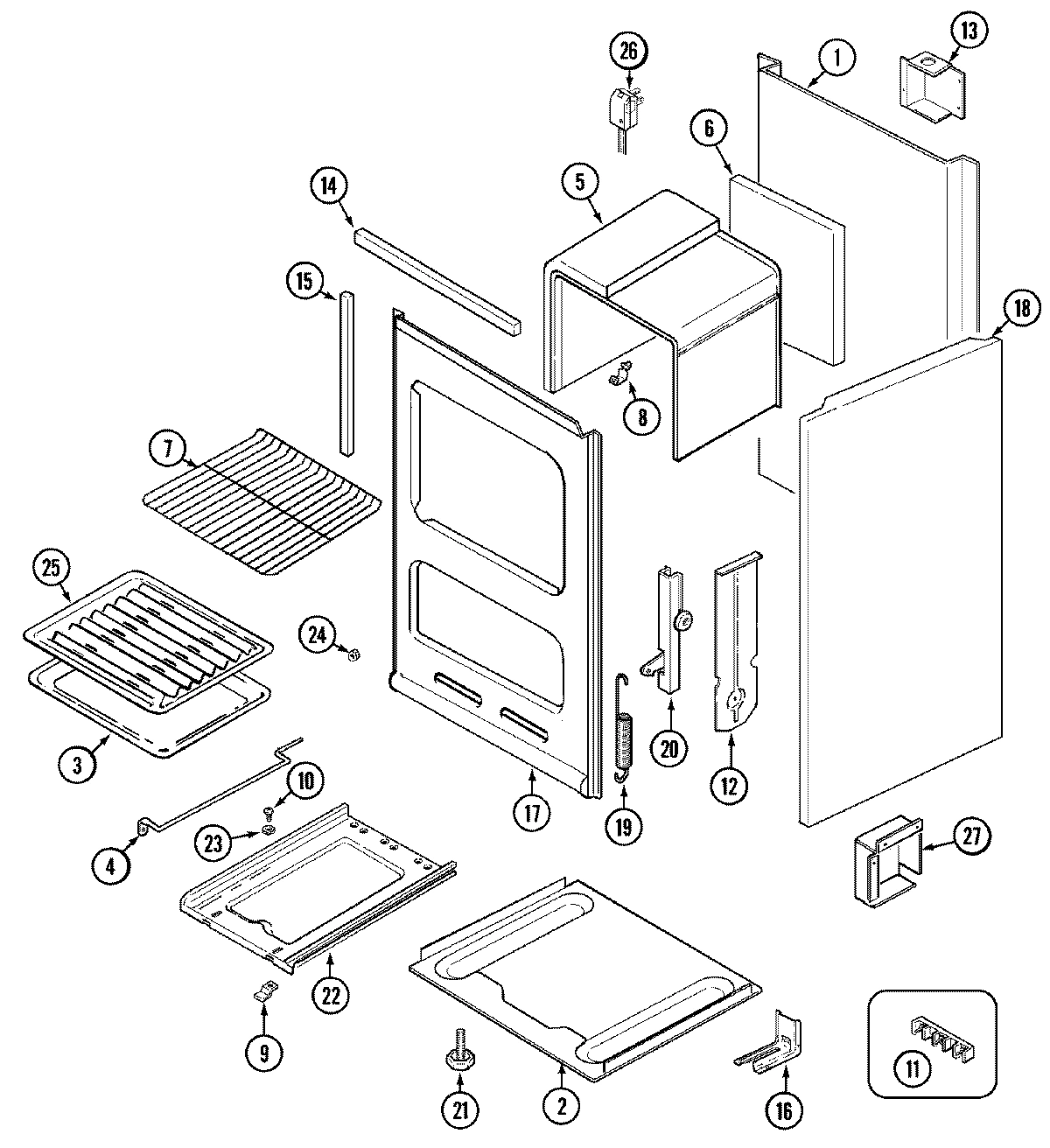

01 - BODY/OVEN
Common parts from model Whirlpool 1100PAW-KL GAS RANGE
1
TOP, MAIN (WHT) WPL 2001F05081 Contact Us For Availability
1
SCREW, VALVE WPL 7101P04460 Contact Us For Availability
1
VALVE, BURNER WPL 7502P24560 Contact Us For Availability
1
BOLT, SHOULDER WPL 7118P00960 Contact Us For Availability
1
BACK, MAIN WPL 4002F13780 Contact Us For Availability
2
STRIKE, MAIN TOP WPL 8024P00360 Contact Us For Availability
2
SCREW, BLACK WPL 7101P27060 Contact Us For Availability
2
THERMOSTAT, OVEN WPL 7404P06260 Contact Us For Availability
2
HANDLE, BROILER DOOR WPL 7701P06560 Contact Us For Availability
2
BASE, MAIN WPL 4003A01480 Contact Us For Availability
3
NUT, STRIKE WPL 7103P10560 Contact Us For Availability
3
OVEN BURNER ASSY. WPL 3403D04245 Contact Us For Availability
3
INSULATION, OVEN DOOR WPL 7002P10260 Contact Us For Availability
3
PAN, BROILER WPL 3401F01619 Contact Us For Availability
4
SPRING, CATCH - FEMALE WPL 8002P02260 Contact Us For Availability
4
SCREW WPL 7101P06860 Contact Us For Availability
4
SCREW WPL 7101P11560 Contact Us For Availability
4
VALVE, OVEN WPL 7501P10660 Contact Us For Availability
4
HINGE, OVEN DOOR WPL 3418F05334 Contact Us For Availability
4
ROD, BROILER RUNNER (LT) WPL 3808F00761 Contact Us For Availability
4
ROD, BROILER RUNNER (RT) WPL 3808F00861 Contact Us For Availability
5
GRATE (BLK) WPL 2003W02600 Contact Us For Availability
5
SWITCH WPL 7403P31860 Contact Us For Availability
5
LINING, DOOR WPL 2402W10219 Contact Us For Availability
5
INSULATION, OVEN WRAP WPL 7002P08360 Contact Us For Availability
6
BOX, BURNER WPL 4011F16480 Contact Us For Availability
6
BURNER, TOP (FRT) WPL 7505P17360 Contact Us For Availability
6
PANEL, DOOR (WHITE) WPL 2401W05981 Contact Us For Availability
6
INSULATION, OVEN BACK WPL 7002P09160 Contact Us For Availability
7
PANEL, BKGD WHT WPL 2601F21081 Contact Us For Availability
7
PLATE, NAME WPL 7719P00560 Contact Us For Availability
7
BURNER, TOP (REAR) WPL 7505P17260 Contact Us For Availability
7
NUT WPL 7103P03460 Contact Us For Availability
7
SPACER, DOOR HANDLE WPL 8010P02060 Contact Us For Availability
7
RACK, OVEN WPL 7801P01960 Contact Us For Availability
8
FRAME, BACKGUARD WPL 3603F01750 Contact Us For Availability
8
SUPPORT, TOP BURNER WPL 3807F35480 Contact Us For Availability
8
SCREW, CLAMP WPL 7101P08060 Contact Us For Availability
8
CLIP, CAPILLARY WPL 7112P05360 Contact Us For Availability
9
BOX FLUE VENT WPL 4006W06245 Contact Us For Availability
9
IGNITER, OVEN WPL 7432P07660 Contact Us For Availability
9
NUT LOCK WPL 7103P07260 Contact Us For Availability
9
CLIP, OVEN BOTTOM PL WPL 3819F01161 Contact Us For Availability
10
GASKET, VENT DEFLECT WPL 7201P03860 Contact Us For Availability
10
IGNITER, TOP BURNER (RT) WPL 7432P02860 Contact Us For Availability
10
IGNITER, TOP BURNER (LT) WPL 7432P02960 Contact Us For Availability
10
DRAWER, BROILER WPL 3407W00519 Contact Us For Availability
10
SCREW WPL 7118P00460 Contact Us For Availability
11
NUT, PROJECTION WELD WPL 7103P08960 Contact Us For Availability
11
TUBING, OVEN (3/8``) WPL 3414F08544 Contact Us For Availability
11
STOP, BROILER DRAWER WPL 7809P00460 Contact Us For Availability
11
BLOCK, TERMINAL WPL 7401P01560 Contact Us For Availability
12
PANEL, MANIFOLD (WHITE) WPL 2616F06971 Contact Us For Availability
12
SCREW WPL 7101P06160 Contact Us For Availability
12
NUT, TINNERMAN WPL 7103P10060 Contact Us For Availability
12
PIPE, MANIFOLD WPL 7513P14360 Contact Us For Availability
12
HINGE, BROILER DRAWER (RT) WPL 3418F03580 Contact Us For Availability
12
CHANNEL AIR SIDE WPL 3818F03451 Contact Us For Availability
13
KNOB, THERMOSTAT WPL 7731P04060 Contact Us For Availability
13
VALVE, SHUT OFF WPL 7502P00260 Contact Us For Availability
13
HINGE, BROILER DRAWER (LT) WPL 3418F03480 Contact Us For Availability
13
COVER WIRE ASSY WPL 4005F32645 Contact Us For Availability
14
KNOB, VALVE WPL 7733P01560 Contact Us For Availability
14
REGULATOR, PRESSURE WPL 7510P05260 Contact Us For Availability
14
SPRING, BROILER DRAWER WPL 7803P06860 Contact Us For Availability
14
SEAL, DOOR (TOP) WPL 7212P01460 Contact Us For Availability
15
MANUAL, USE & CARE WPL 8110P20860 Contact Us For Availability
15
MODULE, SPARK WPL 7431P00660 Contact Us For Availability
15
PANEL, DRAWER (WHT) WPL 2403W01971 Contact Us For Availability
15
SEAL, DOOR (SIDE) WPL 7212P01560 Contact Us For Availability
16
GUIDE, QUICK REF. - MAGIC CHEF WPL 16000329 Contact Us For Availability
16
COVER, THERMOSTAT WPL 4005F32051 Contact Us For Availability
16
INSULATION, BROILER DOOR WPL 7002P06760 Contact Us For Availability
16
BRACKET, ANTI-TIP WPL 3801F21851 Contact Us For Availability
16
SCREW, BRACKET WPL 7101P28960 Contact Us For Availability
17
SUPPORT, BURNER WPL 3807F33651 Contact Us For Availability
17
LINING DOOR BROILER WPL 2404F02219 Contact Us For Availability
17
FRONT, MAIN WPL 2201W04819 Contact Us For Availability
17
NUT 10-24 WPL 7103P07160 Contact Us For Availability
18
SUPPORT, OVEN VALVE WPL 3807F36945 Contact Us For Availability
18
SCREW, HANDLE WPL 7101P28360 Contact Us For Availability
18
HANDLE DOOR WPL 7701P04960 Contact Us For Availability
18
PANEL, SIDE WPL 2618F07071 Contact Us For Availability
18
PANEL, SIDE (WHT) WPL 74003185 Contact Us For Availability
19
WIRE, LOOSE WPL 5125A24160 Contact Us For Availability
19
HARNESS, LOWER WPL 5185D18960 Contact Us For Availability
19
SPRING, OVEN DOOR WPL 7803P03260 Contact Us For Availability
20
NUT WPL 7103P06460 Contact Us For Availability
20
SCREW WPL 7101P07260 Contact Us For Availability
20
SUPPORT, HINGE (LT) WPL 3807F29034 Contact Us For Availability
20
SUPPORT, HINGE (RT) WPL 3807F29134 Contact Us For Availability
20
SCREW, W/WASHER WPL 7101P18860 Contact Us For Availability
21
LEG, LEVELING WPL Y7101P25460 Contact Us For Availability
22
PLATE, OVEN BOTTOM WPL 5720A00323 Contact Us For Availability
23
WASHER WPL 7109P01560 Contact Us For Availability
24
NUT, EXPANSION WPL 7103P08060 Contact Us For Availability
25
INSERT PAN WPL 3413F00719 Contact Us For Availability
26
CORD, POWER WPL 7402P01860 Contact Us For Availability
26
MALE PIN TERMINAL WPL 7405P01660 Contact Us For Availability
26
FEMALE PIN TERMINAL WPL Y7405P01560 Contact Us For Availability
27
COVER, MODULE SPARK WPL 4005F31851 Contact Us For Availability
NI
WIRING INFORMATION WPL 15001858 Contact Us For Availability
× ![]()
