Model Whirlpool 1088WF-CKZ GAS RANGE – Common Parts & Diagrams
03 - DOOR

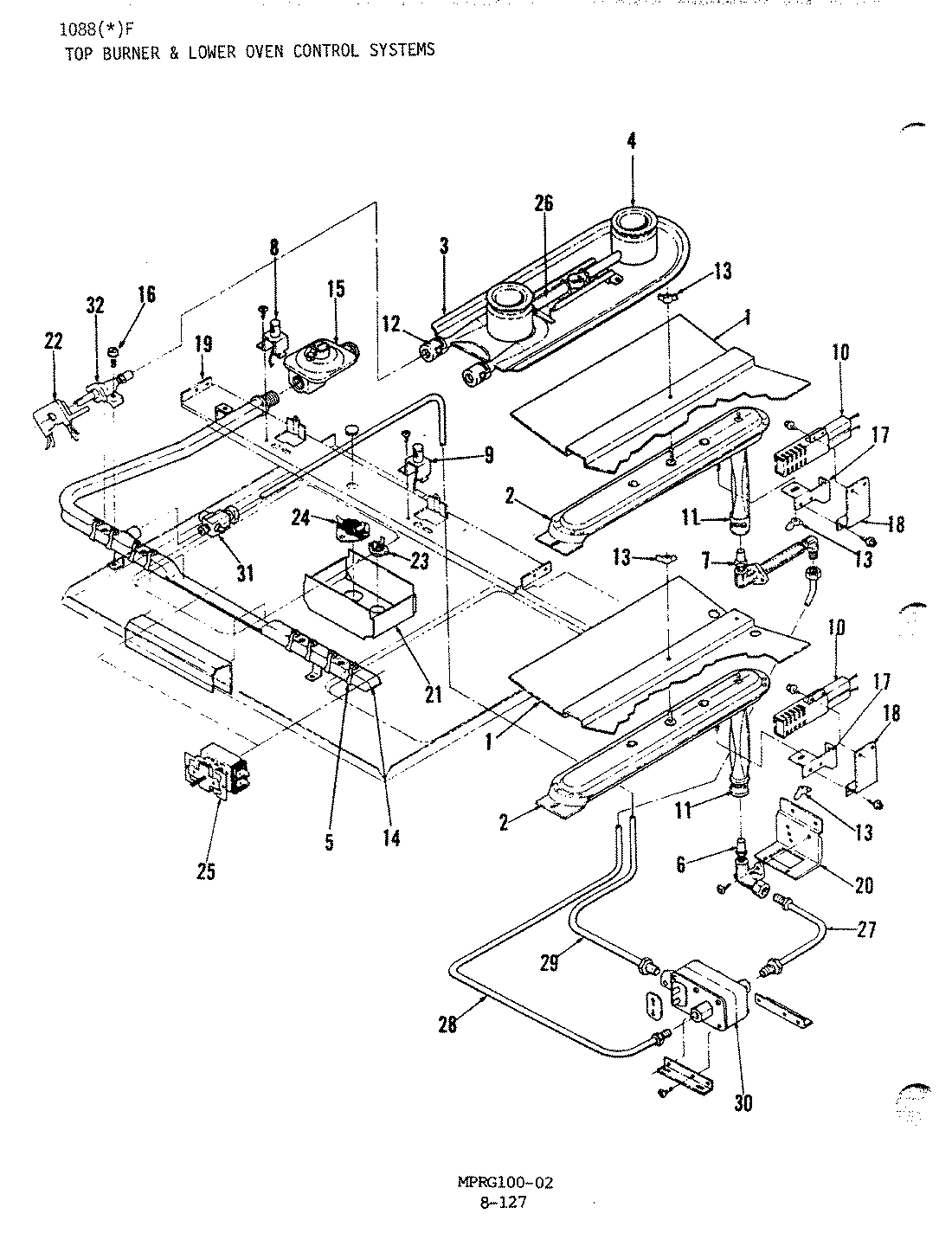

02 - CONTROL SYSTEM

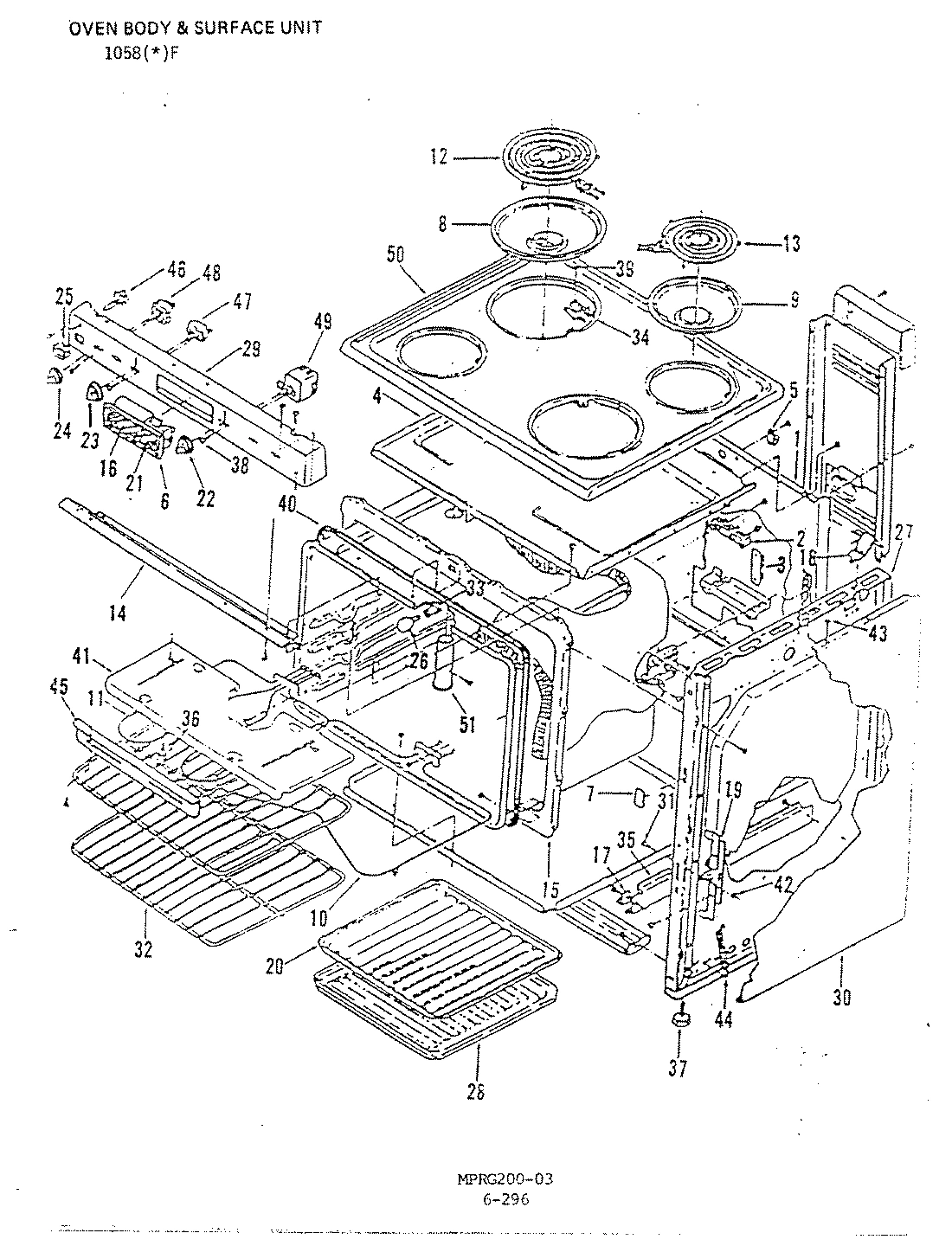

01 - BODY
Common parts from model Whirlpool 1088WF-CKZ GAS RANGE
1
BUMPER DOOR (ROUND) WPL 8003P00260 Contact Us For Availability
1
BAFFLE, BAKE & BROIL WPL 3601F08015 Contact Us For Availability
1
BACK, BRL SECTION WPL 4002F04545 Contact Us For Availability
2
CLIP, DOOR WPL 7112P03460 Contact Us For Availability
2
FRAME, BROILER DOOR WPL 7706P01560 Contact Us For Availability
2
BURNER ASSY., OVEN WPL 0298234 Contact Us For Availability
2
BURNER, OVEN WPL 7505P06460 Contact Us For Availability
2
BACK, MAIN WPL 4002F04680 Contact Us For Availability
2
BACK, MAIN WPL 4002J028 Contact Us For Availability
3
GASKET, WINDOW WPL 7201P01860 Contact Us For Availability
3
FRAME, OVN DOOR WPL 7706E007 Contact Us For Availability
3
FRAME, WINDOW WPL 7706P17760 Contact Us For Availability
3
FRAME, DOOR WPL 7706P17860 Contact Us For Availability
3
FRAME, OVEN DOOR WPL 7706P22260 Contact Us For Availability
3
FRAME, DOOR WPL 7706P24360 Contact Us For Availability
3
UNI-BURNER ASSY WPL 3412A00423 Contact Us For Availability
3
BAFFLE, OVEN FRONT (UPPER) WPL 3601W11715 Contact Us For Availability
3
BLOCK, DISCONNECT WPL 7401P01260 Contact Us For Availability
3
BLOCK, TERMINAL WPL 7401P01560 Contact Us For Availability
4
GLASS, INNER WPL 7902P09760 Contact Us For Availability
4
CAP, BURNER WPL 7504P00160 Contact Us For Availability
4
BOLT WPL 7116P00360 Contact Us For Availability
5
GLASS, DOOR WPL 7902P06560 Contact Us For Availability
5
GLASS, WINDOW OUTER WPL 7902P10160 Contact Us For Availability
5
GLASS, WINDOW WPL 7902P10360 Contact Us For Availability
5
CLIP WPL 1141225 Contact Us For Availability
5
BOTTOM, OVEN WPL 2205F01215 Contact Us For Availability
5
BOX, BURNER WPL 4011F07580 Contact Us For Availability
6
LINING, BRO SIDE WPL 2404F01623 Contact Us For Availability
6
HANDLE, DOOR WPL 7701P04760 Contact Us For Availability
6
INSERT, OVEN DOOR HANDLE WPL 7728P01260 Contact Us For Availability
6
FITTING WPL 1285325 Contact Us For Availability
6
BRACKET WPL 3801F02045 Contact Us For Availability
6
BRACKET WPL 3801F09351 Contact Us For Availability
6
BRACKET, DRAWER WPL 3801F11551 Contact Us For Availability
6
BRACE WPL 3802F00380 Contact Us For Availability
6
BRACE WPL 3802F04880 Contact Us For Availability
6
BOX, FLUE WPL 4006W02615 Contact Us For Availability
7
LINING, DOOR WPL 2402W12515 Contact Us For Availability
7
LINING WPL 2402W12815 Contact Us For Availability
7
PAD, INNER OV DR WPL 2410F01151 Contact Us For Availability
7
PAD, INNER WPL 2410F01651 Contact Us For Availability
7
FITTING WPL 7507P01960 Contact Us For Availability
7
BRACKET WPL 3801F02451 Contact Us For Availability
7
BRACKET,CONTROL PANEL (R) WPL 3801F04734 Contact Us For Availability
7
BRACKET,CONTROL PANEL (L) WPL 3801F04934 Contact Us For Availability
7
BRACKET WPL 3801F06045 Contact Us For Availability
8
PAD, DOOR WPL 2410W02915 Contact Us For Availability
8
PANEL, STORAGE DOOR BLK WPL 2416F02770 Contact Us For Availability
8
PAD, OVEN DOOR WPL 2430H019 Contact Us For Availability
8
IGNITER, BAKE BURNER WPL 7432P05260 Contact Us For Availability
8
BRACKET, SPACER RT WPL 3801F08480 Contact Us For Availability
8
BRACKET, MANIFOLD RH WPL 3801F08845 Contact Us For Availability
8
BRACKET, TIE DOWN WPL 3801F10180 Contact Us For Availability
8
BRACKET, CLOCK MTG WPL 3801F11351 Contact Us For Availability
8
RIVET WPL 7107P01760 Contact Us For Availability
9
CATCH, DOOR LOCK WPL 8002P02160 Contact Us For Availability
9
RETAINER, GLASS WPL 3804F05180 Contact Us For Availability
9
IGNITER WPL 7432P01460 Contact Us For Availability
10
SCREW, FRAME WPL 7101P12660 Contact Us For Availability
10
IGNITER WPL 7432P00660 Contact Us For Availability
10
IGNITER, TOP BURNER WPL 7432P01560 Contact Us For Availability
10
CHANNEL, AIR WPL 3818F02545 Contact Us For Availability
10
CHANNEL - AIR DUCT WPL 3818F03280 Contact Us For Availability
11
SEAL WPL 7208P00260 Contact Us For Availability
11
SEAL, SILASTIC WPL 7208P00760 Contact Us For Availability
11
MIXER, AIR WPL 3411F00144 Contact Us For Availability
12
CLIP, HINGE PIN WPL 7112P01960 Contact Us For Availability
13
NUT, WING WPL 7103P03060 Contact Us For Availability
13
CLIP, LATCH HANDLE WPL 7112P00360 Contact Us For Availability
13
CLIP, THERMOSTAT WPL 7112P00460 Contact Us For Availability
14
PIPE, MANIFOLD WPL 7513P04460 Contact Us For Availability
14
CLIP, TOP RETAINER WPL 7112P03060 Contact Us For Availability
15
REGULATOR, PRESSURE WPL 7510P00460 Contact Us For Availability
15
+ CLOCK, SELF CLEAN $75 WPL 7601P04260 Contact Us For Availability
15
CLOCK WPL 7601P05760 Contact Us For Availability
15
CLOCK WPL 7601P06360 Contact Us For Availability
16
SCREW, VALVE WPL 7101P04460 Contact Us For Availability
16
COVER, CATCH ASSY. WPL 4005F13780 Contact Us For Availability
17
SUPPORT WPL 3807F07045 Contact Us For Availability
17
COVER, MODULE WPL 4005F17680 Contact Us For Availability
18
SUPPORT WPL 3807F11845 Contact Us For Availability
18
COVER, SWITCH WPL 4005F13951 Contact Us For Availability
18
COVER, OVEN VALVE WPL 4005F25851 Contact Us For Availability
19
SUPPORT, THERM DISC WPL 3807F21951 Contact Us For Availability
20
SUPPORT WPL 3807F08080 Contact Us For Availability
20
SUPPORT, TOP BURNER WPL 3807F21080 Contact Us For Availability
20
FRONT, BURNER BOX WPL 4012F01380 Contact Us For Availability
21
SUPPORT WPL 3807F12034 Contact Us For Availability
21
GASKET WPL 7201P01360 Contact Us For Availability
22
SWITCH, TOP BURNER WPL 7403P04160 Contact Us For Availability
22
GASKET, HOUSING WPL 7201P01460 Contact Us For Availability
22
GASKET, LAMP RETAINER WPL 7201P01560 Contact Us For Availability
23
SWITCH WPL 1832404 Contact Us For Availability
23
GASKET, VENT WPL 7201P02360 Contact Us For Availability
23
GASKET, OVEN WPL 7201P03660 Contact Us For Availability
24
GLASS, LAMP GUARD WPL 7902P05760 Contact Us For Availability
25
GLASS, CLOCK WPL 7902P02760 Contact Us For Availability
26
3/8 X 72 TUBING WPL Y0936102 Contact Us For Availability
26
GRATE WPL 2003W00100 Contact Us For Availability
27
3/8 X 8 TUBING WPL Y0936104 Contact Us For Availability
27
HANDLE, LATCH (BLK) WPL 7701P06860 Contact Us For Availability
28
3/8 X 45 TUBING WPL Y0936103 Contact Us For Availability
28
HINGE, OVEN DOOR (LT) WPL 3418F02934 Contact Us For Availability
28
HINGE, OVEN DOOR (RT) WPL 3418F03034 Contact Us For Availability
29
TUBE, FLASH WPL 7506P00660 Contact Us For Availability
29
INSERT, BROIL PAN WPL 3413F00223 Contact Us For Availability
29
HOUSING WPL 4001F02015 Contact Us For Availability
30
VALVE, OVEN WPL 7501P01960 Contact Us For Availability
30
KNOB, CLOCK WPL 7711P12660 Contact Us For Availability
31
VALVE, SHUT OFF WPL 7502P00260 Contact Us For Availability
31
KNOB, SELECTOR WPL 7711P09960 Contact Us For Availability
32
VALVE WPL 7502P03160 Contact Us For Availability
32
KNOB, THERM WPL 7711P10460 Contact Us For Availability
33
KNOB, VALVE WPL 7711P17460 Contact Us For Availability
34
LEVER, DOOR LOCK WPL 8009P00360 Contact Us For Availability
34
LEVER, DOOR LOCK WPL 8009P00760 Contact Us For Availability
35
BULB, OVEN WPL 7407P02660 Contact Us For Availability
36
LIGHT, SIGNAL WPL 7407P02860 Contact Us For Availability
36
LIGHT, INDICATOR WPL 7407P03660 Contact Us For Availability
37
LINING ASSY, INNER SIDE WPL 4009W03880 Contact Us For Availability
38
LINK, SWITCH WPL 7807P00460 Contact Us For Availability
39
MODULE, SPARK WPL 7431P00660 Contact Us For Availability
40
TRIM ASSY, MANIFOLD WPL 7712A01960 Contact Us For Availability
40
PANEL, MANIFOLD WPL 7722P04060 Contact Us For Availability
41
PANEL, WPL 2618F05271 Contact Us For Availability
41
WPL 2618F05274 WPL 2618F05274 Contact Us For Availability
41
WPL 2618F05276 WPL 2618F05276 Contact Us For Availability
41
WPL 2618F05277 WPL 2618F05277 Contact Us For Availability
41
WPL 2618F05278 WPL 2618F05278 Contact Us For Availability
42
WPL 7113P00260 WPL 7113P00260 Contact Us For Availability
43
WPL 7801P03160 WPL 7801P03160 Contact Us For Availability
44
WPL 7408P00260 WPL 7408P00260 Contact Us For Availability
45
WPL 3804F01245 WPL 3804F01245 Contact Us For Availability
46
WPL 7101P05560 WPL 7101P05560 Contact Us For Availability
47
WPL 3604F01651 WPL 3604F01651 Contact Us For Availability
48
WPL 3604F08551 WPL 3604F08551 Contact Us For Availability
49
WPL 3420A03334 WPL 3420A03334 Contact Us For Availability
49
WPL 7803P00260 WPL 7803P00260 Contact Us For Availability
50
WPL 3807F195 WPL 3807F195 Contact Us For Availability
51
WPL 3807F19345 WPL 3807F19345 Contact Us For Availability
52
WPL 3807F20545 WPL 3807F20545 Contact Us For Availability
53
WPL 3807F22180 WPL 3807F22180 Contact Us For Availability
54
WPL 7403P07760 WPL 7403P07760 Contact Us For Availability
55
WPL 7403P10260 WPL 7403P10260 Contact Us For Availability
56
WPL 7403E015 WPL 7403E015 Contact Us For Availability
56
WPL 7403P09260 WPL 7403P09260 Contact Us For Availability
57
WPL 7403P09160 WPL 7403P09160 Contact Us For Availability
58
WPL 7403P00460 WPL 7403P00460 Contact Us For Availability
59
WPL 7515P00560 WPL 7515P00560 Contact Us For Availability
59
WPL 7515P02060 WPL 7515P02060 Contact Us For Availability
× ![]()
