Model Whirlpool 1068WH-CHZW ELECTRIC RANGE – Common Parts & Diagrams

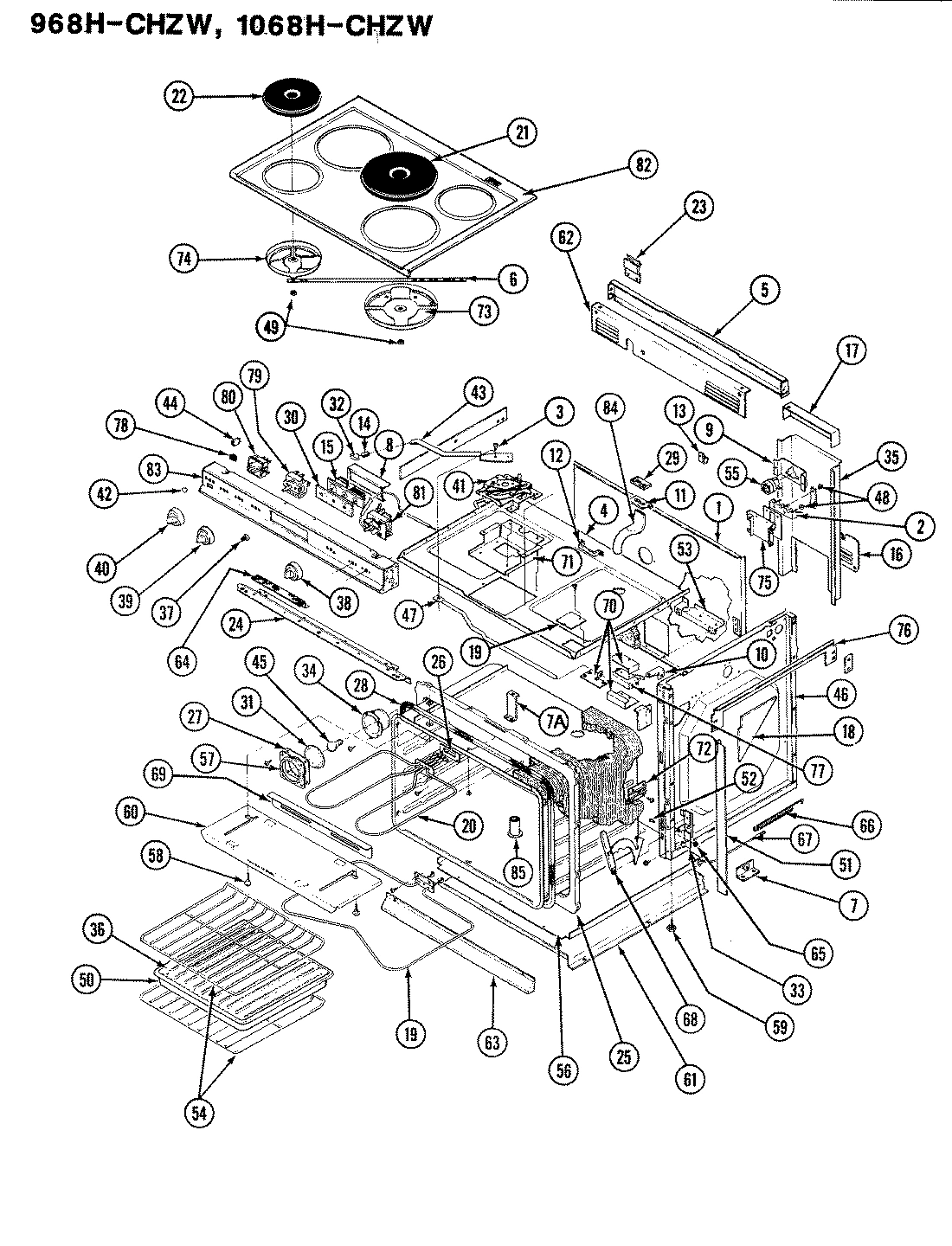

01 - BODY

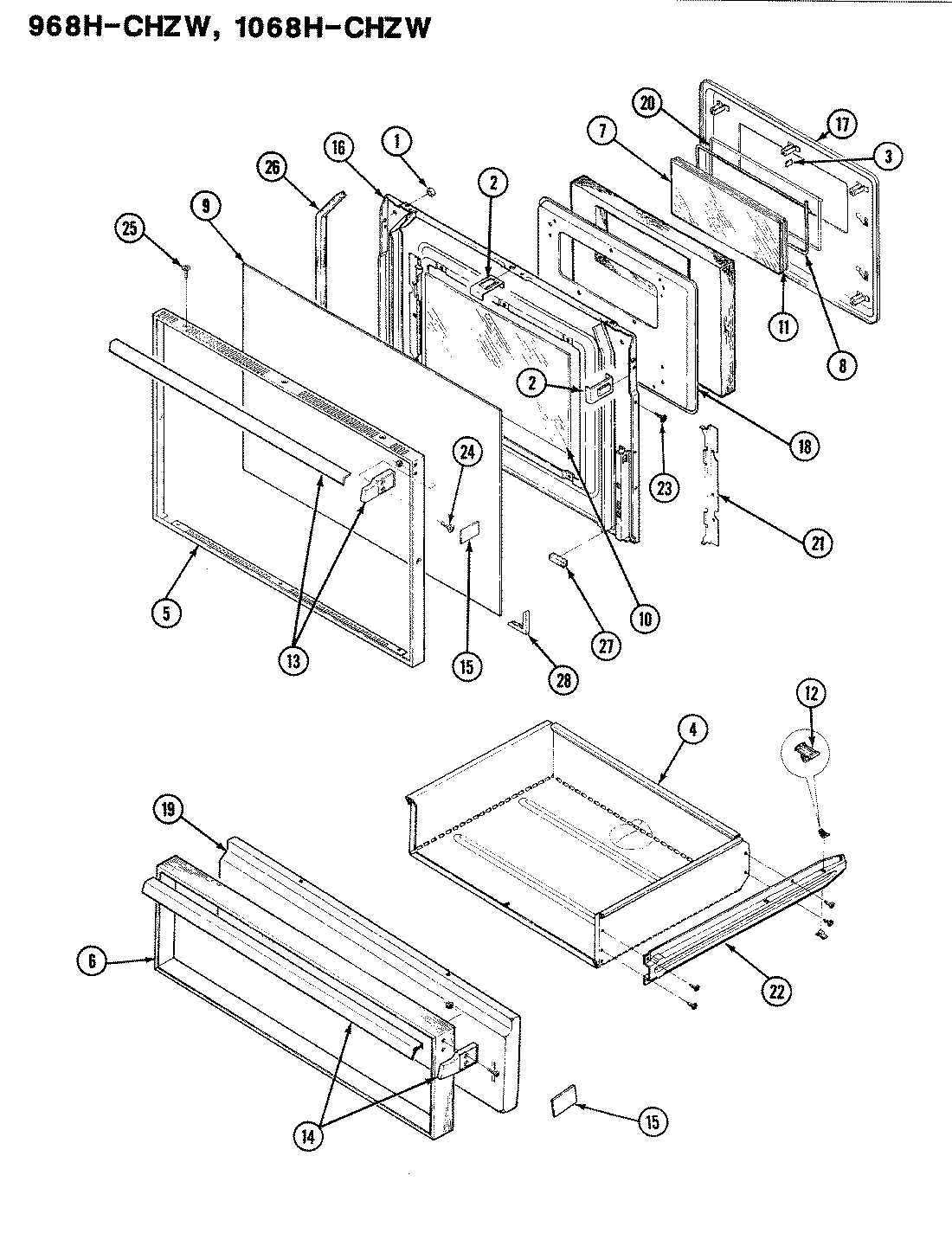

02 - DOOR
Common parts from model Whirlpool 1068WH-CHZW ELECTRIC RANGE
1
BAFFLE, SIDE PANEL WPL 3601F10651 Contact Us For Availability
1
BACK, MAIN WPL 4002F09220 Contact Us For Availability
1
BRACKET, DRAWER WPL 3801F11551 Contact Us For Availability
1
BUMPER DOOR (ROUND) WPL 8003P00260 Contact Us For Availability
2
BLOCK, TERMINAL WPL 7401P00260 Contact Us For Availability
2
CLIP, DOOR WPL 7112P03460 Contact Us For Availability
3
BOLT WPL 7116P00360 Contact Us For Availability
3
CLIP, RETAINER WPL 7112P05160 Contact Us For Availability
4
BRACE WPL 3802F00320 Contact Us For Availability
4
BOTTOM, BURNER BOX WPL 4011F13380 Contact Us For Availability
4
DRAWER, SERVICE WPL 3405F00880 Contact Us For Availability
5
BRACE, MAIN TOP WPL 3802F07180 Contact Us For Availability
5
FRAME, DOOR WPL 7706P24360 Contact Us For Availability
6
BRACKET WPL 3801F10051 Contact Us For Availability
6
FRAME WPL 7706P18060 Contact Us For Availability
7
BRACKET WPL 3801F09351 Contact Us For Availability
7
FRAME, WINDOW WPL 7706P17760 Contact Us For Availability
8
BRACKET, CLOCK MTG WPL 3801F11351 Contact Us For Availability
8
GASKET, WINDOW WPL 7201P01860 Contact Us For Availability
9
BRACKET WPL 3801F02451 Contact Us For Availability
9
GLASS, DOOR WPL 7902P27660 Contact Us For Availability
10
BRACKET,CONTROL PANEL (R) WPL 3801F04734 Contact Us For Availability
10
BRACKET,CONTROL PANEL (L) WPL 3801F04934 Contact Us For Availability
10
GLASS, INNER WPL 7902P09760 Contact Us For Availability
11
BRACKET, SPACER RT WPL 3801F08480 Contact Us For Availability
11
BRACKET, TIE DOWN WPL 3801F10180 Contact Us For Availability
11
BRACKET, SEAL WPL 3801F12651 Contact Us For Availability
11
GLASS, WINDOW OUTER WPL 7902P10160 Contact Us For Availability
11
GLASS, WINDOW WPL 7902P10360 Contact Us For Availability
12
BRACKET, VENT WPL 3801F12251 Contact Us For Availability
12
CHANNEL, WIRE SIDE WPL 3818F02251 Contact Us For Availability
12
CHANNEL, SWITCH LOCK WPL 3818F027 Contact Us For Availability
12
GLIDE, DRAWER WPL 8016P00460 Contact Us For Availability
12
GLIDE, FRONT WPL 8016P00560 Contact Us For Availability
13
CLAMP, WIRE 3/4 WPL 7111P00260 Contact Us For Availability
13
HANDLE, DOOR WPL 7701P04760 Contact Us For Availability
14
CLIP, LATCH HANDLE WPL 7112P00360 Contact Us For Availability
14
CLIP, THERMOSTAT WPL 7112P00460 Contact Us For Availability
14
CLIP, TOP RETAINER WPL 7112P04260 Contact Us For Availability
15
CLOCK WPL 7601P06360 Contact Us For Availability
15
INSERT, OVEN DOOR HANDLE WPL 7728P01260 Contact Us For Availability
16
SHIELD WPL 4005F01380 Contact Us For Availability
16
COVER, BKGD WIRE WPL 4005F02880 Contact Us For Availability
16
LINING WPL 2402W12815 Contact Us For Availability
17
COVER, HOUSING WPL 4005F08280 Contact Us For Availability
17
PAD ASSY, OV. DR. WPL 2410W02912 Contact Us For Availability
18
COVER, SWITCH WPL 4005F16351 Contact Us For Availability
18
PAD, INNER WPL 2410F01651 Contact Us For Availability
19
ELEMENT,BAKE WPL 7406P01060 Contact Us For Availability
19
PANEL, SVR DRAWER BLACK WPL 2416F01970 Contact Us For Availability
20
ELEMENT,BROIL WPL 7406P00360 Contact Us For Availability
20
RETAINER WPL 3804F02245 Contact Us For Availability
21
ELEMENT, SOLID DISC (8``) WPL 7406P02460 Contact Us For Availability
21
RETAINER, GLASS WPL 3804F05180 Contact Us For Availability
22
ELEMENT (6``) WPL 7406P02360 Contact Us For Availability
22
KIT, BACKGUARD WPL 7706P00260 Contact Us For Availability
22
RUNNER, INNER WPL 3406F02080 Contact Us For Availability
22
RUNNER, OUTER WPL 3406J007 Contact Us For Availability
23
RIVET WPL 7107P01760 Contact Us For Availability
23
FILLER, STRIP WPL 7706P00960 Contact Us For Availability
23
HINGE, MAIN TOP WPL 7706P17060 Contact Us For Availability
24
FRONT,BURNER BOX BOTTOM WPL 4012F01880 Contact Us For Availability
24
SCREW WPL 7101P12360 Contact Us For Availability
25
FRONT, OVEN UPPER WPL 2201F06123 Contact Us For Availability
25
SCREW, LEVELING WPL 7101P25560 Contact Us For Availability
25
SCREW, FRAME WPL 7101P12660 Contact Us For Availability
26
GASKET, ELEMENT WPL 7201P00360 Contact Us For Availability
26
GASKET, HOUSING WPL 7201P01460 Contact Us For Availability
26
SEAL WPL 7208P00260 Contact Us For Availability
27
GASKET, LAMP RETAINER WPL 7201P01560 Contact Us For Availability
27
SEAL, SILASTIC WPL 7208P00760 Contact Us For Availability
27
SEAL, RUBBER WPL 7208P01160 Contact Us For Availability
28
GASKET, OVEN WPL 7201P03660 Contact Us For Availability
28
SPACER, GLASS CORNER WPL 8010P04560 Contact Us For Availability
29
GASKET, VENT WPL 7201P02860 Contact Us For Availability
30
GLASS, CLOCK WPL 7902P02760 Contact Us For Availability
32
HANDLE, LATCH (BLK) WPL 7701P06860 Contact Us For Availability
33
HINGE, OVEN DOOR (LT) WPL 3418F02934 Contact Us For Availability
33
HINGE, OVEN DOOR (RT) WPL 3418F03034 Contact Us For Availability
34
HOUSING, OVEN LIGHT WPL 4001F02011 Contact Us For Availability
35
HOUSING, MAIN WIRE WPL 4001F03420 Contact Us For Availability
36
INSERT WPL 3413F00211 Contact Us For Availability
37
KNOB, CLOCK WPL 7711P12660 Contact Us For Availability
38
KNOB, THERMOSTAT WPL 7735P01760 Contact Us For Availability
39
KNOB, SELECTOR SWITCH WPL 7739P01860 Contact Us For Availability
40
KNOB, SURFACE SWITCH WPL 7737P01560 Contact Us For Availability
41
CATCH ASSY. WPL 8002P02060 Contact Us For Availability
42
LENS, SIGNAL LAMP WPL 7730P00160 Contact Us For Availability
43
LEVER, DOOR LOCK WPL 8009P01060 Contact Us For Availability
44
LAMP, SIGNAL WPL 7407P01760 Contact Us For Availability
45
BULB, OVEN WPL 7407P02660 Contact Us For Availability
46
LINING, INNER SIDE WPL 4009W04080 Contact Us For Availability
47
LINK, SWITCH WPL 7807P00460 Contact Us For Availability
48
NUT, TERMINAL BLOCK WPL 7103P02760 Contact Us For Availability
49
NUT, DISC ELEMENT WPL 7103P04760 Contact Us For Availability
50
WPL 3401F00411 WPL 3401F00411 Contact Us For Availability
51
WPL 2618F04580 WPL 2618F04580 Contact Us For Availability
52
WPL 7113P00260 WPL 7113P00260 Contact Us For Availability
53
WPL 3605F03180 WPL 3605F03180 Contact Us For Availability
53
WPL 3605F14651 WPL 3605F14651 Contact Us For Availability
53
WPL 3605F14880 WPL 3605F14880 Contact Us For Availability
53
WPL 8308P00160 WPL 8308P00160 Contact Us For Availability
54
WPL 7801P03060 WPL 7801P03060 Contact Us For Availability
55
WPL 7408P00260 WPL 7408P00260 Contact Us For Availability
56
WPL 3804F09380 WPL 3804F09380 Contact Us For Availability
57
WPL 3804F01245 WPL 3804F01245 Contact Us For Availability
58
WPL W10124350 WPL W10124350 Contact Us For Availability
58
WPL 7101P00560 WPL 7101P00560 Contact Us For Availability
58
WPL 7101P05760 WPL 7101P05760 Contact Us For Availability
59
WPL 7101P10160 WPL 7101P10160 Contact Us For Availability
59
WPL 7101P10260 WPL 7101P10260 Contact Us For Availability
60
WPL 3604F09245 WPL 3604F09245 Contact Us For Availability
62
WPL 3604F00780 WPL 3604F00780 Contact Us For Availability
62
WPL 3604F09720 WPL 3604F09720 Contact Us For Availability
63
WPL 3604F05551 WPL 3604F05551 Contact Us For Availability
64
WPL 3604F07480 WPL 3604F07480 Contact Us For Availability
65
WPL 7112P01960 WPL 7112P01960 Contact Us For Availability
66
WPL 7803P00260 WPL 7803P00260 Contact Us For Availability
67
WPL 8019P00260 WPL 8019P00260 Contact Us For Availability
67
WPL 8019P00 WPL 8019P00 Contact Us For Availability
× ![]()
