Model Whirlpool 1058AH-W ELECTRIC RANGE – Common Parts & Diagrams

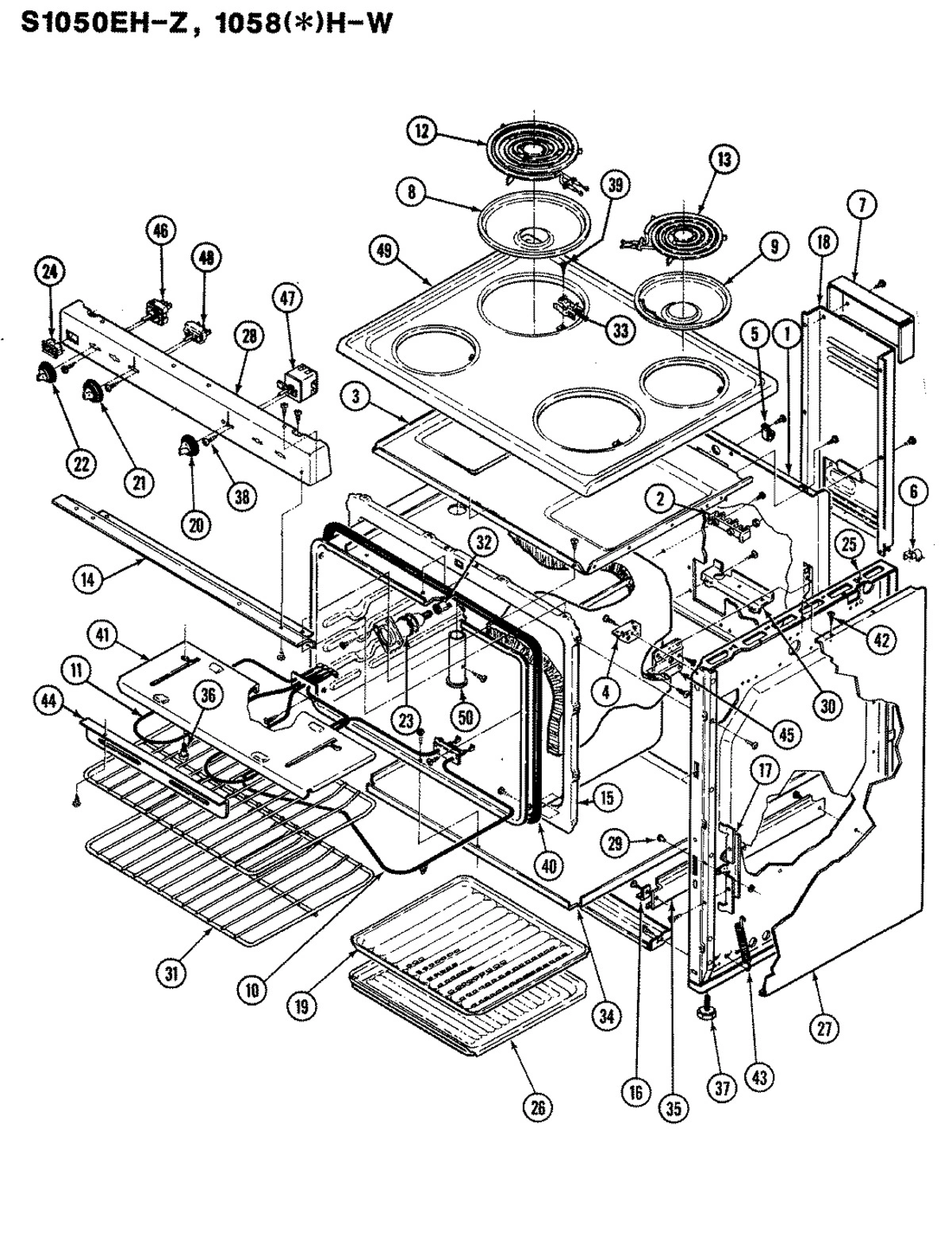

01 - BODY

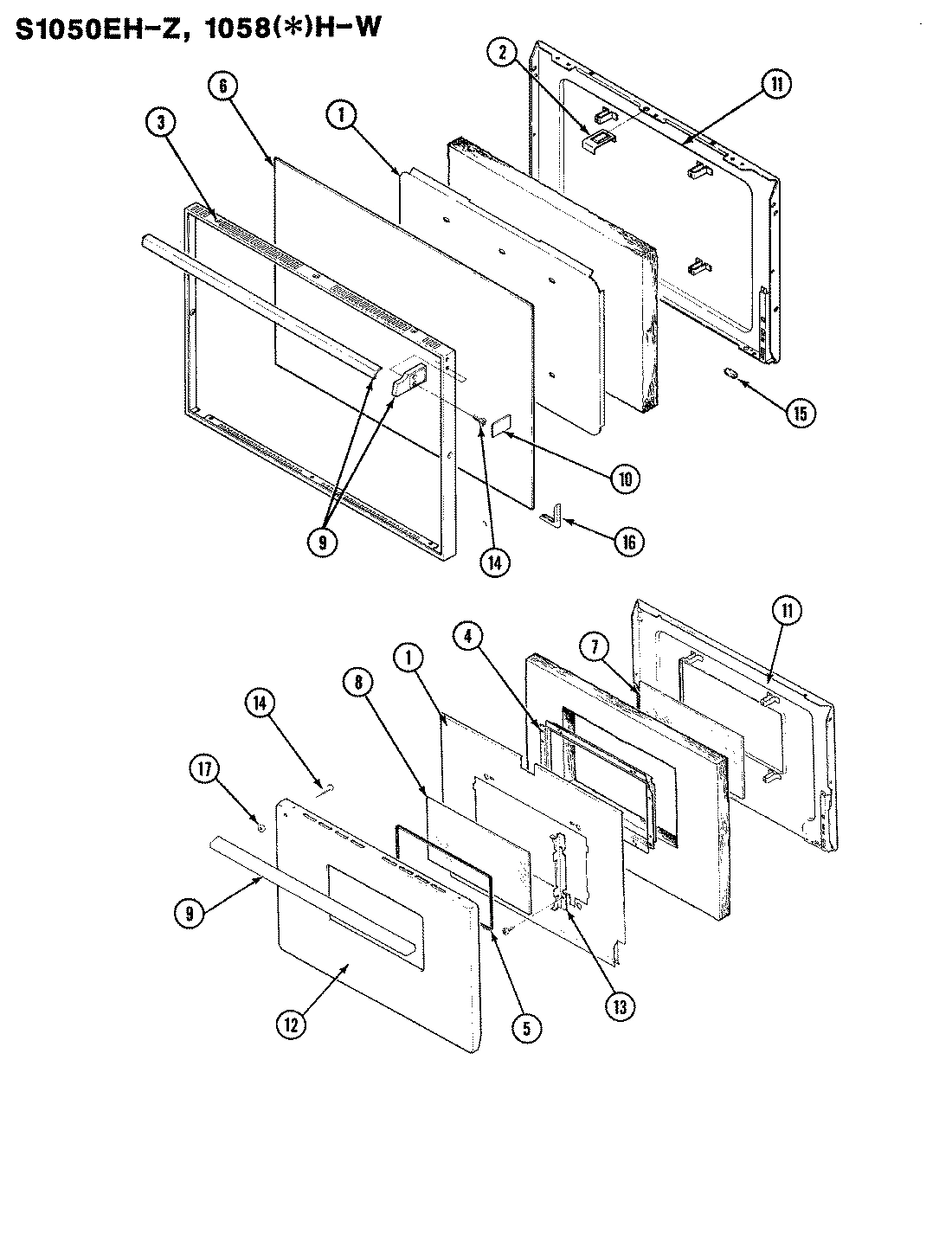

03 - DOOR

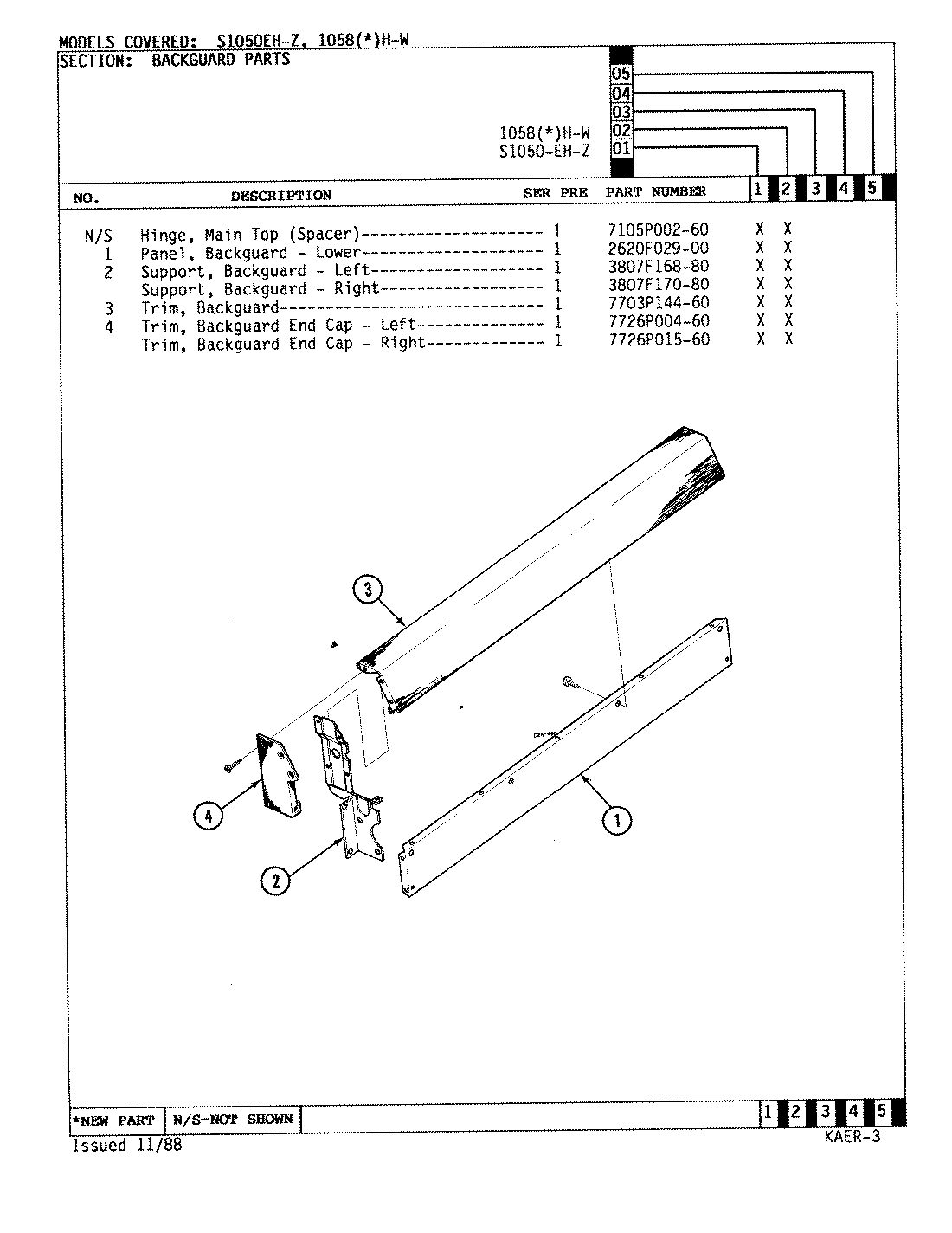

02 - CONTROL PANEL
Common parts from model Whirlpool 1058AH-W ELECTRIC RANGE
1
BACK, MAIN WPL 4002F09220 Contact Us For Availability
1
SUPPORT, MAIN TOP WPL 7105P00260 Contact Us For Availability
1
BAFFLE, OVEN DOOR WPL 3601F09451 Contact Us For Availability
1
BRACKET, DRAWER WPL 3801F11551 Contact Us For Availability
1
BRACE, DRAWER WPL 3802F04451 Contact Us For Availability
1
PANEL, BKGD LOWER BLK WPL 2620F02900 Contact Us For Availability
2
BLOCK, TERMINAL WPL 7401P00260 Contact Us For Availability
2
DRAWER ASSY. WPL 3405F00820 Contact Us For Availability
2
SUPPORT WPL 3807F16880 Contact Us For Availability
2
SUPPORT WPL 3807F17080 Contact Us For Availability
3
BRACE WPL 3802F00320 Contact Us For Availability
3
BRACE, MAIN TOP WPL 3802F02980 Contact Us For Availability
3
BOTTOM, BURNER BOX WPL 4011F12823 Contact Us For Availability
3
FRAME, DOOR WPL 7706P17860 Contact Us For Availability
3
TRIM, BACKGUARD WPL 7703P14460 Contact Us For Availability
4
BRACKET,CONTROL PANEL (R) WPL 3801F04734 Contact Us For Availability
4
BRACKET,CONTROL PANEL (L) WPL 3801F04934 Contact Us For Availability
4
FRAME, WINDOW----NA WPL 3603F01380 Contact Us For Availability
4
TRIM WPL 7726P00460 Contact Us For Availability
4
TRIM WPL 7726P01560 Contact Us For Availability
5
CLAMP, WIRE 3/4 WPL 7111P00260 Contact Us For Availability
5
GASKET, WINDOW WPL 7201P01760 Contact Us For Availability
6
SHIELD WPL 4005F01380 Contact Us For Availability
6
CLIP, TOP RETAINER WPL 7112P03060 Contact Us For Availability
7
COVER, HOUSING WPL 4005F08280 Contact Us For Availability
7
GLASS, DOOR INNER WPL 7902P03560 Contact Us For Availability
8
BOWL, DRIP (8``) WPL 7725P00160 Contact Us For Availability
8
BOWL, DRIP (8``) WPL 7725P01460 Contact Us For Availability
8
GLIDE, DRAWER WPL 8016P00460 Contact Us For Availability
8
GLIDE, FRONT WPL 8016P00560 Contact Us For Availability
8
GLASS WPL 7902P05160 Contact Us For Availability
9
BOWL, DRIP (6``) WPL 7725P00260 Contact Us For Availability
9
BOWL, DRIP (6``)(W/HOLE-CHR) WPL 7725P01560 Contact Us For Availability
9
HANDLE, DRAWER (CHR) WPL 7701P01260 Contact Us For Availability
9
HANDLE, DOOR (CHR) WPL 7701P03060 Contact Us For Availability
10
ELEMENT,BAKE WPL 7406P01060 Contact Us For Availability
11
ELEMENT,BROIL WPL 7406P00360 Contact Us For Availability
11
LINING ASSY, OV DR WPL 2402W09123 Contact Us For Availability
12
ELEMENT, GIANT SURFACE WPL 7406P01460 Contact Us For Availability
12
RUNNER, OUTER WPL 3406F00780 Contact Us For Availability
12
RUNNER, INNER WPL 3406F02080 Contact Us For Availability
12
PANEL, DOOR (ALM) WPL 2401F04274 Contact Us For Availability
12
PANEL, STORAGE DRAWER ALM WPL 2416F01774 Contact Us For Availability
12
PANEL, SVR DRAWER BLACK WPL 2416F01970 Contact Us For Availability
13
ELEMENT, STD. SURFACE WPL 7406P01760 Contact Us For Availability
13
RETAINER WPL 3804F05080 Contact Us For Availability
14
FRONT, BURNER BOX WPL 4012F01380 Contact Us For Availability
14
SCREW, CLAMP WPL 7101P08060 Contact Us For Availability
14
SCREW, SVC DOOR WPL 7101P22560 Contact Us For Availability
15
FRONT, FRAME OVEN WPL 2201F03223 Contact Us For Availability
15
SEAL, RUBBER WPL 7208P01160 Contact Us For Availability
17
HINGE, OVEN DOOR (LT) WPL 3418F02934 Contact Us For Availability
17
HINGE, OVEN DOOR (RT) WPL 3418F03034 Contact Us For Availability
17
HOUSING WPL 4001F01611 Contact Us For Availability
17
SPRING WPL 7803P00260 Contact Us For Availability
17
SUPPORT WPL 3807F17613 Contact Us For Availability
17
STOP, OVEN DOOR WPL 3420A03334 Contact Us For Availability
17
SPACER, HANDLE WPL 8010P00260 Contact Us For Availability
17
STRAP WPL 8019P00260 Contact Us For Availability
18
HOUSING, MAIN WIRE WPL 4001F03420 Contact Us For Availability
19
INSERT WPL 3413F00211 Contact Us For Availability
20
KNOB, SURFACE SWITCH WPL 7711P21960 Contact Us For Availability
21
KNOB, THERMOSTAT WPL 7711P21860 Contact Us For Availability
22
KNOB, SELECTOR SWITCH WPL 7711P22060 Contact Us For Availability
23
BULB, OVEN WPL 7407P02660 Contact Us For Availability
24
BLOCK, TERMINAL WPL 7401P01560 Contact Us For Availability
25
LINING ASSY, INNER SIDE WPL 4009W02880 Contact Us For Availability
26
PAN, BROIL WPL 3401F00411 Contact Us For Availability
27
PANEL, SIDE (ALM) WPL 2618F05274 Contact Us For Availability
28
PANEL, UPPER FRONT WPL 2614F00684 Contact Us For Availability
29
PIN, HINGE WPL 7113P00260 Contact Us For Availability
30
PLATE, CONDUIT WPL 3605F03180 Contact Us For Availability
30
PLATE, CONDUIT REINFORCEMENT WPL 3605F14651 Contact Us For Availability
30
PLATE, CONDUIT WPL 3605F14880 Contact Us For Availability
31
RACK, OVEN WPL 7801P03060 Contact Us For Availability
32
RECEPTACLE, LAMP WPL 7408P00260 Contact Us For Availability
33
BLOCK, SURFACE UNIT WPL 7401P01460 Contact Us For Availability
34
RETAINER, BOTTOM INS. WPL 3804F09380 Contact Us For Availability
36
SCREW WPL 7101P00560 Contact Us For Availability
36
SCREW WPL 7101P05760 Contact Us For Availability
37
SCREW, SPECIAL WPL 7101P02960 Contact Us For Availability
38
SCREW, THERMOSTAT WPL 7101P10160 Contact Us For Availability
39
SCREW WPL 7101P04260 Contact Us For Availability
40
SEAL, OVEN WPL 7212P00260 Contact Us For Availability
41
SHIELD, HOUSING WPL 3604F05620 Contact Us For Availability
41
SHIELD, BROIL WPL 3604F09245 Contact Us For Availability
42
SPACER, MAIN TOP WPL 8010P04860 Contact Us For Availability
45
SUPPORT, OVEN REAR WPL 3807F20545 Contact Us For Availability
46
SWITCH, SELECTOR WPL 7403P03160 Contact Us For Availability
47
SWITCH, INF. CONTROL WPL 7403P16860 Contact Us For Availability
48
THERMOSTAT WPL 7404P02960 Contact Us For Availability
49
TOP ASSY, MAIN WPL 2002W03104 Contact Us For Availability
50
TU WPL 8026P00160 Contact Us For Availability
51
WPL 8110P08760 WPL 8110P08760 Contact Us For Availability
× ![]()
