Model Whirlpool 103.74661114 Gas Range (Kenmore 10374661114) – Common Parts & Diagrams
OPTIONAL EQUIPMENT

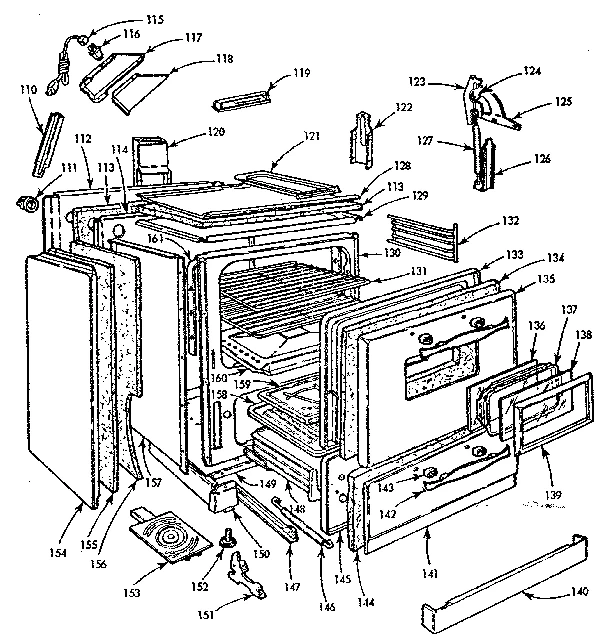

BODY SECTION

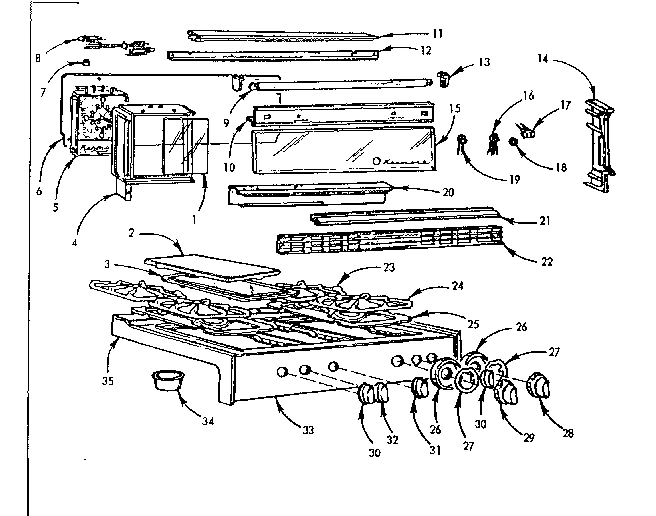

BACKGUARD AND MAIN TOP
All Parts

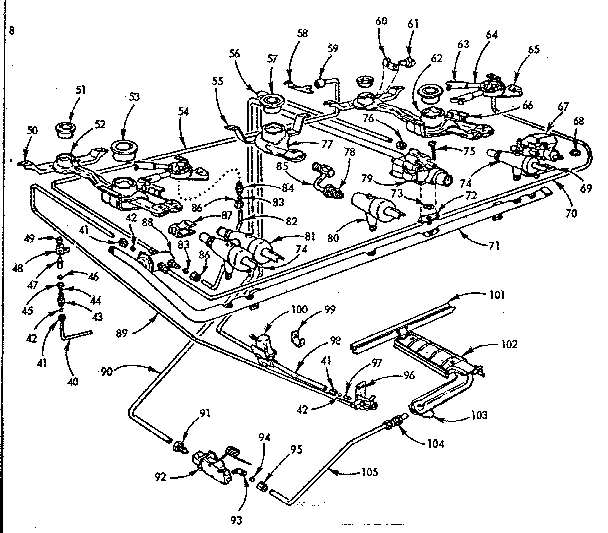

BURNER SECTION
Common parts from model Whirlpool 103.74661114 Gas Range (Kenmore 10374661114)
1
Glass Clock WPL 97972 Contact Us For Availability
2A
Grid Cover WPL 87984 Contact Us For Availability
2B
Grid Cover WPL 95544 Contact Us For Availability
2C
Covr Coppert WPL 98276 Contact Us For Availability
2D
Covr Yellow WPL 98277 Contact Us For Availability
2E
Cover Pink WPL 98278 Contact Us For Availability
3
Cooktop Griddle WPL 70754 Contact Us For Availability
4
Housing WPL 97923 Contact Us For Availability
5
Clock WPL 97970 Contact Us For Availability
6
Wire Cover WPL 95180 Contact Us For Availability
7
Clock Knob WPL 95327 Contact Us For Availability
8
Wire Harness WPL 99980 Contact Us For Availability
9
Flours Lamp WPL 77926 Contact Us For Availability
10
Control Panel WPL 99969 Contact Us For Availability
11
Backguard WPL 97920 Contact Us For Availability
12
Angle WPL 97945 Contact Us For Availability
13
Receptacle WPL 98407 Contact Us For Availability
14
Backguard End Cap WPL 89772 Contact Us For Availability
15
Lamp Glass WPL 101400 Contact Us For Availability
16
Push Switch WPL 98406 Contact Us For Availability
17
Outlet WPL 89646 Contact Us For Availability
18
Knurled Nut WPL 87403 Contact Us For Availability
19
Push Switch WPL 89977 Contact Us For Availability
20
Vent WPL 98170 Contact Us For Availability
21
Molding WPL 97916 Contact Us For Availability
22
Vent Trim WPL 98198 Contact Us For Availability
23A
Grate WPL 98111 Contact Us For Availability
23C
Grate WPL 98113 Contact Us For Availability
24A
Grate WPL 98110 Contact Us For Availability
24C
Grate WPL 98112 Contact Us For Availability
25A
Burner Bowl WPL 73254 Contact Us For Availability
25B
Burner Bowl WPL 88035 Contact Us For Availability
25C
Burner Bowl WPL 95009 Contact Us For Availability
25D
Burner Bowl WPL 73976 Contact Us For Availability
25E
Burner Bowl WPL 73978 Contact Us For Availability
26
Thermo Bezel WPL 87383 Contact Us For Availability
27
Thermo Sprng WPL 87568 Contact Us For Availability
28
Thermostat Knob WPL 100574 Contact Us For Availability
29
Thermostat Knob WPL 99595 Contact Us For Availability
30
Valve Knob WPL 97996 Contact Us For Availability
31
Grid Knob WPL 97997 Contact Us For Availability
32
Valve Knob WPL 97995 Contact Us For Availability
33B
Top Chrome WPL 98367 Contact Us For Availability
33C
Top Coppertn WPL 98268 Contact Us For Availability
33D
Top Yellow WPL 98269 Contact Us For Availability
33E
Top Pink WPL 98270 Contact Us For Availability
34
Grease Pan WPL 68801 Contact Us For Availability
35A
Trim WPL 97471 Contact Us For Availability
35B
Trim WPL 97470 Contact Us For Availability
40
#237665 IDENTIFICATION PLATE WPL N/P Contact Us For Availability
40A
Tubing-3/16 WPL 88045 Contact Us For Availability
40B
Tubing WPL 87384 Contact Us For Availability
41
Compres Nut WPL 65712 Contact Us For Availability
42
Sleeve WPL 65711 Contact Us For Availability
43
Orif Fittng WPL 87281 Contact Us For Availability
44A
Orifice Spud WPL 73891 Contact Us For Availability
44B
Orifice Spud WPL 73892 Contact Us For Availability
44C
Spud WPL 87795 Contact Us For Availability
45
Pal Nut WPL 73882 Contact Us For Availability
46
Air Shutter WPL 79865 Contact Us For Availability
47
Air Mix Tube WPL 87238 Contact Us For Availability
48
Bracket WPL 87303 Contact Us For Availability
49
Pilot Burner WPL 87329 Contact Us For Availability
50
Support WPL 86931 Contact Us For Availability
51
Burner Head WPL 97861 Contact Us For Availability
52
Burner Body WPL 95313 Contact Us For Availability
53A
Burner Head WPL 97853 Contact Us For Availability
53B
Burner Head WPL 73443 Contact Us For Availability
54
Tubing WPL 98319 Contact Us For Availability
55
Support WPL 86941 Contact Us For Availability
56
Tubing WPL 98330 Contact Us For Availability
57
Burner Head WPL 68279 Contact Us For Availability
58
Bracket WPL 73938 Contact Us For Availability
59
Tiny Pilot WPL 73511 Contact Us For Availability
60
Bracket WPL 71578 Contact Us For Availability
61
Charge Port WPL 71575 Contact Us For Availability
62
Burner Body WPL 87277 Contact Us For Availability
63
Flash Tube WPL 88435 Contact Us For Availability
65A
Pilot Housng WPL 87399 Contact Us For Availability
65B
Pilot Housng WPL 88443 Contact Us For Availability
66
Support WPL 87341 Contact Us For Availability
67
Thermostat WPL 98942 Contact Us For Availability
67A
Thermostat WPL 99391 Contact Us For Availability
68
Thermo Gaske WPL 87374 Contact Us For Availability
69
Therm Nipple WPL 88153 Contact Us For Availability
70
Tubing-1/8 WPL 95114 Contact Us For Availability
71
Manifold WPL 99874 Contact Us For Availability
72
Union Nipple WPL 95656 Contact Us For Availability
73
Therm Gasket WPL 96365 Contact Us For Availability
74
Gas Valve WPL 98178 Contact Us For Availability
74A
Gas Valve WPL 99884 Contact Us For Availability
75
Mounting Screw WPL 87570 Contact Us For Availability
76
Union Nut WPL 23191 Contact Us For Availability
77
Grid Burner WPL 97271 Contact Us For Availability
78
Loxit Nut WPL 79719 Contact Us For Availability
79
Thermostat WPL 99586 Contact Us For Availability
80
Valve WPL 98295 Contact Us For Availability
80A
Gas Valve WPL 98306 Contact Us For Availability
81
Gas Valve WPL 98429 Contact Us For Availability
82
Tubing-1/8 WPL 95113 Contact Us For Availability
83
Sleeve Ball WPL 74119 Contact Us For Availability
84
Fitting WPL 74026 Contact Us For Availability
85
Orifice Fitting WPL 86942 Contact Us For Availability
85A
Orifice Fitting WPL 98753 Contact Us For Availability
86
Compressor Nut WPL 74120 Contact Us For Availability
87
Air Shutter WPL 65112 Contact Us For Availability
88
Filter WPL 98144 Contact Us For Availability
89
Tubing WPL 96361 Contact Us For Availability
90
Tubing WPL 98327 Contact Us For Availability
91
Loxit Nut WPL 69549 Contact Us For Availability
92
F M Valve WPL 96264 Contact Us For Availability
93
Male Elbow WPL 25943 Contact Us For Availability
94
Sleeve Ball WPL 23587 Contact Us For Availability
95
Compressor Nut WPL 23702 Contact Us For Availability
96
Oven Pilot WPL 98986 Contact Us For Availability
97A
Orifice Spud WPL 96268 Contact Us For Availability
97B
Orifice Spud WPL 96266 Contact Us For Availability
97C
Orifice Spud WPL 96267 Contact Us For Availability
98
Tubing WPL 96397 Contact Us For Availability
99
Bulb Clip WPL 24558 Contact Us For Availability
100
Solenoid WPL 96398 Contact Us For Availability
101
Support WPL 96280 Contact Us For Availability
102
Oven Burner WPL 96381 Contact Us For Availability
103
Air Shutter WPL 65119 Contact Us For Availability
104
Orifice Fitting WPL 70513 Contact Us For Availability
104A
Orifice Fitting WPL 98310 Contact Us For Availability
105
Tubing WPL 96327 Contact Us For Availability
110
Raceway WPL 96737 Contact Us For Availability
111
Lamp Holder WPL 87883 Contact Us For Availability
112
Main WPL 93215 Contact Us For Availability
113
Insulation WPL 70508 Contact Us For Availability
114
Oven WPL 98052 Contact Us For Availability
115
Cord WPL 95403 Contact Us For Availability
116
Load Plug WPL 89979 Contact Us For Availability
117
Wire Cover WPL 96211 Contact Us For Availability
118
Cover WPL 96209 Contact Us For Availability
119
Flue Box WPL 98099 Contact Us For Availability
120
Deflector WPL 98163 Contact Us For Availability
121
Burner Tray WPL 70549 Contact Us For Availability
122
Retainer WPL 100332 Contact Us For Availability
123A
Door Hinge WPL 97756 Contact Us For Availability
123B
Door Hinge WPL 97757 Contact Us For Availability
124
Spring Link WPL 70402 Contact Us For Availability
125A
Door Arm WPL 97758 Contact Us For Availability
125B
Door Arm WPL 97759 Contact Us For Availability
126
Hanger WPL 96257 Contact Us For Availability
127
Spring WPL 70429 Contact Us For Availability
128
Burner Box WPL 98146 Contact Us For Availability
129
Top Lining WPL 70424 Contact Us For Availability
130
Frame WPL 95716 Contact Us For Availability
131
Oven Rack WPL 70822 Contact Us For Availability
132
Rack Guide WPL 86512 Contact Us For Availability
133
Door Lining WPL 97800 Contact Us For Availability
134
Insulation WPL 87578 Contact Us For Availability
135A
Door Panel WPL 100274 Contact Us For Availability
135C
Door Panel WPL 100525 Contact Us For Availability
135D
Door Panel WPL 100526 Contact Us For Availability
135E
Door Panel WPL 100527 Contact Us For Availability
136
Door Glass WPL 87001 Contact Us For Availability
137
Glass Spacer WPL 86998 Contact Us For Availability
138
Door Glass WPL 87002 Contact Us For Availability
139
Retainer WPL 95057 Contact Us For Availability
140
Toe Plate WPL 95950 Contact Us For Availability
141A
Panel WPL 89960 Contact Us For Availability
141C
Door Panel WPL 100535 Contact Us For Availability
141D
Door Panel WPL 100536 Contact Us For Availability
141E
Door Panel WPL 100537 Contact Us For Availability
142
Door Handle WPL 99715 Contact Us For Availability
143
Spacer WPL 99741 Contact Us For Availability
144
Insulation WPL 87579 Contact Us For Availability
145
Door Lining WPL 89973 Contact Us For Availability
146
Door Spring WPL 69219 Contact Us For Availability
147A
Drive Guide WPL 69003 Contact Us For Availability
147B
Drive Guide WPL 69002 Contact Us For Availability
148
Drawer Broil WPL 95926 Contact Us For Availability
149
Main WPL 70444 Contact Us For Availability
150
Base Panel WPL 95956 Contact Us For Availability
151A
Hinge Arm WPL 68765 Contact Us For Availability
151B
Hinge Arm WPL 68766 Contact Us For Availability
152
Leveler WPL 69065 Contact Us For Availability
153
Support WPL 98092 Contact Us For Availability
154A
Body WPL 79588 Contact Us For Availability
154C
Body WPL 95216 Contact Us For Availability
154D
Body WPL 79590 Contact Us For Availability
154E
Body WPL 79589 Contact Us For Availability
155
Insulation WPL 70700 Contact Us For Availability
156
Insulation WPL 70520 Contact Us For Availability
157A
Oven WPL 96277 Contact Us For Availability
157B
Oven WPL 96275 Contact Us For Availability
158
Broiler Pan WPL 95734 Contact Us For Availability
159
Broiler Grid WPL 97843 Contact Us For Availability
160
Oven WPL 96506 Contact Us For Availability
161
Door Seal WPL 88037 Contact Us For Availability
181
Grate WPL 71615 Contact Us For Availability
181A
Grate WPL 70753 Contact Us For Availability
182
Cooktop WPL 70752 Contact Us For Availability
182A
Burner Bowl WPL 99732 Contact Us For Availability
183
Burner Tray WPL 70866 Contact Us For Availability
185
Cover Plate WPL 100098 Contact Us For Availability
186
Motor Box WPL 100523 Contact Us For Availability
187
Cord WPL 100097 Contact Us For Availability
188
Broiler Pan WPL 97898 Contact Us For Availability
189
Frame WPL 75857 Contact Us For Availability
190
Spit WPL 100092 Contact Us For Availability
191
Skewer WPL 88420 Contact Us For Availability
192
Thumbscrew WPL 70287 Contact Us For Availability
193
Rotisserie Motor WPL 100084 Contact Us For Availability
NI
Owner's Manual WPL 101405 Contact Us For Availability
NI
Lamp Bulb WPL 65973 Contact Us For Availability
NI
Lock Washer WPL 69648 Contact Us For Availability
NI
Flue Box WPL 70847 Contact Us For Availability
NI
Pressure Regulator WPL 85197 Contact Us For Availability
NI
Retainer WPL 87935 Contact Us For Availability
NI
Screw WPL 95074 Contact Us For Availability
NI
Range Spacer WPL 95081 Contact Us For Availability
NI
Ballast WPL 98186 Contact Us For Availability
× ![]()
Login and Registration Form
