Model LG 058231306842 DVD-Writer Drive External – Common Parts & Diagrams

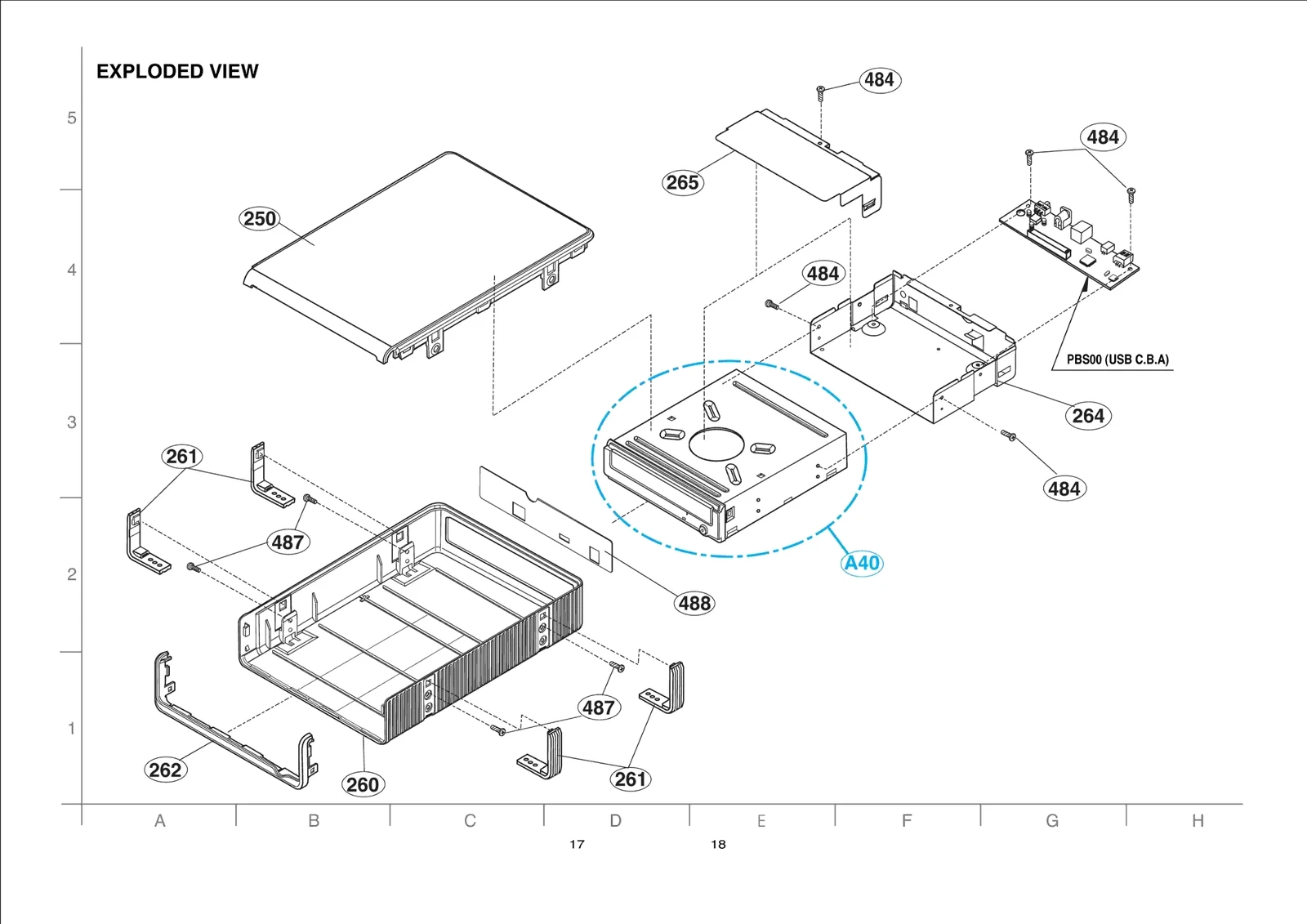

Diagram 0
Diagram 1
Common parts from model LG 058231306842 DVD-Writer Drive External
003
Bezel Assembly LGE AAU72911701 Contact Us For Availability
007
Tray LGE MJS58752502 Contact Us For Availability
014
Base LGE MAM58752601 Contact Us For Availability
022
Cable,FFC LGE EAD61506101 Contact Us For Availability
022
Cable,FFC LGE EAD61506104 Contact Us For Availability
027
Spring LGE 4970H-1136A Contact Us For Availability
031
Base LGE MAM62066801 Contact Us For Availability
033
Cable,FFC LGE EAD56615101 Contact Us For Availability
260
Cover LGE MCK41757301 Contact Us For Availability
262
COVER LGE 3550H-1128A Contact Us For Availability
264
Housing LGE MEK41757101 Contact Us For Availability
484
SCREW,DRAWING LGE 1SZZH-1214A Contact Us For Availability
487
SCREW,DRAWING LGE 1SZZH-1217A Contact Us For Availability
488
Sheet LGE MHK62709001 Contact Us For Availability
806
Box LGE 3890H-1970A Contact Us For Availability
807
Bag LGE MAF62949502 Contact Us For Availability
808
Packing LGE 3920H-1113A Contact Us For Availability
C209
Capacitor,Ceramic,Chip LGE 0CK683BF5CA Contact Us For Availability
C214
Capacitor,Ceramic,Chip LGE 0CK105DF56A Contact Us For Availability
C331
Capacitor,Ceramic,Chip LGE 0CK223BF5CA Contact Us For Availability
C332
Capacitor,Ceramic,Chip LGE 0CK473BD56A Contact Us For Availability
C339
Capacitor,Ceramic,Chip LGE 0CK104BD56A Contact Us For Availability
C401
Capacitor,Ceramic,Chip LGE 0CK103BF5CA Contact Us For Availability
C410
Capacitor,Ceramic,Chip LGE 0CK105CC5CA Contact Us For Availability
C451
Capacitor,Ceramic,Chip LGE 0CK223BF56A Contact Us For Availability
C493
Capacitor,Ceramic,Ch LGE 0CZZB00068A Contact Us For Availability
C502
Capacitor,Ceramic,Chip LGE 0CK105CC56A Contact Us For Availability
C506
Capacitor,Ceramic,Chip LGE 0CK475CCG7A Contact Us For Availability
C516
Capacitor,Ceramic,Chip LGE 0CK104BDG7A Contact Us For Availability
C519
Capacitor,Ceramic,Chip LGE 0CK103BF56A Contact Us For Availability
C520
Capacitor,Ceramic,Chip LGE 0CC105BC5DA Contact Us For Availability
C523
Capacitor,Ceramic,Chip LGE 0CC100BK41A Contact Us For Availability
C524
Capacitor,Ceramic,Chip LGE 0CK106DC56A Contact Us For Availability
C528
Capacitor,Ceramic,Chip LGE 0CH1105F946 Contact Us For Availability
C529
CAPACITOR,FIXED ELEC LGE 0CE227SF6DC Contact Us For Availability
C532
CAPACITOR,CHIP[CERAM LGE 0CH1104K942 Contact Us For Availability
C534
Capacitor,AL,Chip LGE 0CH8107C621 Contact Us For Availability
C535
Capacitor,Ceramic,Chip LGE 0CH4331K412 Contact Us For Availability
C536
Capacitor,Ceramic,Chip LGE 0CH1226D944 Contact Us For Availability
C555
Capacitor,Ceramic,Chip LGE 0CK222BKG6A Contact Us For Availability
C602
Capacitor,Ceramic,Chip LGE 0CK106FF94A Contact Us For Availability
C604
Capacitor,Ceramic,Chip LGE 0CK104BF94A Contact Us For Availability
C702
CAPACITOR,CHIP[AL. ELECTROLYTI LGE 0CH8227C621 Contact Us For Availability
C702
Capacitor,AL,Chip LGE DCH8227C621 Contact Us For Availability
C705
Capacitor,Ceramic,Chip LGE 0CK102BK5CA Contact Us For Availability
C706
Capacitor,AL,Chip LGE 0CH8107F621 Contact Us For Availability
C706
Capacitor,AL,Chip LGE DCH8107F621 Contact Us For Availability
C805
Capacitor,Ceramic,Chip LGE 0CK101BK4CA Contact Us For Availability
C807
Capacitor,Ceramic,Chip LGE 0CK332BK56A Contact Us For Availability
C811
Capacitor,Ceramic,Chip LGE 0CK152BK5CA Contact Us For Availability
C815
Capacitor,Ceramic,Chip LGE 0CK821BK56A Contact Us For Availability
CN503
JACK,PHONE LGE 6612F00100A Contact Us For Availability
D501
DIODE,SWITCHING LGE 0DSAU00168A Contact Us For Availability
IC501
IC,Data Controller LGE EAN36214302 Contact Us For Availability
IC502
IC,Serial Flash Memory LGE EAN42668301 Contact Us For Availability
IC503
IC,DC,DC Converter LGE EAN42433602 Contact Us For Availability
IC601
IC,Motor Driver LGE EAN38787804 Contact Us For Availability
IC900
IC,LDO Voltage Regulator LGE EAN41406704 Contact Us For Availability
IC900
IC,LDO Voltage Regulator LGE EAN41406702 Contact Us For Availability
IC901
IC,LDO Voltage Regul LGE EAN33989101 Contact Us For Availability
IC901
IC,LDO Voltage Regul LGE 0IPMG78417A Contact Us For Availability
L501
Filter,Bead LGE 6200JB8010M Contact Us For Availability
L502
INDUCTOR,CHIP LGE 0LCTD00041A Contact Us For Availability
L502
INDUCTOR,CHIP LGE 0LCSH00014A Contact Us For Availability
LED1
LED,DIP LGE EAV42767101 Contact Us For Availability
LED1
LED,DIP LGE 0DLAU0150AC Contact Us For Availability
LED1
LED,DIP LGE 0DLAU0150AA Contact Us For Availability
Q651
TR,Array LGE EBK56604801 Contact Us For Availability
Q651
TR,Array LGE 0TRAU80020A Contact Us For Availability
Q651
TR,Array LGE EBK57025101 Contact Us For Availability
R301
Resistor,Chip LGE 0RJ1202C478 Contact Us For Availability
R502
Resistor,Chip LGE 0RJ0000C678 Contact Us For Availability
R509
Resistor,Chip LGE 0RJ4700C678 Contact Us For Availability
R511
RESISTOR,METAL GLAZE LGE 0RJ2700C678 Contact Us For Availability
R511
RESISTOR,METAL GLAZE LGE 0RJ2002C478 Contact Us For Availability
R512
Resistor,Chip LGE 0RJ3902C478 Contact Us For Availability
R513
Resistor,Chip LGE 0RJ6202C678 Contact Us For Availability
R514
Resistor,Chip LGE 0RJ1201C678 Contact Us For Availability
R515
Resistor,Chip LGE 0RJ2200C678 Contact Us For Availability
R517
Resistor,Chip LGE 0RJ1004C678 Contact Us For Availability
R518
Resistor,Chip LGE 0RJ0222C678 Contact Us For Availability
R519
Resistor,Chip LGE 0RJ1201C478 Contact Us For Availability
R521
Resistor,Chip LGE 0RH1201C622 Contact Us For Availability
R523
Resistor,Chip LGE 0RH2001C622 Contact Us For Availability
R524
Resistor,Chip LGE 0RH2200C622 Contact Us For Availability
R552
Resistor,Chip LGE 0RJ3301C678 Contact Us For Availability
R553
Resistor,Chip LGE 0RJ4701C678 Contact Us For Availability
R631
Resistor,Chip LGE 0RJ1003C678 Contact Us For Availability
R651
Resistor,Chip LGE 0RJ1500C678 Contact Us For Availability
R801
Resistor,Chip LGE 0RJ1002C678 Contact Us For Availability
R803
Resistor,Chip LGE 0RJ2702C678 Contact Us For Availability
R805
Resistor,Chip LGE 0RJ1503C678 Contact Us For Availability
R806
Resistor,Chip LGE 0RH8202B622 Contact Us For Availability
R903
Resistor,Chip LGE 0RJ0392C478 Contact Us For Availability
R904
Resistor,Chip LGE 0RJ3300C678 Contact Us For Availability
R909
Resistor,Chip LGE 0RH0102E622 Contact Us For Availability
RA201
RESISTOR,DRAWING LGE 0RR0472C675 Contact Us For Availability
RA502
Filter,Bead LGE 6200J000179 Contact Us For Availability
SW1
Switch,Tact LGE 6600HRA003A Contact Us For Availability
SW1
Switch,Tact LGE 558-026I Contact Us For Availability
X331
Resonator,Ceramic LGE EAW60667204 Contact Us For Availability
ZD1
Diode,TVS LGE EAH60689302 Contact Us For Availability
× ![]()
